Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
INSTRUMENTS AND CONTROLS 125
While in the Info Page Options menu,
the info pages can be restored to the
default factory settings by pressing
and holding
Ron the left steering
wheel controls and the thumbwheel
on the right steering wheel controls at
the same time.
Speed : Shows the vehicle speed in
either kilometers per hour (km/h) or
miles per hour (mph).
Trip 1 or Trip 2 and Average Fuel
Economy : The Trip display shows the
current distance traveled, in either
kilometers (km) or miles (mi), since
the trip odometer was last reset. The
trip odometer can be reset by pressing
Vand selecting yes or no while this
display is active.
Shows the approximate average liters
per 100 kilometers (L/100 km),
kilometers per liter (km/L), or miles
per gallon (mpg). This number is
calculated based on the number of
L/100 km (mpg) or km/L recorded
since the last time this menu item
was reset. This number reflects only
the approximate average fuel economy
that the vehicle has right now, and
will change as driving conditions change. The Average Fuel Economy
can be reset by pressing
Vand
selecting yes or no while this display
is active.
Fuel Range : Shows the approximate
distance the vehicle can be driven
without refueling. LOW will be
displayed when the vehicle is low on
fuel. The fuel range estimate is based
on an average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Oil Life : Shows an estimate of the
oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.
When the remaining oil life is low, the
CHANGE ENGINE OIL SOON message
will appear on the display. The oil
should be changed as soon as
possible. See Engine Oil0325. In
addition to the engine oil life system
monitoring the oil life, additional
maintenance is recommended. See
Maintenance Schedule 0395. The Oil Life display must be reset
after each oil change. It will not reset
itself. Do not reset the Oil Life display
accidentally at any time other than
when the oil has just been changed.
It cannot be reset accurately until the
next oil change. To reset, see
Engine
Oil Life System 0327.
Tire Pressure : Shows the
approximate pressures of all four tires.
Tire pressure is displayed in either
kilopascal (kPa) or in pounds per
square inch (psi). If the pressure is
low, the value for that tire is shown in
amber. See Tire Pressure Monitor
System 0360 and
Tire Pressure Monitor Operation 0361.
Air Filter Life : Shows an estimate of
the engine air filter’s remaining useful
life and the state of the system.
Engine Air Filter Life 95% means 95%
of the current air filter life remains.
Messages will display based on the
engine air filter life and the state of
the system. When the REPLACE AT
NEXT OIL CHANGE message displays,
the engine air filter should be replaced
at the time of the next oil change.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
126 INSTRUMENTS AND CONTROLS
When the REPLACE NOW message
displays, the engine air filter should
be replaced as soon as possible.
The Air Filter Life display must be
reset after the engine air filter
replacement. To reset, seeEngine Air
Filter Life System 0328.
Fuel Economy : Displays average fuel
economy, the best fuel economy over
the selected distance, and a bar graph
showing instantaneous fuel economy.
If the vehicle is equipped with an
Active Fuel Management indicator,
the engine operating mode may be
shown in the corner of this display.
Average Speed : Displays the average
vehicle speed of the vehicle in
kilometers per hour (km/h) or miles
per hour (mph). This average is based
on the various vehicle speeds recorded
since the last reset. Reset the average
speed by pressing the thumbwheel
while this display is active to show a
confirmation window to select yes
or no.
Timer : This display can be used as a
timer. To start the timer, press the
thumbwheel while this display is active. The display will show the
amount of time that has passed since
the timer was last reset. To stop the
timer, press the thumbwheel briefly
while this display is active and the
timer is running.
Press the thumbwheel while this
display is active to reset the timer.
Follow Distance/Gap Setting :
When
Adaptive Cruise Control (ACC) is not
engaged, the current follow time to
the vehicle ahead is displayed as a
time value on this page. When ACC
has been engaged, the display
switches to the gap setting page. This
page shows the current gap setting
along with the vehicle ahead indicator.
Driver Assistance : If equipped,
shows information for Lane Keep
Assist (LKA) and Forward Collision
Alert (FCA).
Battery Voltage : Shows the current
battery voltage.
Coolant Temperature : Shows the
engine coolant temperature in either
degrees Celsius (°C) or degrees
Fahrenheit (°F). Oil Temperature :
Shows the engine
oil temperature in either degrees
Celsius (°C) or degrees Fahrenheit (°F).
Engine Boost : If equipped, displays
engine manifold pressure relative to
ambient air pressure. It will display
boost pressure generated by the
turbocharging system.
Transmission Fluid Temperature :
Shows the temperature of the
automatic transmission fluid in either
degrees Celsius (°C) or degrees
Fahrenheit (°F).
Off Road : Displays vehicle pitch and
roll information, road wheel angle,
and four-wheel drive (4WD) status.
Info Page Options : Scroll to choose
which info pages appear on the DIC.
Press the thumbwheel to select or
deselect.
Blank Page : Allows for no
information to be displayed in the
cluster info display areas.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
INFOTAINMENT SYSTEM 195
Set Audio Volume Limit :Allows a
maximum radio volume to be set. Use
the arrows to choose the maximum
allowable level for the audio volume.
Teen Driver Speed Limiter : Limits
the maximum speed of the vehicle.
When the speed limiter is turned on
and the vehicle is started with a Teen
Driver key, the DIC displays a message
that the top speed is limited.
On certain vehicles, when the Speed
Limiter is turned ON, the vehicle’s
maximum acceleration will be limited.
The DIC will display a message that
the acceleration is limited.
Teen Driver Speed Warning : Allows
the speed warning to be turned on or
off. Touch Set Teen Driver Speed
Warning to set the warning speed.
Set Teen Driver Speed Warning :
Displays a warning in the DIC when
exceeding a selectable speed. Choose
the desired speed warning level. The
speed warning does not limit the
speed of the vehicle. SiriusXM Explicit Content Filter (if
equipped) :
Allows the SiriusXM
Explicit Content Filter to be turned
ON or OFF. When ON, the teen driver
will not be able to listen to SiriusXM
stations that contain explicit content,
and the Explicit Content Filter
selection in the Audio Settings will be
unavailable for change.
When Teen Driver is Active:
.If equipped with Buckle to Drive,
shifting out of P (Park) will be
prevented if the driver seat belt, and
in some vehicles the front passenger
seat belt, is not buckled.
.The radio will mute when the driver
seat belt, and in some vehicles the
front passenger seat belt, is not
buckled. The audio from any device
paired to the vehicle will also be
muted.
.An object placed on the front
passenger seat, such as a briefcase,
handbag, grocery bag, laptop,
or other electronic device, could
cause the passenger sensing system
to falsely sense an unbuckled front
passenger and mute the radio. If this happens, remove the object
from the seat. See
Passenger Sensing
System 067.
.Some safety systems, such as
Forward Collision Alert, if equipped,
cannot be turned off.
.The gap setting for the Forward
Collision Alert and Adaptive Cruise
Control, if equipped, cannot be
changed.
.When trying to change a safety
feature that is not configurable in
Teen Driver, the DIC displays a
message indicating that Teen Driver
is active and the action is not
available.
.Super Cruise, if equipped, is not
available.
.Enhanced Low Fuel Warning (if
equipped) –When the vehicle is low
on fuel, the low fuel light on the
instrument cluster flashes and the
DIC low fuel warning cannot be
dismissed.
.Do not tow a trailer.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
SERVICE AND MAINTENANCE 395
The Tire Rotation and Required
Services are the responsibility of the
vehicle owner. It is recommended to
have your dealer perform these
services every 12 000 km/7,500 mi.
Proper vehicle maintenance helps to
keep the vehicle in good working
condition, improves fuel economy, and
reduces vehicle emissions.
Because of the way people use
vehicles, maintenance needs vary.
There may need to be more frequent
checks and services. The Additional
Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire
and Loading Information label. See
Vehicle Load Limits0226.
.Are driven on reasonable road
surfaces within legal driving limits.
.Use the recommended fuel. See
Recommended Fuel (2.0L L4 Turbo
Engine) 0301 or
Recommended Fuel (3.6L V6 Engine)
0 302.
Refer to the information in the
Maintenance Schedule Additional
Required Services - Normal chart. The Additional Required Services -
Severe are for vehicles that are:
.Mainly driven in heavy city traffic
in hot weather.
.Mainly driven in hilly or
mountainous terrain.
.Frequently towing a trailer.
.Used for high speed or competitive
driving.
.Used for taxi, police, or delivery
service.
Refer to the information in the
Maintenance Schedule Additional
Required Services - Severe chart.
{Warning
Performing maintenance work can
be dangerous and can cause serious
injury. Perform maintenance work
only if the required information,
proper tools, and equipment are
available. If they are not, see your
dealer to have a trained technician
do the work. See Doing Your Own
Service Work 0319.
Maintenance Schedule
Owner Checks and Services
Check the engine oil level. See Engine
Oil 0325.
Once a Month
.Check the tire inflation pressures.
See Tire Pressure 0358.
.Inspect the tires for wear. See Tire
Inspection 0364.
.Check the windshield washer fluid
level. See Washer Fluid 0335.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km (600 mi). If driven
under the best conditions, the engine
oil life system may not indicate the
need for vehicle service for up to a
year. The engine oil and filter must be
changed at least once a year and the
oil life system must be reset. Your
trained dealer technician can perform
this work. If the engine oil life system
is reset accidentally, service the
vehicle within 5 000 km (3,000 mi)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

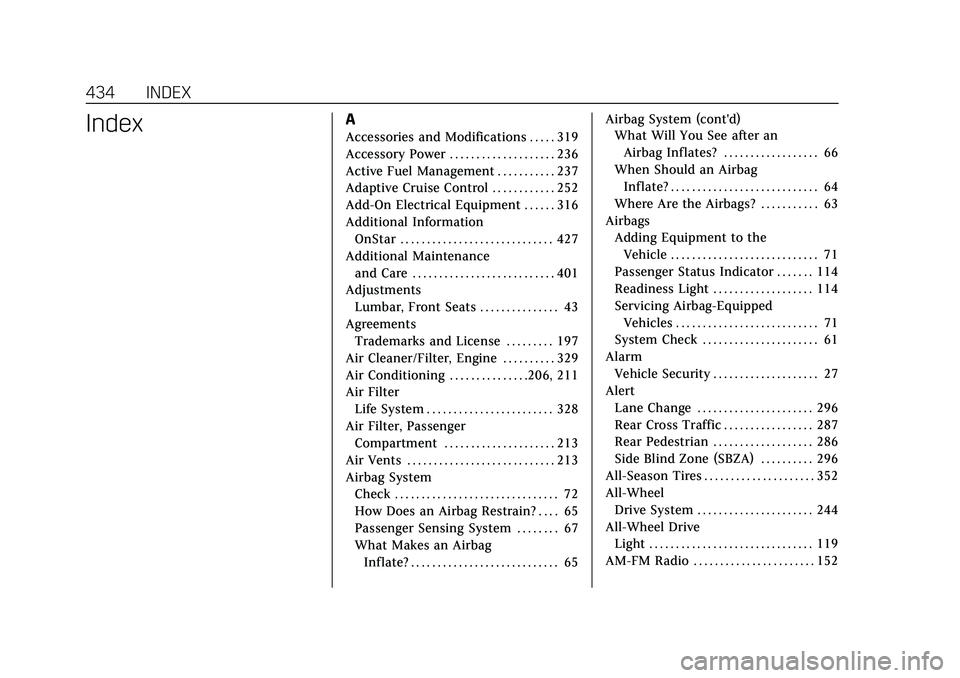

434 INDEX
IndexA
Accessories and Modifications . . . . . 319
Accessory Power . . . . . . . . . . . . . . . . . . . . 236
Active Fuel Management . . . . . . . . . . . 237
Adaptive Cruise Control . . . . . . . . . . . . 252
Add-On Electrical Equipment . . . . . . 316
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . 43
Agreements Trademarks and License . . . . . . . . . 197
Air Cleaner/Filter, Engine . . . . . . . . . . 329
Air Conditioning . . . . . . . . . . . . . . .206, 211
Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . . . 328
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . . . . . 213
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
How Does an Airbag Restrain? . . . . 65
Passenger Sensing System . . . . . . . . 67
What Makes an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Airbag System (cont'd)
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . . . . . . 66
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Where Are the Airbags? . . . . . . . . . . . 63
Airbags
Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Passenger Status Indicator . . . . . . . 114
Readiness Light . . . . . . . . . . . . . . . . . . . 114
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
System Check . . . . . . . . . . . . . . . . . . . . . . 61
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . 27
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . 296
Rear Cross Traffic . . . . . . . . . . . . . . . . . 287
Rear Pedestrian . . . . . . . . . . . . . . . . . . . 286
Side Blind Zone (SBZA) . . . . . . . . . . 296
All-Season Tires . . . . . . . . . . . . . . . . . . . . . 352
All-Wheel Drive System . . . . . . . . . . . . . . . . . . . . . . 244
All-Wheel Drive Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . 152

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
INDEX 437
Door (cont'd)Delayed Locking . . . . . . . . . . . . . . . . . . . 18
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . 18
Drive Belt Routing, Engine . . . . . . . . . 411
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . . . . . . 244
Driver Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Driver Assistance Systems . . . . . . . . . 276
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 124
Driver Mode Control . . . . . . . . . . . . . . . . 248
Driver Mode Control Light . . . . . . . . . 121
Driving Assistance Systems . . . . . . . . . . . . . . . 287
Better Fuel Economy . . . . . . . . . . . . . 216
Characteristics and
Towing Tips . . . . . . . . . . . . . . . . . . . . . 305
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Hill and Mountain Roads . . . . . . . . 224
If the Vehicle is Stuck . . . . . . . . . . . . 226
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Loss of Control . . . . . . . . . . . . . . . . . . . . 219
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Off-Road Recovery . . . . . . . . . . . . . . . . 219
Vehicle Load Limits . . . . . . . . . . . . . . 226
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 223 Driving (cont'd)
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . 206
E
Electric Brake Boost . . . . . . . . . . . . . . . . 244
Electric Parking Brake . . . . . . . . . . . . . . 245
Electric Parking Brake Light . . . . . . . 118
Electrical Equipment, Add-On . . . . . 316
Electrical SystemEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Fuses and Circuit Breakers . . . . . . . 343
Instrument Panel Fuse Block . . . . 347
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 329
Check Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 115
Compartment Overview . . . . . . . . . . 322
Coolant Temperature Gauge . . . . . 113
Cooling System . . . . . . . . . . . . . . . . . . . 330
Drive Belt Routing . . . . . . . . . . . . . . . . 411 Engine (cont'd)
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Oil Life System . . . . . . . . . . . . . . . . . . . . 327
Oil Pressure Light . . . . . . . . . . . . . . . . . 122
Overheating . . . . . . . . . . . . . . . . . . . . . . . 334
Power Messages . . . . . . . . . . . . . . . . . . 130
Running While Parked . . . . . . . . . . . 238
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine Air Filter Life System . . . . . . 328
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 144
Equipment, Towing . . . . . . . . . . . . . . . . . 312
Event Data Recorders . . . . . . . . . . . . . . 423
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 145
Extended Parking . . . . . . . . . . . . . . . . . . . 237
Extender, Seat Belt . . . . . . . . . . . . . . . . . . 60
Exterior Lamp Controls . . . . . . . . . . . . 139
Exterior Lamps Off Reminder . . . . . . 141
Exterior Lighting Battery Saver . . . . 145
F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . 329
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 141
Flashers, Hazard Warning . . . . . . . . . . 142
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
INDEX 441
Online Owner Center . . . . . . . . . . . . . . . 415
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
OnStar Additional Information . . . . 427
OnStar Emergency . . . . . . . . . . . . . . . . . . 426
OnStar Overview . . . . . . . . . . . . . . . . . . . . 425
OnStar Security . . . . . . . . . . . . . . . . . . . . . 426
OnStar System . . . . . . . . . . . . . . . . . . . . . . 171
OutletsPower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Overheating, Engine . . . . . . . . . . . . . . . . 334
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Instrument Panel . . . . . . . . . . . . . . . . . . . . 4
P
ParkShifting Into . . . . . . . . . . . . . . . . . . . . . . 236
Shifting Out of . . . . . . . . . . . . . . . . . . . . 236
Park Assist . . . . . . . . . . . . . . . . . . . . .278, 281
Parking Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 338
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Over Things That Burn . . . . . . . . . . . 237
Parking Assist Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 282
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . 278 Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Passenger Sensing System . . . . . . . . . . 67
Pedestrian Ahead Indicator . . . . . . . . 120
Perchlorate Materials Requirements, California . . . . . . . . . 319
Performance Shifting Light . . . . . . . . 119
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Phone Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . . . . . . 184
Bluetooth . . . . . . . . . . . . . . . . . . . . 179, 180
Port
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Positioning Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Protection, Battery . . . . . . . . . . . . . . . . 145
Retained Accessory (RAP) . . . . . . . . 236
Seat Adjustment . . . . . . . . . . . . . . . . . . . 41
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Pregnancy, Using Seat Belts . . . . . . . . . 59 Privacy
Vehicle Data Recording . . . . . . . . . . 423
Problems with Route Guidance . . . . 172
Program Courtesy Transportation . . . . . . . . . 418
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . 302
Proposition 65 Warning, California . . . . . . . . . . . . . . . . . . . . .337, 379, Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . 421
R
Radio
HD Radio Technology . . . . . . . . . . . . 154
Radio Data System (RDS) . . . . . . . . . . 155
Radio Frequency Statement . . . . . . . . 421
Radio Reception . . . . . . . . . . . . . . . . . . . . 156
Radios AM-FM Radio . . . . . . . . . . . . . . . . . . . . . 152
Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Reading Lamps . . . . . . . . . . . . . . . . . . . . . 144
Rear Camera Mirror . . . . . . . . . . . . . . . . . 32
Rear Climate Control System . . . . . . 211
Rear Cross Traffic Alert System . . . 287
Rear Pedestrian Alert . . . . . . . . . . . . . . . 286
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
