heater CADILLAC XT6 2023 Owners Manual

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
54 Seats and Restraints
Heated and
Ventilated Front
Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. To reduce the
risk of burns, use care when
using the seat heater,
especially for long periods of
time. Do not place anything
on the seat that insulates
against heat, such as a
blanket, cushion, cover,
or similar item. This may
cause the seat heater to
overheat. An overheated
seat heater may cause a
burn or may damage
the seat.
Heated and Ventilated Seat
Buttons Shown, Heated Seat Buttons Similar
If equipped, the buttons are
near the climate controls on
the center stack. To operate,
the engine must be running.
Press
MorLto heat the
driver or passenger seatback
and cushion.
Press
Cor{, if equipped, to
ventilate the driver or
passenger seat. A ventilated
seat has a fan that pulls or
pushes air through the seat.
The air is not cooled. When this feature is off, the
heated and ventilated seat
symbols on the buttons are
white. When a heated seat is
turned on, the symbol turns
red. When a ventilated seat is
turned on, the symbol
turns blue.
Press the button once for the
highest setting. With each
press of the button, the seat
will change to the next lower
setting, and then to the off
setting. The indicator lights
next to the buttons indicate
three for the highest setting
and one for the lowest. If the
heated seats are on high, the
level may automatically be
lowered after approximately
30 minutes.
The passenger seat may take
longer to heat up.
Auto Heated and Ventilated
Seats
If equipped, when the vehicle
is on, this feature will
automatically activate the

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
58 Seats and Restraints
3. Push and pull on theseatback to make sure it is
locked.
Folding the Seatbacks
To fold the second row
seatbacks:
1. Remove anything on or under the seat.
2. Pull up on the reclining seatback handle. The
seatback will move forward
and fold flat on top of the
cushion. Do not place
anything on the seat
during this operation. To return the seatback to the
seating position, lift the
seatback and push it rearward
until it locks into place. Push
and pull on the seatback to
make sure it is locked.
Folding the Second Row
Seats from the Cargo Area
To fold the seat from the
cargo area:
1. Make sure that there is nothing under, in front of,
or on the seat. 2. Press the switch on the
side trim of the cargo area
to fold the second row
seatback.
The left switch folds the
left seatback, and the right
switch folds the right
seatback.
There are additional switches
which can be used to fold the
third row seatbacks from the
cargo area. See Third Row
Seats 059.
Heated Rear Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. See the
Warning under Heated and
Ventilated Front Seats 054.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
80 Seats and Restraints
When the passenger sensing
system has allowed the airbag
to be enabled, the ON
indicator will light and stay lit
as a reminder that the airbag
is active.
For some children, including
children in child restraints, and
for very small adults, the
passenger sensing system
may or may not turn off the
front outboard passenger
frontal airbag, depending upon
the person's seating posture
and body build. Everyone in
the vehicle who has outgrown
child restraints should wear a
seat belt properly—whether
or not there is an airbag for
that person.
{Warning
If the airbag readiness light
ever comes on and stays on,
it means that something may
be wrong with the airbag
system. To help avoid injury
to yourself or others, have
(Continued)
Warning (Continued)
the vehicle serviced right
away. See Airbag Readiness
Light0132 for more
information, including
important safety
information.
If the On Indicator Is Lit
for a Child Restraint
The passenger sensing
system is designed to turn off
the front outboard passenger
frontal airbag if the system
determines that an infant is
present in a child restraint. If a
child restraint has been
installed and the ON indicator
is lit:
1. Turn the vehicle off.
2. Remove the child restraint from the vehicle.
3. Remove any additional items from the seat such
as blankets, cushions, seat
covers, seat heaters,
or seat massagers. 4. Reinstall the child restraint
following the directions
provided by the child
restraint manufacturer and
refer to Securing Child
Restraints (With the Seat
Belt in the Rear Seat) 0102
or Securing Child
Restraints (With the Seat
Belt in the Front Seat)
0 104.
Make sure the seat belt
retractor is locked by
pulling the shoulder belt all
the way out of the
retractor when installing
the child restraint, even if
the child restraint is
equipped with a seat belt
lock off. When the
retractor lock is set, the
belt can be tightened but
not pulled out of the
retractor.
5. If, after reinstalling the child restraint and
restarting the vehicle, the
ON indicator is still lit, turn
the vehicle off. Then
slightly recline the vehicle

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 81
seatback and adjust the
seat cushion, if adjustable,
to make sure that the
vehicle seatback is not
pushing the child restraint
into the seat cushion.
Also make sure the child
restraint is not trapped
under the vehicle head
restraint. If this happens,
adjust the head restraint.
See Head Restraints047.
6. Restart the vehicle.
The passenger sensing
system may or may not turn
off the airbag for a child in a
child restraint depending upon
the child’s size. It is better to
secure the child restraint in a
rear seat. Never put a
rear-facing child restraint in
the front seat, even if the ON

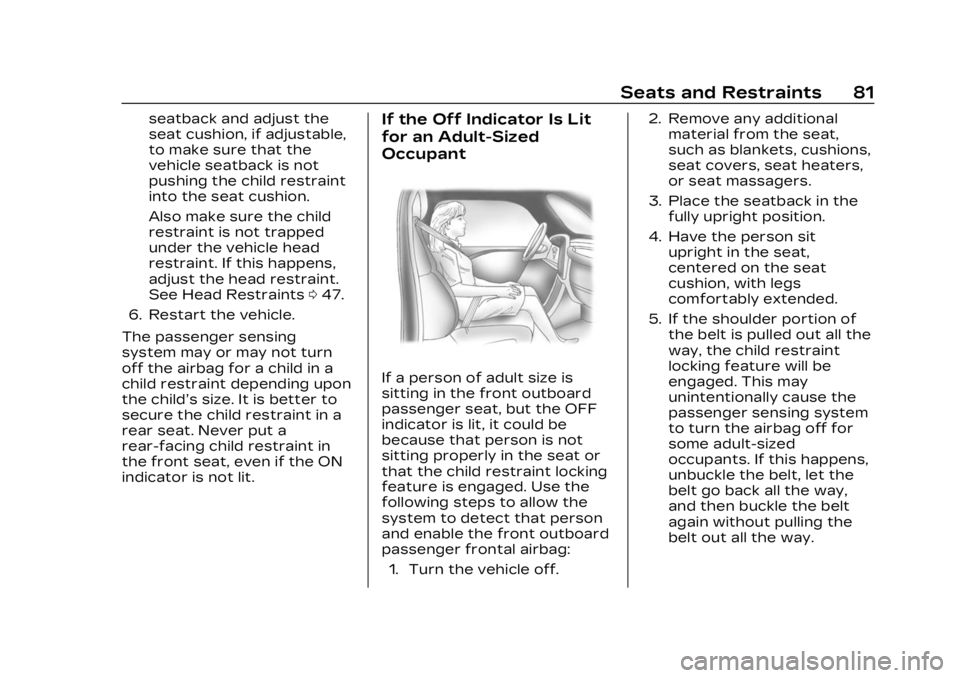

indicator is not lit.If the Off Indicator Is Lit
for an Adult-Sized
Occupant
If a person of adult size is
sitting in the front outboard
passenger seat, but the OFF
indicator is lit, it could be
because that person is not
sitting properly in the seat or
that the child restraint locking
feature is engaged. Use the
following steps to allow the
system to detect that person
and enable the front outboard
passenger frontal airbag: 1. Turn the vehicle off. 2. Remove any additional
material from the seat,
such as blankets, cushions,
seat covers, seat heaters,
or seat massagers.
3. Place the seatback in the fully upright position.
4. Have the person sit upright in the seat,
centered on the seat
cushion, with legs
comfortably extended.
5. If the shoulder portion of the belt is pulled out all the
way, the child restraint
locking feature will be
engaged. This may
unintentionally cause the
passenger sensing system
to turn the airbag off for
some adult-sized
occupants. If this happens,
unbuckle the belt, let the
belt go back all the way,
and then buckle the belt
again without pulling the
belt out all the way.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
82 Seats and Restraints
6. Restart the vehicle andhave the person remain in
this position for two to
three minutes after the ON
indicator is lit.
{Warning
If the front outboard
passenger airbag is turned
off for an adult-sized
occupant, the airbag will not
be able to inflate and help
protect that person in a
crash, resulting in an
increased risk of serious
injury or even death. An
adult-sized occupant should
not ride in the front
outboard passenger seat,
if the passenger airbag OFF
indicator is lit.
Additional Factors
Affecting System
Operation
Seat belts help keep the
passenger in position on the
seat during vehicle maneuvers and braking, which helps the
passenger sensing system
maintain the passenger airbag
status. See
“Seat Belts” and
“Child Restraints” in the Index
for additional information
about the importance of
proper restraint use.
A thick layer of additional
material, such as a blanket or
cushion, or aftermarket
equipment such as seat
covers, seat heaters, and seat
massagers can affect how well
the passenger sensing system
operates. We recommend that
you not use seat covers or
other aftermarket equipment
except when approved by GM
for your specific vehicle. See
Adding Equipment to the
Airbag-Equipped Vehicle 083
for more information about
modifications that can affect
how the system operates.
The ON indicator may be lit if
an object, such as a briefcase,
handbag, grocery bag, laptop,
or other electronic device, is put on an unoccupied seat.
If this is not desired, remove
the object from the seat.
{Warning
Stowing articles under the
passenger seat or between
the passenger seat cushion
and seatback may interfere
with the proper operation of
the passenger sensing
system.
Servicing the
Airbag-Equipped
Vehicle
Airbags affect how the vehicle
should be serviced. There are
parts of the airbag system in
several places around the
vehicle. Your dealer and the
service manual have
information about servicing
the vehicle and the airbag
system. To purchase a service
manual, see Publication
Ordering Information
0476.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 83
{Warning
For up to 10 seconds after
the vehicle is turned off and
the battery is disconnected,
an airbag can still inflate
during improper service. You
can be injured if you are
close to an airbag when it
inflates. Avoid yellow
connectors. They are
probably part of the airbag
system. Be sure to follow
proper service procedures,
and make sure the person
performing work for you is
qualified to do so.
Adding Equipment to
the Airbag-Equipped
Vehicle
Adding accessories that
change the vehicle's frame,
bumper system, height, front
end, or side sheet metal may
keep the airbag system from
working properly.The operation of the airbag
system can also be affected
by changing, including
improperly repairing or
replacing, any parts of the
following:
.Airbag system, including
airbag modules, front or side
impact sensors, sensing and
diagnostic module, or airbag
wiring
.Front seats, including
stitching, seams or zippers
.Seat belts
.Steering wheel, instrument
panel, overhead console,
ceiling trim, or pillar
garnish trim
.Inner door seals, including
speakers
Your dealer and the service
manual have information about
the location of the airbag
modules and sensors, sensing
and diagnostic module, and
airbag wiring along with the
proper replacement
procedures. In addition, the vehicle has a
passenger sensing system for
the front outboard passenger
position, which includes
sensors that are part of the
passenger seat. The
passenger sensing system
may not operate properly if
the original seat trim is
replaced with non-GM covers,
upholstery, or trim; or with GM
covers, upholstery, or trim
designed for a different
vehicle. Any object, such as an
aftermarket seat heater or a
comfort-enhancing pad or
device, installed under or on
top of the seat fabric, could
also interfere with the
operation of the passenger
sensing system. This could
either prevent proper
deployment of the passenger
airbag(s) or prevent the
passenger sensing system
from properly turning off the
passenger airbag(s). See
Passenger Sensing System
0
78.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
238 Driving and Operating
Driving and
Operating
Driving Information
Driving for Better FuelEconomy . . . . . . . . . . . . . . . . . . . 239
Distracted Driving . . . . . . . . . 240
Defensive Driving . . . . . . . . . 240
Impaired Driving . . . . . . . . . . . . 241
Control of a Vehicle . . . . . . . 241
Braking . . . . . . . . . . . . . . . . . . . . . . . . 241
Steering . . . . . . . . . . . . . . . . . . . . . . 242
Off-Road Recovery . . . . . . . 243
Loss of Control . . . . . . . . . . . . 243
Off-Road Driving . . . . . . . . . . . 244
Driving on Wet Roads . . . . 248
Hill and Mountain Roads . . . . . . . . . . . . . . . . . . . . . . . 249
Winter Driving . . . . . . . . . . . . . . 250
If the Vehicle Is Stuck . . . . . 251
Vehicle Load Limits . . . . . . . 252
Starting and Operating
New Vehicle Break-In . . . . 256
Ignition Positions . . . . . . . . . . 257
Starting the Engine . . . . . . . 258
Stop/Start System . . . . . . . . 259
Engine Heater . . . . . . . . . . . . . . . 261 Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . 263
Shifting Into Park . . . . . . . . . . 263
Shifting out of Park . . . . . . . 264
Parking over Things That Burn . . . . . . . . . . . . . . . . . . 264
Active Fuel Management . . . . . . . . . . . . . . 264
Extended Parking . . . . . . . . . 265
Engine Exhaust
Engine Exhaust . . . . . . . . . . . . 265
Running the Vehicle While Parked . . . . . . . . . . . . . . 266
Automatic Transmission
AutomaticTransmission . . . . . . . . . . . . . . 266
Manual Mode . . . . . . . . . . . . . . . . 271
Drive Systems
All-Wheel Drive . . . . . . . . . . . . . 273
Brakes
Electric Brake Boost . . . . . . 273
Antilock Brake System (ABS) . . . . . . . . . . . . . 273
Electric Parking Brake . . . 274
Brake Assist . . . . . . . . . . . . . . . . . 276
Hill Start Assist (HSA) . . . . 276
Ride Control Systems
Traction Control/ Electronic Stability
Control . . . . . . . . . . . . . . . . . . . . . . 276
Driver Mode Control . . . . . . 278
Cruise Control
Cruise Control . . . . . . . . . . . . . 280
Adaptive Cruise Control (Advanced) . . . . . . . . . . . . . . . . . 283
Super Cruise . . . . . . . . . . . . . . . . 294
Driver Assistance
Systems
Driver Assistance Systems . . . . . . . . . . . . . . . . . . . . . 312
Assistance Systems for Parking or Backing . . . . . . . 314
Rear Vision Camera (RVC) . . . . . . . . . . . . . 314
Surround Vision System . . . . . . . . . . . . . . . . . . . . . . 315
Park Assist . . . . . . . . . . . . . . . . . . . 318
Automatic Parking Assist (APA) . . . . . . . . . . . . . . . 320
Reverse Automatic Braking (RAB) . . . . . . . . . . . . . 322
Rear Pedestrian Alert . . . . 324
Rear Cross Traffic Alert (RCTA) System . . . . . . . . . . . 325

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Driving and Operating 261
When the light next to theh
is illuminated, the system is
enabled.
Engine Heater
The engine heater, if available,
can help in cold weather
conditions at or below
−18 °C (0 °F) for easier starting
and better fuel economy
during engine warm-up. Plug in
the engine heater at least four
hours before starting the
vehicle. An internal thermostat
in the plug end of the cord will
prevent engine heater
operation at temperatures
above−18 °C (0 °F).
{Warning
Do not plug in the engine
block heater while the
vehicle is parked in a garage
or under a carport. Property
damage or personal injury
may result. Always park the
(Continued)
Warning (Continued)
vehicle in a clear open area
away from buildings or
structures.
To Use the Engine Heater
1. Turn off the engine.
2. Remove the engine heaterconnector cover by gently
prying with a flat-bladed
tool at the location of the
notch along the top edge
of the cover.
3. Check the heater cord fordamage. If it is damaged,
do not use it. See your
dealer for a replacement.
Inspect the cord for
damage yearly.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
262 Driving and Operating
4. Plug the heater cord intothe connector in the front
fascia.
5. Plug it into a normal, grounded 110-volt AC
outlet.
{Warning
Improper use of the heater
cord or an extension cord
can damage the cord and
may result in overheating
and fire.
.Plug the cord into a
three-prong electrical
utility receptacle that is
protected by a ground
fault detection function.
An ungrounded outlet
could cause an electric
shock.
.Use a weatherproof,
heavy-duty, 15 amp-rated
extension cord if needed.
Failure to use the
recommended extension
cord in good operating
condition, or using a
damaged heater or
extension cord, could
make it overheat and
(Continued)
Warning (Continued)
cause a fire, property
damage, electric shock,
and injury.
.Do not operate the vehicle
with the heater cord
permanently attached to
the vehicle. Possible
heater cord and
thermostat damage could
occur.
.While in use, do not let the
heater cord touch vehicle
parts or sharp edges.
.Before starting the
vehicle, unplug the cord.
Keep the cord away from
any moving parts.
6. Before starting the engine, be sure to unplug and
store the cord.
7. Install the engine heater connector cover.
The length of time the heater
should remain plugged in
depends on several factors.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Vehicle Care 377
3.6L V6 Engine
1. Electric Engine CoolingFan (Out of View)
2. Coolant Surge Tank and Pressure Cap
{Warning
An underhood electric fan
can start up even when the
engine is not running and
can cause injury. Keep
hands, clothing, and tools
away from any underhood
electric fan.
{Warning
Do not touch heater or
radiator hoses, or other
engine parts. They can be
very hot and can burn you.
Do not run the engine if
there is a leak; all coolant
could leak out. That could
cause an engine fire and can
burn you. Fix any leak before
driving the vehicle.
Engine Coolant
The engine cooling system in
the vehicle are filled with
DEX-COOL engine coolant
mixture. This coolant needs to
be checked and changed at
appropriate levels. See
Recommended Fluids and
Lubricants 0458 and
Maintenance Schedule 0454.
The following explains the
cooling systems and how to
check and add coolant when it
is low. If there is a problem
with engine overheating, see
Engine Overheating 0381.
What to Use
{Warning
Do not touch heater or
radiator hoses, or other
engine parts. They can be
very hot and can burn you.
Do not run the engine if
there is a leak; all coolant
could leak out. That could
cause an engine fire and can
burn you. Fix any leak before
driving the vehicle.
Use a 50/50 mixture of clean,
drinkable water and
DEX-COOL coolant. This
mixture:
.Gives freezing protection
down to −37 °C (−34 °F),
outside temperature.
.Gives boiling protection up
to 129 °C (265 °F), engine
temperature.
.Protects against rust and
corrosion.
.Will not damage aluminum
parts.
