304 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 304
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 304
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 305
Engine Drive Belt Routing . . . . 307
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 305 for the vehicle's engine code.
Service Parts
Identification Label
This label, on the load floor under
the spare tire cover in the trunk, has
the following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-9369806) - 2016 -
crc - 6/24/15
Technical Data 305
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System 3.6 L (LF3) 9.8 L 10.4 qt
3.6 L (LFX) 7.1 L 7.5 qt
Engine Oil with Filter
3.6 L (LF3) 6.6 L 7.0 qt
3.6 L (LFX) 5.7 L 6.0 qt
Fuel Tank
Front-Wheel Drive 70.0 L 18.5 gal
All-Wheel Drive 74.0 L 19.5 gal
Wheel Nut Torque 150 Y110 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-9369806) - 2016 -
crc - 6/24/15
306 Technical Data

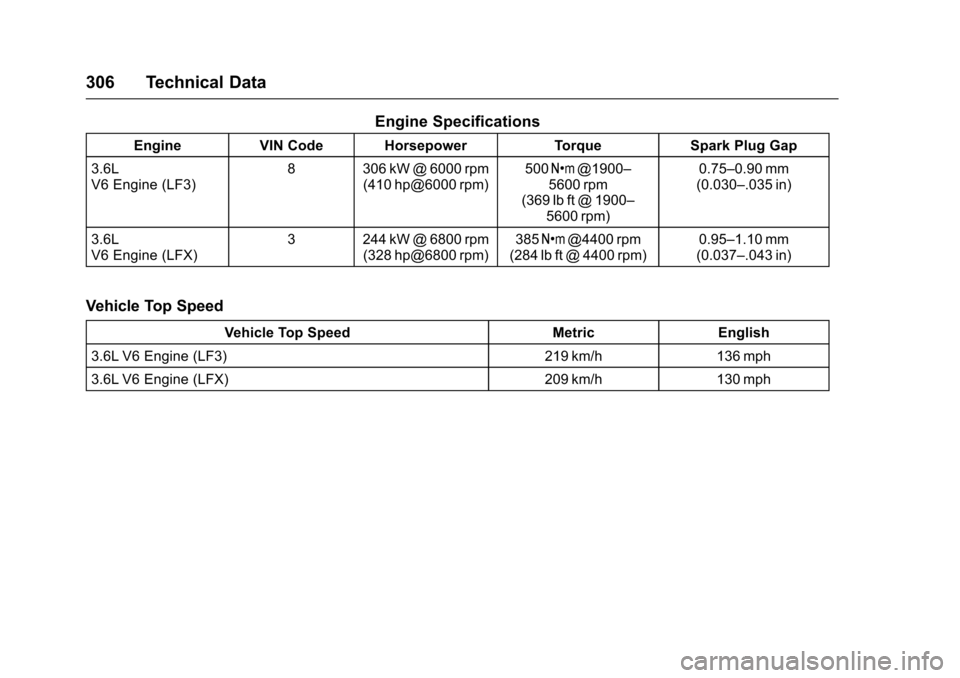

Engine Specifications
EngineVIN Code Horsepower TorqueSpark Plug Gap
3.6L
V6 Engine (LF3) 8 306 kW @ 6000 rpm
(410 hp@6000 rpm) 500
Y@1900–
5600 rpm
(369 lb ft @ 1900– 5600 rpm) 0.75–0.90 mm
(0.030–.035 in)
3.6L
V6 Engine (LFX) 3 244 kW @ 6800 rpm
(328 hp@6800 rpm) 385
Y@4400 rpm
(284 lb ft @ 4400 rpm) 0.95–1.10 mm
(0.037–.043 in)
Vehicle Top Speed
Vehicle Top Speed MetricEnglish
3.6L V6 Engine (LF3) 219 km/h136 mph
3.6L V6 Engine (LFX) 209 km/h130 mph

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-9369806) - 2016 -
crc - 6/24/15
Technical Data 307
