248 VEHICLE CARE
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by electrical
problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace a
bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can be
temporarily borrowed from another
fuse location, if a fuse goes out.
Replace the fuse as soon as possible.
To identify and check fuses, circuit
breakers, and relays, seeEngine
Compartment Fuse Block 0248,
Instrument Panel Fuse Block 0251, and
Rear Compartment Fuse Block 0252.
Engine Compartment Fuse
Block
To remove the fuse block cover,
squeeze the three retaining clips on
the cover and lift it straight up.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 249
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
1 Transmission control module
2 Engine control module
3 A/C clutch
4 – Fuses Usage
5 Engine control module/Run/Crank
6 Wiper
8 Ignition coils –even
(V6 engine)
9 Ignition coils –odd
(V6 engine) Fuses Usage
10 Engine control module/Switched
battery
11 Post-catalytic converter O2 sensor
heater (V6 engine)/
Mass air flow sensor/
Flex fuel sensor
12 Starter
13 Transmission control module/Chassis
control module/Run/
Crank
14 Right rear heated seat
15 Left rear heated seat
16 –
17 Body Run/Crank
18 Autonet Run/Crank
20 –
21 Rear power windows
22 Sunroof
23 Variable effort steering

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
250 VEHICLE CARE
FusesUsage
24 Front power windows
25 Retained accessory power
26 ABS pump
27 Electric parking brake
28 Rear window defogger
29 Passive entry/Passive start
30 AWD module
31 Left front heated seat
32 Body control module 6
33 Right front heated seat
34 ABS valves
35 Amplifier
37 Right high-beam headlamp
38 Left high-beam headlamp
41 Brake vacuum assist pump Fuses
Usage
42 Cooling fan K2
44 Headlamp washer
45 Cooling fan K1
46 Cooling fan relay
47 Pre-catalytic converter O2 sensor
heater (V6 engine)/
Canister purge
solenoid
48 Coolant pump
49 Right HID headlamp
50 Left HID headlamp
51 Horn
52 Run/Crank
53 Interior rearview mirror/Run/Crank/
Rear vision camera
54 Run/Crank/HVAC
55 Exterior rearview mirror/Front window
switches
56 Windshield washer
57 Steering column lock Fuses
Usage
60 Heated mirror
62 Massage memory bolster
64 Adaptive forward lighting module
66 Trunk release
67 Chassis control module
69 Regulated voltage control sensor
70 Vent canister solenoid
71 Memory module
Relays Usage
1 A/C clutch
2 Starter
4 Wiper speed
5 Wiper control
7 Engine control module
8 –
9 Cooling fan

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 251
RelaysUsage
10 Cooling fan
11 Headlamp washer
13 Cooling fan
14 Low-beam headlamps
15 Run/Crank
17 Rear window defogger
Instrument Panel Fuse
Block
The instrument panel fuse block is in
the instrument panel, on the driver
side of the vehicle. To access the
fuses, open the fuse panel door by
pulling down at the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release it
from the hinge.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown. Fuses Usage
1 Wireless charger module Fuses Usage
2 Body control module 7
3 Body control module 5
4 Radio
5 Infotainment center stack displays/
Head-up display/
Instrument cluster/
Rear seat
entertainment
6 Power outlet 1
7 Power outlet 2
8 Body control module 1
9 Body control module 4
10 Body control module 8
11 Front HVAC blower
12 Passenger Seat
13 Driver seat

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
252 VEHICLE CARE
FusesUsage
14 Diagnostic link connector
15 Airbag AOS
16 Glove box
17 HVAC controller
18 Logistics
19 –
20 Telematics (OnStar)
21 CGM
22 Steering wheel controls/Backlight
23 Body control module 3
24 Body control module 2
25 Power steering column
26 AC DC inverter
Relays Usage
R1 Glove box
R2 Logistics Relays
Usage
R3 Retained accessory power
Rear Compartment Fuse
Block
The rear compartment fuse block is
on the left side of the trunk behind a
cover.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 253
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
F01 –
F02 –
F03 –
F04 Leveling compressor
F05 – Fuses Usage
F06 –
F07 –
F08 Front courtesy lamps
F09 –
F10 –
F11 –
F12 – Fuses Usage
F13 –
F14 –
F15 –
F16 Video processing module
F17 –
F18 Semi-active damping system
F19 Universal garage door opener/Rain, light,
and humidity sensor
F20 Shunt
F21 Side blind zone
F22 –
F23 AWD
F24 –
F25 –
F26 –
F27 –
F28 –
F29 –

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
254 VEHICLE CARE

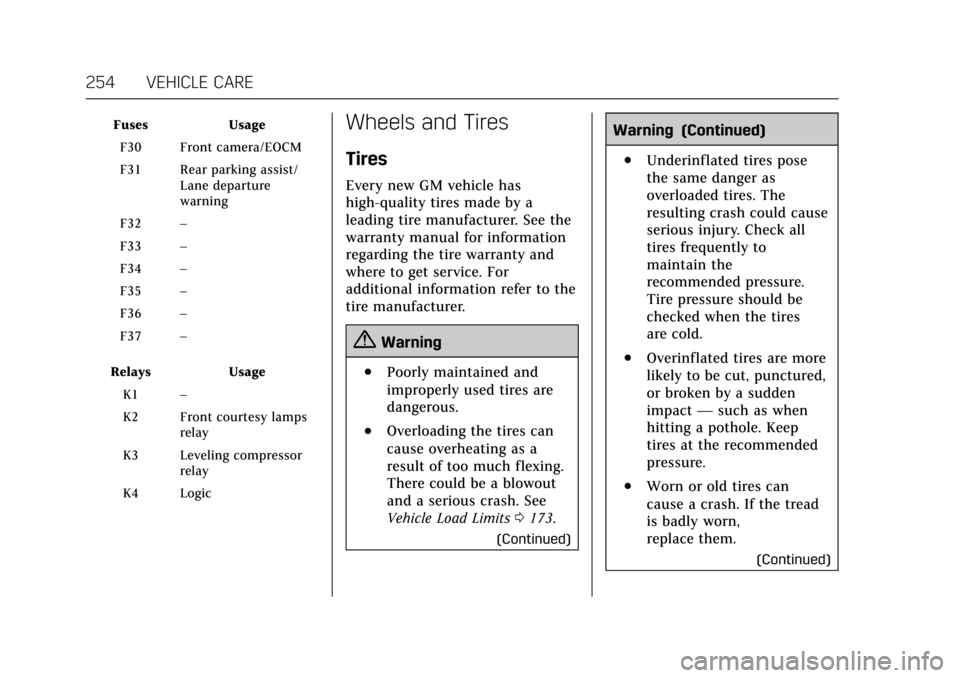

FusesUsage
F30 Front camera/EOCM
F31 Rear parking assist/ Lane departure
warning
F32 –
F33 –
F34 –
F35 –
F36 –
F37 –
Relays Usage
K1 –
K2 Front courtesy lamps relay
K3 Leveling compressor relay
K4 LogicWheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See the
warranty manual for information
regarding the tire warranty and
where to get service. For
additional information refer to the
tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a
result of too much flexing.
There could be a blowout
and a serious crash. See
Vehicle Load Limits 0173.
(Continued)
Warning (Continued)
.Underinflated tires pose
the same danger as
overloaded tires. The
resulting crash could cause
serious injury. Check all
tires frequently to
maintain the
recommended pressure.
Tire pressure should be
checked when the tires
are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden
impact —such as when
hitting a pothole. Keep
tires at the recommended
pressure.
.Worn or old tires can
cause a crash. If the tread
is badly worn,
replace them.
(Continued)
