IN BRIEF 5
In Brief
Instrument Panel
Instrument Panel Overview . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . . 8
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . . . . . 8
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Seat Adjustment . . . . . . . . . . . . . . . . . . . 10
Memory Features . . . . . . . . . . . . . . . . . . 12
Second Row Seats . . . . . . . . . . . . . . . . . 13
Heated and Ventilated Seats . . . . . . 13
Head Restraint Adjustment . . . . . . . 13
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . 14
Passenger Sensing System . . . . . . . . 14
Mirror Adjustment . . . . . . . . . . . . . . . . 14
Steering Wheel Adjustment . . . . . . . 15
Interior Lighting . . . . . . . . . . . . . . . . . . . 15
Exterior Lighting . . . . . . . . . . . . . . . . . . . 16
Windshield Wiper/Washer . . . . . . . . 16
Climate Controls . . . . . . . . . . . . . . . . . . . 17
Transmission . . . . . . . . . . . . . . . . . . . . . . . 18
Vehicle Features
Infotainment System . . . . . . . . . . . . . . 19 Steering Wheel Controls . . . . . . . . . . 19
Cruise Control . . . . . . . . . . . . . . . . . . . . . 19
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . . . . . 20
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Forward Automatic Braking (FAB) . . . . . . . . . . . . . . . . . . . . 20
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . . . 20
Side Blind Zone Alert (SBZA) . . . . . 21
Surround Vision . . . . . . . . . . . . . . . . . . . 21
Rear Vision Camera (RVC) . . . . . . . . 21
Rear Cross Traffic Alert (RCTA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Parking Assist . . . . . . . . . . . . . . . . . . . . . . 21
Reverse Automatic Braking (RAB) . . . . . . . . . . . . . . . . . . . . 21
Power Outlets . . . . . . . . . . . . . . . . . . . . . . 22
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Performance and Maintenance
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . 23
Tire Pressure Monitor . . . . . . . . . . . . . 23
Fuel (LFX 3.6L V6 Engine) . . . . . . . . 23
Fuel (LF3 3.6L V6 Twin Turbo Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Engine Oil Life System . . . . . . . . . . . . 24
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Page 23 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
22 IN BRIEF
Power Outlets
Power Outlets 12 Volt Direct
Current
The accessory power outlet can be
used to plug in electrical equipment,
such as a cell phone or MP3 player.
The vehicle has one accessory power
outlet inside the center console.
Lift the cover to access the accessory
power outlet.
SeePower Outlets 0107.

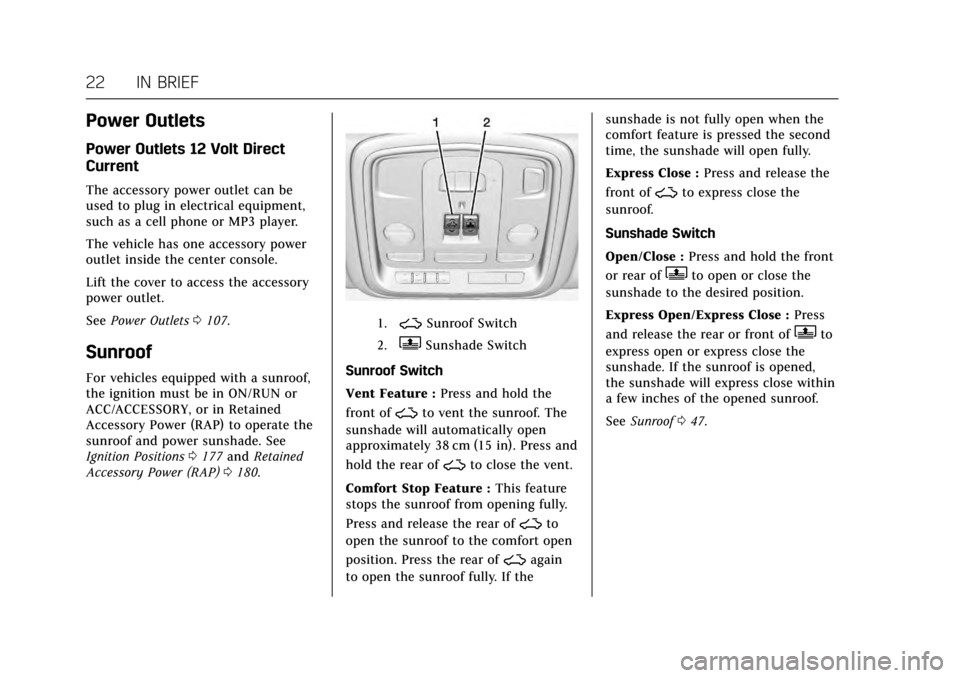

Sunroof
For vehicles equipped with a sunroof,
the ignition must be in ON/RUN or
ACC/ACCESSORY, or in Retained
Accessory Power (RAP) to operate the
sunroof and power sunshade. See
Ignition Positions 0177 and Retained
Accessory Power (RAP) 0180.
1.~Sunroof Switch
2.QSunshade Switch
Sunroof Switch
Vent Feature : Press and hold the
front of
~to vent the sunroof. The
sunshade will automatically open
approximately 38 cm (15 in). Press and
hold the rear of
~to close the vent.
Comfort Stop Feature : This feature
stops the sunroof from opening fully.
Press and release the rear of
~to
open the sunroof to the comfort open
position. Press the rear of
~again
to open the sunroof fully. If the sunshade is not fully open when the
comfort feature is pressed the second
time, the sunshade will open fully.
Express Close :
Press and release the
front of
~to express close the
sunroof.
Sunshade Switch
Open/Close : Press and hold the front
or rear of
Qto open or close the
sunshade to the desired position.
Express Open/Express Close : Press
and release the rear or front of
Qto
express open or express close the
sunshade. If the sunroof is opened,
the sunshade will express close within
a few inches of the opened sunroof.
See Sunroof 047.
Page 27 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
26 KEYS, DOORS, AND WINDOWS
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . . . . . 27
Remote Vehicle Start . . . . . . . . . . . . . . 31
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 33
Power Door Locks . . . . . . . . . . . . . . . . . 35
Delayed Locking . . . . . . . . . . . . . . . . . . . 35
Automatic Door Locks . . . . . . . . . . . . 35
Lockout Protection . . . . . . . . . . . . . . . . 36
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . 36
Doors
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . 39
Vehicle Alarm System . . . . . . . . . . . . . 39
Immobilizer Operation . . . . . . . . . . . . 40
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . 41
Power Mirrors . . . . . . . . . . . . . . . . . . . . . . 41
Folding Mirrors . . . . . . . . . . . . . . . . . . . . 42 Heated Mirrors . . . . . . . . . . . . . . . . . . . . . 42
Automatic Dimming Mirror . . . . . . . 42
Reverse Tilt Mirrors . . . . . . . . . . . . . . . 42
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . 43
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Power Windows . . . . . . . . . . . . . . . . . . . . 43
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Rear Window Sunshade . . . . . . . . . . . 46
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
Remote Keyless Entry (RKE)
transmitter is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the RKE transmitter
in the vehicle, and children or
others could be caught in the path
of a closing window. Do not leave
children in a vehicle with an RKE
transmitter.
Page 44 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
KEYS, DOORS, AND WINDOWS 43

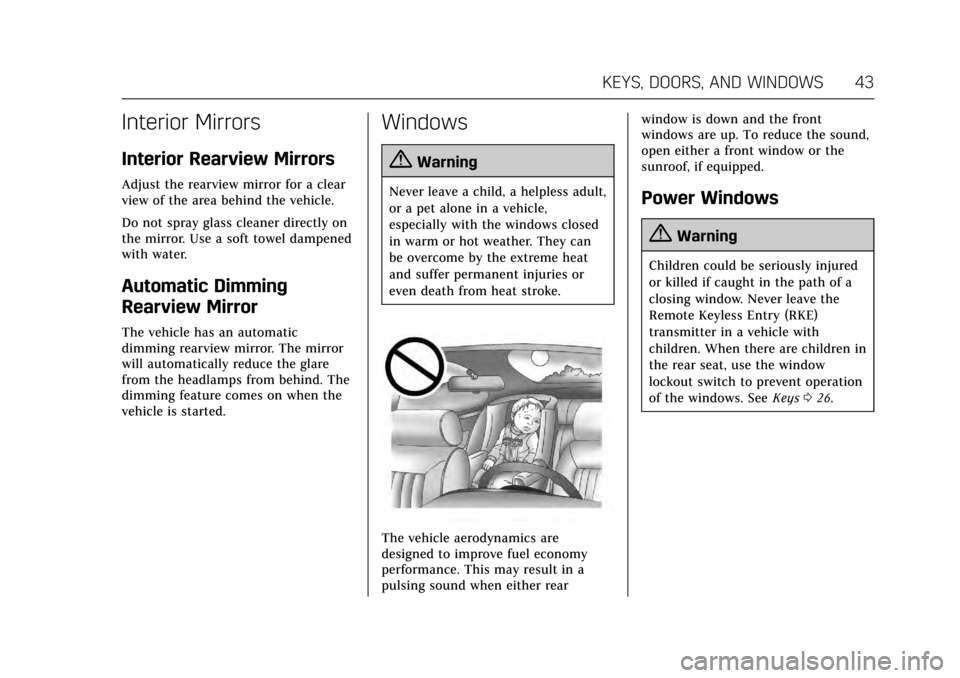

Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clear
view of the area behind the vehicle.
Do not spray glass cleaner directly on
the mirror. Use a soft towel dampened
with water.
Automatic Dimming
Rearview Mirror
The vehicle has an automatic
dimming rearview mirror. The mirror
will automatically reduce the glare
from the headlamps from behind. The
dimming feature comes on when the
vehicle is started.
Windows
{Warning
Never leave a child, a helpless adult,
or a pet alone in a vehicle,
especially with the windows closed
in warm or hot weather. They can
be overcome by the extreme heat
and suffer permanent injuries or
even death from heat stroke.
The vehicle aerodynamics are
designed to improve fuel economy
performance. This may result in a
pulsing sound when either rearwindow is down and the front
windows are up. To reduce the sound,
open either a front window or the
sunroof, if equipped.
Power Windows
{Warning
Children could be seriously injured
or killed if caught in the path of a
closing window. Never leave the
Remote Keyless Entry (RKE)
transmitter in a vehicle with
children. When there are children in
the rear seat, use the window
lockout switch to prevent operation
of the windows. See
Keys026.
Page 48 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
KEYS, DOORS, AND WINDOWS 47
Roof

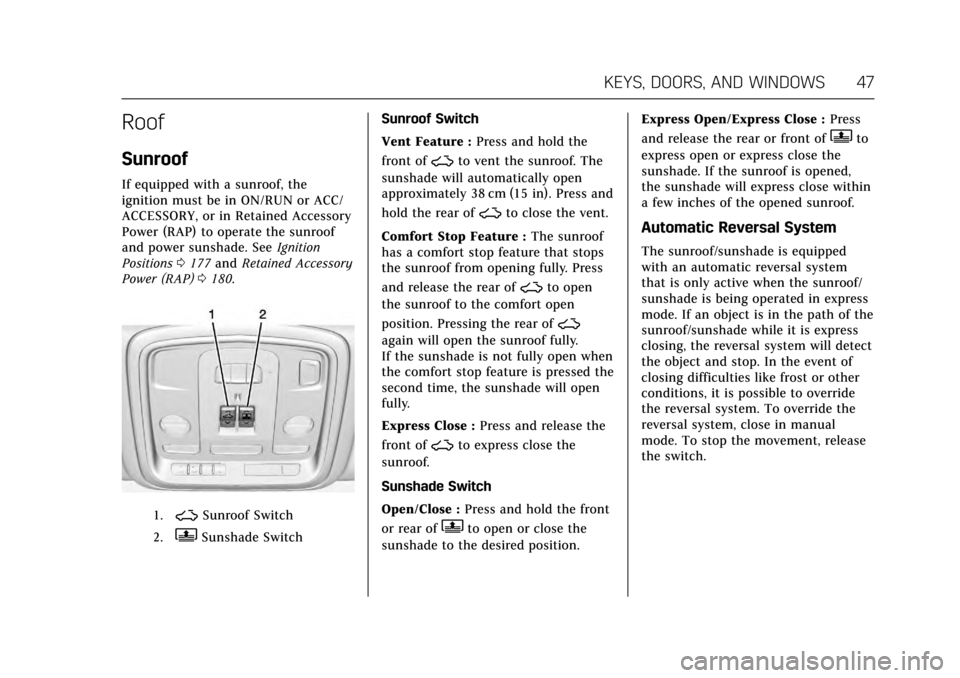

Sunroof
If equipped with a sunroof, the
ignition must be in ON/RUN or ACC/
ACCESSORY, or in Retained Accessory
Power (RAP) to operate the sunroof
and power sunshade. SeeIgnition
Positions 0177 and Retained Accessory
Power (RAP) 0180.
1.~Sunroof Switch
2.QSunshade Switch Sunroof Switch
Vent Feature :
Press and hold the
front of
~to vent the sunroof. The
sunshade will automatically open
approximately 38 cm (15 in). Press and
hold the rear of
~to close the vent.
Comfort Stop Feature : The sunroof
has a comfort stop feature that stops
the sunroof from opening fully. Press
and release the rear of
~to open
the sunroof to the comfort open
position. Pressing the rear of
~
again will open the sunroof fully.
If the sunshade is not fully open when
the comfort stop feature is pressed the
second time, the sunshade will open
fully.
Express Close : Press and release the
front of
~to express close the
sunroof.
Sunshade Switch
Open/Close : Press and hold the front
or rear of
Qto open or close the
sunshade to the desired position. Express Open/Express Close :
Press
and release the rear or front of
Qto
express open or express close the
sunshade. If the sunroof is opened,
the sunshade will express close within
a few inches of the opened sunroof.
Automatic Reversal System
The sunroof/sunshade is equipped
with an automatic reversal system
that is only active when the sunroof/
sunshade is being operated in express
mode. If an object is in the path of the
sunroof/sunshade while it is express
closing, the reversal system will detect
the object and stop. In the event of
closing difficulties like frost or other
conditions, it is possible to override
the reversal system. To override the
reversal system, close in manual
mode. To stop the movement, release
the switch.
Page 49 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
48 KEYS, DOORS, AND WINDOWS

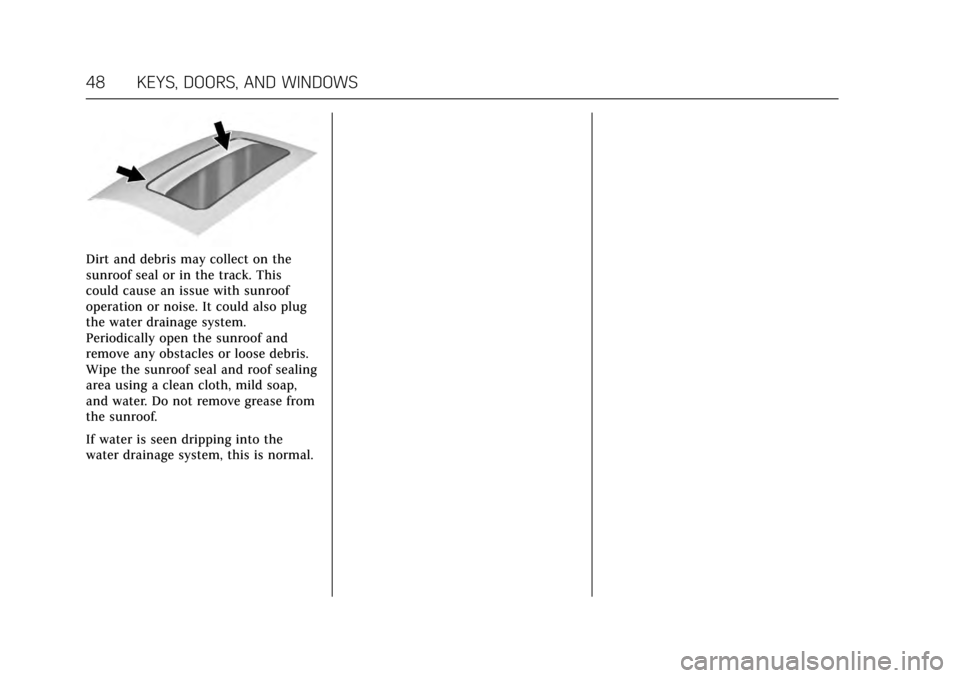

Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation or noise. It could also plug
the water drainage system.
Periodically open the sunroof and
remove any obstacles or loose debris.
Wipe the sunroof seal and roof sealing
area using a clean cloth, mild soap,
and water. Do not remove grease from
the sunroof.
If water is seen dripping into the
water drainage system, this is normal.
Page 181 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
180 DRIVING AND OPERATING
clears the extra gasoline from the
engine. Do not race the engine
immediately after starting it.
Operate the engine and
transmission gently until the oil
warms up and lubricates all
moving parts.

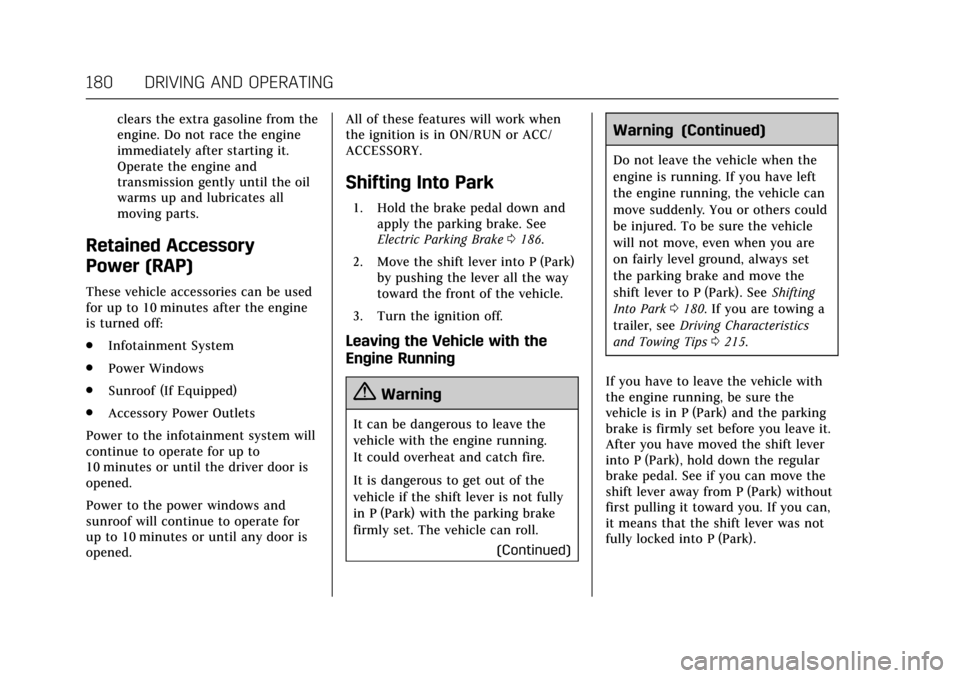

Retained Accessory
Power (RAP)
These vehicle accessories can be used
for up to 10 minutes after the engine
is turned off:
.Infotainment System
. Power Windows
. Sunroof (If Equipped)
. Accessory Power Outlets
Power to the infotainment system will
continue to operate for up to
10 minutes or until the driver door is
opened.
Power to the power windows and
sunroof will continue to operate for
up to 10 minutes or until any door is
opened. All of these features will work when
the ignition is in ON/RUN or ACC/
ACCESSORY.
Shifting Into Park
1. Hold the brake pedal down and
apply the parking brake. See
Electric Parking Brake 0186.
2. Move the shift lever into P (Park) by pushing the lever all the way
toward the front of the vehicle.
3. Turn the ignition off.
Leaving the Vehicle with the
Engine Running
{Warning
It can be dangerous to leave the
vehicle with the engine running.
It could overheat and catch fire.
It is dangerous to get out of the
vehicle if the shift lever is not fully
in P (Park) with the parking brake
firmly set. The vehicle can roll. (Continued)
Warning (Continued)
Do not leave the vehicle when the
engine is running. If you have left
the engine running, the vehicle can
move suddenly. You or others could
be injured. To be sure the vehicle
will not move, even when you are
on fairly level ground, always set
the parking brake and move the
shift lever to P (Park). See Shifting
Into Park 0180. If you are towing a
trailer, see Driving Characteristics
and Towing Tips 0215.
If you have to leave the vehicle with
the engine running, be sure the
vehicle is in P (Park) and the parking
brake is firmly set before you leave it.
After you have moved the shift lever
into P (Park), hold down the regular
brake pedal. See if you can move the
shift lever away from P (Park) without
first pulling it toward you. If you can,
it means that the shift lever was not
fully locked into P (Park).
Page 250 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 249
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
1 Transmission control module
2 Engine control module
3 A/C clutch
4 – Fuses Usage
5 Engine control module/Run/Crank
6 Wiper
8 Ignition coils –even
(V6 engine)
9 Ignition coils –odd
(V6 engine) Fuses Usage
10 Engine control module/Switched
battery
11 Post-catalytic converter O2 sensor
heater (V6 engine)/
Mass air flow sensor/
Flex fuel sensor
12 Starter
13 Transmission control module/Chassis
control module/Run/
Crank
14 Right rear heated seat
15 Left rear heated seat
16 –
17 Body Run/Crank
18 Autonet Run/Crank
20 –
21 Rear power windows
22 Sunroof
23 Variable effort steering
Page 290 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
SERVICE AND MAINTENANCE 289
oil life system is reset accidentally,
service the vehicle within 5 000 km/
3,000 mi since the last service. Reset
the oil life system when the oil is
changed. SeeEngine Oil Life
System 0230.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the following
services. See Tire Rotation0262.
. Check engine oil level and oil
life percentage. If needed, change
engine oil and filter, and reset oil
life system. See Engine Oil0228
and Engine Oil Life System 0230.
. Check engine coolant level. See
Engine Coolant 0234.
. Check windshield washer fluid
level. See Washer Fluid 0239.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0278. Replace worn or
damaged wiper blades. See Wiper
Blade Replacement 0244. .
Check tire inflation pressures. See
Tire Pressure 0256.
. Inspect tire wear. See Tire
Inspection 0262.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter 0231.
. Inspect brake system. See Exterior
Care 0278.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear.
See Exterior Care 0278.
. Check restraint system
components. See Safety System
Check 068.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for loose
or damaged parts.
. Lubricate body components. See
Exterior Care 0278.
. Check starter switch. See Starter
Switch Check 0243. .
Check automatic transmission
shift lock control function. See
Automatic Transmission Shift Lock
Control Function Check 0243.
. Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism Check 0243.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for signs
of wear, cracks, or other damage.
Check the hold open ability of the
strut. See your dealer if service is
required.
. Inspect sunroof track and seal,
if equipped. See Sunroof047.
Page 312 of 314
Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
INDEX 311
Replacement Parts (cont'd)Maintenance . . . . . . . . . . . . . . . . . . . . . . 296
Replacing Airbag System . . . . . . . . . . . . 80
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . 93
Replacing Safety Belt System Parts after a Crash . . . . . . . . . . . . . . . . . 69
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . 86
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . . . . . . 180
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . 42
Ride Control Systems Limited Slip Rear Axle . . . . . . . . . . . 190
Magnetic . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Roads Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . 171
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . 262
Routing, Engine Drive Belt . . . . . . . . . 301
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182S
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 63Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . 65
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . 118
Replacing after a Crash . . . . . . . . . . . . . 69
Use During Pregnancy . . . . . . . . . . . . . . 68
Safety Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Safety System Check . . . . . . . . . . . . . . . . 68
Seats Head Restraints . . . . . . . . . . . . . . . . . . . . . 50
Heated and Ventilated Front . . . . . . . 58
Heated, Rear . . . . . . . . . . . . . . . . . . . . . . . . 62
Lumbar Adjustment, Front . . . . . . . . . 54
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Power Adjustment, Front . . . . . . . . . . 53
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Reclining Seatbacks . . . . . . . . . . . . . . . . 56
Securing Child Restraints . . . . . . . 94, 95
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Vehicle Alarm . . . . . . . . . . . . . . . . . . . . . . . 39
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 Service (cont'd)
Accessories and
Modifications . . . . . . . . . . . . . . . . . . . . 222
Doing Your Own Work . . . . . . . . . . . 223
Engine Soon Light . . . . . . . . . . . . . . . . 120
Maintenance Records . . . . . . . . . . . . 297
Maintenance, General
Information . . . . . . . . . . . . . . . . . . . . . . 287
Parts Identification Label . . . . . . . . 298
Vehicle Messages . . . . . . . . . . . . . . . . . 142
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Services Special Application . . . . . . . . . . . . . . . 293
Servicing the Airbag . . . . . . . . . . . . . . . . . 79
Shift Lock Control Function Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . . . . . 243
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Out of Park . . . . . . . . . . . . . . . . . . . . . . . . 181
Side Blind Zone Alert (SBZA) . . . . . . 210
Signals, Turn and Lane-Change . . . . 154
Spare Tire Compact . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Special Application Services . . . . . . . 293
Specifications and Capacities . . . . . . 299
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . 115
