Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17

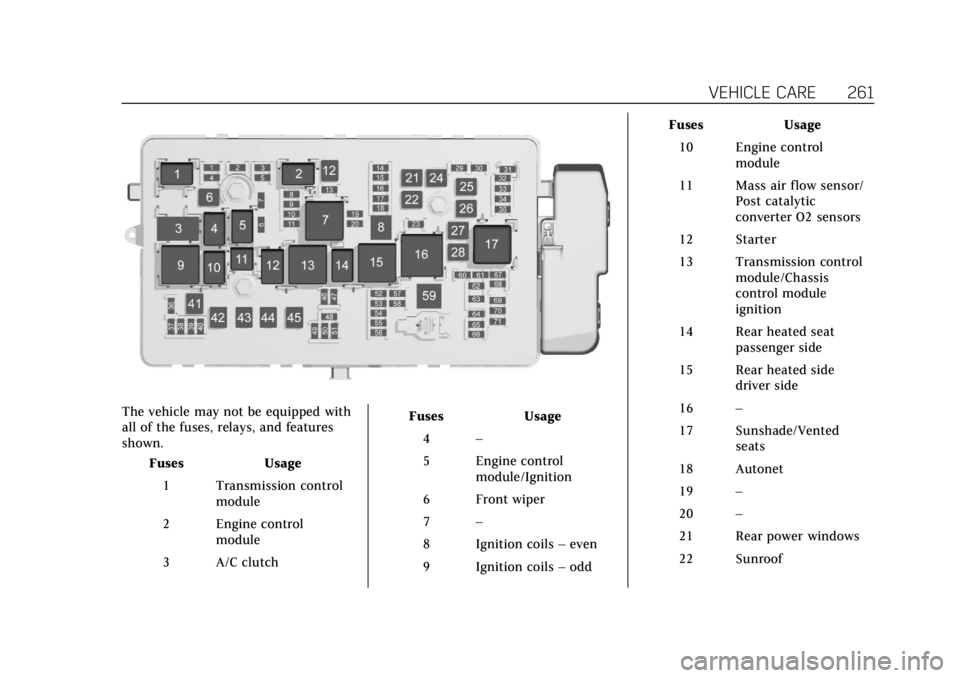

VEHICLE CARE 261
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
1 Transmission control module
2 Engine control module
3 A/C clutch Fuses Usage
4 –
5 Engine control module/Ignition
6 Front wiper
7 –
8 Ignition coils –even
9 Ignition coils –odd Fuses Usage
10 Engine control module
11 Mass air flow sensor/ Post catalytic
converter O2 sensors
12 Starter
13 Transmission control module/Chassis
control module
ignition
14 Rear heated seat passenger side
15 Rear heated side driver side
16 –
17 Sunshade/Vented seats
18 Autonet
19 –
20 –
21 Rear power windows
22 Sunroof

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
VEHICLE CARE 263
FusesUsage
63 –
64 Spare
65 Spare
66 Trunk release
67 Chassis control module
68 –
69 Battery voltage sensor
70 Canister vent solenoid
71 Memory seat module
72 Electric power steering
Relays Usage
1 A/C clutch
2 Starter
3 –
4 Wiper speed
5 Wiper control
6 –
7 Powertrain Relays
Usage
8 –
9 Cooling fan —high
speed
10 Cooling fan —low
speed
11 Tail/Park lamps
12 –
13 Cooling fan control
14 Low beam LED headlamps
15 Run/Crank
16 –
17 Rear window and mirror defoggerInstrument Panel Fuse
Block
The instrument panel fuse block is in
the instrument panel, on the driver
side of the vehicle. To access the
fuses, open the fuse panel door by
pulling down at the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release it
from the hinge.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
264 VEHICLE CARE
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
1 Wireless charger module/USB charge
2 Body control module 7
3 Body control module 5
4 Radio
5 Infotainment display/ Head-up display/
Instrument cluster Fuses Usage
6 Power outlet 1
7 Power outlet 2
8 Body control module 1
9 Body control module 4
10 Body control module 8
11 Front HVAC blower
12 Passenger seat
13 Driver seat
14 Diagnostic link connector
15 Airbag AOS
16 Glove box
17 HVAC controller
18 Logistics
19 Front camera
20 Telematics (OnStar)
21 CGM Fuses Usage
22 Steering wheel controls/Backlight
23 Body control module 3
24 Body control module 2
25 Power steering column
26 AC DC inverter
Relays Usage R1 Glove box
R2 Logistics
R3 Retained accessory power

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
VEHICLE CARE 265

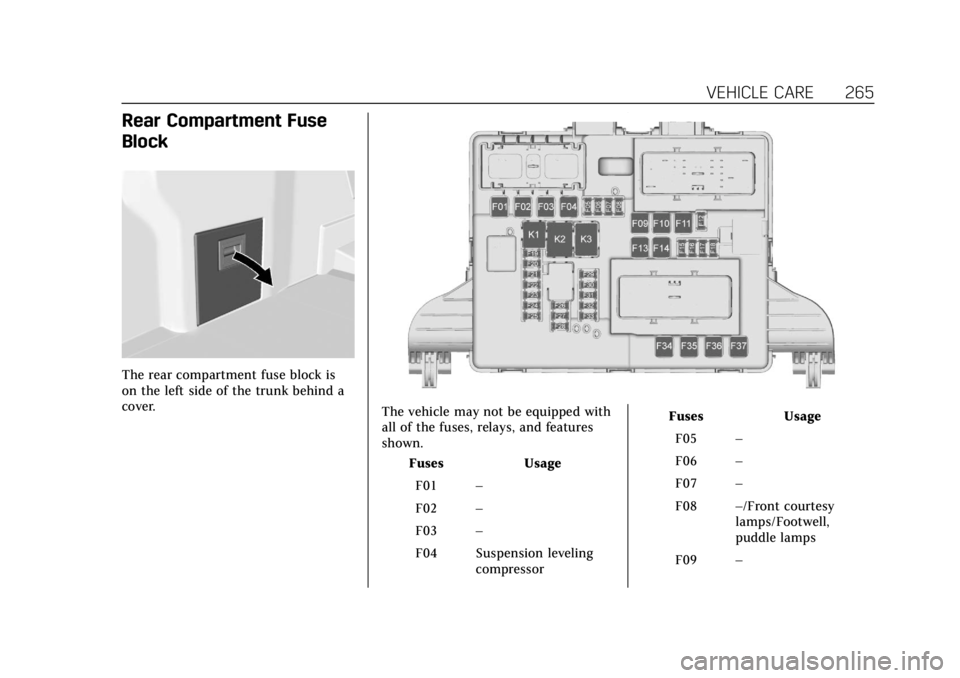

Rear Compartment Fuse
Block
The rear compartment fuse block is
on the left side of the trunk behind a
cover.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
F01 –
F02 –
F03 –
F04 Suspension leveling compressor Fuses Usage
F05 –
F06 –
F07 –
F08 –/Front courtesy
lamps/Footwell,
puddle lamps
F09 –

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
266 VEHICLE CARE
FusesUsage
F10 –
F11 –
F12 –
F13 Spare/MID Power Window
F14 –
F15 –/Spare
F16 –/Video processing
module
F17 –
F18 Semi-active damping system
F19 Universal remote system/Rain, light,
and humidity sensor
F20 –/Shunt
F21 Side blind zone alert
F22 –
F23 All wheel drive
F24 –
F25 – Fuses
Usage
F26 –
F27 –
F28 –
F29 –
F30 External object calculation module
F31 Park assist/Lane departure warning/
Lane keep assist
F32 –
F33 –
F34 –
F35 –
F36 –
F37 –
Relays Usage
K1 –
K2 Front courtesy lamps/ Footwell, puddle
lamps Relays
Usage
K3 Suspension leveling compressor
K4 –

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-11354412) -
2018 - crc - 11/16/17
348 ONSTAR
.Make a call, end a call, or answer
an incoming call.
. Give OnStar Hands-Free Calling
voice commands.
. Give OnStar Turn-by-Turn
Navigation voice commands.
. Obtain and customize the Wi-Fi
hotspot name or SSID and
password, if equipped.
Press
Qto connect to an Advisor to:
. Verify account information or
update contact information.
. Get driving directions.
. Receive a Diagnostic check of the
vehicle's key operating systems.
. Receive Roadside Assistance.
. Manage Wi-Fi Settings,
if equipped. Press
>to get a priority connection
to an OnStar Advisor available 24/7 to:
. Get help for an emergency.
. Be a Good Samaritan or respond
to an AMBER Alert.
. Get assistance in severe weather
or other crisis situations and find
evacuation routes.OnStar Services
Emergency
Emergency Services require an active,
OnStar service plan (excludes Basic
Plan). With Automatic Crash
Response, built-in sensors can
automatically alert a specially trained
OnStar Advisor who is immediately
connected in to the vehicle to help.
Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and relay
important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Assistance, Advisors
can locate a nearby service provider to
help with a flat tire, a battery jump,
or an empty gas tank.
