Page 1141 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 4.CHECK OD SOLENOID POWER SUPPLY
• Turn ignition switch on.
• Check OD solenoid power supply between E-086
terminal 10 and ground in the A/

Page 1142 of 1903

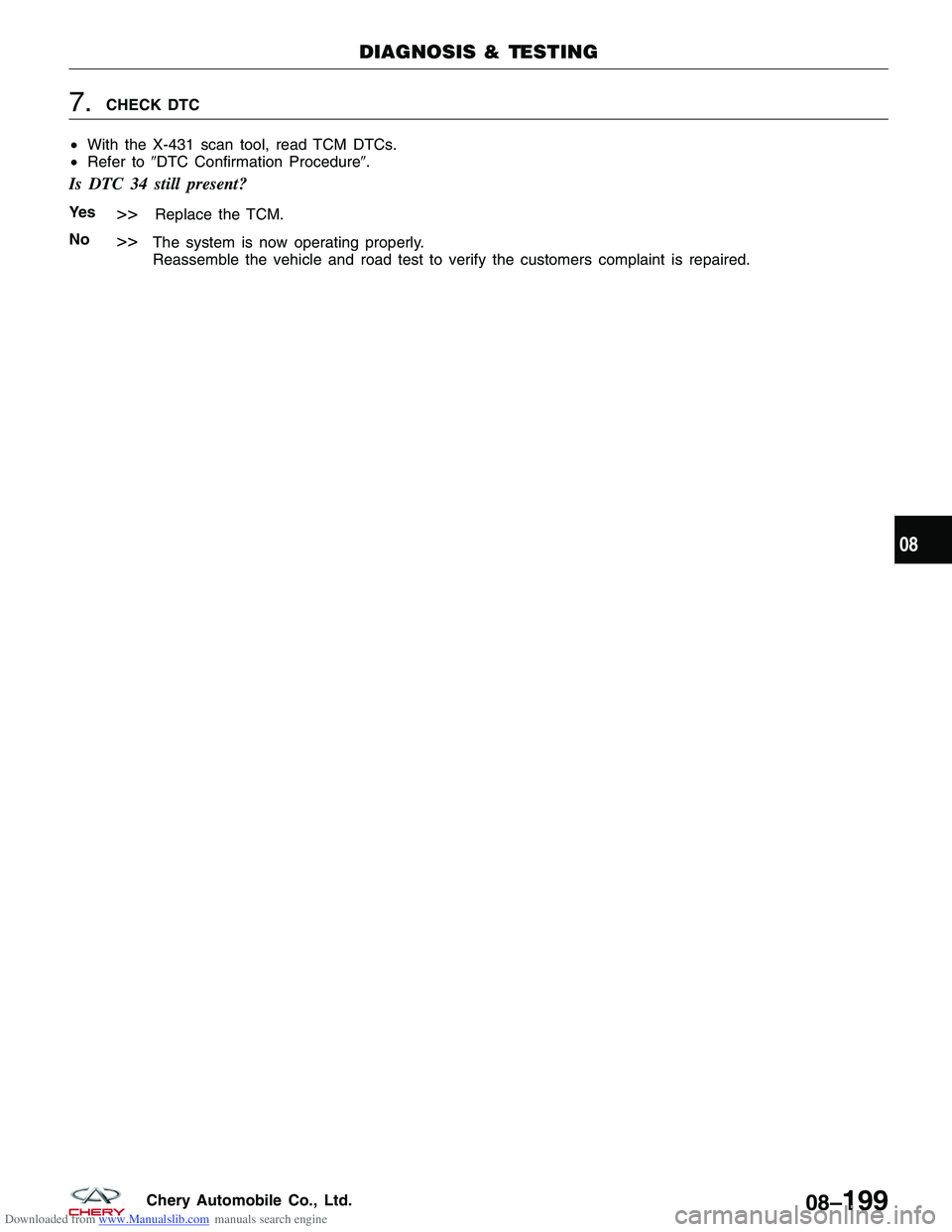

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 7.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 34 still present?
Ye s>>Replace the

Page 1143 of 1903

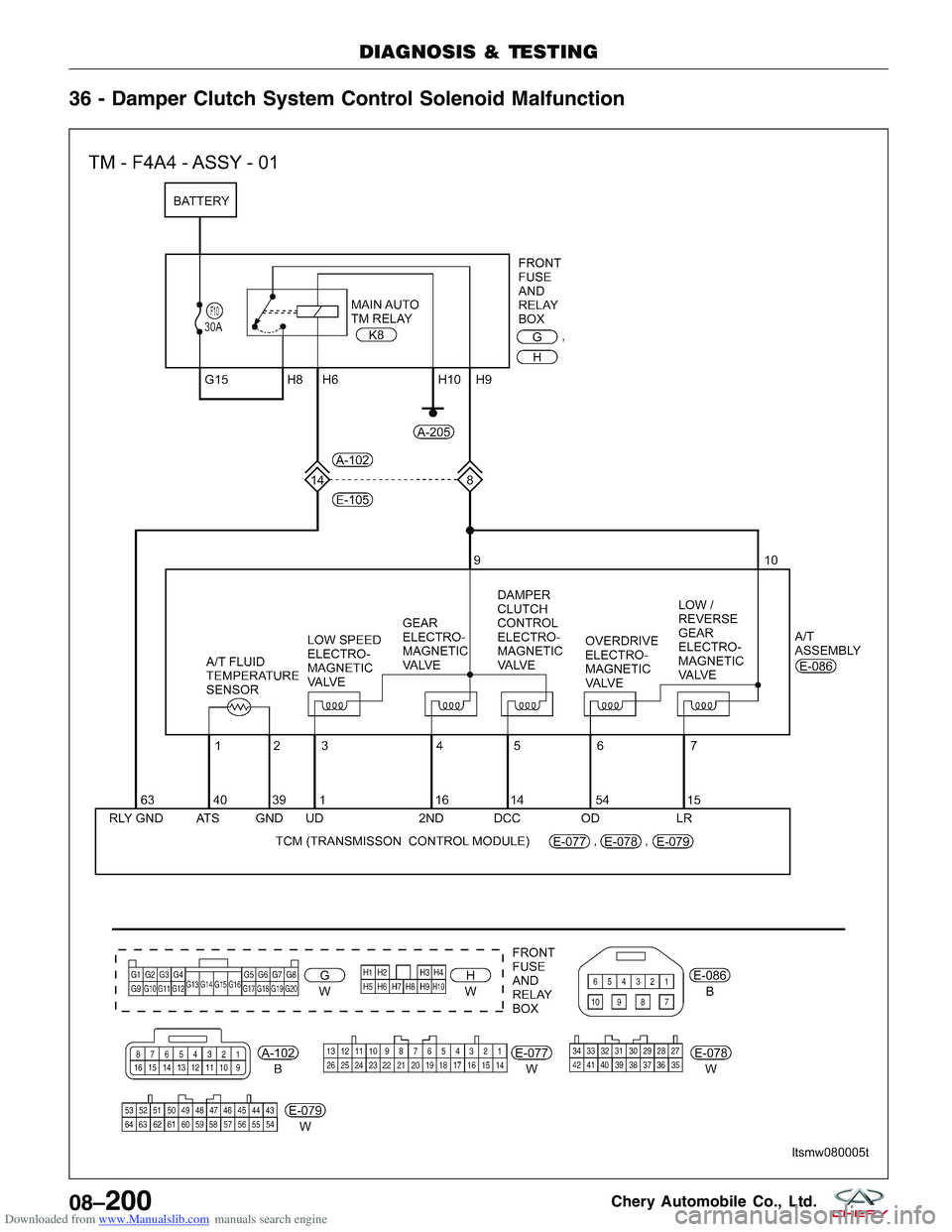

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 36 - Damper Clutch System Control Solenoid Malfunction
DIAGNOSIS & TESTING
LTSMW080005T
08–200Chery Automobile Co., Ltd.

Page 1144 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
3

Page 1145 of 1903

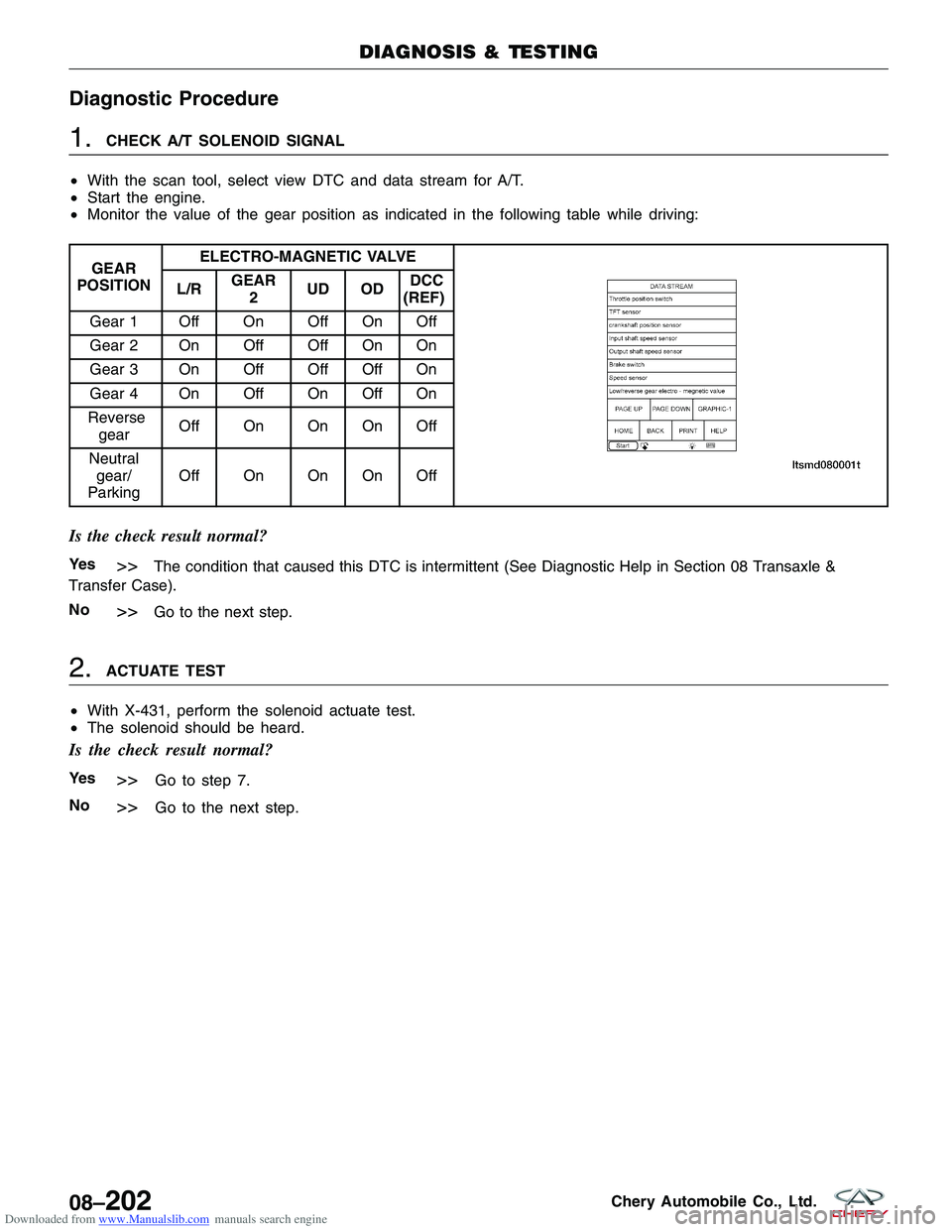

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Mon

Page 1146 of 1903

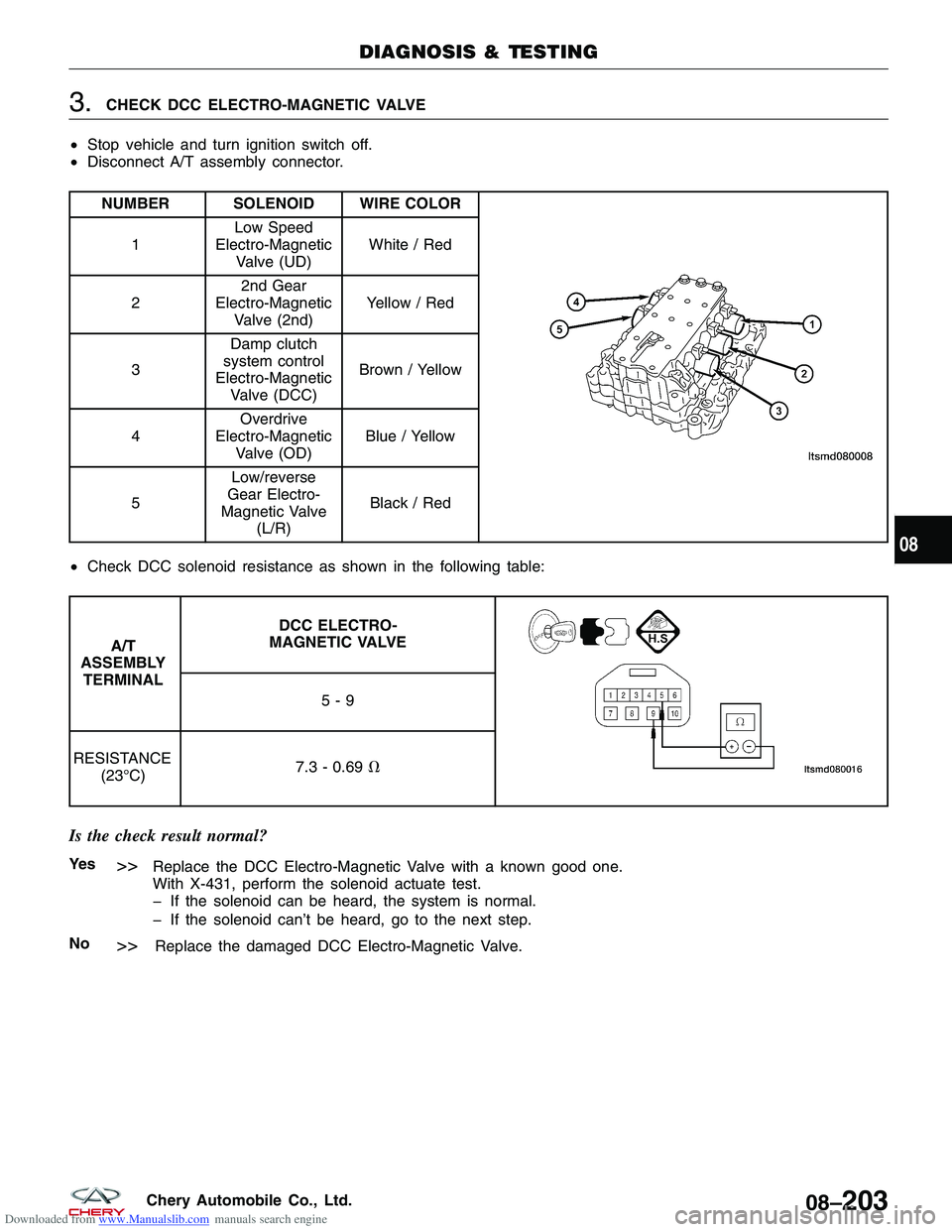

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 3.CHECK DCC ELECTRO-MAGNETIC VALVE
• Stop vehicle and turn ignition switch off.
• Disconnect A/T assembly connector.
NUMBER SOLENOID WIRE C

Page 1147 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 4.CHECK DCC SOLENOID POWER SUPPLY
• Turn the ignition switch on.
• Check DCC solenoid power supply between E-086
terminal 9 and ground in t

Page 1148 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 7.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 36 still present?
Ye s>>Replace the

Page 1149 of 1903

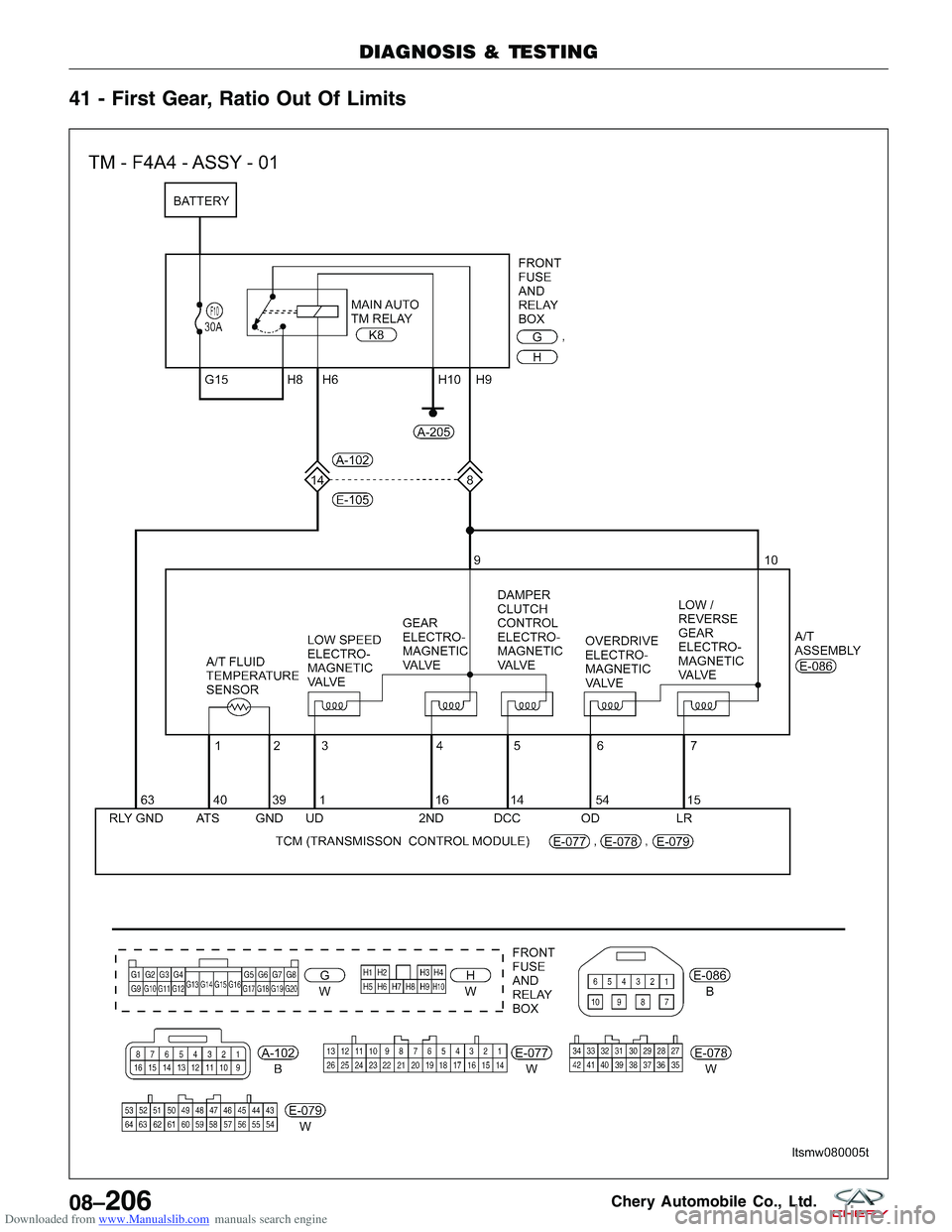

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 41 - First Gear, Ratio Out Of Limits
DIAGNOSIS & TESTING
LTSMW080005T
08–206Chery Automobile Co., Ltd.

Page 1150 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Operating Components Condition
•Related Operating Components
RELATED OPERATING COMPONENT
GEARSHIFT LEVER
POSITION GEAR
RATIO ENGINE
START PAR
