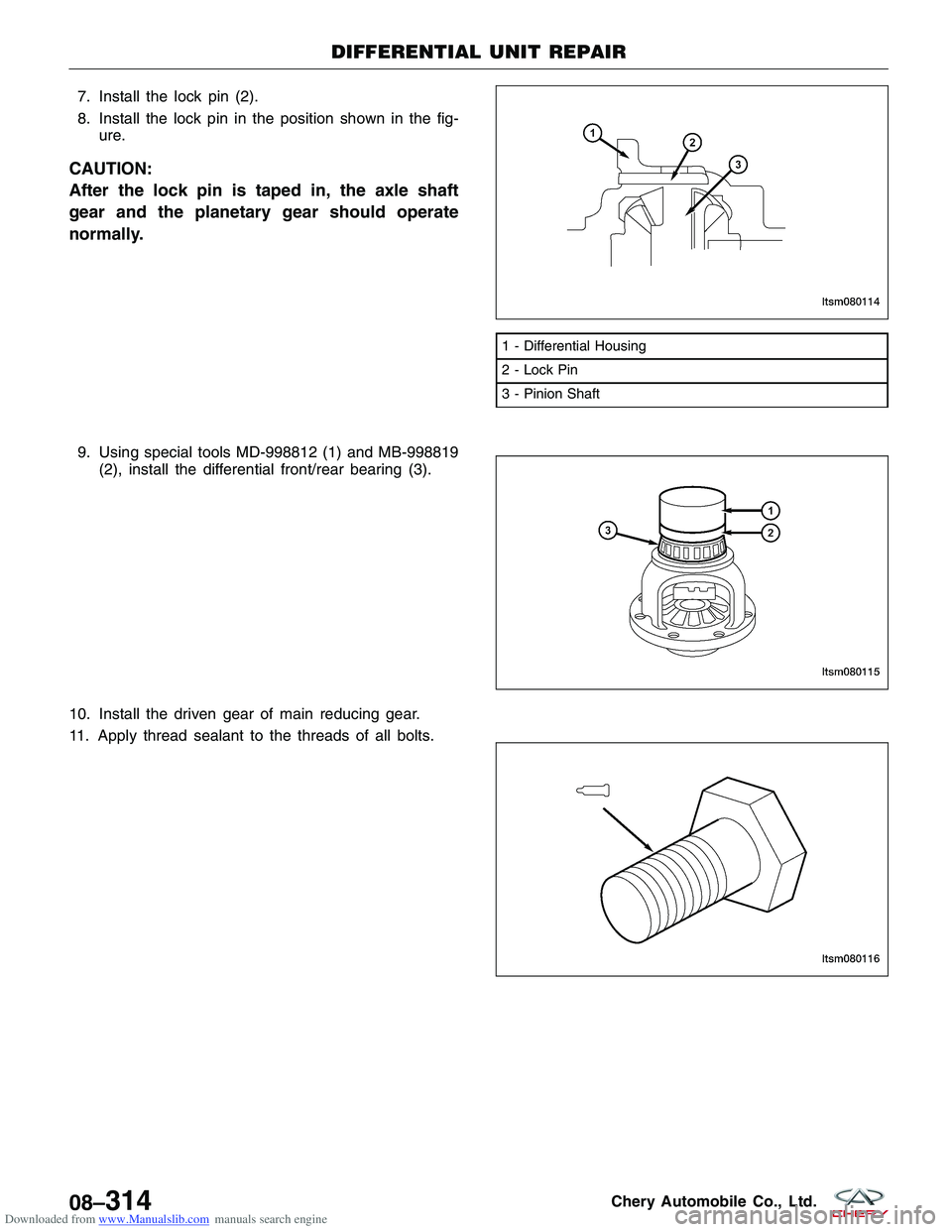

8. Install the lock pin in the position shown in the fig-ure.
CAUTION:
After the lock pin is taped in, the axle shaft
gear and the planetary gear should operate
normally.
9. Using special tools MD-998812 (1) and MB-998819(2), install the differential front/rear bearing (3).
10. Install the driven gear of main reducing gear.
11. Apply thread sealant to the threads of all bolts.
1 - Differential Housing
2 - Lock Pin
3 - Pinion Shaft
DIFFERENTIAL UNIT REPAIR
LTSM080114
LTSM080115
LTSM080116
08–314Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 12. Tighten the ring gear bolts (1) in the sequenceshown in the figure.

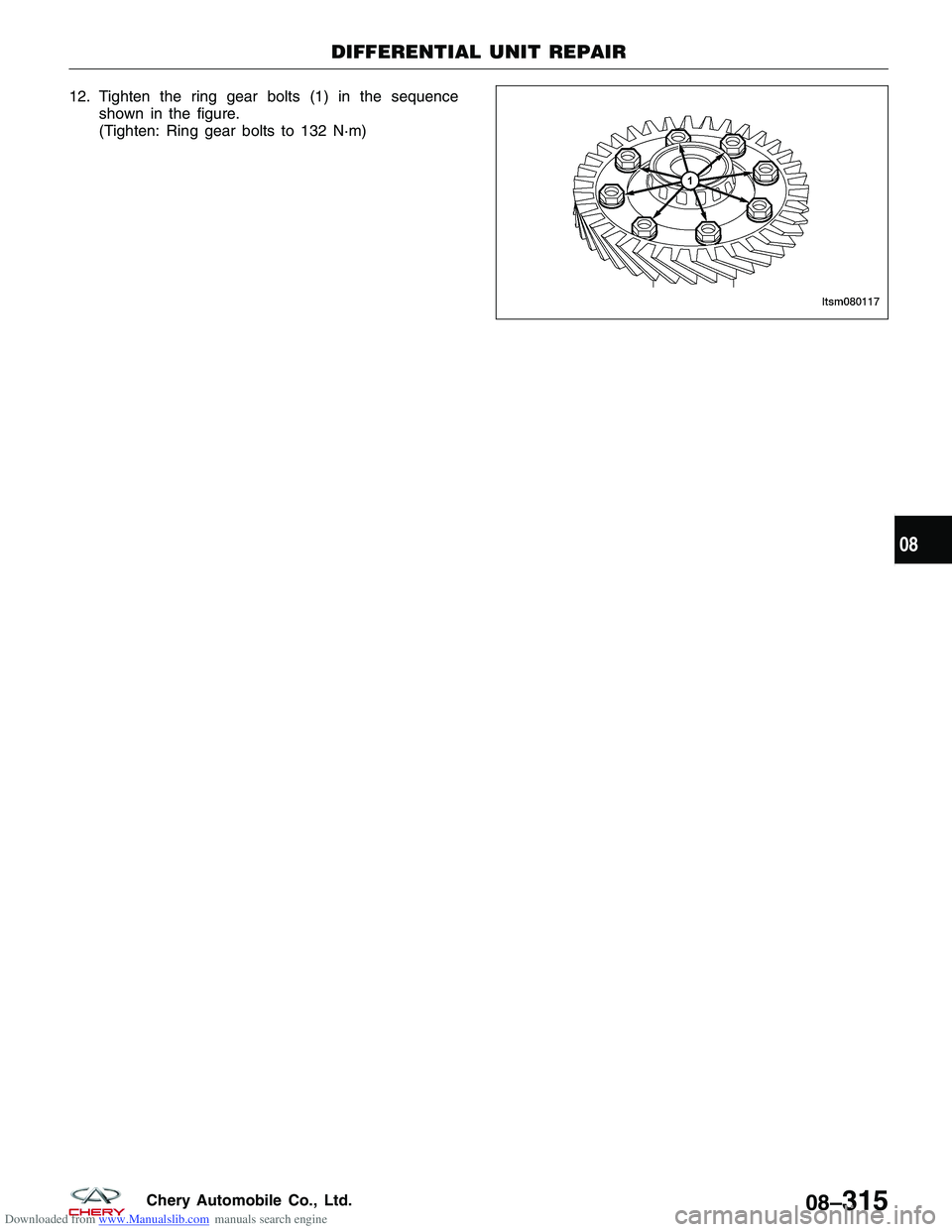

(Tighten: Ring gear bolts to 132 N·m)
DIFFERENTIAL UNIT REPAIR
LTSM080117
08
08–315Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Rear Axle Assembly (4x4)
Description
Rear axle is mounted on the rear sub-frame assembly.
1 - Drive Pinion Lock Nut
2 - Companion Flange
3 - Side Fluid Seal
4 - Drive Pinion Front Bearing
5 - Drive Pinion
6 - Fluid-Filling Bolt
7 - Washer
8 - Fluid-Limiting Bolt
9 - Drive Gear
10 - Carrier Cover Bolts
11 - Carrier Cover12 - Bearing Cap Bolts
13 - Bearing Cap
14 - Differential Assembly
15 - Differential Bolts
16 - Washer
17 - Driven Gear Connecting Bolts
18 - Driven Gear Side Fluid Seal
19 - Driven Gear Washer
20 - Rear Axle Cover
21 - Drive Pinion Washer
ON-VEHICLE SERVICE
LTSM160009
09
09–13Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Operation
The axle receives power from the transaxle through the rear intermediate drive shaft. The drive shaft is connected to
the pinion gear which rotates the differential through the gear mesh with the ring gear bolted to the differential case.
The engine power is transmitted to the axle shafts through the pinion mate and side gears.

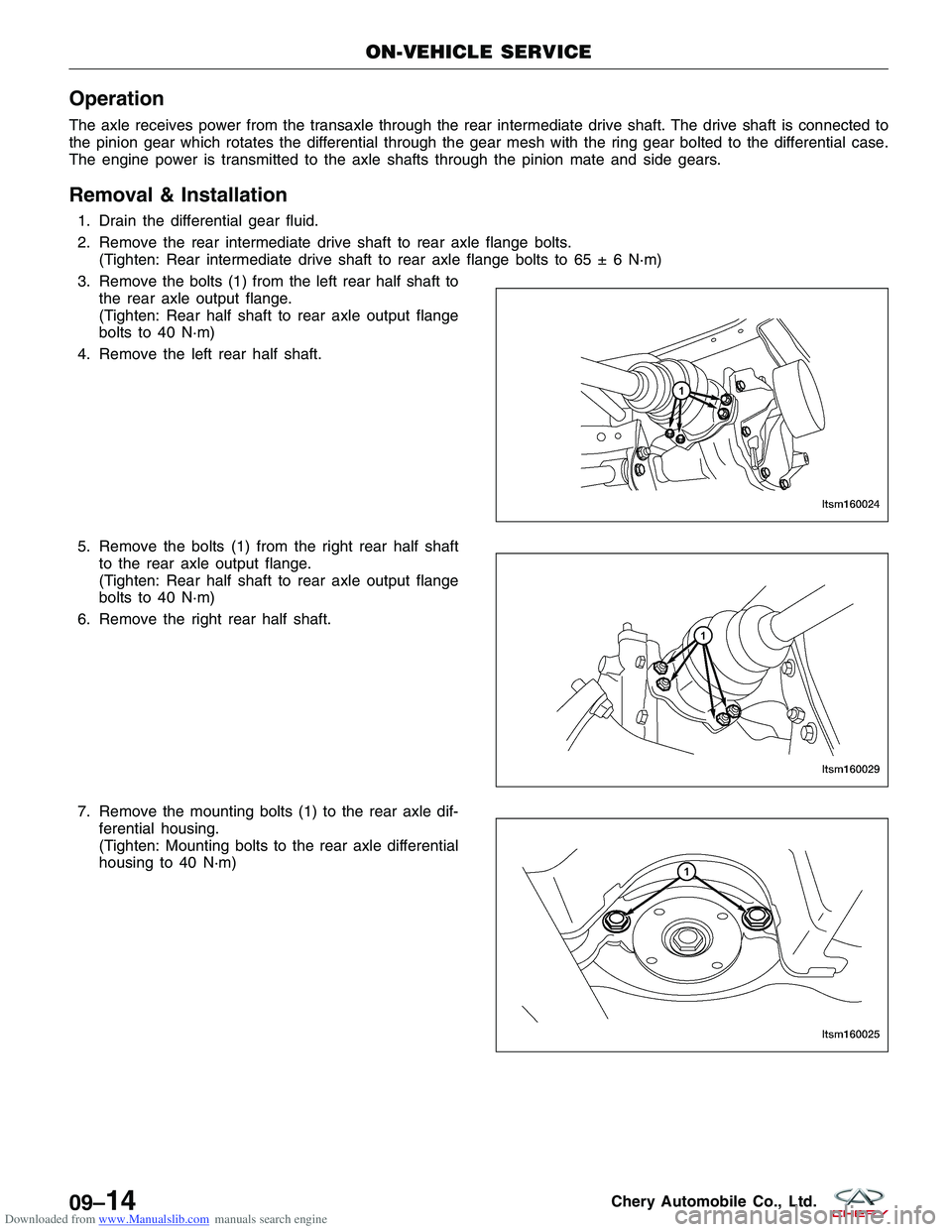

Removal & Installation
1. Drain the differential gear fluid.
2. Remove the rear intermediate drive shaft to rear axle flange bolts.(Tighten: Rear intermediate drive shaft to rear axle flange bolts to 65 ± 6 N·m)
3. Remove the bolts (1) from the left rear half shaft to the rear axle output flange.
(Tighten: Rear half shaft to rear axle output flange
bolts to 40 N·m)
4. Remove the left rear half shaft.
5. Remove the bolts (1) from the right rear half shaft to the rear axle output flange.
(Tighten: Rear half shaft to rear axle output flange
bolts to 40 N·m)
6. Remove the right rear half shaft.
7. Remove the mounting bolts (1) to the rear axle dif- ferential housing.
(Tighten: Mounting bolts to the rear axle differential
housing to 40 N·m)
ON-VEHICLE SERVICE
LTSM160024
LTSM160029
LTSM160025
09–14Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Torque Specifications
DESCRIPTIONTORQUE (N·m)
Bow Beam to Plate Bolts 60 ± 5
Front Intermediate Shaft to ITM Controller Bolts 70 ± 7
ITM Bracket to Bow Beam Bolts 60 ± 5
ITM Control Module Bolts 9 ± 1
Transaxle to Transfer Case Bolts 80
Rear Intermediate Shaft to ITM Controller Bolts 39 ± 3
Rear Intermediate Shaft to Rear Differential Bolts 65 ± 6
Transfer Case Fluid-Limiting Bolt 40 ± 3
Transfer Case Fluid Fill Bolt 40 ± 3
Transfer Case Fluid Drain Bolt 40 ± 3
Transfer Case Front Housing Bolt 35
Transfer Case Rear Housing Bolts 40
Transfer Case Right Bearing Seat Bolt 35
Transfer Case Vent Bolt 18 ± 3
Fluid Specifications
NAMETYPEQUANTITYMAINTENANCE TERM
Transaxle Gear Fluid GL-4 75w-902.2 Liters1 year / 30,000 km
Transfer Case Gear Fluid GL-5 80w-900.8 Liters50,000 km
Rear Final Drive Gear
Fluid Hypoid 85w-90
0.8 Liters50,000 km
Transfer Case Specifications
Differential Assembly
Side GearType of Gear Straight bevel gear
Number of Gears 14
Planetary Gear Type of Gear
Straight bevel gear
Number of Gears 10
Hypoid G Gear Drive GearNumber of Gears 41
Driven Gear Number of Gears 14
ITM Control Module Electronic Signals
SIGNALSMODE OF PROVISION SIGNAL SOURCE
Signals Of The Four Wheel Speed CANWheel Speed Sensor
Vehicle Speed Signals CANVehicle Speed Sensor
Acceleration Signals CANG Sensor
Engine Speed Signals CANCrankshaft Position Sensor
Throttle Position Signals CANThrottle Position Sensor
Steering Wheel Angle Signals SimulatedITM Module
Ignition Switch Signals DirectIgnition Switch
GENERAL INFORMATION
09
09–19Chery Automobile Co., Ltd.
