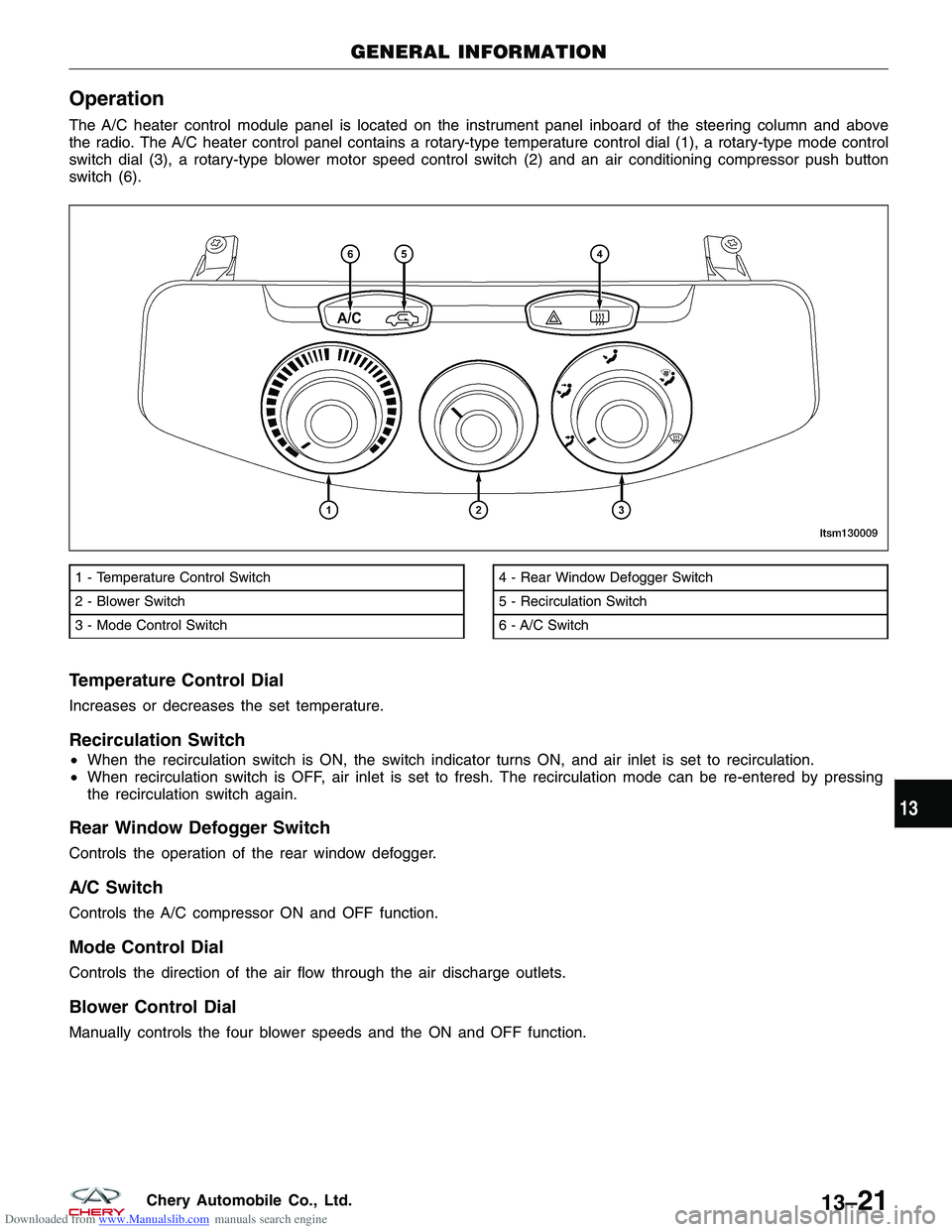

Downloaded from www.Manualslib.com manuals search engine Operation
The A/C heater control module panel is located on the instrument panel inboard of the steering column and above
the radio. The A/C heater control panel contains a rotary-type temperature control dial (1), a rotary-type mode control
switch dial (3), a rotary-type blower motor speed control switch (2) and an air conditioning compressor push button
switch (6).
Temperature Control Dial
Increases or decreases the set temperature.
Recirculation Switch
•When the recirculation switch is ON, the switch indicator turns ON, and air inlet is set to recirculation.
• When recirculation switch is OFF, air inlet is set to fresh. The recirculation mode can be re-entered by pressing
the recirculation switch again.
Rear Window Defogger Switch
Controls the operation of the rear window defogger.
A/C Switch
Controls the A/C compressor ON and OFF function.
Mode Control Dial
Controls the direction of the air flow through the air discharge outlets.
Blower Control Dial
Manually controls the four blower speeds and the ON and OFF function.
1 - Temperature Control Switch
2 - Blower Switch
3 - Mode Control Switch4 - Rear Window Defogger Switch
5 - Recirculation Switch
6 - A/C Switch
GENERAL INFORMATION
LTSM130009
13
13–21Chery Automobile Co., Ltd.
