CHEVROLET ASTRO 1997 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule I

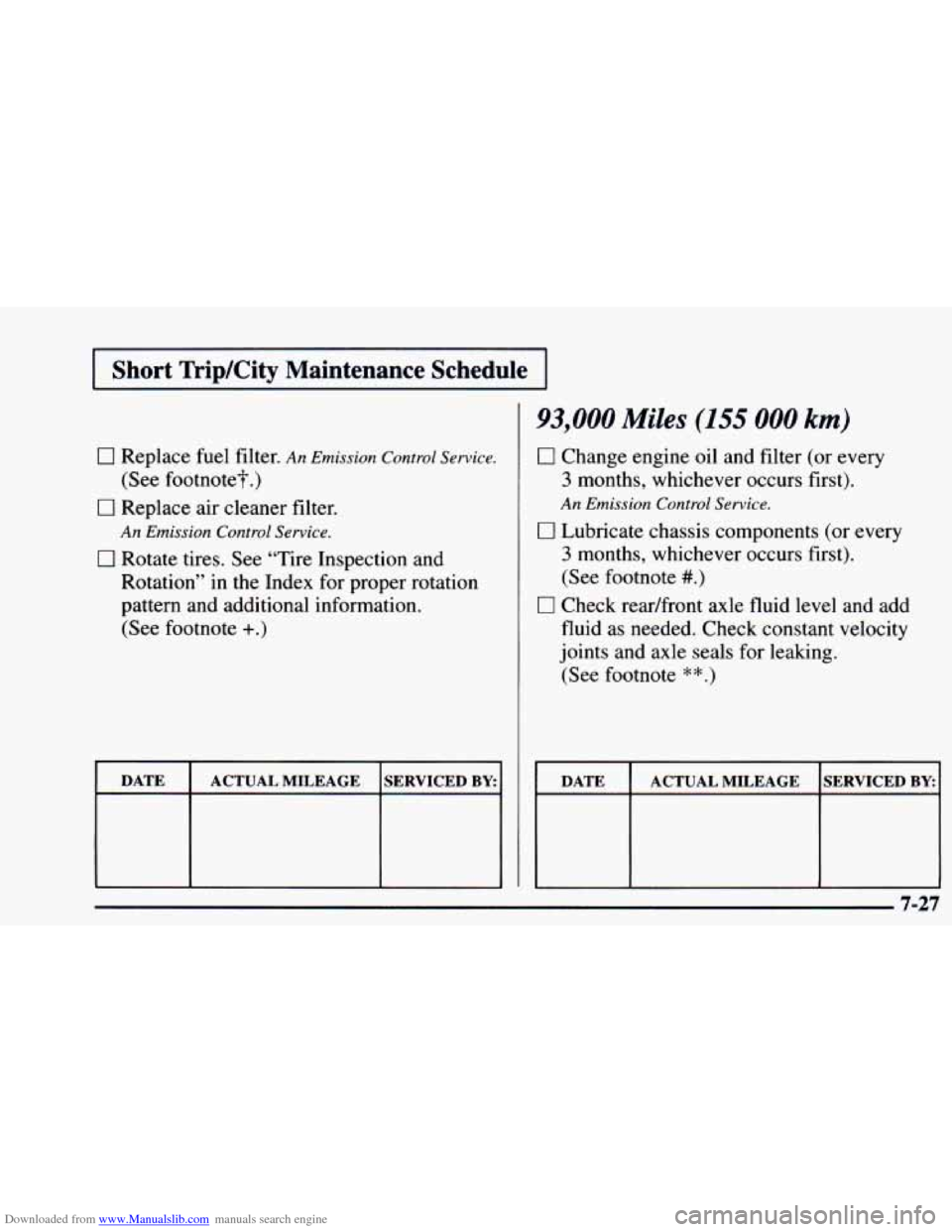

0 Replace fuel filter. An Emission Control Service.
0 Replace air cleaner filter.
0 Rotate tires. See "Tire Inspection and
Rotation" in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
(See footnote"f)
An Emission Control Service.
I DATE ACTUAL MILEAGE SERVICED BY:
93,000 Miles (155 000 km)
CI Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
DATE SERVICED BY: ACTUAL MILEAGE
I I I

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule I

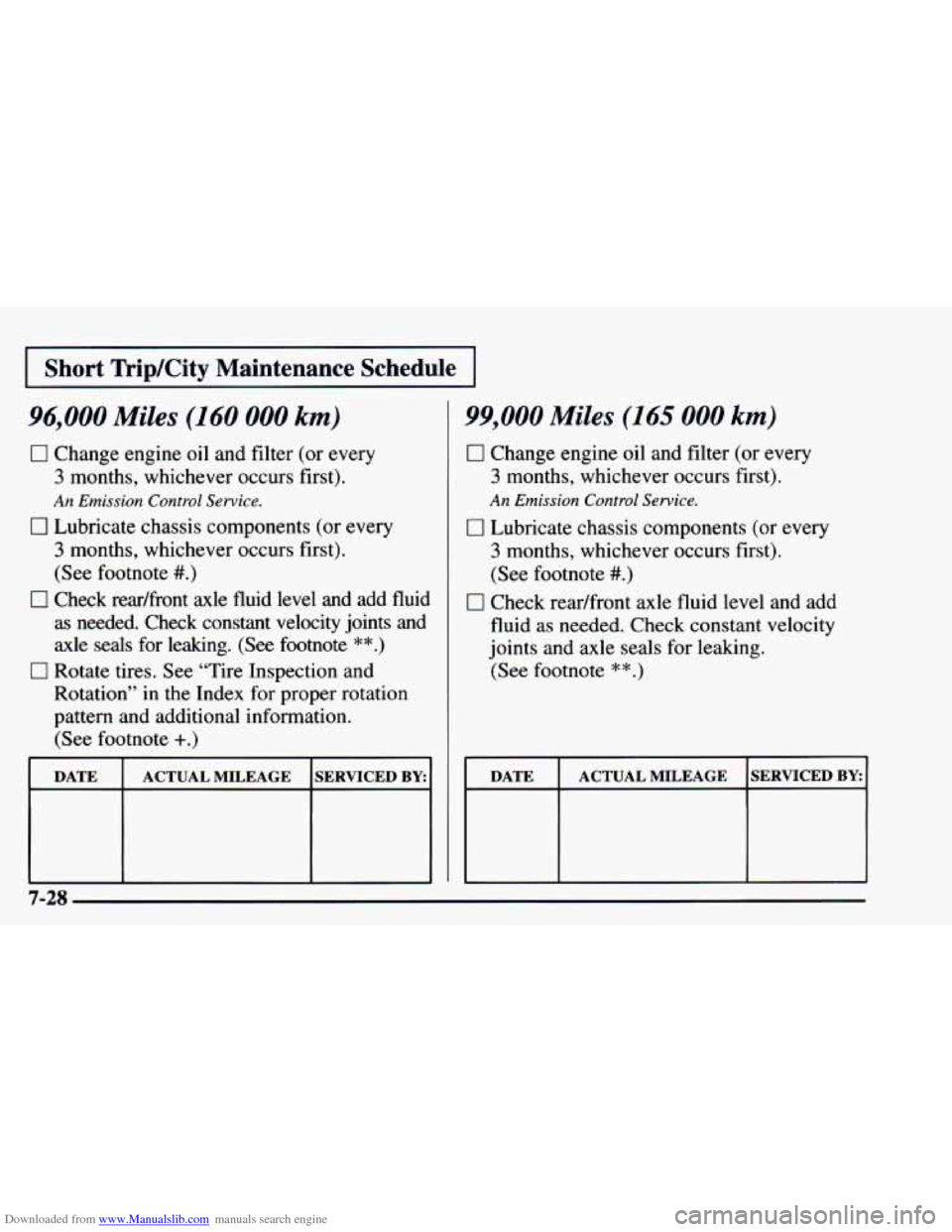

96,000 Miles (160 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfiont axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking.
(See footnote **.)
c] Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
99,000 Miles (165 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
CI Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote **.)
DATE SERVICED BY: ACTUAL MILEAGE
7-28

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule I
100,000 Miles (166 000 km)
CI Inspect spark plug wires.
An Emission Control Service.
Replace spark plugs.
0 Inspect Positive Crankcase Ventilation
(Pcv) valve.
An Emission Control Service.
An Emission Control Service.
DATE
SERVICED BY: ACTUAL MILEAGE
150,000 Miles (240 000 km)
CI Drain, flush and refill cooling system
(or
every 60 months since last service,
whichever occurs first). See “Engine
Coolant” in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service.
DATE ACTUAL MILEAGE
I I
SERVICED BY: I
I
7-29

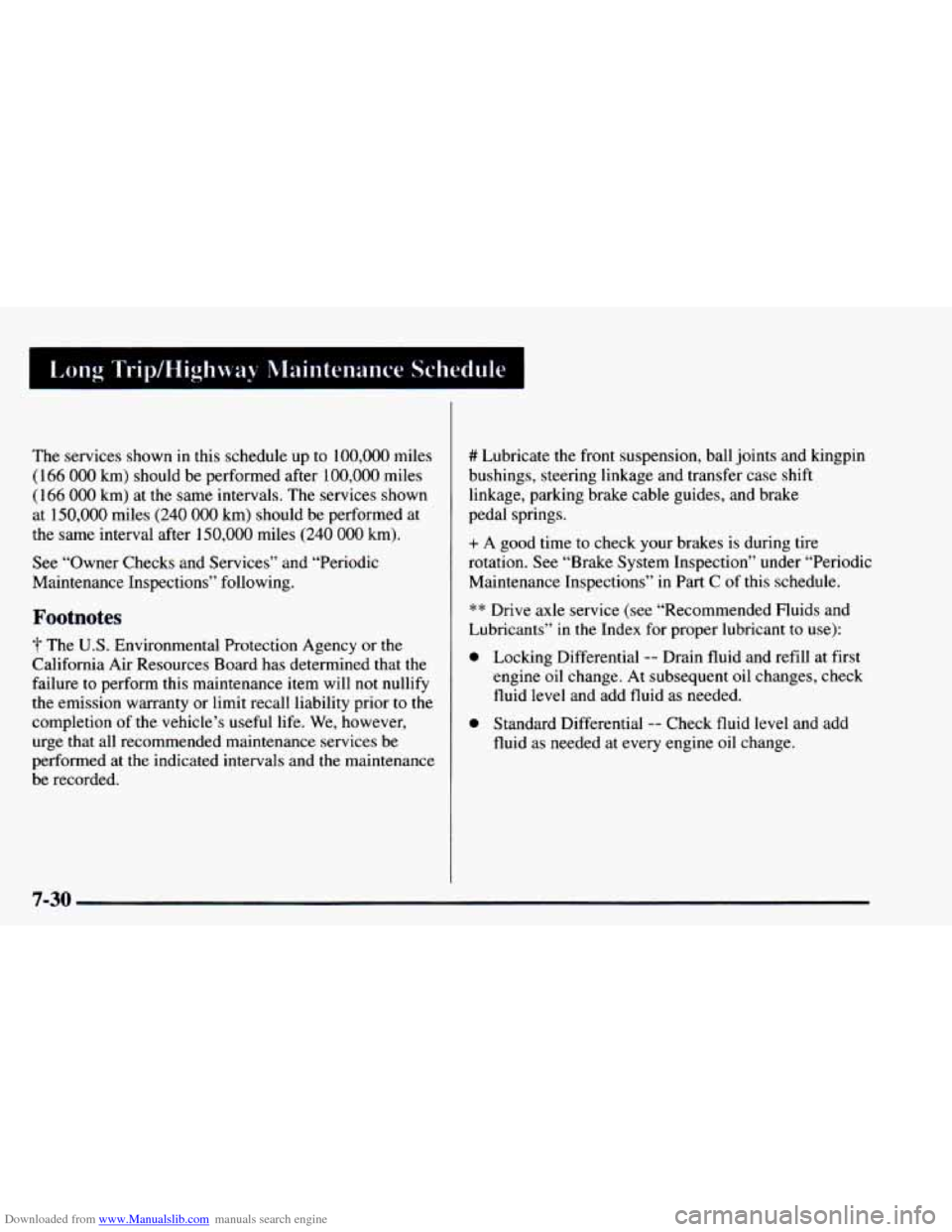

Downloaded from www.Manualslib.com manuals search engine Long TriplHighway Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
( 166 000 km) should be performed after 100,000 miles
(166
000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after 150,000 miles
(240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will
not nullify
the emission warranty or limit recall liability prior to
the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate the front suspension, ball joints and kingpin
bushings, steering linkage and transfer case shift
linkage, parking brake cable guides, and brake
pedal springs.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspections” in Part
C of this schedule.
** Drive axle service (see “Recommended Fluids and
Lubricants” in the Index
for proper lubricant to use):
0 Locking Differential -- Drain fluid and refill at first
engine oil change. At subsequent oil changes, check
fluid level and add fluid as needed.
0 Standard Differential -- Check fluid level and add
fluid as needed at every engine oil change.
7-30

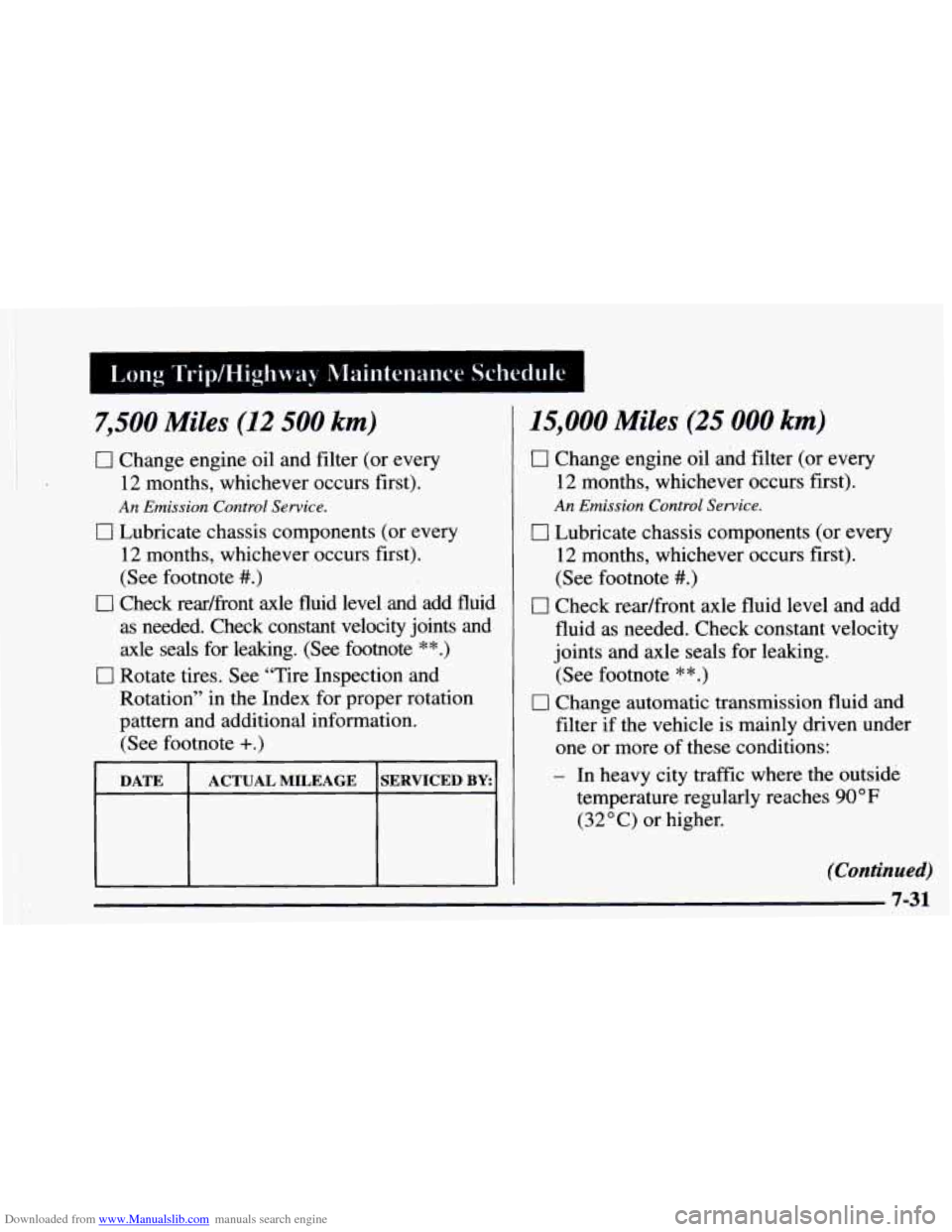

Downloaded from www.Manualslib.com manuals search engine 7,500 Miles (12 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and axle seals for leaking. (See footnote
* * .)
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
An Emission Control Service.
I DATE I ACTUAL MILEAGE SERVICED BY:^
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
* *.)
0 Change automatic transmission fluid and
filter if the vehicle
is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32 O C) or higher.
An Emission Control Service.
(Continued)
n 3-1

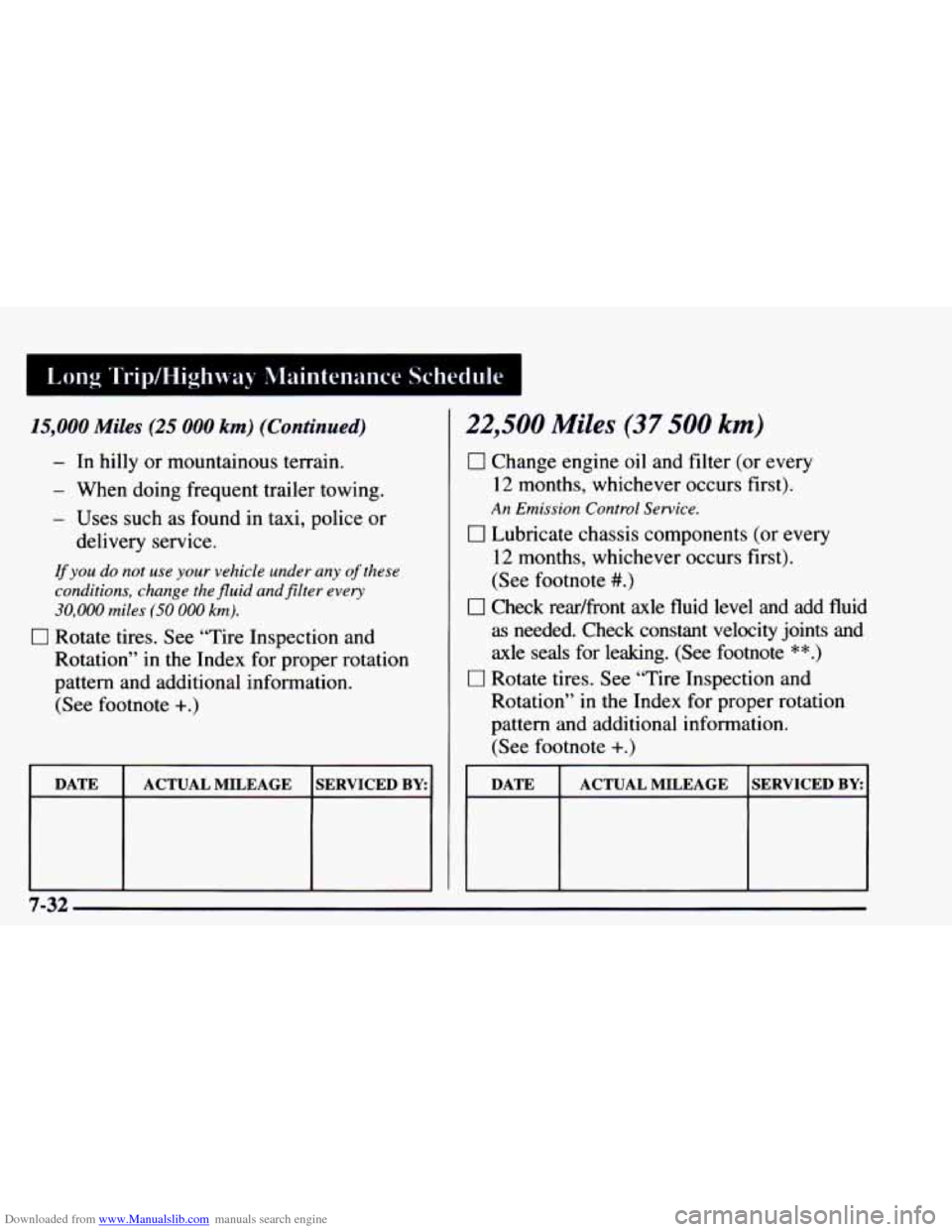

Downloaded from www.Manualslib.com manuals search engine 15,000 Miles (25 000 km) (Continued)
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
If you do not use your vehicle under any of these
conditions, change the
fluid and filter every
30,000 miles (50 000 km).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote +.)
delivery service.
DATE ACTUAL MILEAGE SERVICED BY:
22,500 Miles (37 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for lealung. (See footnote
* *.)
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
An Emission Control Service.

Downloaded from www.Manualslib.com manuals search engine I Long Trip/Highway Maintenance Schedule 1

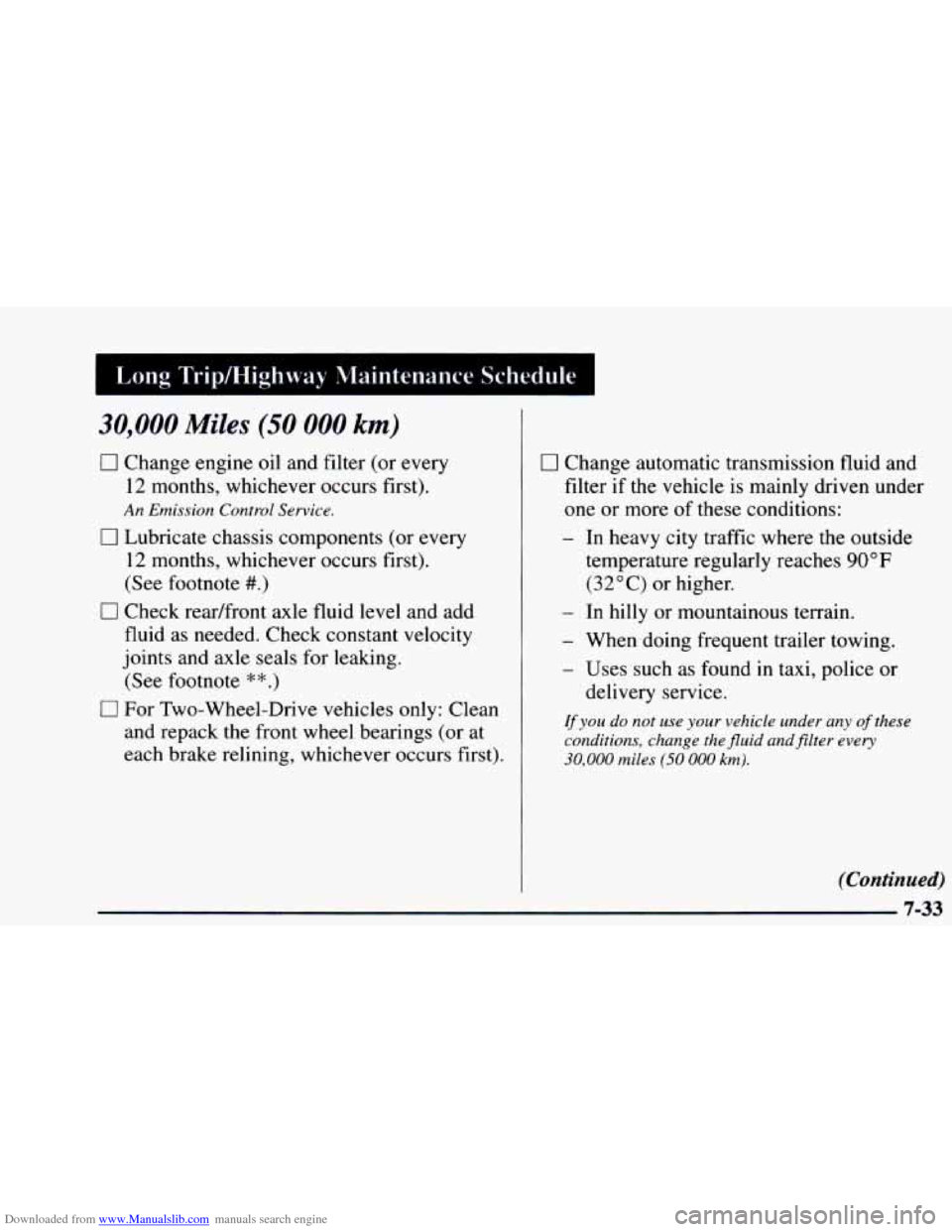

30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
El Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
0 For Two-Wheel-Drive vehicles only: Clean
and repack the
front wheel bearings (or at
each brake relining, whichever occurs first).
An Emission Control Service.
0 Change automatic transmission fluid and
filter
if the vehicle is mainly driven under
one or more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90°F
(32 O C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of these
conditions, change the
fluid and filter every
30,000 miles (50 000 km).
(Continued)
n mm

Downloaded from www.Manualslib.com manuals search engine I Long Trip/Highwav Maintenance Schedule 1

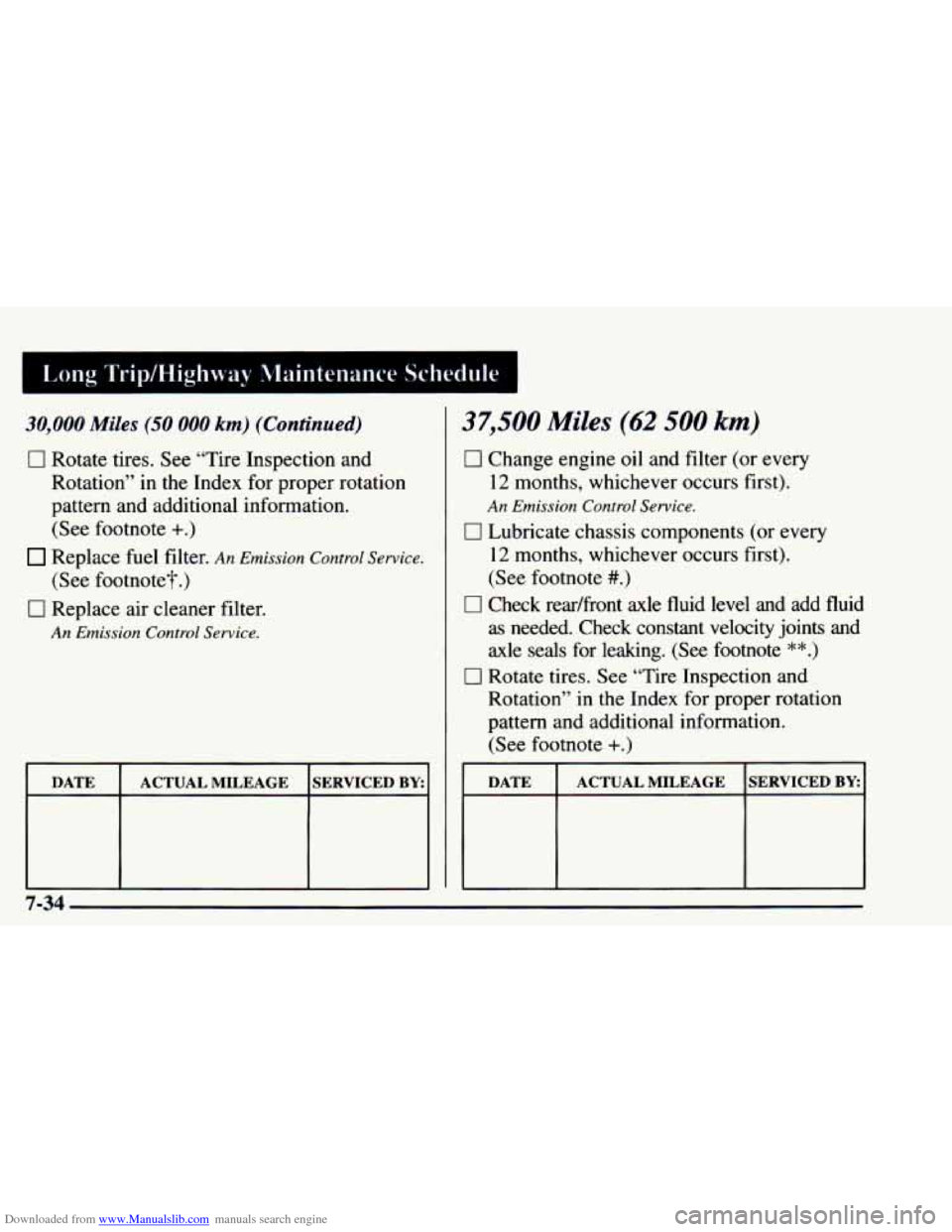

30,000 Miles (50 000 km) (Continued)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
(See footnote?.)
Replace fuel filter. An Emission Control Service.
0 Replace air cleaner filter.
An Emission Control Service.
~~ ~~
DATE SERVICED BY ACTUAL MILEAGE
37,500 Miles (62 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
17 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
An Emission Control Service.
7-34

Downloaded from www.Manualslib.com manuals search engine 1,ong Trip/Highway Maintenance Schedule

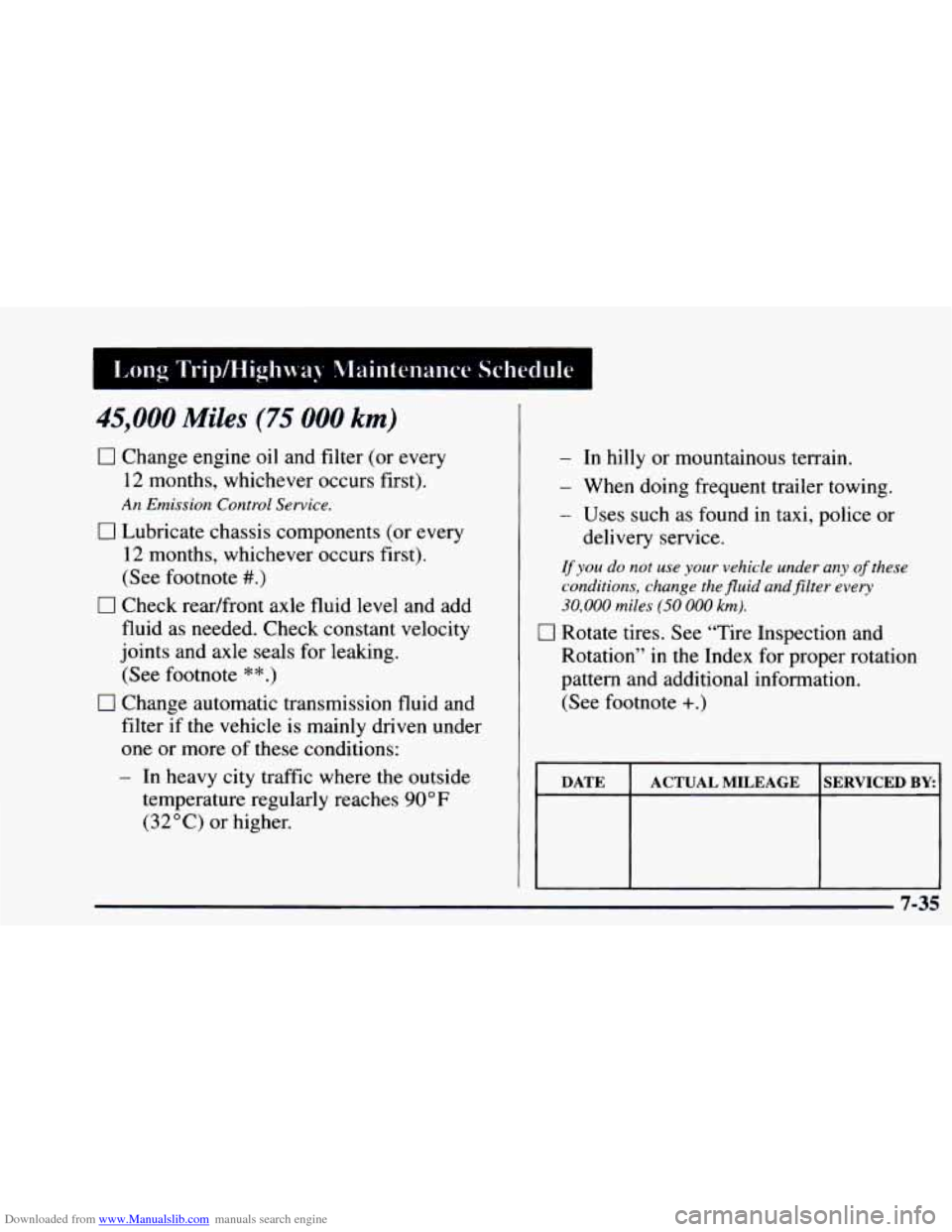

45,000 Miles (75 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
0 Change automatic transmission fluid and
filter
if the vehicle is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90” F
(32°C) or higher.
An Emission Control Service.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of these
conditions, change the fluid and*filter
every
30,000 miles (50 000 km).
I7 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE SERVICED BY ACTUAL MILEAGE
7-35

Downloaded from www.Manualslib.com manuals search engine II,ongTriplHighway Maintenance Schedule I

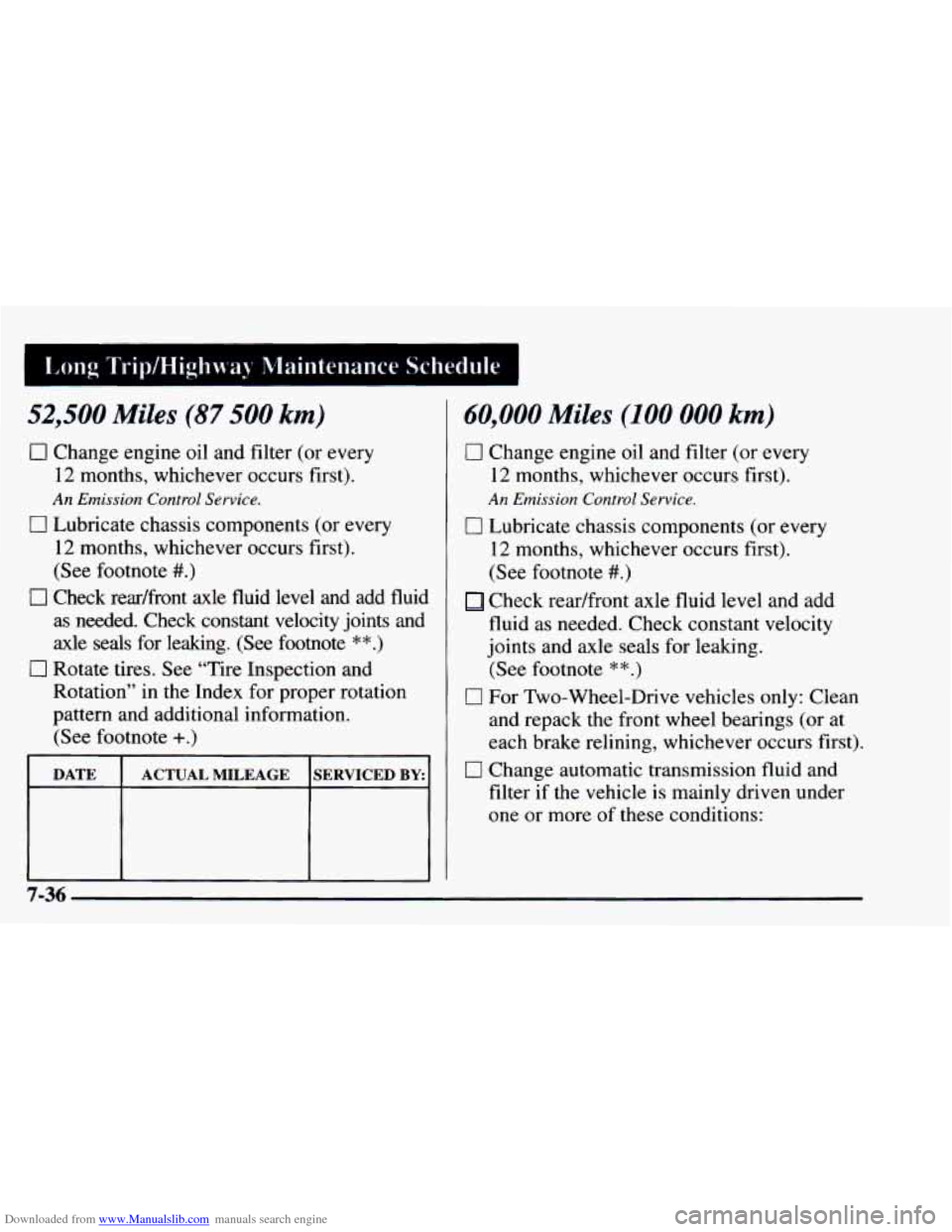

52,500 Miles (87 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote #.)
0 Check readfiont axle fluid level and add fluid
as needed. Check constant velocity joints and
axle
seals for leaking. (See footnote **.)
17 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
12 months, whichever occurs first).
(See footnote
#.)
Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
* * .)
0 For Two-Wheel-Drive vehicles only: Clean and repack
the front wheel bearings (or at
each brake relining, whichever occurs first).
filter if the vehicle is mainly driven under
one or more of these conditions:
An Emission Control Service.
0 Change automatic transmission fluid and
7-36
