headrest CHEVROLET ASTRO 1998 2.G Owners Manual

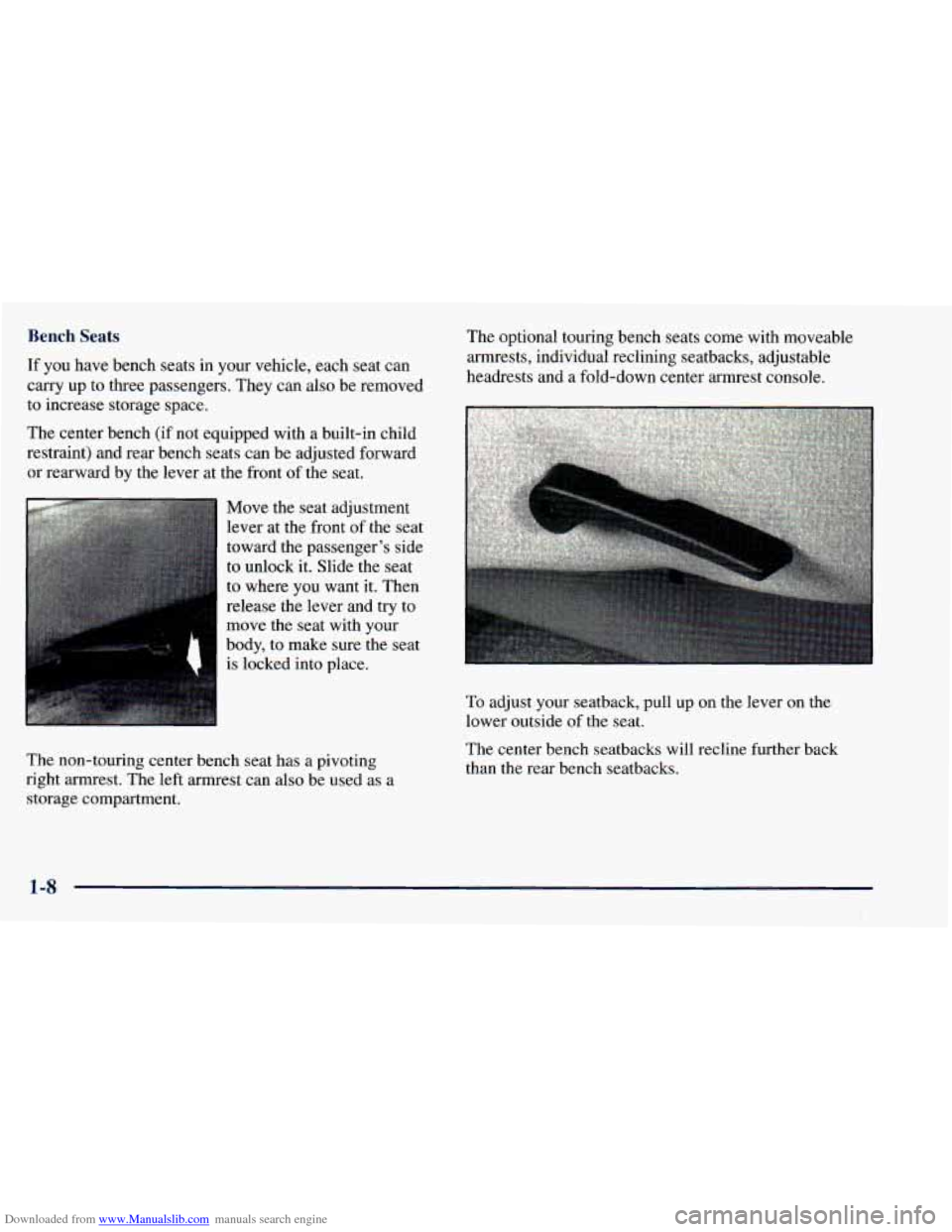

Downloaded from www.Manualslib.com manuals search engine Bench Seats
If you have bench seats in your vehicle, each seat can
carry up to three passengers. They can also be removed
to increase storage space.
The center bench (if not equipped with a built-in child
restraint) and rear bench seats can be adjusted forward
or rearward by the lever at the front of the seat.
Move the seat adjustment
lever at the front
of the seat
toward the passenger’s side
to unlock it. Slide the seat
to where you want it. Then
release the lever and try to
move the seat with
your
body, to make sure the seat
is locked into place. The
optional touring bench seats come with moveable
armrests, individual reclining seatbacks, adjustable
headrests and
a fold-down center armrest console.
The non-touring center bench seat has a pivoting
right armrest. The left armrest can also be used as a
storage compartment. To
adjust your seatback, pull up on the lever on the
lower outside of the seat.
The center bench seatbacks will recline further back
than the rear bench seatbacks.
1-8

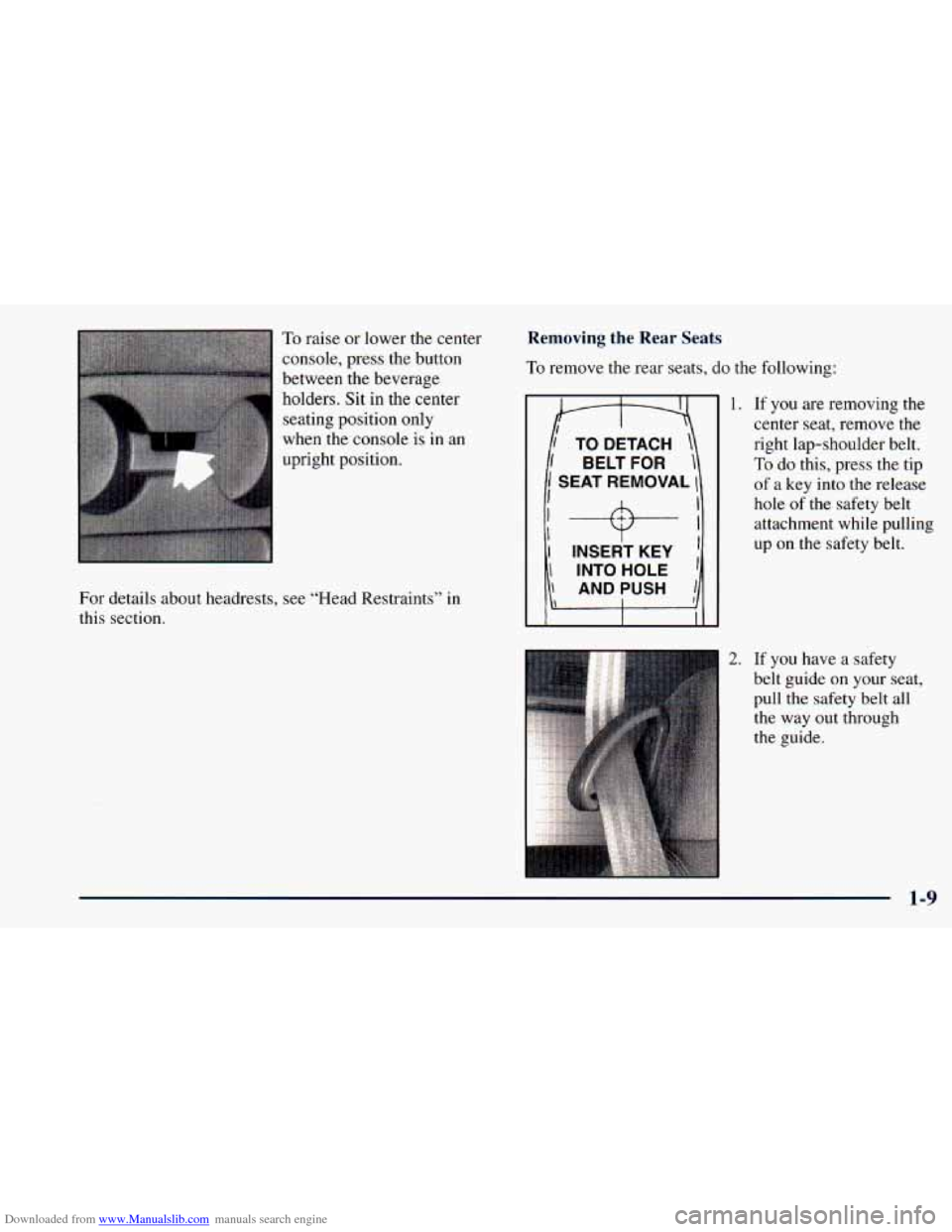

Downloaded from www.Manualslib.com manuals search engine To raise or lower the center
I console, press the button
between the beverage
holders. Sit in the center
seating position only
when the console is-in an
upright position.
For details about headrests, see “Head Restraints” in
this section.
Removing the Rear Seats
To remove the rear seats, do the following:
r7-7 I TO DETACH
I BELT FOR \ I
I SEAT REMOVAL 1
I
I -Q-.
I INSERT KEY
I INTO HOLE
1 ANDPUSH I I
1.
2.
If you are removing the
center seat, remove the
right lap-shoulder belt.
To do this, press the tip
of a key into the release
hole of
the safety belt
attachment while pulling
up
on the safety belt.
If you have
a safety
belt guide on your seat,
pull the safety
belt all
the way out through
the guide.
1-9
