Page 33 of 414

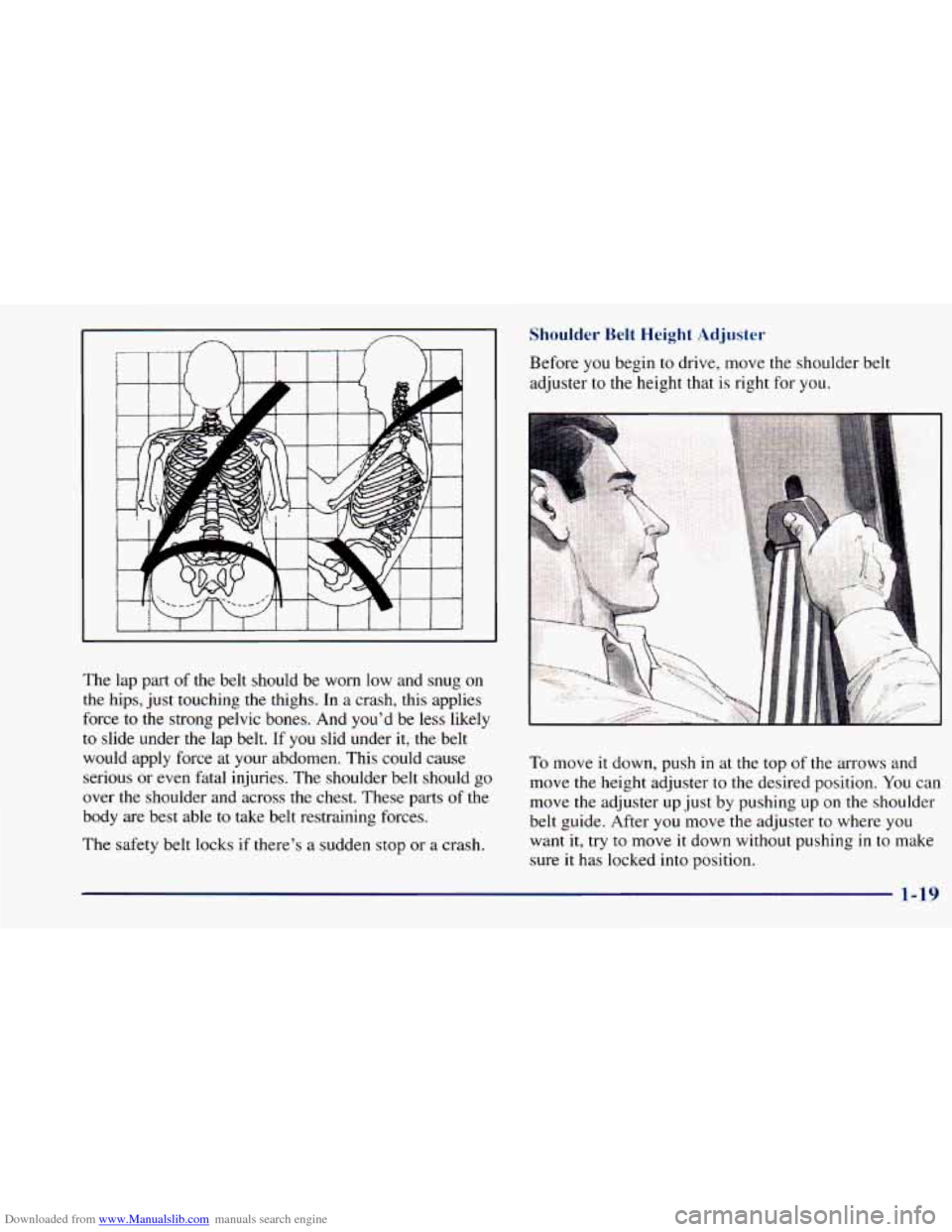

Downloaded from www.Manualslib.com manuals search engine The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you'd be less likely
to slide under the lap belt. If you slid under it, the belt
would apply force at your abdomen. This could cause
serious or even fatal injuries. The shoulder belt should go
over the shoulder and across the chest. These parts of the
body are best able
to take belt restraining forces.
The safety belt locks
if there's a sudden stop or a crash.
Shoulder Belt Height Ad.juster
Before you begin to drive, move the shoulder belt
adjuster to the height that is right for
you.
"
To move it down, push in at the top of the arrows and
move the height adjuster
to the desired position. You can
move the adjuster up just by pushing up on the shoulder
belt guide. After
you move the adjuster to where you
want it, try to move it down without pushing in to make
sure
it has locked into position.
1-19
Page 34 of 414

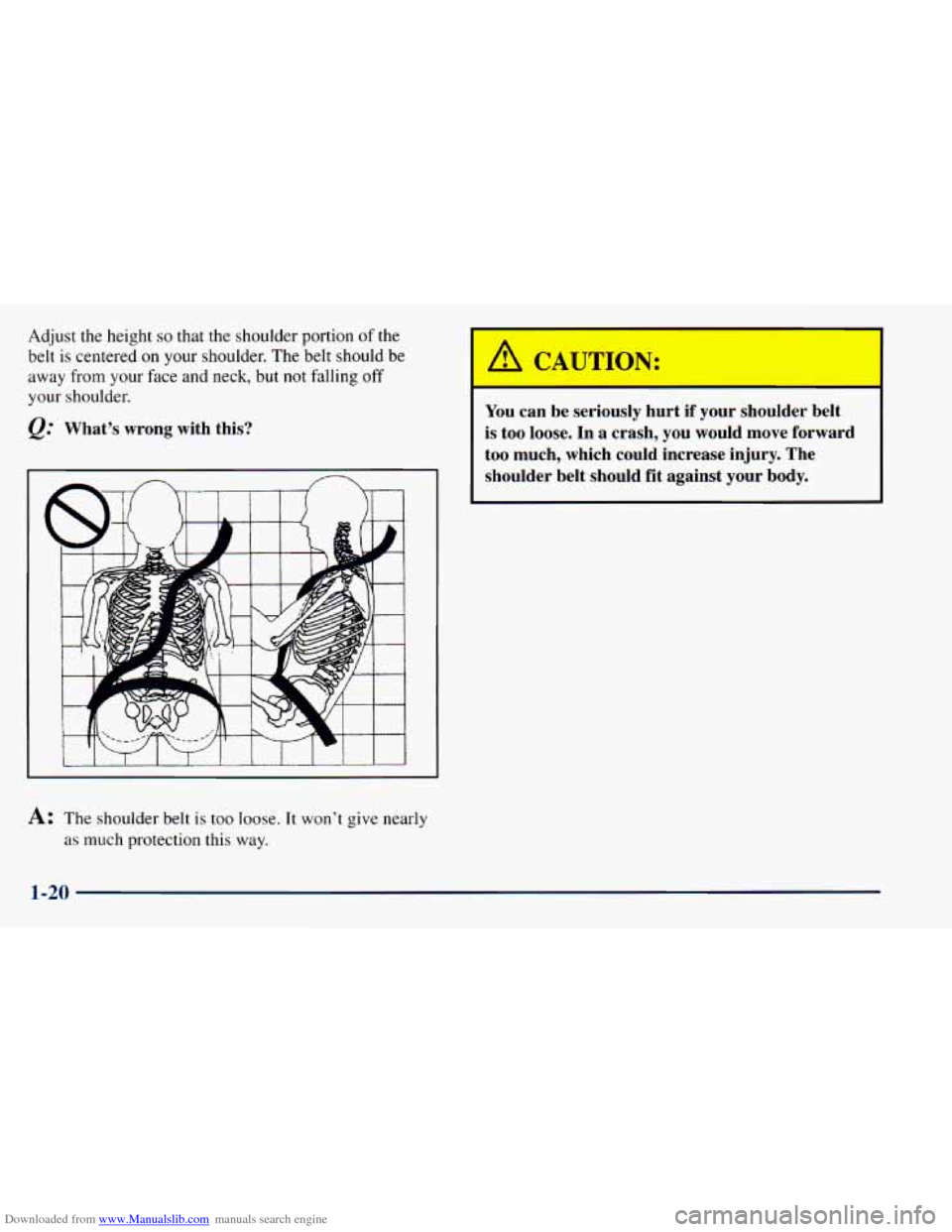

Downloaded from www.Manualslib.com manuals search engine Adjust the height so that the shoulder portion of the
belt is centered
on your shoulder. The belt should be
away
from your face and neck, but not falling off
your shoulder.
What’s wrong with this?
A: The shoulder belt is too loose. It won’t give nearly
as much protection this way.
You can be seriously hurt if your shoulder belt
is too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
1-20
Page 46 of 414

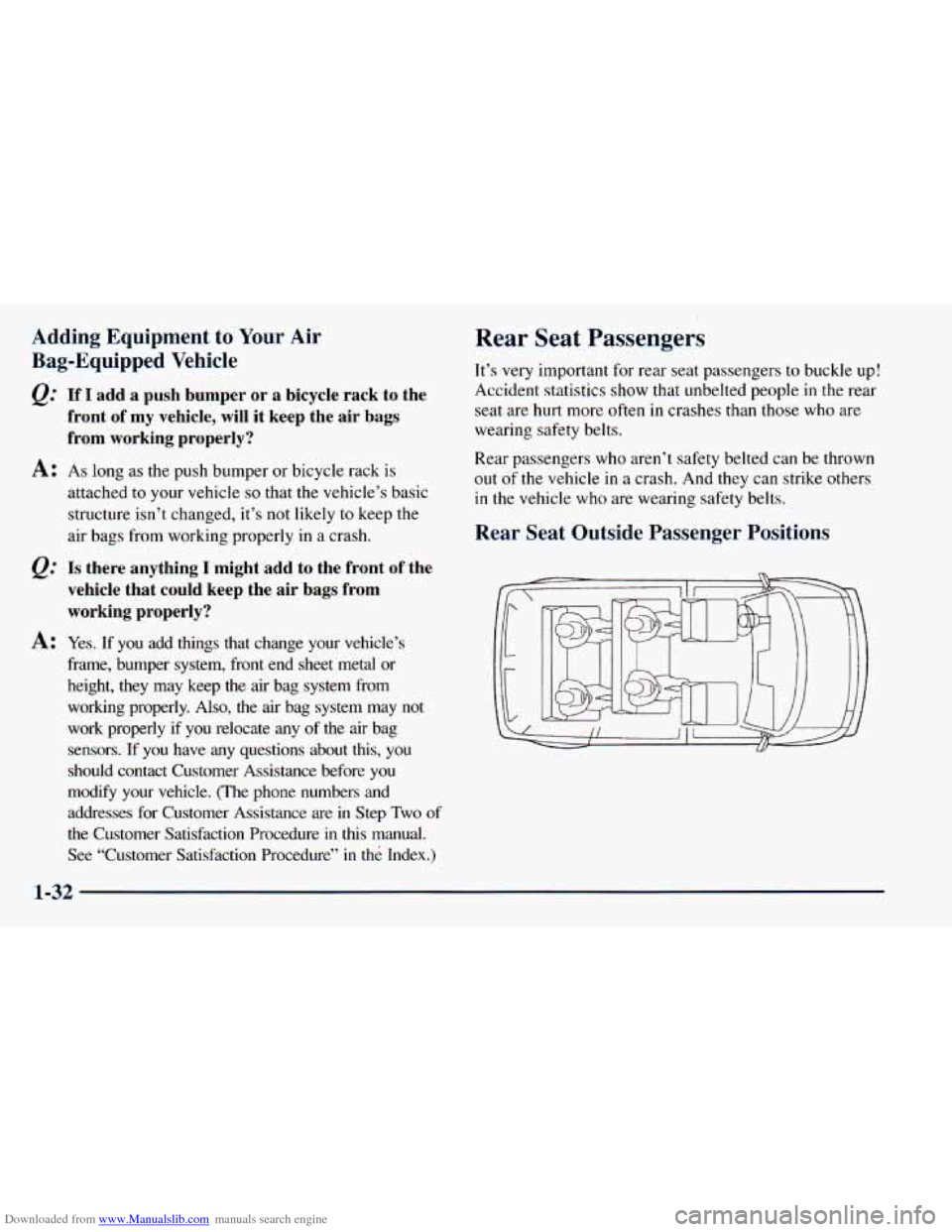

Downloaded from www.Manualslib.com manuals search engine Adding Equipment to Your Air
Bag-Equipped Vehicle
@ If I add a push bumper or a bicycle rack to the
front of my vehicle, will it keep the air bags
from working properly?
A: As long as the push bumper or bicycle rack is
attached to your vehicle
so that the vehicle’s basic
structure isn’t changed, it’s
not likely to keep the
air bags from working properly in a crash.
@ Is there anything I might add to the front of the
vehicle that could keep the air bags from
working properly?
A: Yes. If y01- - Jd things that change your vehicle’s
frame, bumper system, front end sheet metal or
height, they may keep the air bag system from
working properly. Also, the
air bag system may not
work properly if
you relocate any of the air bag
sensors. If you have any questions about this,
you
should contact Customer Assistance before you
modify your vehicle. (The phone numbers and
addresses for Customer Assistance are in Step Two
of
the Customer Satisfaction Procedure in this manual.
See “Customer Satisfaction Procedure”
in the Index.)
Rear Seat Passengers
It’s very important for rear seat passengers to buckle up!
Accident statistics show that unbelted people in
the rear
seat are hurt more often in crashes than those who are
wearing safety belts.
Rear passengers who aren’t safety belted can be thrown
out of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
Rear Seat Outside Passenger Positions
Page 58 of 414

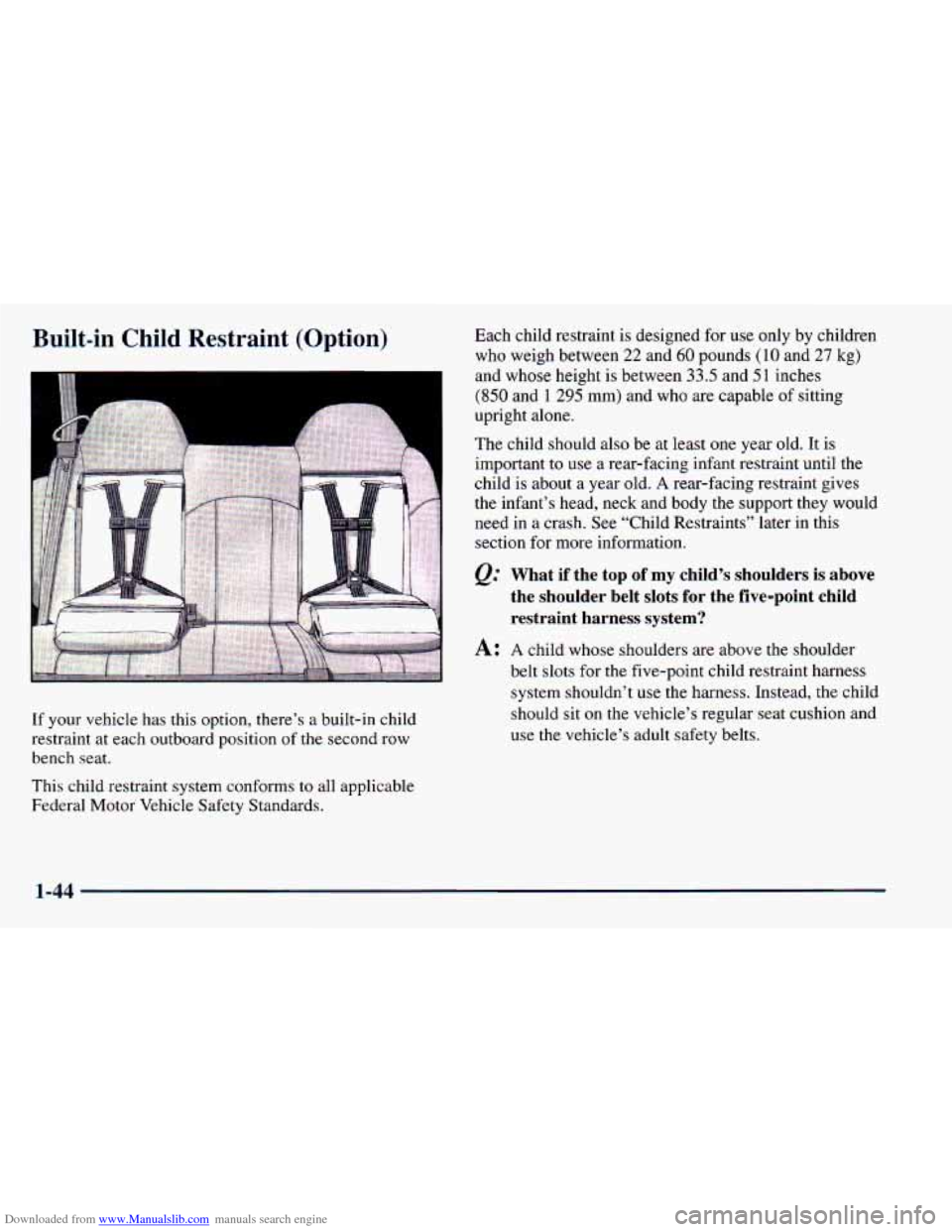

Downloaded from www.Manualslib.com manuals search engine Built-in Child Restraint (Option)
e
If your vehicle has this option, there’s a built-in child
restraint at each outboard position of the second row
bench seat.
This child restraint system conforms
to all applicable
Federal Motor Vehicle Safety Standards. Each
child restraint is designed for use only by children
who weigh between 22 and
60 pounds (10 and 27 kg)
and whose height is between 33.5 and
5 1 inches
(850 and
1 295 mm) and who are capable of sitting
upright alone.
The child should
also be at least one year old. It is
important to use a rear-facing infant restraint until the
child is about a year old. A rear-facing restraint gives
the infant’s head, neck and body the support they would
need in
a crash. See “Child Restraints” later in this
section for more information.
@ What if the top of my child’s shoulders is above
the shoulder belt slots for the five-point child
restraint harness system?
A: A child whose shoulders are above the shoulder
belt slots for the five-point child restraint harness
system shouldn’t use the harness. Instead, the child
should sit
on the vehicle’s regular seat cushion and
use the vehicle’s adult safety belts.
1-44
Page 69 of 414

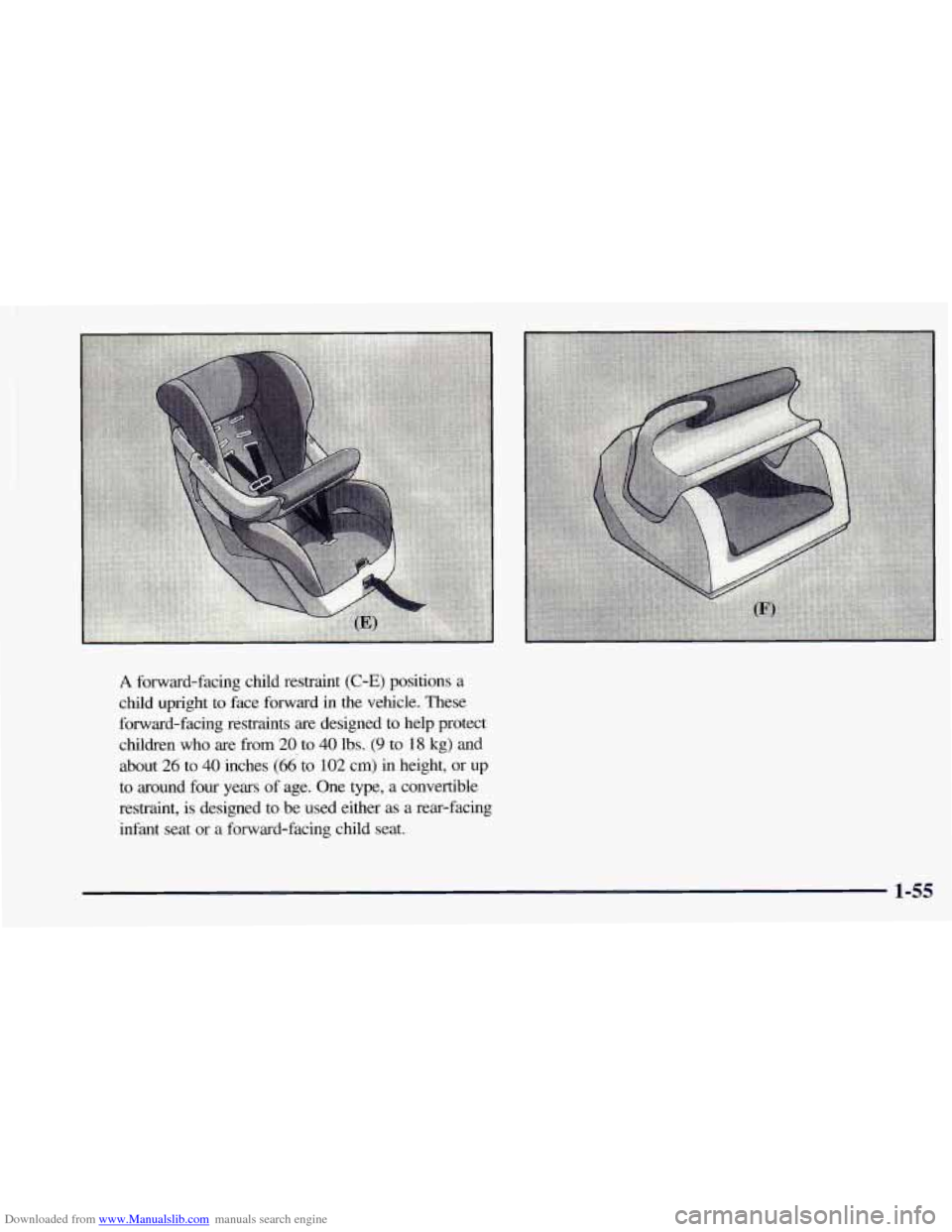

Downloaded from www.Manualslib.com manuals search engine A forward-facing child restraint (C-E) positions a
child upright to face forward in the vehicle. These
forward-facing restraints are designed to help protect
children who are from
20 to 40 lbs. (9 to 18 kg) and
about
26 to 40 inches (66 to 102 cm) in height, or up
to around
four years of age. One type, a convertible
restraint, is designed to be used either as a rear-facing
infant seat or a forward-facing child seat.
1-55
Page 297 of 414

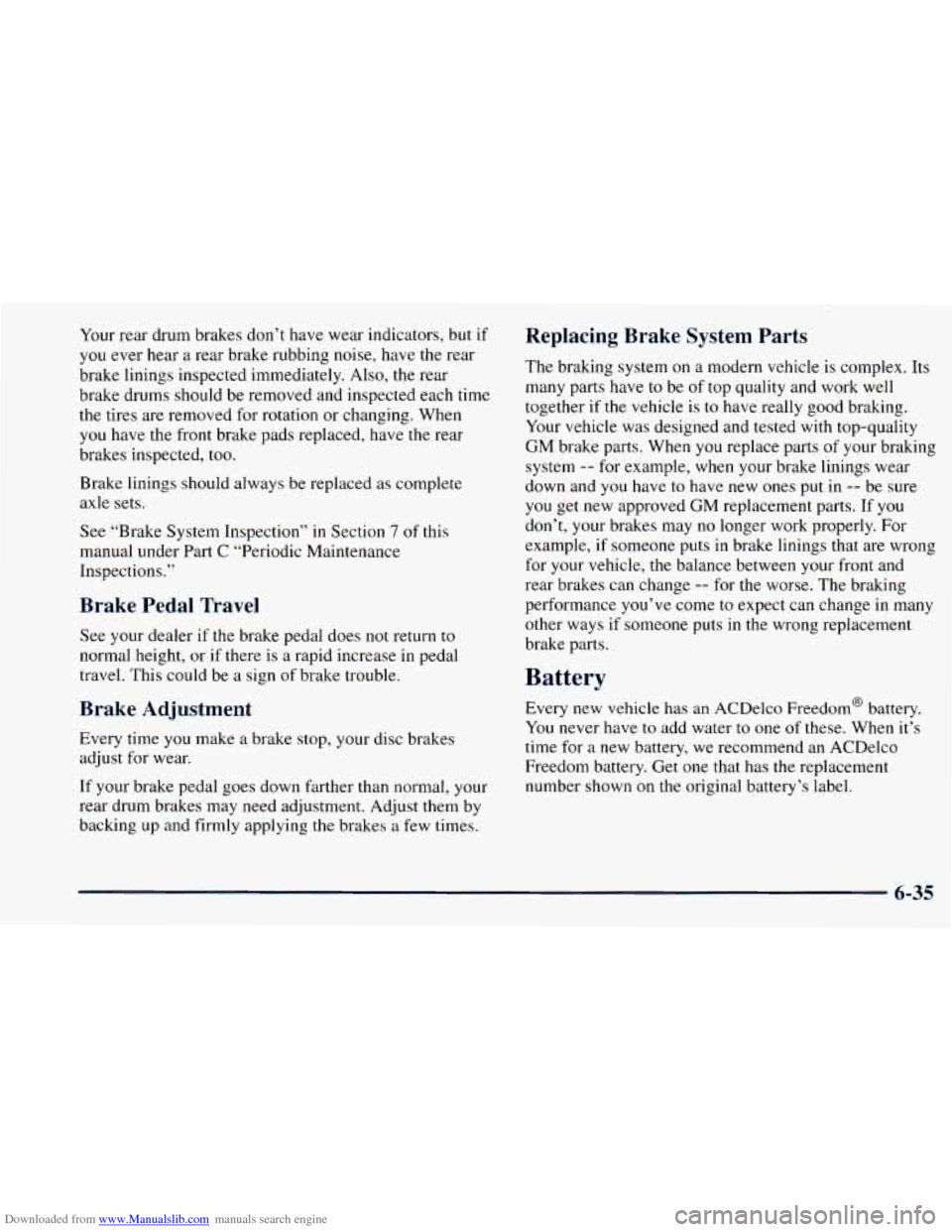

Downloaded from www.Manualslib.com manuals search engine Your rear drum brakes don’t have wear indicators, but if
you ever hear a rear brake rubbing noise, have the rear
brake linings inspected immediately.
Also, the rear
brake drums should be removed and inspected each time
the tires are removed for rotation or changing. When
you have the front brake pads replaced, have the rear
brakes inspected, too.
Brake linings should always be replaced as complete
axle sets.
See “Brake System Inspection” in Section
7 of this
manual under Part C “Periodic Maintenance
Inspections.”
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your disc brakes
adjust for wear.
If your brake pedal goes down farther than normal, your
rear drum brakes may need adjustment. Adjust them by
backing up and firmly applying the brakes a few times.
Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be
of top quality and work well
together if
the vehicle is to have really good braking.
Your vehicle was designed and tested with top-quality
GM brake parts. When you replace parts
of your braking
system
-- for example, when your brake linings wear
down and
you have to have new ones put in -- be sure
you get new approved
GM replacement parts. If you
don’t, your brakes may no longer work properly. For
example,
if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you’ve come to expect can change in many
other ways
if someone puts in the wrong replacement
brake parts.
Battery
Every new vehicle has an ACDelco Freedom@ battery.
You never have to add water to one
of these. When it’s
time for a new battery, we recommend an ACDelco
Freedom battery. Get one that has the replacement
number shown on the original battery’s label.
6-35
Page 311 of 414
Downloaded from www.Manualslib.com manuals search engine Your dealer will know the kind of wheel you need.
Each new wheel should have
the same load-carrying
capacity, diameter,
width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only
with new GM original
equipment parts. This way, you will be
sure to have the
right wheel, wheel bolts and wheel nuts for your vel
le. .
A CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control.
You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See “Changing a Flat Tire”
in the Index for
more information.
Used R-l-ment Wh4s
rutting a used wheel on your vehicle is
dangerous, You can’t know how it’s been used or
how far it’s been driven.
It could fail suddenly
and cause an accident,
If you have to replace a
wheel, use a new
GM original equiI~ ent wheel.
6-49
Page 331 of 414
Downloaded from www.Manualslib.com manuals search engine Normal Maintenance
Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available
at the time of
printing, and are subject to change. If a part listed in this
manual is not the same as
the part used in your vehicle
when
it was built, or if you have any questions, please
contact your GM truck dealer.
Engine Oil Filter
................ AC Type PF52
Air Cleaner
................. AC Type A1 163C
Positive Crankcase
Ventilation (PCV) Valve
....... AC Type CV746C
Spark Plugs
................... AC Type 4 1-932
Spark Plug Gap
.......... 0.060 inches ( 1.52 mm)
Fuel Filter
..................... AC Type GF481
Thermostat
............... GM Part No. 12551472
Wiper Blades (Front)
, , . . , Trico 22110158, Pin Type
18 inches (45.7 cm) Length
. Trico 22 154396, Pin Type
14 inches (35.5 cm) Length
Wiper
Blade (Rear)
, ,
Vehicle Dimensions*
Length ............. , . 189.8 inches (482 cm)
Width
................. 77.5 inches (196.8 cm)
Height
................... 76.0 inches (193.0 cm)
Wheelbase
.............. 1 11 .O inches (28 1.9 cm)
Front Tread Width
....... 65.1 inches ( 165.4 cm)
Rear Tread Width
.......... 65.1 inches (165.4 cm)
*Figures reflect base equipment only.
6-69
Page 406 of 414
Downloaded from www.Manualslib.com manuals search engine Safety Belt Extender .......................... 1-68
Safety Belts
................................... 1-12
Adults
...................................... 1-18
Care
....................................... 6-54
Center Rear Passenger Position
.................. 1-38
Children
.................................... 1-39
Driver Position
............................... 1 - I8
Extender .................................... 1-68
How to Wear Properly
......................... 1 - 18
Incorrect Usage .................... 1-20. 1-66, 1-67
Lap-Shoulder
........................... I - 18. 1-33
Larger Children
.............................. 1-65
Questions and Answers
........................ 1 - 17
Rear Seat Outside Passenger Positions
............ 1-32
Rear Seat Passengers
.......................... 1-32
Reminder Light
......................... 1 - 13, 2-58
Replacing After
a Crash ........................ 1-68
Shoulder Belt Height Adjuster
................... 1 - 19
Use During Pregnancy
......................... 1-25
Safety Chains
.................................. 4-32
Safety Defects, Reporting
................... 8- 10. 8-11
LapBelt .................................... 1-38
Right Front Passenger Position
.................. 1-26
Smaller Children and Babies, Cargo Vans
.......... 1-42
Smaller Children and Babies, Except Cargo Vans
.... 1-40
WhyTheyWork
.............................. 1-14
... Safety Warnings and Symbols ....................... 111
Scheduled Maintenance Services .................... 7-4
Seatback Latches
...................................... 1-5
Reclining .............. .................. 1-4
Manual Front ........ .................... 1-2
Seats
Manual Lumbar Support
........................ 1-3 Power
....................................... 1-3
Rear ........................................ 1-6
Removable Rear
............................... 1-9
Restraint Systems .............................. 1-1
Seat Controls ................................. 1-2
Securing a Child Restraint ............ 1-58, 1-60, 1-62
Two-WayManual
............................. 1-2
SecondGear
................................... 2-21
Security Light
.................................. 2-65
Service
........................................ 6-2
Bulletins, Ordering
....................... 8-1 1, 8- I2
Engine Soon Light
............................ 2-62
Manuals, Ordering
....................... 8-1 1, 8- 12
Parts Identification Label
....................... 6-59
Publications, Ordering
.................... 8- 1 1, 8- 12
Work. Doing Your Own
......................... 6-2
Service and Appearance Care
...................... 6-1
Service and Owner Publications
.............. 8-1 1, 8- 12
Service Publications
........................ 8- 11. 8- 12
Servicing Your Air Bag-Equipped Vehicle
........... 1-31
Sheet Metal Damage
............................ 6-57
Shifting
....................................... 2-19
Into Park (P)
................................. 2-23
Out
of Park (P) ............................... 2-26
Shoulder Belt Height Adjuster
..................... 1-19
SIR
.......................................... 1-26
Skidding
...................................... 4-12
Sound Equipment. Adding
........................ 3-28
Spare Tire. Compact
............................. 5-36
Specifications and Capacities
...................... 6-67
Speech Impaired, Customer Assistance
............... 8-4
Speedometer
................................... 2-57
Stains, Cleaning
................................ 6-52
Starter Switch Check
............................ 7-43
9-8
