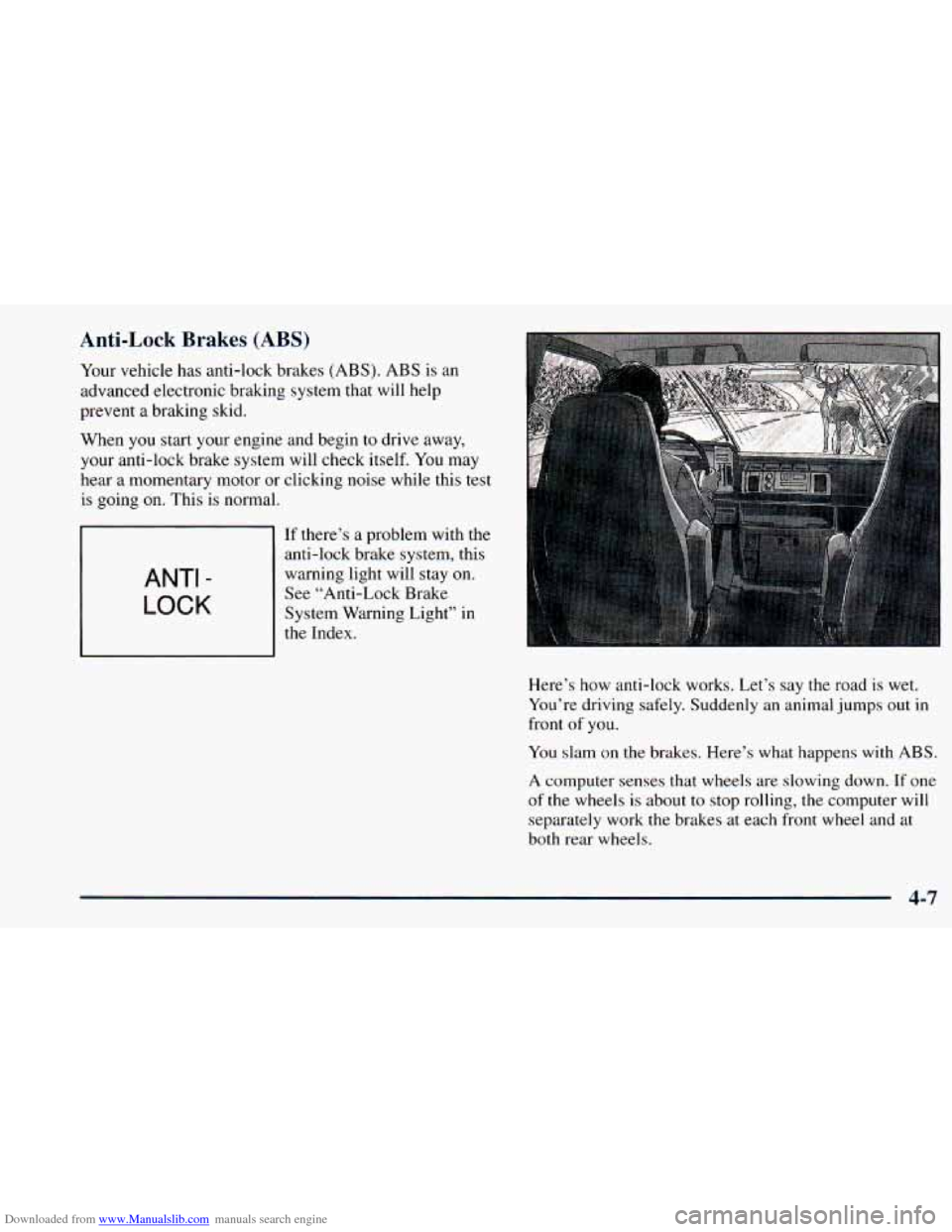

Page 191 of 414
Downloaded from www.Manualslib.com manuals search engine Anti-Lock Brakes (ABS)
Your vehicle has anti-lock brakes (ABS). ABS is an
advanced electronic braking system that will help
prevent
a braking skid.
When you start your engine and begin to drive away,
your anti-lock brake system will check itself. You may
hear
a momentary motor or clicking noise while this test
is going on. This is normal.
If there’s a problem with the
anti-lock brake system, this
warning light will stay on.
See “Anti-Lock Brake
System Warning Light” in
the Index.
ANTI -
LOCK
Here’s how anti-lock works. Let’s say the road is wet.
You’re driving safely. Suddenly an animal jumps out in
front
of you.
You slam on the brakes. Here’s what happens with ABS.
A computer senses that wheels are slowing down. If one
of the wheels is about to stop rolling, the computer will
separately work the brakes at each front wheel and at
both rear wheels.
4-7

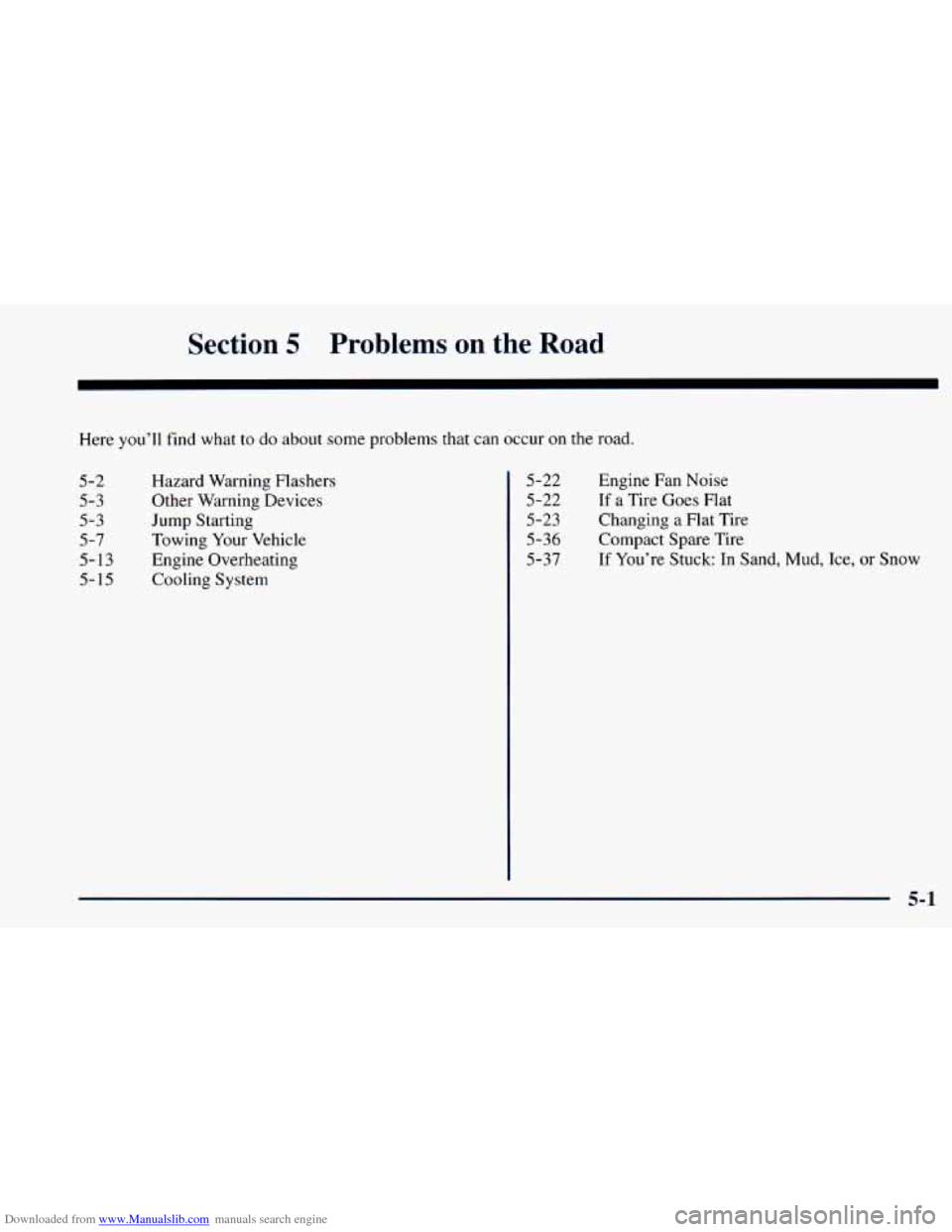

Page 223 of 414
Downloaded from www.Manualslib.com manuals search engine Section 5 Problems on the Road
Here you’ll find what to do about some problems that can occur on the road.
5-2
5-3 5-3
5-7
5-13
5- 15 Hazard
Warning Flashers
Other Warning Devices
Jump Starting
Towing Your Vehicle
Engine Overheating
Cooling System 5-22
5-22
5-23
5-36 5-37 Engine
Fan Noise
If a Tire Goes Flat
Changing a Flat Tire
Compact Spare Tire
If You’re Stuck: In Sand, Mud, Ice, or Snow
5-1

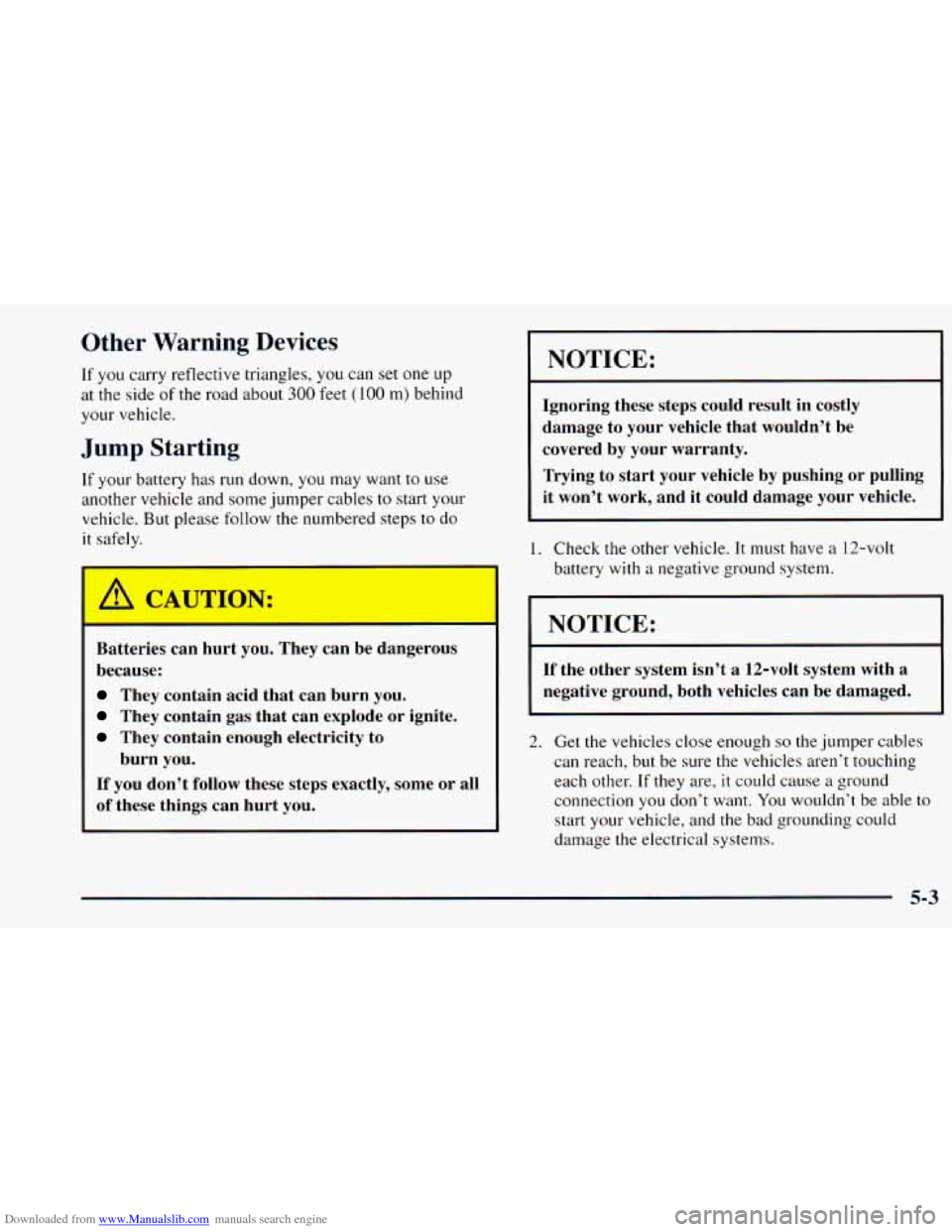

Page 225 of 414
Downloaded from www.Manualslib.com manuals search engine Other Warning Devices
If you carry reflective triangles, you can set one up
at the side
of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables
to start your
vehicle. But please follow the numbered steps
to do
it safely.
Batteries can hurt you. They can be dangerous
because:
They contain acid that can burn you.
They contain gas that can explode or ignite.
They contain enough electricity to
If you don’t follow these steps exactly, some or
all
of these things can hurt you.
burn
you.
NOTICE:
Ignoring these steps could result in costly
damage to your vehicle that wouldn’t be
covered by your warranty.
Trying to start your vehicle by pushing or pulling
it won’t work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with
a negative ground system.
NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
2. Get the vehicles close enough
so the jumper cables
can reach, but be sure
the vehicles aren’t touching
each other. If they are, it could cause a ground
connection
you don’t want. You wouldn’t be able to
start your vehicle, and
the bad grounding could
damage the electrical systems.
5-3

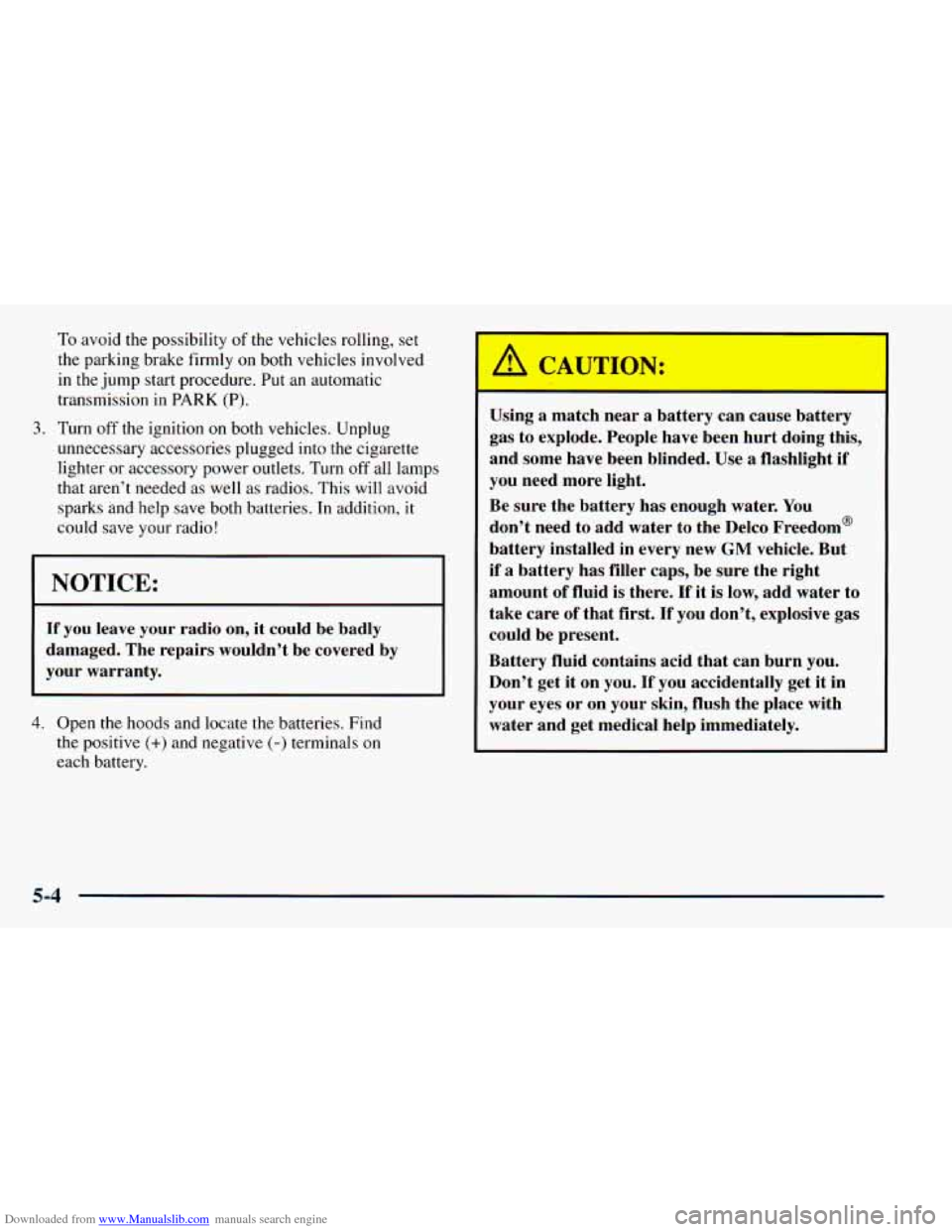

Page 226 of 414
Downloaded from www.Manualslib.com manuals search engine To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved
in the jump start procedure. Put an automatic
transmission in PARK
(P).
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or accessory power outlets. Turn
off all lamps
that aren’t needed as well as radios. This will avoid
sparks and help save both batteries.
In addition, it
could save your radio!
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries. Find
the positive
(+) and negative (-) terminals on
each battery.
A CAUTION:
1 ng a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the battery has enough water. You
don’t need to add water to the Delco Freedom@
battery installed in every new
GM vehicle. But
if a battery has filler caps, be sure the right
amount of fluid is there.
If it is low, add water to
take care of that first.
If you don’t, explosive gas
could be present.
Battery fluid contains acid that can burn you.
Don’t get it on you.
If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.

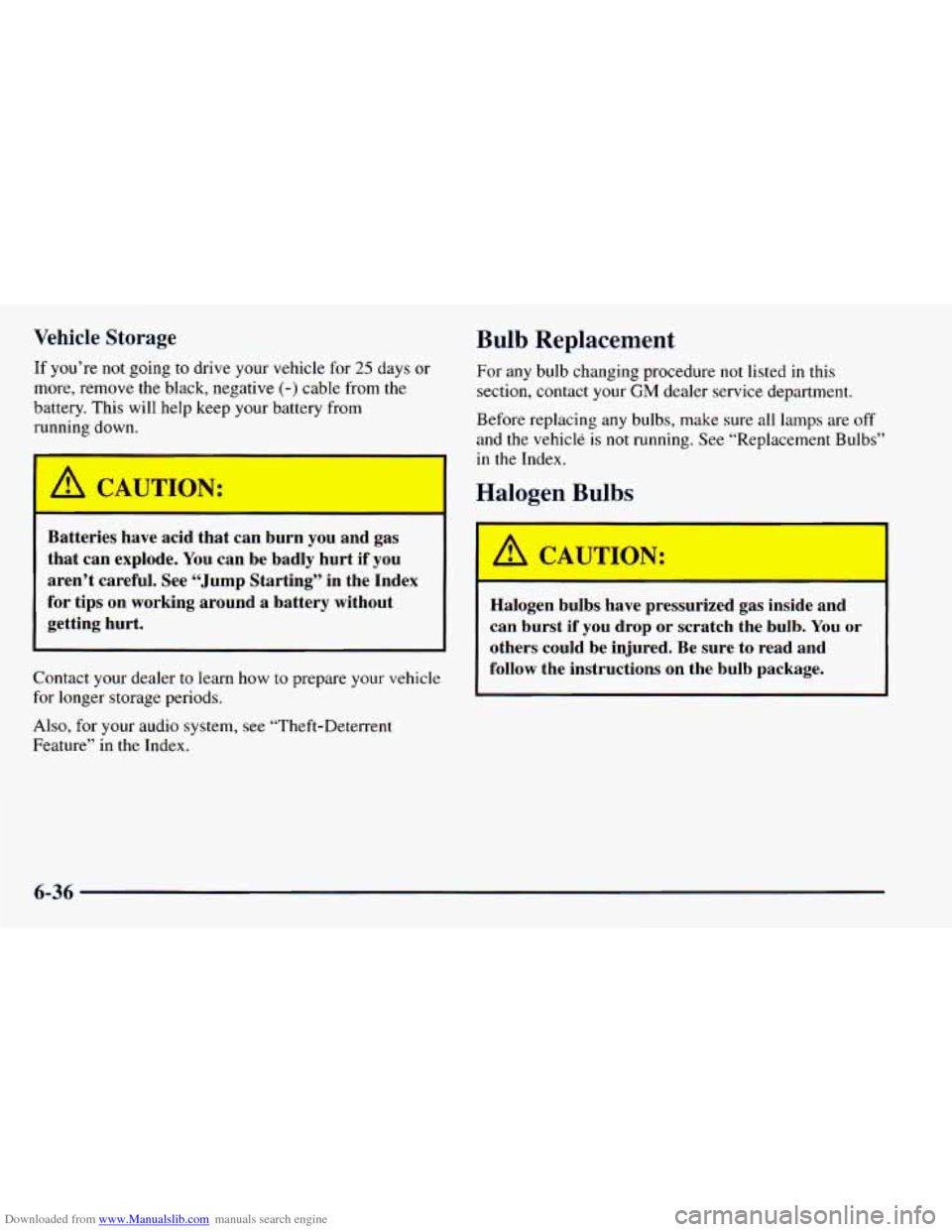

Page 298 of 414
Downloaded from www.Manualslib.com manuals search engine Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, remove the black, negative (-) cable from the
battery. This will help keep your battery from
r nin Sown.
A CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around
a battery without
getting hurt.
Contact your dealer to learn how
to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature’’ in the Index.
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your
GM dealer service department.
Before replacing any bulbs, make sure all lamps are off
and the vehicle
is not running. See “Replacement Bulbs”
in the Index.
Halogen Bulbs
---
A CAUTION:
Halogen bulbs have pressurized gas inside and
can burst
if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
6-36

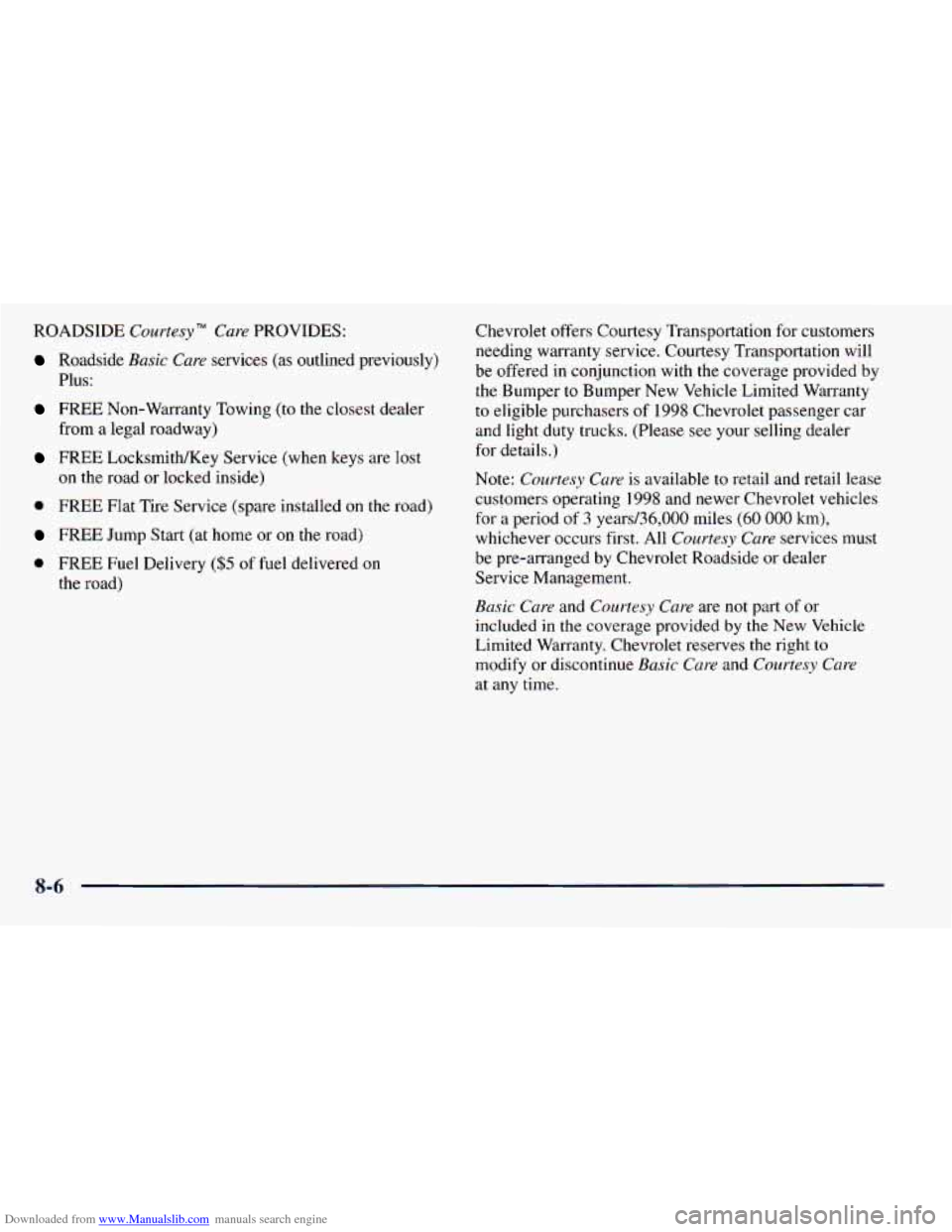

Page 390 of 414
Downloaded from www.Manualslib.com manuals search engine ROADSIDE Courtesy TM Care PROVIDES:
Roadside Basic Care services (as outlined previously)
Plus:
FREE Non-Warranty Towing (to the closest dealer
from a legal roadway)
FREE Locksmith/Key Service (when keys are lost
0 FREE Flat Tire Service (spare installed on the road)
on
the road or locked inside)
FREE Jump Start (at home or on the road)
0 FREE Fuel Delivery ($5 of fuel delivered on
the road) Chevrolet offers Courtesy Transportation
for customers
needing warranty service. Courtesy Transportation will
be offered in conjunction with the coverage provided by the Bumper
to Bumper New Vehicle Limited Warranty
to eligible purchasers of 1998 Chevrolet passenger car
and light duty trucks. (Please see your selling dealer
for details.)
Note:
Courtesy Care is available to retail and retail lease
customers operating 1998 and newer Chevrolet vehicles
for a period
of 3 years/36,000 miles (60 000 km),
whichever occurs first. All
Courtesy Care services must
be pre-arranged by Chevrolet Roadside or dealer
Service Management.
Basic Care and Courtesy Care are not part of or
included
in the coverage provided by the New Vehicle
Limited Warranty. Chevrolet reserves the right to
modify or discontinue
Basic Care and Courtesy Care
at any time.
8-6

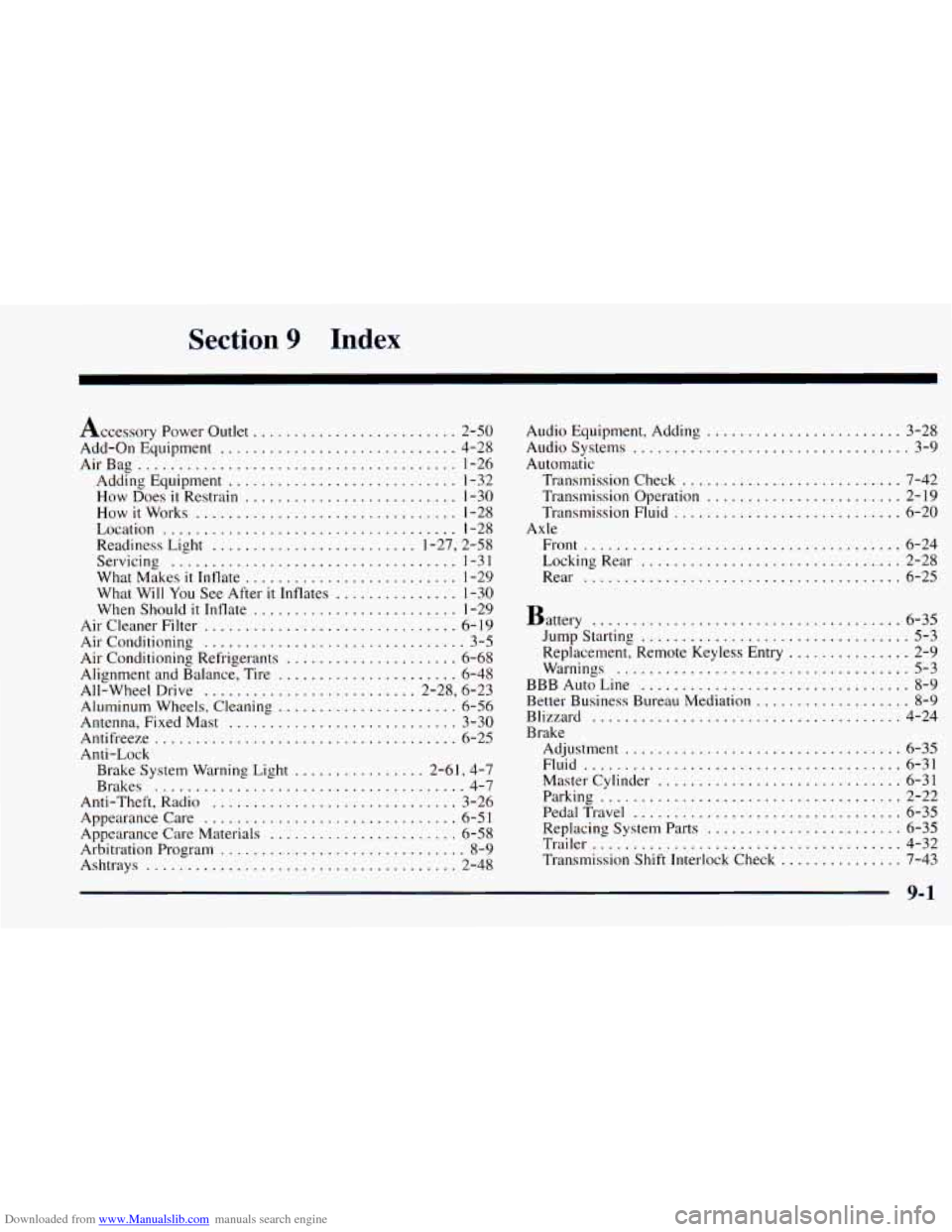

Page 399 of 414
Downloaded from www.Manualslib.com manuals search engine Section 9 Index
Accessory Power Outlet ......................... 2-50
Add-on Equipment ............................. 4-28
AirBag
....................................... 1-26
Adding Equipment
............................ 1-32
How Does
it Restrain .......................... 1-30
How
it Works ................................ 1-28
Location
.................................... 1-28
Readiness Light
......................... 1.27. 2.58
Servicing
................................... 1-31
What Makes
it Inflate .......................... 1-29
What Will You See After
it Inflates ............... 1-30
When Should it Inflate ......................... I -29
AirCleanerFilter
............................... 6-19
Air Conditioning
................................ 3-5
Air Conditioning Refrigerants
..................... 6-68
Alignment and Balance. Tire
...................... 6-48
All-Wheel Drive
.......................... 2.28. 6.23
Aluminum Wheels. Cleaning ...................... 6-56
Antenna. Fixed Mast
............................ 3-30
Antifreeze
..................................... 6-25
Anti-Lock Brake System Warning Light
................ 2.61. 4.7
Brakes
...................................... 4-7
Anti.Theft. Radio
.............................. 3-26
Appearance Care
............................... 6-5 1
Appearance Care Materials ....................... 6-58
Arbitration Program .............................. 8-9
Ashtrays
...................................... 2-48 Audio Equipment.
Adding
...................... 3-28
Audio Systems
........................... ... 3-9
Automatic Transmission Check
........................... 7-42
Transmission Operation
........................ 2-19
Transmission Fluid
............................ 6-20
Front
......... ... ................... 6-24
Locking Rear
.............................. 2-28
Rear
...... ............................ 6-25
Axle
Battery
...................................... 6-35
Jump Starting ................................. 5-3
Replacement. Remote Keyless Entry
............... 2-9
Warnings .................................... 5-3
BBB Auto Line ................................. 8-9
Better Business Bureau Mediation
................... 8-9
Blizzard ...................................... 4-24
Brake Adjustment
................ .............. 6-35
Fluid
....................................... 6-31
Master Cylinder
.............................. 6-31
Parking
..................................... 2-22
PedalTravel
................................. 6-35
Replacing System Parts
........................ 6-35
Trailer
...................................... 4-32
Transmission Shift Interlock Check
............... 7-43
9-1

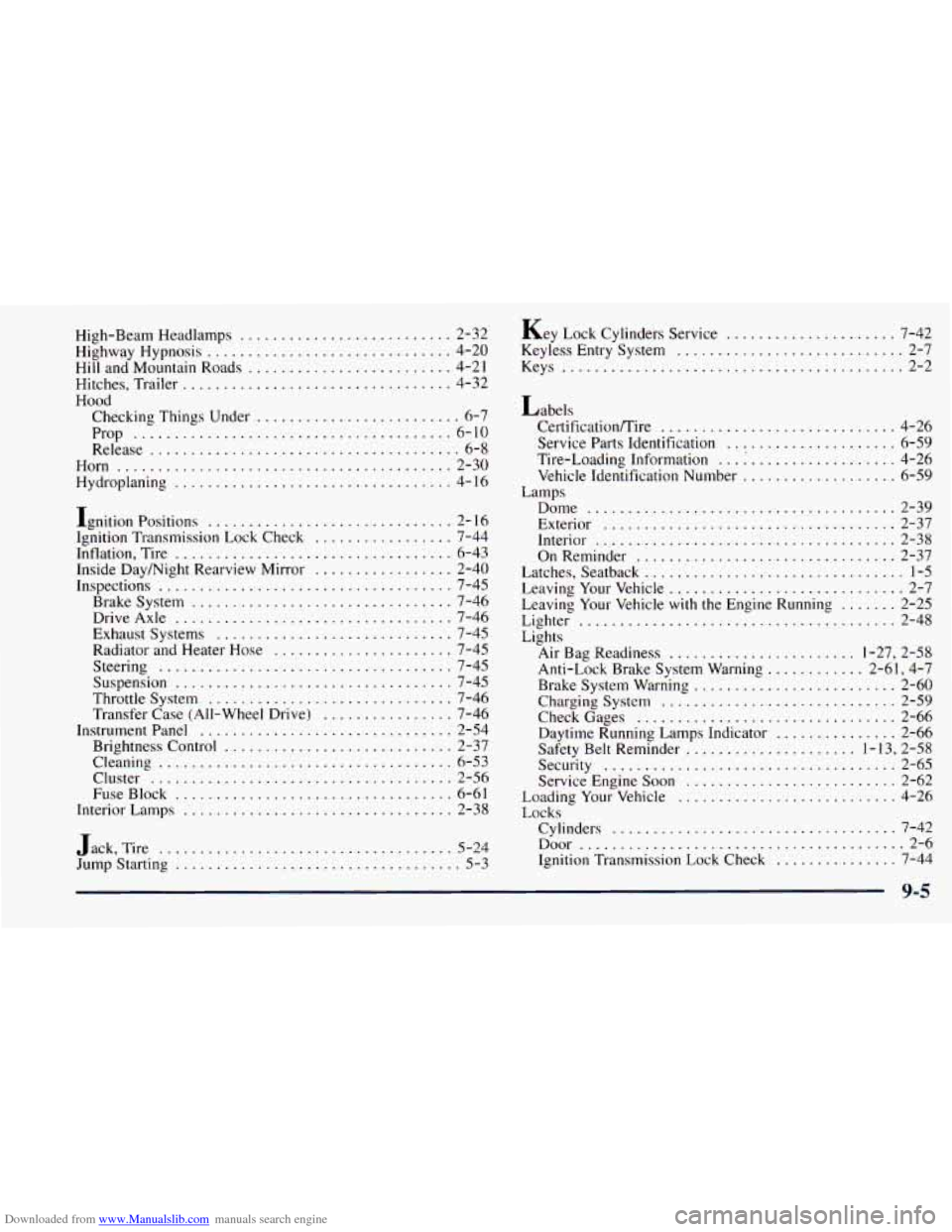

Page 403 of 414
Downloaded from www.Manualslib.com manuals search engine High-Beam Headlamps .......................... 2-32
Highway Hypnosis
.............................. 4-20
Hill and Mountain Roads
......................... 4-21
Hitches. Trailer
................................. 4-32
Hood Checking Things Under
......................... 6-7
Prop
....................................... 6-10
Release
...................................... 6-8
Horn
......................................... 2-30
Hydroplaning
................................ 4- I6
Ignition Positions .............................. 2- 16
Ignition Transmission Lock Check
................. 7-44
Inflation, Tire
.................................. 6-43
Inside Daymight Rearview Mirror
................. 2-40
Inspections .................................... 7-45
Brakesystem
................................ 7-46
DriveAxle
.................................. 7-46
Exhaust Systems
............................. 7-45
Radiator and Heater Hose
...................... 7-45
Steering
.................................... 7-45
Suspension
.................................. 7-45
Throttle System
.............................. 7-46
Transfer Case (All-Wheel Drive)
................ 7-46
Instrument Panel
............................... 2-54
Brightness Control
............................ 2-37
Cleaning
.................................... 6-53
Cluster
..................................... 2-56
FuseBlock
.................................. 6-61
Interior Lamps
................................. 2-38
Jack, Tire
............... ............... 5-24
Jump Starting
................................... 5-3
Key Lock Cylinders Service ..................... 7-42
Keyless Entry System
............................ 2-7
Keys
.......................................... 2-2
Labels CertificationiTire
............................. 4-26
Service Parts Identification
..................... 6-59
Tire-Loading Information
....................... 4-26
Vehicle Identification Number
................... 6-59
Dome
...................................... 2-39
Exterior
.................................... 2-37
Interior
..................................... 2-38
OnReminder
................................ 2-37
Latches. Seatback
................................ 1-5
Leaving Your Vehicle
............................. 2-7
Leaving Your Vehicle
with the Engine Running ....... 2-25
Lighter
....................................... 2-48
Lights
Air Bag Readiness ....................... 1-27. 2-58
Anti-Lock Brake System Warning
............ 2-61. 4-7
Brake System Warning
......................... 2-60
Charging System
............................. 2-59
CheckGages
................................ 2-66
Daytime Running Lamps Indicator
............... 2-66
Safety Belt Reminder
..................... 1 - 13. 2-58
Security
.................................... 2-65
Service Engine Soon
.......................... 2-62
Loading Your Vehicle
........................... 4-26
Locks Cylinders
................................... 7-42
Door
........................................ 2-6
Ignition Transmission Lock Check
............... 7-44
Lamps
9-5
