6-50

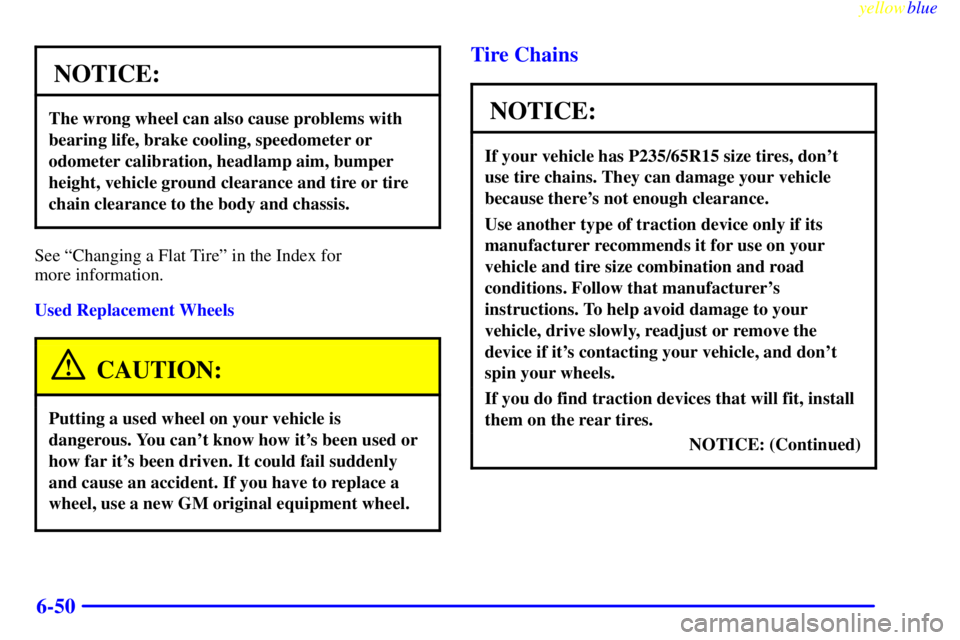

NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.
Tire Chains
NOTICE:
If your vehicle has P235/65R15 size tires, don't
use tire chains. They can damage your vehicle
because there's not enough clearance.
Use another type of traction device only if its
manufacturer recommends it for use on your
vehicle and tire size combination and road
conditions. Follow that manufacturer's
instructions. To help avoid damage to your
vehicle, drive slowly, readjust or remove the
device if it's contacting your vehicle, and don't
spin your wheels.
If you do find traction devices that will fit, install
them on the rear tires.
NOTICE: (Continued)

yellowblue
6-60

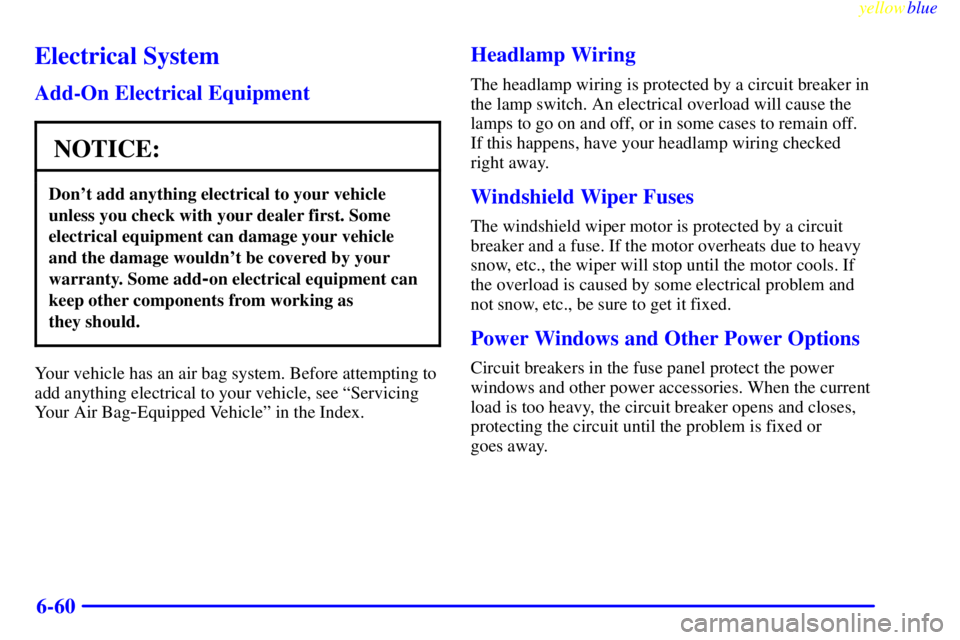

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will cause the
lamps to go on and off, or in some cases to remain off.
If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or
goes away.

yellowblue
6-62
Fuse/Circuit
BreakerUsage
1 Stop/Turn/Hazard Lamps,
CHMSL, Chime Module
2 Heated Mirror (Not Used)
3 Courtesy Lamps, Power Outside
Mirrors, Glove Box Lamp,
Dome Reading Lamps,
Vanity Mirror LampsFuse/Circuit
BreakerUsage
4 DRL Relay, DRL Module, Chime
Headlamp Switch, Keyless Entry,
Cluster, Overhead Console,
Interior Lamps Module
5 Rear Defogger
6 Cruise Module, Cruise Control
Switch, Electrochromic Mirror
7 Power Outlets, DLC, Subwoofer
Amplifier
8 Starter Enable Relay
9 License Plate Lamp, Taillamps,
Parking Lamps, Ashtray Lamp,
Panel Lights, Trailer Taillamps,
Front and Rear Sidemarker
Lamps, Door Switch Illumination,
Headlamp Switch Illumination,
Rear Seat Audio Illumination
10 Air Bag System
11 Wiper Motor, Washer Pump,
Upfitter Relay Coil

yellowblue
6-65
Fuse/Circuit
Breaker Usage
UPFITTER
-BATT Upfitter Battery Power Stud,
Trailer Wiring Harness
UPFITTER
-ACCY Upfitter Accessory Relay
Spare Not used
Fuse Puller*
Spare Not used
Spare Not used
ECM
-1B Fuel Pump Relay and Motor,
VCM, Oil Pressure
Switch/Sender
HORN Horn Relay and Horn
A/C COMP A/C Enable Relay and
Compressor
ATC Active Transfer Case
-L Van
ENG
-I Oxygen Sensors, Camshaft
Position Sensor, Mass Air Flow
Sensor, Evaporative Emission
Canister Purge Solenoid, Linear
EGR Valve Solenoid, VCM
EGR HI
IGN
-E A/C Enable Relay CoilFuse/Circuit
Breaker Usage
ECM
-I Fuel Injectors 1-6, Crankshaft
Position Sensor, VCM, Coil
Driver Module (EST)
LIGHTING Park Lamps Fuse, DRL Fuse,
Headlamp and Panel Dimmer
Switch
BATT Steering/Security Fuse, Courtesy
Fuse, ACSY CB, Stop/Hazard
Fuse, Auxiliary Power Fuse,
Cigarette Lighter Fuse, Radio
Battery Fuse
IGN A Starter Relay, Ignition Switch
IGN B Ignition Switch
ABS Electronic Brake Control
Module
A/C Blower Motor Resistor, Blower
Relay
RR HTR/AC Auxiliary Heater, A/C Relay
HTD MIR/RR
DEFOGRear Window Defogger
*A fuse puller is included in the underhood electrical
center. You will also find spare fuses.

yellowblue
6-66
Replacement Bulbs
Exterior Lamps Quantity Trade No.
Halogen Headlamps
- Sealed Beam2 H6054
Halogen Headlamps
- Composite2
9006 (Low-Beam)
Halogen Headlamps
- Composite2
9005 (High-Beam)
Parking, Turn Signal Lamps 2 3157NA
Rear, Stoplamps 2 2057
Sidemarker Lamps 4 194
Back
-up Lamps2 1156
