CHEVROLET ASTRO 1999 Owners Manual

yellowblue
4-39 Trailer Wiring Harness
If you have the optional trailering package, your vehicle
will have an eight
-wire harness, including the center
high
-mounted stoplamp battery feed wire. The harness
is stored on the passenger's side of the vehicle near the
rear wheel well. This harness has a 30 amp battery feed
wire and no connector, and should be wired by a
qualified electrical technician. After choosing an
aftermarket trailer mating connector pair, have the
technician attach one connector to the eight
-wire trailer
harness and the other connector to the wiring harness on
the trailer. Be sure the wiring harness on the trailer is
taped or strapped to the trailer's frame rail and leave it
loose enough so the wiring doesn't bend or break, but
not so loose that it drags on the ground. The eight
-wire
harness must be routed out of your vehicle between the
rear door and the floor, with enough of the harness left
on both sides so that the trailer or the body won't pull it.
If you do not have the optional trailering package, your
vehicle will still have a trailering harness. The harness is
located near the passenger's side rear wheel well. It
consists of six wires that may be used by after
-market
trailer hitch installers. The technician can use the
following color code chart when connecting the wiring
harness to your trailer.
Brown: Rear lamps.

Yellow: Left stoplamp and turn signal.

Dark Green: Right stoplamp and turn signal.

White (Heavy Gage): Ground.

Light Green: Back
-up lamps.

White (Light Gage): Center High
-Mounted
Stoplamp.

Blue: Auxiliary circuit (eight
-wire harness only).

Orange: Fused auxiliary (eight
-wire harness only).
Store the harness in its original place. Wrap the
harness together and tie it neatly so it won't
be damaged.

yellowblue
4-40
-NOTES

5-
yellowblue
5-1
Section 5 Problems on the Road
Here you'll find what to do about some problems that can occur on the road.
5
-2 Hazard Warning Flashers
5
-3 Other Warning Devices
5
-3 Jump Starting
5
-7 Towing Your Vehicle
5
-8 Engine Overheating
5
-10 Cooling System5
-18 Engine Fan Noise
5
-18 If a Tire Goes Flat
5
-19 Changing a Flat Tire
5
-32 Compact Spare Tire
5
-33 If You're Stuck: In Sand, Mud, Ice, or Snow

yellowblue
5-2
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
The hazard warning flasher button is located on top of
the steering column.
Press the button down to make your front and rear turn
signal lamps flash on and off. Your hazard warning
flashers work no matter what position your key is in,
and even if the key isn't in.
To turn off the flashers, press the button down again.
When the hazard warning flashers are on, your turn
signals won't work. They also won't flash while
you're braking.

yellowblue
5-3
Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. But please follow the numbered steps to do
it safely.
CAUTION:
Batteries can hurt you. They can be
dangerous because:

They contain acid that can burn you.

They contain gas that can explode or ignite.

They contain enough electricity to
burn you.
If you don't follow these steps exactly, some or all
of these things can hurt you.
NOTICE:
Ignoring these steps could result in costly
damage to your vehicle that wouldn't be
covered by your warranty.
The ACDelco Freedom battery in your vehicle
has a built
-in hydrometer. Do not charge, test or
jump start the battery if the hydrometer looks
clear or light yellow. Replace the battery when
there is a clear or light yellow hydrometer and a
cranking complaint.
Trying to start your vehicle by pushing or pulling
it won't work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
NOTICE:
If the other system isn't a 12-volt system with a
negative ground, both vehicles can be damaged.

yellowblue
5-4
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren't touching
each other. If they are, it could cause a ground
connection you don't want. You wouldn't be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
3. To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved in
the jump start procedure. Put an automatic
transmission in PARK (P).
4. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or accessory power outlets. Turn off all lamps
that aren't needed as well as radios. This will avoid
sparks and help save both batteries. In addition, it
could save your radio!
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn't be covered by
your warranty.
5. Open the hoods and locate the batteries. Find
the positive (+) and negative (
-) terminals on
each battery.
CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the battery has enough water. You
don't need to add water to the ACDelco
Freedom

battery installed in every new GM
vehicle. But if a battery has filler caps, be sure
the right amount of fluid is there. If it is low, add
water to take care of that first. If you don't,
explosive gas could be present.
Battery fluid contains acid that can burn you.
Don't get it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.

yellowblue
5-5
6. Check that the jumper cables don't have loose or
missing insulation. If they do, you could get a shock.
The vehicles could be damaged too.
Before you connect the cables, here are some basic
things you should know. Positive (+) will go to
positive (+) and negative (
-) will go to a jump
starting stud. Don't connect positive (+) to
negative (
-) or you'll get a short that would
damage the battery and maybe other parts, too.
CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engine is running.
7. Connect the red
positive (+) cable to
the positive (+) terminal
of the vehicle with the
dead battery.
8. Don't let the other
end touch metal.
Connect it to the
positive (+) terminal
of the good battery.

yellowblue
5-6
9. Now connect the
black negative (
-) cable
to the good battery's
negative (
-) terminal.
Don't let the other end
touch anything until the
next step.
10. The other end of the negative (
-) cable does not go
to the dead battery. It goes to a negative jump
starting stud located near the battery.
The electrical connection is just as good there, but
the chance of sparks getting back to the battery is
much less.
11. Now start the vehicle with the good battery and run
the engine for a while.12. Try to start the vehicle with the dead battery.
If it won't start after a few tries, it probably
needs service.
13. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don't touch
each other or any other metal.
A. Negative Jump Starting Stud
B. Good Battery
C. Dead Battery

yellowblue
5-7

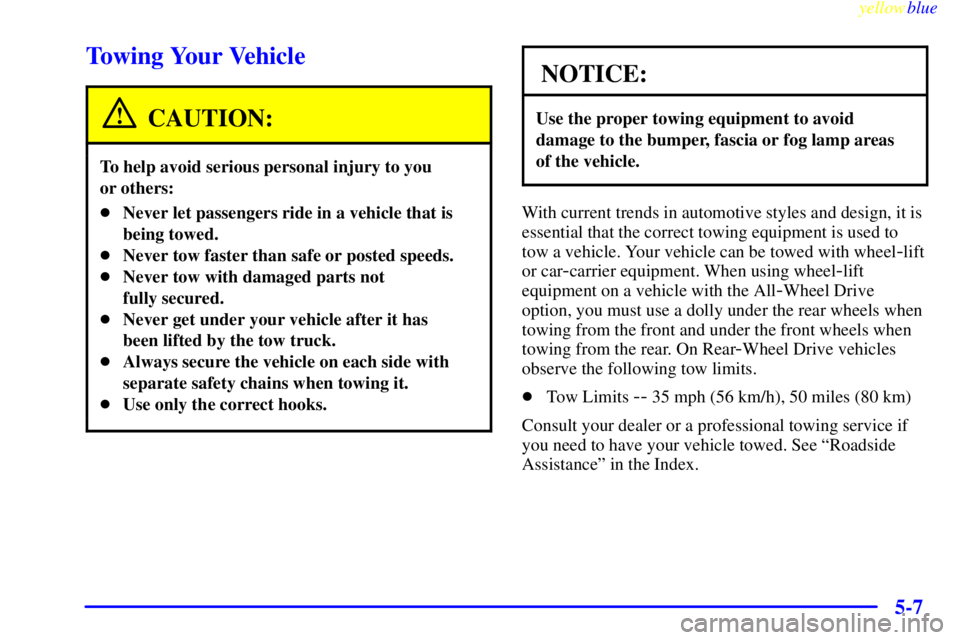

Towing Your Vehicle
CAUTION:
To help avoid serious personal injury to you
or others:

Never let passengers ride in a vehicle that is
being towed.

Never tow faster than safe or posted speeds.

Never tow with damaged parts not
fully secured.

Never get under your vehicle after it has
been lifted by the tow truck.

Always secure the vehicle on each side with
separate safety chains when towing it.

Use only the correct hooks.
NOTICE:
Use the proper towing equipment to avoid
damage to the bumper, fascia or fog lamp areas
of the vehicle.
With current trends in automotive styles and design, it is
essential that the correct towing equipment is used to
tow a vehicle. Your vehicle can be towed with wheel
-lift
or car
-carrier equipment. When using wheel-lift
equipment on a vehicle with the All
-Wheel Drive
option, you must use a dolly under the rear wheels when
towing from the front and under the front wheels when
towing from the rear. On Rear
-Wheel Drive vehicles
observe the following tow limits.

Tow Limits
-- 35 mph (56 km/h), 50 miles (80 km)
Consult your dealer or a professional towing service if
you need to have your vehicle towed. See ªRoadside
Assistanceº in the Index.

yellowblue
5-8
Engine Overheating
You will find an engine coolant temperature gage on
your vehicle's instrument panel. See ªGagesº in
the Index.
If Steam Is Coming From Your Engine
CAUTION:
Steam from an overheated engine can burn you
badly, even if you just open the hood. Stay away
from the engine if you see or hear steam coming
from it. Just turn it off and get everyone away
from the vehicle until it cools down. Wait until
there is no sign of steam or coolant before you
open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch fire. You or
others could be badly burned. Stop your engine if
it overheats, and get out of the vehicle until the
engine is cool.
