CHEVROLET ASTRO 2002 Owners Manual

3-2
Comfort Controls
This section tells you how to make your air system work
for you. Your comfort control system with air
conditioning uses ozone
-friendly refrigerant.
With these systems, you can control the heating,
cooling and ventilation in your vehicle. Your vehicle
also has a flow
-through ventilation system described
later in this section.
Heating System
If your vehicle does not have air conditioning, your
heater controls will look like this.Fan Knob
The fan know is located on the left of the control
panel. This control has four positions. To increase
airflow, turn the knob toward HI. To decrease airflow,
move it toward LO.
Temperature Knob
This knob is next to the fan knob. It controls the
temperature of the air flowing into your vehicle. Turn
the knob clockwise for warmer air. Turn the knob
counterclockwise for cooler air.
Function Knob
This knob is on the right of the temperature knob.
The function knob allows you to choose the direction of
air delivery.
OFF: This setting turns the system off.
(Vent): The air comes out at the vents on your
instrument panel.

3-3
(Bi-level): With this setting, the outside air comes
out both the instrument panel vents and floor ducts.
Adjust the temperature knob for warmer or cooler air.
(Floor): Most of the air comes out near the floor.
The rest comes out from the defroster vents under the
windshield and at the front side windows.
(Blend): With this setting, the outside air comes
out both the floor ducts and defroster vents. Adjust the
temperature knob for warmer or cooler air.
DEF (Defrost): This setting operates the defroster.
Most of the air comes out near the windshield, with
some going to the floor ducts and front side windows.
Heating/Air Conditioning System
(If Equipped)
If your vehicle has air conditioning, your heating/air
conditioning controls will look like this.
Fan Knob
The fan knob is located on the left of the control panel.
This knob has four positions. To increase airflow,
turn the knob toward HI. To decrease airflow, move it
toward LO.

3-4
Temperature Knob
This knob is next to the fan knob. It controls the
temperature of the air flowing into your vehicle. Turn
the knob clockwise for warmer air. Turn the knob
counterclockwise for cooler air.
Function Knob
This knob is located on the right side of the temperature
knob. The function knob allows you to choose the
direction of air delivery.
OFF: This setting turns the system off.
MAX A/C (Maximum Air Conditioning): This setting
cools the air the fastest, by recirculating the inside air.
A/C (Air Conditioning): This setting brings in outside
air, cools and dehumidifies it.
(Bi-Level): This setting brings in outside air and
blows it out through the floor ducts and the instrument
panel vents. If you move the temperature knob between
hot and cold, cooler air will come out of the upper vents
while warmer air comes out of the floor ducts. The air
conditioning compressor may operate in this setting to
cool the air.
(Vent): The air comes out at the vents on your
instrument panel. The air conditioning compressor will
not run in this position. Adjust the temperature knob for
warmer or cooler air.
(Floor): Most of the air comes out near the floor.
The rest comes out from the defroster vents under the
windshield and at the front side windows.
(Blend): With this setting, the outside air comes
out of both the floor ducts and defroster vents. Adjust
the temperature knob for warmer or cooler air. The air
conditioning compressor may operate in this setting to
dehumidify the air.
DEF (Defrost): This setting operates the defroster.
Most of the air comes out near the windshield, with
some going to the floor ducts and front side windows.
The air conditioning compressor may operate in this
setting to dehumidify the air.

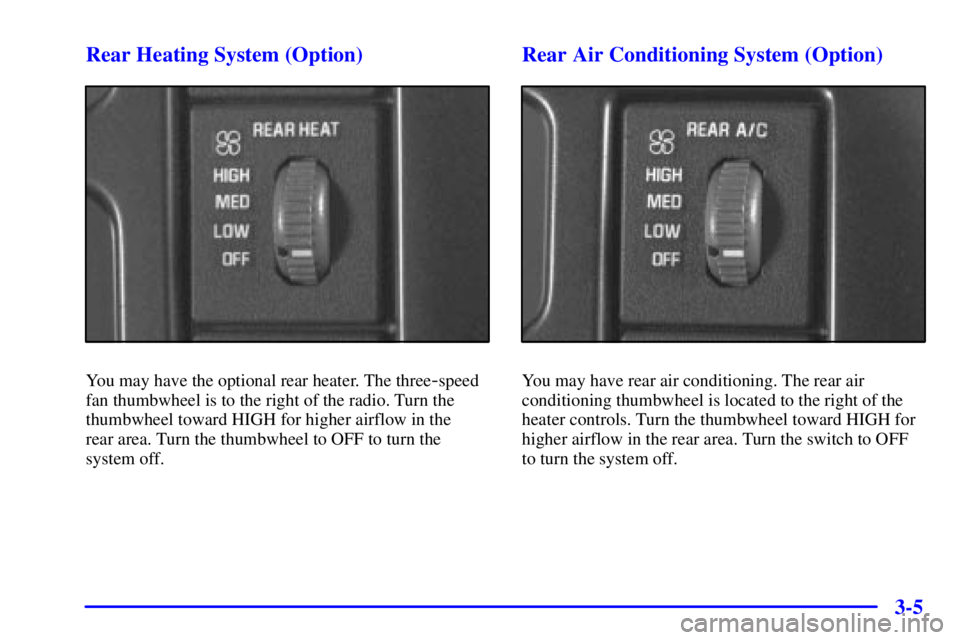

3-5 Rear Heating System (Option)
You may have the optional rear heater. The three-speed
fan thumbwheel is to the right of the radio. Turn the
thumbwheel toward HIGH for higher airflow in the
rear area. Turn the thumbwheel to OFF to turn the
system off.
Rear Air Conditioning System (Option)
You may have rear air conditioning. The rear air
conditioning thumbwheel is located to the right of the
heater controls. Turn the thumbwheel toward HIGH for
higher airflow in the rear area. Turn the switch to OFF
to turn the system off.

3-6 Air Conditioning
Before using your vehicle's air conditioning, open the
windows to clear the vehicle of hot air. This reduces the
time it takes for your vehicle to cool down. Then keep
your windows closed for the air conditioner to work at
its best.
You can use MAX A/C with the temperature knob in
the blue area when it's really hot outside and you need
to cool the inside air quickly. MAX A/C lets in only a
little air from the outside.
If you first use MAX A/C, you can then use A/C with
the temperature knob in the blue area as soon as the
vehicle has cooled down, so outside air will be going
through your vehicle.
If your vehicle has rear air conditioning, setting it on LOW
may enhance the front air conditioning performance by
allowing trapped refrigerant in the rear lines to circulate.
The rear air conditioning system will only send cooled
air if the front system is on. It can still be used to
circulate air, even if the front system is off.
When the air conditioning, defrost or blend is on, you
may notice a slight increase or decrease in engine speed,
due to compressor operation. This is normal because the
system is designed to cycle the compressor on and off to
maintain the desired temperature.
Heating
On cold days, use the floor setting with the temperature
knob in the red area. Outside air will be brought in
through the floor ducts. The heater works best if you
keep your windows closed while using it.
If you use the optional engine coolant heater before
starting your engine, your heating system will produce
warmer air faster to heat the passenger compartment in
cold weather. See ªEngine Coolant Heaterº in the Index.
Defrosting
Use defrost to remove fog or ice from the windshield
quickly in extremely cold conditions. The temperature
knob should be in the red area and the fan control
toward high. The air conditioning compressor may
operate in this setting to dehumidify the air.
The blend setting is useful for cold weather with a large
number of passengers or very humid conditions to help
keep the windshield clear.

3-7 Rear Window Defogger (Option)
If your vehicle has this option, the rear window will
have lines running across the glass. These lines heat
your window.
For best results, clear the window of as much snow or
ice as possible before using the rear window defogger.
To turn on the rear window
defogger, find the button
located to the left of the
heater controls with the
defog symbol on it.
Press the button until the light comes on, then release it.The rear window defogger will only work when the
ignition is in RUN.
You can turn the defogger off at any time by pressing
the button again. The defogger will shut itself off after
several minutes so that the glass does not get too hot.
If the window still isn't clear, turn the defogger on again.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid on the rear window.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the defogger and the repairs
would not be covered by your warranty.

3-8 Ventilation System
For mild outside temperatures when little heating or
cooling is needed, use the vent setting to direct outside
air through your vehicle. Air will flow through the
instrument panel vents.
Your vehicle's flow
-through ventilation system supplies
outside air to the inside of your vehicle when it is
moving. With the side windows closed, air will flow into
the front air inlet grilles at the base of the windshield,
through the vehicle and out the rear air exhaust valve.
Outside air will also enter the vehicle when the heater
or the air conditioning compressor is running.
Your vehicle has air vents near the center and on the
sides of the instrument panel that allow you to adjust the
direction and the amount of airflow inside the vehicle.
Move the dial on the vent up or down to direct airflow
to your preference. Increase or reduce the amount of
airflow by opening and closing the louvers. The vents
turn to direct the airflow from side to side.

3-9
When you close a vent, it will increase the flow of air
coming out of any vents that are open.
If you have rear heating or rear air conditioning, you
will have adjustable vents in the rear of the vehicle to
help direct the airflow. The rear air conditioning vents
are located in the headliner at the rear of the vehicle.
The rear heating vents are located next to the second and
third seat on the driver's side of the vehicle, near the
floor. You can move the vents to direct the flow of air,
or close the vents altogether. When you close a vent, it
will increase the flow of air coming out of any vents that
are open.Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.

When you enter a vehicle in cold weather, turn the
fan to HI for a few moments before driving off.
This helps clear the intake ducts of snow and
moisture and reduces the chance of fogging the
inside of your windows.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.

3-10
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all of its controls to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock for Systems with the
Set Button
Press SET. Within five seconds, press and hold the right
SEEK arrow until the correct minute appears on the
display. Press and hold the left SEEK arrow until the
correct hour appears on the display.
Setting the Clock for Systems without
Radio Data System
Press and hold HR until the correct hour appears on the
display. Press and hold MN until the correct minute
appears on the display. To display the clock with the
ignition off, press RECALL or HR/MN and the time
will be displayed for a few seconds. There is an initial
two
-second delay before the clock goes into the
time
-set mode.
Setting the Clock for Systems with Radio
Data System
Press and hold the HR button until the correct hour
appears. AM or PM will appear on the display for
morning or afternoon hours. Press and hold the MIN
button until the correct minute appears. The clock may
be set with the ignition on or off.
To set the clock to the time of an FM station
broadcasting Radio Data System (RDS) information,
press and hold the HR and MIN buttons at the same
time for two seconds until UPDATED and the clock
symbol appears on the display. If the time is not
available from the station, NO UPDAT will appear
on the display instead.
RDS clock time is broadcast once a minute. Once you
have tuned to an RDS broadcast station, it may take a
few minutes for your clock time to update.

3-11 AM-FM Stereo
Playing the Radio
Power: Turn the VOLUME knob clockwise to turn the
system on and counterclockwise to turn the system off.
VOLUME: Turn this knob clockwise to increase
volume. Turn it counterclockwise to decrease volume.
RECALL: Pressing this knob will display the station
being played or it will display the clock. Clock display
is available with the ignition turned off.Finding a Station
AM
-FM: Press this knob to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to tune in radio stations.
SEEK: Press the right or left arrow to seek to the
next or previous station and stay there.
SCAN: Press both SCAN arrows. SCAN
will appear on the display. The radio will scan to the
next station, play for a few seconds, then scan to the
next station. Press the RECALL knob or both SCAN
arrows to stop scanning.
Setting Preset Stations
The four numbered pushbuttons let you return to
your favorite stations. You can set up to 21 stations
(seven AM, seven FM1 and seven FM2) by
performing the following steps:
1. Turn the radio on.
2. Press AM
-FM to select AM, FM1 or FM2.
3. Tune in the desired station.
4. Press SET. SET will appear on the display.
