Page 11 of 388
ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important for
you and your
passengers
whenever your
vehicle is driven:
CHILD
RESTRAINT
TOP STRAP
ANCHOR
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.
Page 12 of 388
x
Model Reference
This manual covers these models:
Cargo Van
Cargo Van
Page 13 of 388
For
a More
Detailed Look at
What's Under the Hood
See Section 6

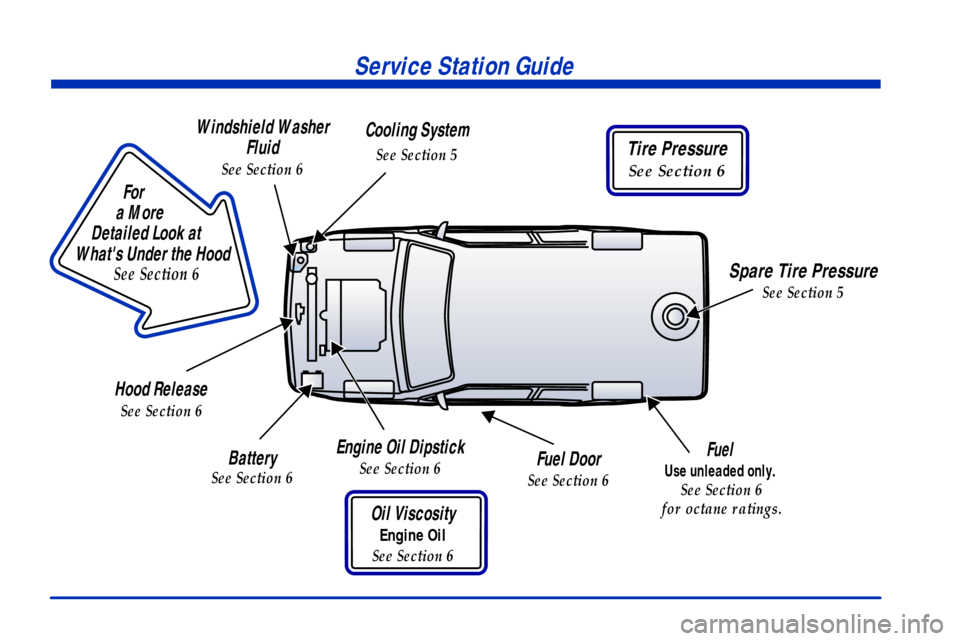

Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6
Fuel
Use unleaded only.
See Section 6
for octane ratings.
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Battery
See Section 6
Fuel Door
See Section 6
Tire Pressure
See Section 6
Page 14 of 388
1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-13 Safety Belts: They're for Everyone
1
-17 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-18 How to Wear Safety Belts Properly
1
-18 Driver Position
1
-26 Safety Belt Use During Pregnancy
1
-27 Right Front Passenger Position
1
-27 Air Bag System
1
-34 Rear Seat Passengers1
-38 Rear Safety Belt Comfort Guides for
Children and Small Adults
1
-40 Center Passenger Position (Bench Seat)
1
-42 Children
1
-48 Restraint Systems for Children
1
-62 Older Children
1
-65 Safety Belt Extender
1
-65 Checking Your Restraint Systems
1
-66 Replacing Restraint System Parts
After a Crash
Page 15 of 388
1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, take them out and put them back in. It also tells
you about bucket and bench seats, power seats and
head restraints.
Manual Front Seats
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
2-Way Front Seat
The bucket seats can be
adjusted forward or
rearward using the lever
located on the front of
the seat.
Move the seat adjustment lever on the front of the seat
toward the outboard side of the seat to unlock it. Slide
the seat to where you want it. Then release the lever and
try to move the seat with your body, to make sure that
the seat is locked into place.
Page 16 of 388
1-3 Manual Lumbar Support (If Equipped)
If you have this feature, there will be a knob located
on the inboard side of the driver's and passenger's
bucket seats.
Turn the knob toward the front of the vehicle to increase
lumbar support. Turn the knob toward the rear of the
vehicle to decrease lumbar support.
Power Seat (If Equipped)
If you have this feature, there will be a control pad
located on the inboard side of the driver's seat.
To raise or lower the front of the seat, raise or lower the
lever located toward the front of the vehicle.
To raise or lower the rear of the seat, raise or lower the
lever located toward the rear of the vehicle.
To move the entire seat backwards, forward, or up or
down, move the center knob.
Page 17 of 388
1-4 Reclining Seatbacks
There is a lever located on the inside of the seat to adjust
the seatback.
You can adjust the seatback
by lifting the lever and
leaning back. Release the
lever to lock the seatback
where you want it. Pull up
on the lever, lean forward
and the seat will go to an
upright position.
But don't have a seatback reclined if your vehicle is moving.
Page 18 of 388
1-5

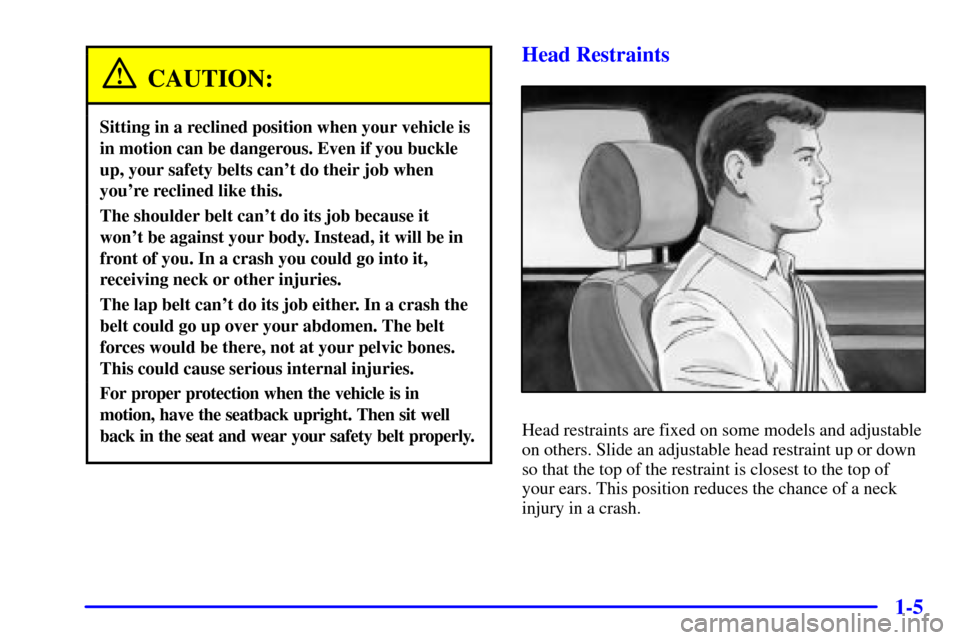

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt properly.
Head Restraints
Head restraints are fixed on some models and adjustable
on others. Slide an adjustable head restraint up or down
so that the top of the restraint is closest to the top of
your ears. This position reduces the chance of a neck
injury in a crash.
Page 19 of 388
1-6 Seatback Latches
The seatback lever is
located on the right rear
of your seat.
To fold your bench seatback
forward, pull up on the latch
release lever while pulling
the seatback toward the rear
of the vehicle.After the latch has been released, push the seatback
toward the front of the vehicle until it locks into place.
To raise the seatback, unlock the seatback latch by
pushing up on the lever while pushing down on the
upper edge of the seatback. Move the seatback into the
upright position. Make sure the seatback is locked when
it is back in the upright position.
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always press rearward on the seatback to be
sure it is locked.
Page 20 of 388
1-7 Rear Seats
Bucket Seats (If Equipped)
You may have rear bucket seats with an adjustment
release bar located at the front of the seats. These seats
can be adjusted forward or rearward with the release bar.
Pull the release bar up to release the seat bottom and
slide the seat where you want it. Then let go of the
release bar and try to move the seat with your body, to
make sure the seat is locked into place.Bench Seats
Each bench seat can carry up to three passengers.
They can also be removed to increase storage space.
The center bench and rear bench seats can be adjusted
forward or rearward using the lever at the front of
the seat.
Move the seat adjustment
lever located at the front
of the seat toward the
passenger's side to unlock
it. Slide the seat to where
you want it. Then release
the lever and try to move
the seat with your body, to
make sure the seat is locked
into place.
The center bench seat has a pivoting right armrest.
The optional bench seats come with moveable armrests,
individual reclining seatbacks, adjustable headrests and
a fold
-down center armrest console.
