CHEVROLET ASTRO PASSENGER 2001 2.G User Guide
Manufacturer: CHEVROLET, Model Year: 2001, Model line: ASTRO PASSENGER, Model: CHEVROLET ASTRO PASSENGER 2001 2.GPages: 400, PDF Size: 2.59 MB
Page 11 of 400
1-4 Reclining Seatbacks
There is a lever located on the inside of the seat to adjust
the seatback.
You can adjust the seatback
by lifting the lever and
leaning back. Release the
lever to lock the seatback
where you want it. Pull up
on the lever, lean forward
and the seatback will go to
an upright position.
But don't have a seatback reclined if your vehicle
is moving.
Page 12 of 400
1-5

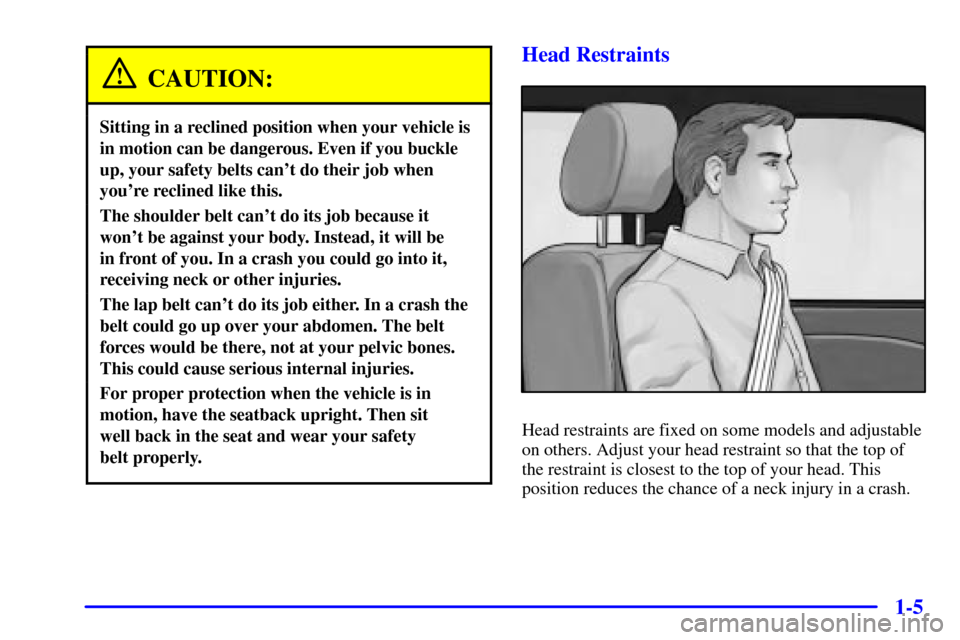

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Head restraints are fixed on some models and adjustable
on others. Adjust your head restraint so that the top of
the restraint is closest to the top of your head. This
position reduces the chance of a neck injury in a crash.
Page 13 of 400
1-6 Seatback Latches
The seatback lever is
located on the right rear
of your seat.
To fold your non-touring
bench seatback forward,
pull up on the latch release
lever while pulling the
seatback toward the rear
of the vehicle.After the latch has been released, push the seatback
toward the front of the vehicle until it locks into place.
To raise the seatback, unlock the seatback latch by
pushing up on the lever while pushing down on the
upper edge of the seatback. Move the seatback into the
upright position. Make sure the seatback is locked when
it is back in the upright position.
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Page 14 of 400
1-7 Rear Seats
Bucket Seats (If Equipped)
Your vehicle may have rear bucket seats with an
adjustment release bar located under the front of the
seats. These seats can be adjusted forward or rearward
with the release bar. Pull the release bar up to release the
seat bottom. Slide the seat where you want it and then
let go of the release bar. Then try to move the seat with
your body to make sure the seat is locked into place.Bench Seats
Each bench seat can carry up to three passengers.
They can also be removed to increase storage space.
The center bench and rear bench seats can be
adjusted forward or rearward using the lever at the
front of the seat.
Move the seat adjustment
lever located at the front
of the seat toward the
passenger's side to unlock
it. Slide the seat to where
you want it. Then release
the lever and try to move
the seat with your body, to
make sure the seat is locked
into place.
The center bench seat has a pivoting right armrest.
The optional bench seats come with moveable armrests,
individual reclining seatbacks, adjustable headrests and
a fold
-down center armrest console.
Page 15 of 400
1-8
To adjust your seatback, pull up on the lever located on
the outboard side of the seat cushion.
To raise or lower the
center console, press the
button located between the
beverage holders. Sit in the
center seating position only
when the console is in an
upright and locked position.
For details about headrests, see ªHead Restraintsº in
this section.
Page 16 of 400
1-9
Removing the Rear Seats
To remove the rear seats, do the following:
1. If you are removing the
center seat, remove the
right lap
-shoulder belt.
To do this, press the tip
of a key into the release
hole of the safety belt
attachment while pulling
up on the safety belt.
2. If you have a safety
belt guide on your seat,
pull the safety belt all
the way out through
the guide.
3. To store the safety belt while the second row bench
seat is removed, pull the belt out and put both
buckles in the passenger's side rear storage bin.
Route the belt out of the forward edge of the storage
bin. Close the cover to retain the belt.
4. Pull up on the seatback latch on the right rear of the
seat. Push the seatback down until it locks into place.
Page 17 of 400
1-10
5. Lift up on the left and the right seat release levers at
the same time. The latches are near the floor on the
rear legs of the seat.6. Lift up on the rear of the seat to remove the seat
assembly from the rear latch pins. Then, pull back
and lift the seat out of the vehicle.
Your seat release latch lever is operated with a
two
-stage mechanism. To fully release the latch,
two levels of lift effort will be required. First,
a low effort to overcome the first stage and then
a moderate effort to fully release the latch.
Page 18 of 400
1-11
Replacing the Rear Seats
1. Lower the seat into position. Make sure the front
retainers are hooked onto the anchor pins.
2. Pull the seat down to latch the rear retainers. Make
sure the seat is locked in by pulling up and down on
the seat.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
Page 19 of 400
1-12
3. To raise the seatback, do the following:
A. Unlock the seatback latch by pushing up on
the latch release lever at the right rear of the
seat, while pushing down on the upper edge
of the seatback.
B. Move the seatback into the upright position.
Make sure the seatback is locked when it is
back in the upright position.
If you are replacing the center seat, connect the right
lap
-shoulder belt to the attachment on the seat
cushion. If you have a safety belt guide on your seat,
pull the belt through the guide before reattaching the
lap
-shoulder belt to the side of the seat. The release
hole should be facing outward.If you installed the safety belt with the release hole
facing inward (toward the seat), slide the plastic
cover up so you can see the buckle. Disconnect the
seat belt. Slide the cover back down and reinstall the
belt correctly.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Page 20 of 400
1-13

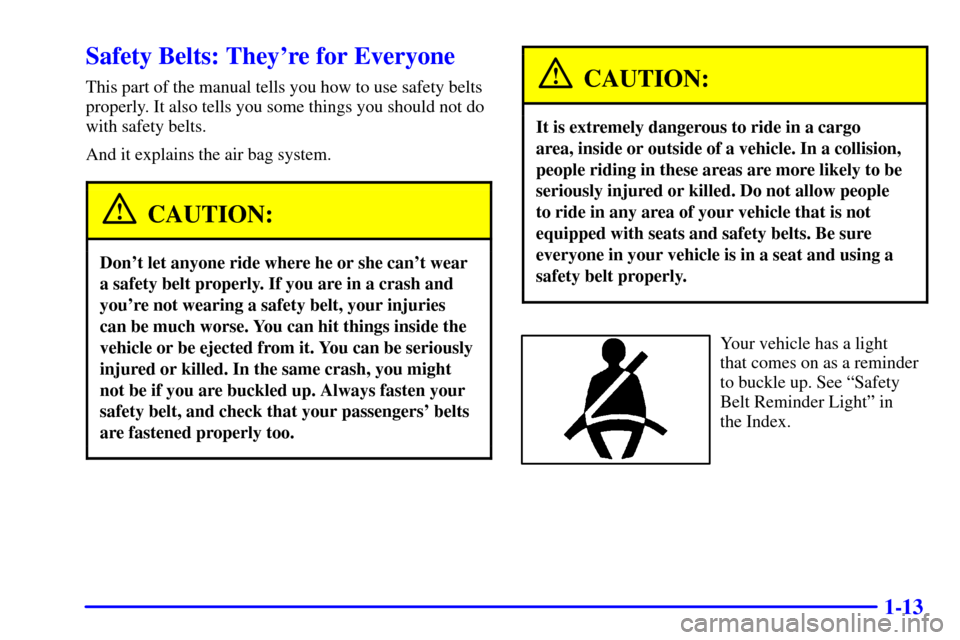

Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people
to ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. See ªSafety
Belt Reminder Lightº in
the Index.
