Comfort Controls
Heater and Air Conditioning
Comfort Controls

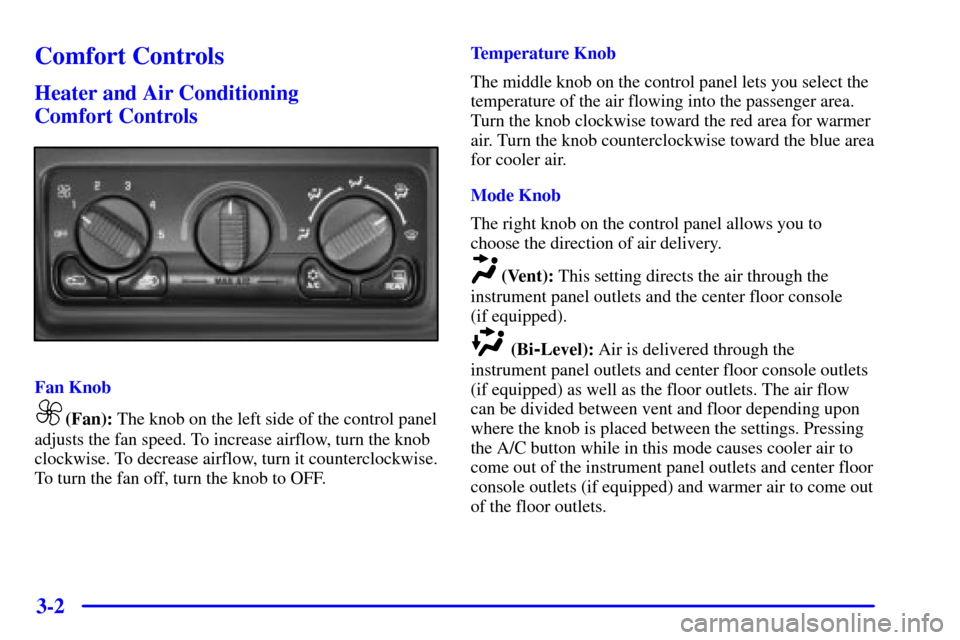

Fan Knob
(Fan): The knob on the left side of the control panel
adjusts the fan speed. To increase airflow, turn the knob
clockwise. To decrease airflow, turn it counterclockwise.
To turn the fan off, turn the knob to OFF.Temperature Knob
The middle knob on the control panel lets you select the
temperature of the air flowing into the passenger area.
Turn the knob clockwise toward the red area for warmer
air. Turn the knob counterclockwise toward the blue area
for cooler air.
Mode Knob
The right knob on the control panel allows you to
choose the direction of air delivery.
(Vent): This setting directs the air through the
instrument panel outlets and the center floor console
(if equipped).
(Bi-Level): Air is delivered through the
instrument panel outlets and center floor console outlets
(if equipped) as well as the floor outlets. The air flow
can be divided between vent and floor depending upon
where the knob is placed between the settings. Pressing
the A/C button while in this mode causes cooler air to
come out of the instrument panel outlets and center floor
console outlets (if equipped) and warmer air to come out
of the floor outlets.

4-71 Trailer Wiring Harness
Heavy-Duty Trailer Wiring Package
Your vehicle is equipped with the eight-wire trailer
towing harness. This harness with a seven
-pin universal
heavy
-duty trailer connector is attached to a bracket on
the platform hitch.** The Center High
-Mounted Stoplamp (CHMSL)
wire is tied next to the trailer wiring harness for use with
a trailer.
The eight
-wire harness contains the following
trailer circuits:

Yellow: Left Stop/Turn Signal

Dark Green: Right Stop/Turn Signal

Brown: Taillamps

White: Ground

Light Green: Back
-up Lamps

Light Blue: CHMSL

Red: Battery Feed

Dark Blue: Trailer Brake
