cooling CHEVROLET AVALANCHE 2002 1.G Owners Manual

Service Station Guide

For
a More
Detailed Look at
What's Under the Hood
See Section 6
Cooling System
See Section 5
Spare Tire Pressure
See Section 6
Tire Pressure
See Section 6
Fuel
Use unleaded only.
See Section 6
for octane ratings.
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6Battery
See Section 6

2-13

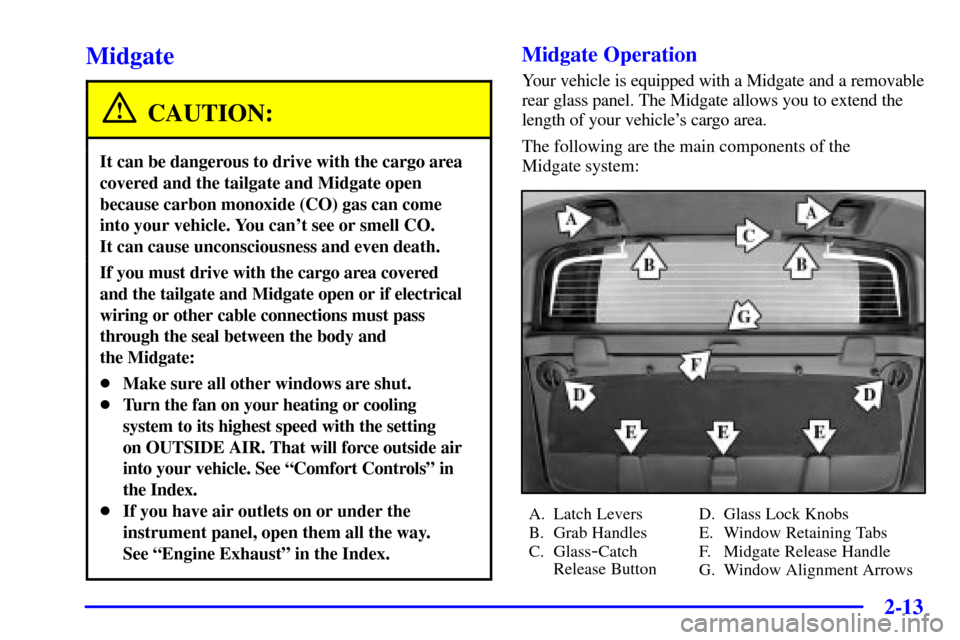

Midgate
CAUTION:
It can be dangerous to drive with the cargo area
covered and the tailgate and Midgate open
because carbon monoxide (CO) gas can come
into your vehicle. You can't see or smell CO.
It can cause unconsciousness and even death.
If you must drive with the cargo area covered
and the tailgate and Midgate open or if electrical
wiring or other cable connections must pass
through the seal between the body and
the Midgate:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on OUTSIDE AIR. That will force outside air
into your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Midgate Operation
Your vehicle is equipped with a Midgate and a removable
rear glass panel. The Midgate allows you to extend the
length of your vehicle's cargo area.
The following are the main components of the
Midgate system:
A. Latch Levers
B. Grab Handles
C. Glass
-Catch
Release ButtonD. Glass Lock Knobs
E. Window Retaining Tabs
F. Midgate Release Handle
G. Window Alignment Arrows

2-108
Engine Coolant Temperature Gage
United States Canada
This gage shows the engine coolant temperature.
It also provides an indicator of how hard your vehicle
is working. During a majority of the operation, the gage
will read 210
F (100
C) or less. If you are pulling a
load or going up hills, it is normal for the temperature to
fluctuate and approach the 250
F (122
C) mark. If the
gage reaches the 260
F (125
C) mark, it indicates that
the cooling system is working beyond its capacity.
See ªEngine Overheatingº in the Index.
Transmission Temperature Gage (If Equipped)
United States Canada
Your vehicle may be equipped with a transmission
temperature gage.
When your ignition is on, the gage shows the temperature
of the transmission fluid. The normal operating range is
from 100
F (38
C) to about 265
F (130
C).
At approximately 265
F (130
C), the message center
will display a TRANS FLUID HOT message and the
transmission will enter a transmission protection mode.

2-119
Low Coolant
This message is displayed
when the cooling system
is low on coolant.
The engine may overheat. See ªEngine Coolantº in the
Index and have your vehicle serviced as soon as you can.
Check Coolant Temp
This message is displayed
when the cooling system
temperature gets hot.
Check the coolant temperature gage and the coolant
level. See ªEngine Coolantº and ªEngine Coolant
Temperature Gageº in the Index. See ªEngine
Overheatingº in the Index for further information.
Engine Overheated
This message is displayed
when the cooling system
temperature gets too hot.
This message will be displayed after the air conditioning
system has automatically turned off for the engine
coolant protection mode. See ªEngine Overheatingº
in the Index for further information.

2-120
Reduced Engine Power
This message is displayed
when the cooling system
temperature gets too hot
and the engine further
enters the engine coolant
protection mode.
If your vehicle is equipped with the 8.1L engine, this
light may come on because of an electronic throttle
control system fault. See ªEngine Overheatingº in the
Index for further information.
Check Eng Oil Pressure
This message is displayed
when the engine oil pressure
is low.
See ªOil Pressure Gageº in the Index for more information.
Check Eng Oil Level
This message is displayed
when the engine oil level
is low.
Once oil is added, it may need time to drain and settle
in the engine before this message will turn off. It is best
to let the engine cool down (if it is hot) or warm up
(if it is cold) and cycle the ignition to be sure this
message turns off. Refer to the dipstick for the
correct level.
See ªEngine Oilº in the Index on how to check the
oil level and for what type of oil to add.

3-5
AUTO (Automatic): If the knob is in AUTO,
the fan speed will vary as the system maintains the
selected temperature.
When both the fan knob and mode knobs are in the
AUTO position, the system will then automatically
maintain the desired cabin temperature as selected
by the temperature knob. Manual operation is
also available.
Temperature Knob
The middle knob on the control panel lets you select
the desired air temperature in your vehicle. This knob
will allow you to adjust the interior air temperature
independent of the function knob setting. Move the
knob clockwise toward 82 for warmer air. Move the
knob counterclockwise toward 66 for cooler air. When
the system is set for automatic operation, sensors will
control the fan speed.
Full Hot: If you turn the temperature knob past 82
F
(28
C), the system will go into the ªfull hotº mode.
The system will remain at that maximum heating setting
and the fan will blow at the speed to which the fan knob
is set. If the fan is in AUTO, it will run at full speed.Full Cold: If you turn the temperature knob past 66
F
(19
C), the system will go into the ªfull coldº mode.
The system will remain at that maximum cooling setting
and the fan will blow at the speed to which the fan knob
is set. If the fan is in AUTO, it will run at full speed.
Mode Knob
- Manual Operation
The right knob on the control panel allows you to
choose the direction of air delivery.
You can choose to set the climate control system
operations yourself, or let the system work for you
by placing the system in AUTO mode. See ªMode
Knob
- Automatic Operationº later in this section.
(Vent): This setting directs most of the air through
the instrument panel outlets and a small amount through
the floor outlets.
(Bi-Level): This setting delivers air through
the floor outlets as well as the instrument panel outlets.
(Floor): This setting directs most of the warmed
air through the floor outlets and some air through the
windshield defroster outlets. Recirculation will not be
available in this mode. See ªRecirculationº following
for more information.

3-8
To avoid blowing cold air in cold weather, the system will
delay turning on the fan until warm air is available. The
length of delay depends on the outside air temperature,
engine coolant temperature or the time since the engine
was last started. As the coolant warms up, the fan speed
will gradually increase and air will flow from the heater
outlets, with some airflow to the windshield to prevent
fogging under most normal conditions.
Be careful not to put anything over the solar sensor
located near the center of the instrument panel.
This sensor is used by the automatic system to
regulate temperature.Air Conditioning
On hot days, open the windows long enough to let hot
air inside escape. This reduces the time it takes for your
vehicle to cool down. Then keep your windows closed
for the air conditioner to work its best.
The A/C button, below the mode knob, allows the air
coming into your vehicle to be cooled. This setting is
useful for normal cooling on hot days.
Using A/C with the recirculation setting active allows
the air inside your vehicle to be recirculated. This
setting helps to maximize your air conditioner's
performance and your vehicle's fuel economy. This
setting also cools air the fastest and can be used to keep
unwanted odors and/or dust from entering the vehicle.
When using the air conditioner, turn off the recirculation
setting and use the outside air setting after the vehicle
reaches a comfortable interior temperature. When the
right knob on the control panel is between floor and
defrost, the recirculation feature will not function to
reduce window fogging.

3-11
For mild outside temperatures when little heating or
cooling is needed, use outside air to direct outside air
through your vehicle. Air will flow through the
instrument panel outlets.
Your vehicle's ventilation system supplies outside air to
the inside of your vehicle when it is moving. With the
side windows closed, air will flow into the front air
inlet grilles, through the vehicle, and out the air
exhaust valves.
Outside air will also enter the vehicle when the heater or
the air conditioning fan is running, unless you have the
recirculation button pushed in. For more information on
the recirculation button, see ªAir Conditioningº earlier
in this section.Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.

When you enter a vehicle in cold weather, turn the
fan knob all the way to the right for a few moments
before driving. This helps clear the intake ducts of
snow and moisture, and reduces the chance of
fogging the inside of your windows.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.

The use of non
-GM approved hood air deflectors
may adversely affect the performance of the heating
and air conditioning system.

4-32 After Off-Road Driving
Remove any brush or debris that has collected
on the underbody, chassis or under the hood.
These accumulations can be a fire hazard.
After operation in mud or sand, have the brake linings
cleaned and checked. These substances can cause
glazing and uneven braking. Check the body structure,
steering, suspension, wheels, tires and exhaust system
for damage. Also, check the fuel lines and cooling
system for any leakage.
Your vehicle will require more frequent service due to
off
-road use. Refer to the Maintenance Schedule for
additional information.
Driving at Night
Night driving is more dangerous than day driving. One
reason is that some drivers are likely to be impaired
-- by
alcohol or drugs, with night vision problems, or by fatigue.

4-41

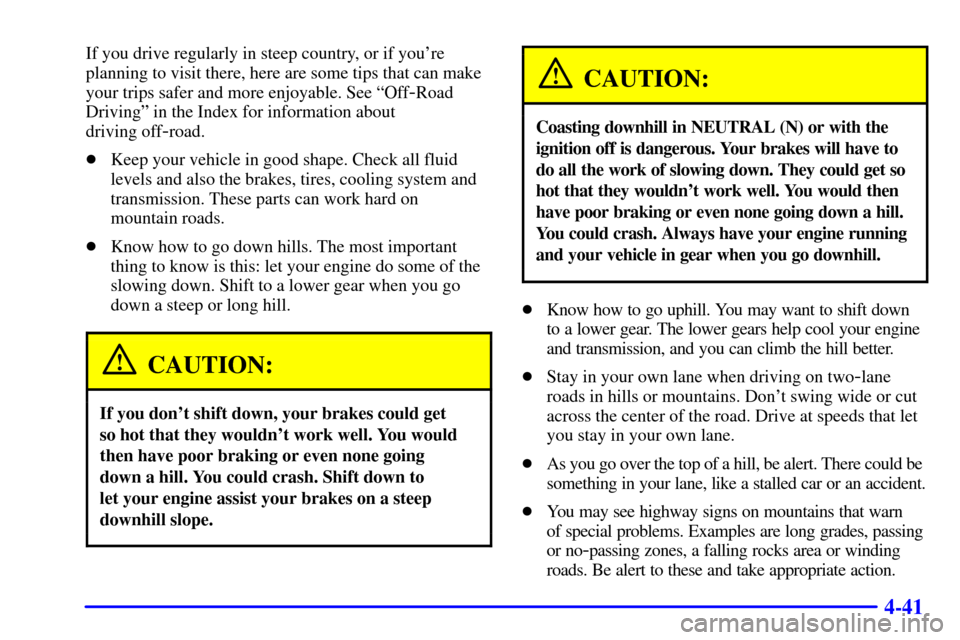

If you drive regularly in steep country, or if you're
planning to visit there, here are some tips that can make
your trips safer and more enjoyable. See ªOff
-Road
Drivingº in the Index for information about
driving off
-road.

Keep your vehicle in good shape. Check all fluid
levels and also the brakes, tires, cooling system and
transmission. These parts can work hard on
mountain roads.

Know how to go down hills. The most important
thing to know is this: let your engine do some of the
slowing down. Shift to a lower gear when you go
down a steep or long hill.
CAUTION:
If you don't shift down, your brakes could get
so hot that they wouldn't work well. You would
then have poor braking or even none going
down a hill. You could crash. Shift down to
let your engine assist your brakes on a steep
downhill slope.
CAUTION:
Coasting downhill in NEUTRAL (N) or with the
ignition off is dangerous. Your brakes will have to
do all the work of slowing down. They could get so
hot that they wouldn't work well. You would then
have poor braking or even none going down a hill.
You could crash. Always have your engine running
and your vehicle in gear when you go downhill.

Know how to go uphill. You may want to shift down
to a lower gear. The lower gears help cool your engine
and transmission, and you can climb the hill better.

Stay in your own lane when driving on two
-lane
roads in hills or mountains. Don't swing wide or cut
across the center of the road. Drive at speeds that let
you stay in your own lane.

As you go over the top of a hill, be alert. There could be
something in your lane, like a stalled car or an accident.

You may see highway signs on mountains that warn
of special problems. Examples are long grades, passing
or no
-passing zones, a falling rocks area or winding
roads. Be alert to these and take appropriate action.
