Page 69 of 437
2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-10 Keyless Entry System
2
-13 Midgate
2
-23 Tailgate
2
-24 Theft
2
-25 Content Theft-Deterrent
2
-26 Passlock
2-27 New Vehicle ªBreak-Inº
2
-27 Ignition Positions
2
-29 Starting Your Engine
2
-30 Engine Coolant Heater (If Equipped)
2
-32 Automatic Transmission Operation
2
-35 Four-Wheel Drive (If Equipped)
2
-40 Parking Brake
2
-41 Shifting Into PARK (P)
2
-43 Shifting Out of PARK (P)
2
-44 Parking Over Things That Burn2
-44 Engine Exhaust
2
-45 Running Your Engine While You're Parked
2
-46 Locking Rear Axle
2
-46 Horn
2
-47 Tilt Wheel
2
-47 Turn Signal/Multifunction Lever
2
-53 Exterior Lamps
2
-58 Interior Lamps
2
-59 Mirrors
2
-64 Storage Compartments
2
-66 Tonneau Cover (If Equipped)
2
-73 Cargo Cover Panels (If Equipped)
2
-91 OnStar System (If Equipped)
2
-98 The Instrument Panel - Your
Information System
2
-100 Instrument Panel Cluster
2
-101 Warning Lights, Gages and Indicators
2
-116 Message Center
Page 100 of 437
2-32

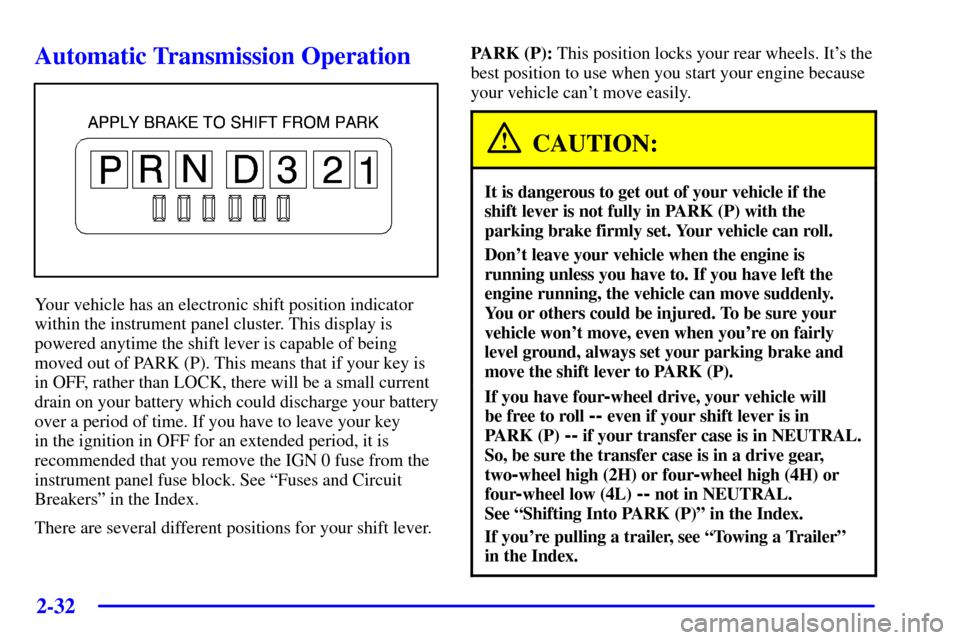

Automatic Transmission Operation
Your vehicle has an electronic shift position indicator
within the instrument panel cluster. This display is
powered anytime the shift lever is capable of being
moved out of PARK (P). This means that if your key is
in OFF, rather than LOCK, there will be a small current
drain on your battery which could discharge your battery
over a period of time. If you have to leave your key
in the ignition in OFF for an extended period, it is
recommended that you remove the IGN 0 fuse from the
instrument panel fuse block. See ªFuses and Circuit
Breakersº in the Index.
There are several different positions for your shift lever.PARK (P): This position locks your rear wheels. It's the
best position to use when you start your engine because
your vehicle can't move easily.
CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
If you have four-wheel drive, your vehicle will
be free to roll
-- even if your shift lever is in
PARK (P)
-- if your transfer case is in NEUTRAL.
So, be sure the transfer case is in a drive gear,
two
-wheel high (2H) or four-wheel high (4H) or
four
-wheel low (4L) -- not in NEUTRAL.
See ªShifting Into PARK (P)º in the Index.
If you're pulling a trailer, see ªTowing a Trailerº
in the Index.
Page 104 of 437
2-36

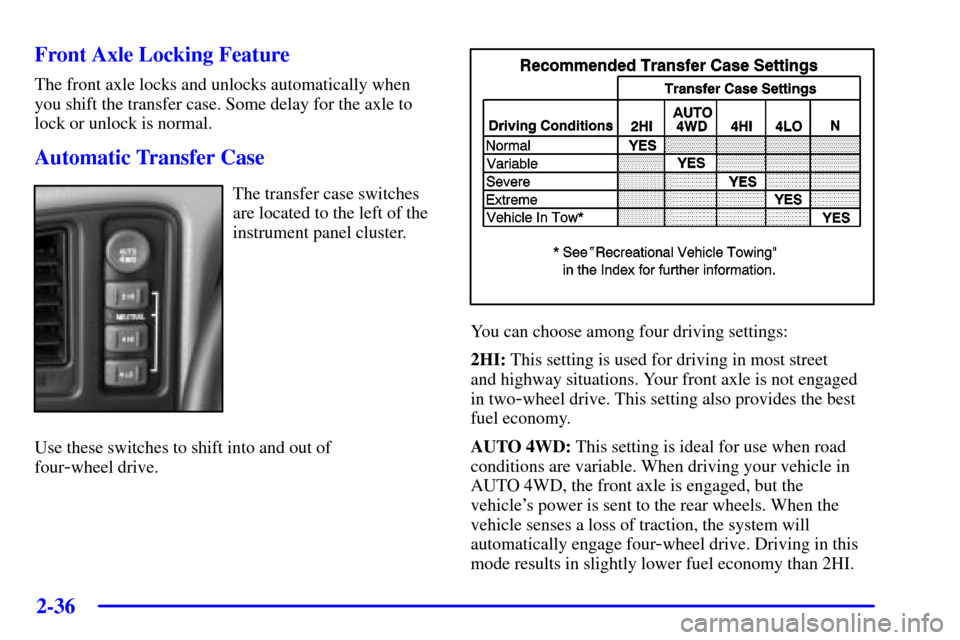

Front Axle Locking Feature
The front axle locks and unlocks automatically when
you shift the transfer case. Some delay for the axle to
lock or unlock is normal.
Automatic Transfer Case
The transfer case switches
are located to the left of the
instrument panel cluster.
Use these switches to shift into and out of
four
-wheel drive.
You can choose among four driving settings:
2HI: This setting is used for driving in most street
and highway situations. Your front axle is not engaged
in two
-wheel drive. This setting also provides the best
fuel economy.
AUTO 4WD: This setting is ideal for use when road
conditions are variable. When driving your vehicle in
AUTO 4WD, the front axle is engaged, but the
vehicle's power is sent to the rear wheels. When the
vehicle senses a loss of traction, the system will
automatically engage four
-wheel drive. Driving in this
mode results in slightly lower fuel economy than 2HI.
Page 116 of 437
2-48
Turn Signal and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever
will return automatically.
An arrow on the instrument
panel cluster will flash in
the direction of the turn
or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
If you move the lever all the way up or down, and the
arrow flashes at twice the normal rate, a signal bulb
may be burned out and other drivers may not see your
turn signal.If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs or a blown
fuse (see ªFuses and Circuit Breakersº in the Index).
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each flash of the turn
signal. To turn off the chime, move the turn signal
lever to off.
Headlamp High/Low Beam Changer
To change the headlamps from low to high beam or
high to low beam, pull the multifunction lever all the
way toward you. Then release it.
When the high beams
are on, this light on the
instrument panel cluster
also will be on.
Page 117 of 437
2-49
Flash-To-Pass Feature
This feature allows you to use your high-beam
headlamps to signal a driver in front of you that you
want to pass. It works even if your headlamps are off.
To use it, pull the turn signal lever toward you,
but not so far that you hear it click.
If your headlamps are off or on low
-beam, your
high
-beam headlamps will turn on. They'll stay
on as long as you hold the lever toward you and
the high
-beam indicator on the instrument panel
cluster comes on. Release the lever to turn the
high
-beam headlamps off.
Windshield Wipers
You control the windshield wipers by turning the band
with the wiper symbol on it.
For a single wiping cycle, turn the band to MIST.
Hold it there until the wipers start, then let go.
The wipers will stop after one wipe. If you want
more wipes, hold the band on MIST longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow. Turn the band to choose the delay time.
The closer to LO, the shorter the delay.For steady wiping at low speed, turn the band away
from you to the LO position. For high
-speed wiping,
turn the band further, to HI. To stop the wipers,
move the band to the OFF position.
Be sure to clear ice and snow from the wiper blades
before using them. If they're frozen to the windshield,
carefully loosen or thaw them. If your blades do become
worn or damaged, get new blades or blade inserts.
Windshield Washer
There is a paddle marked with the windshield washer
symbol at the top of the multifunction lever. To spray
washer fluid on the windshield, push the paddle.
The wipers will clear the window and then either stop
or return to your preset speed.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Page 167 of 437
2-99
The main components of your instrument panel are the following:
A. Dome Override Button
B. Lamp Controls
C. Air Outlets
D. Automatic Transfer Case/Traction Assist System
(If Equipped)
E. Cargo/Top
-Box Storage Lamps Button
F. Instrument Panel Cluster
G. Gearshift Lever
H. Tow/Haul Selector Button
I. Audio System
J. Comfort Control System
K. Instrument Panel Fuse BlockL. Hood Release
M. Fog Lamps Button
N. Multifunction Lever
O. Center Instrument Panel Utility Block
P. Tilt Lever
Q. Parking Brake Release
R. Lighter and Accessory Power Outlets
S. Rear Window Defogger Switch
T. Ashtray
U. OnStar Buttons (If Equipped)
V. Glovebox
Page 168 of 437
2-100
Instrument Panel Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how fast you're
going, about how much fuel you have and many other things you'll need to know to drive safely and economically.
United States, 2500 series version shown, Canada and 1500 series similar.
Page 184 of 437
2-116
Message Center
The message center is located on the left side of the
instrument panel cluster. It gives you important safety
and maintenance facts. When you turn the ignition on,
the entire center lights up for just a few seconds.
As needed, the message center will display one of
the following messages. The message center is capable
of alternating among different messages if needed.
Battery
If this message is displayed
when the engine is running,
you may have a problem
with your charging system.The battery display will also stay on while the key is in
RUN until the engine is started.
If the message stays on after starting the engine it could
indicate a problem with the generator drive belt, or some
other charging system problem. Have it checked right
away. Driving with this message displayed could drain
your battery.
If you must drive a short distance with this message
displayed, it helps to turn off all your accessories,
such as the radio and the air conditioner.
Page 335 of 437
6-12

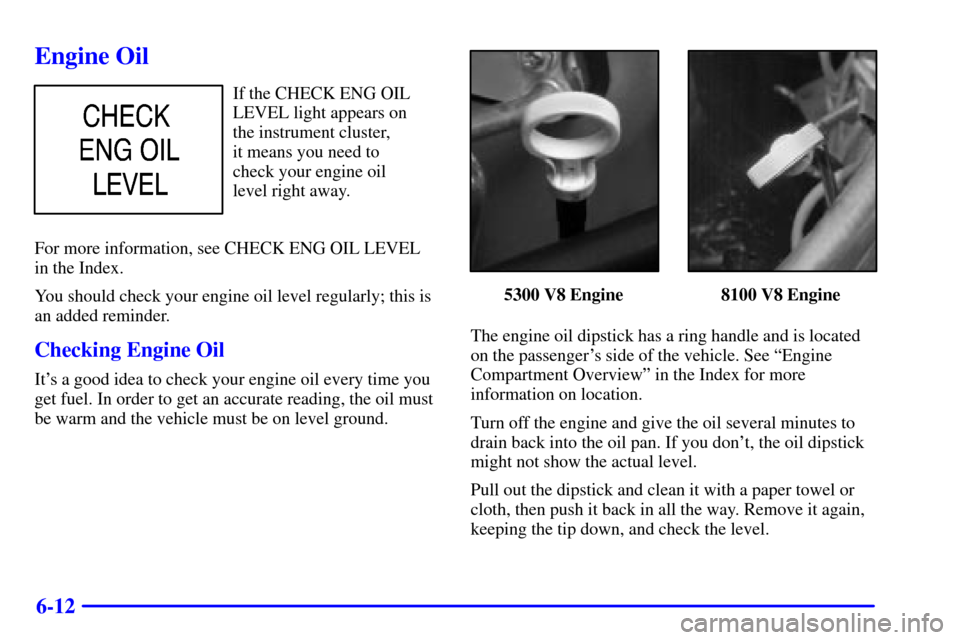

Engine Oil
If the CHECK ENG OIL
LEVEL light appears on
the instrument cluster,
it means you need to
check your engine oil
level right away.
For more information, see CHECK ENG OIL LEVEL
in the Index.
You should check your engine oil level regularly; this is
an added reminder.
Checking Engine Oil
It's a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
5300 V8 Engine 8100 V8 Engine
The engine oil dipstick has a ring handle and is located
on the passenger's side of the vehicle. See ªEngine
Compartment Overviewº in the Index for more
information on location.
Turn off the engine and give the oil several minutes to
drain back into the oil pan. If you don't, the oil dipstick
might not show the actual level.
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
Page 388 of 437
6-65
NAME Usage
CRUISE Cruise Control, Instrument Cluster
IGN 3 Ignition, Power Seats
4WD Four
-Wheel Drive System,
Auxiliary Battery
CRANK Starting System
INT PRK Interior Lamps
L DOOR Power Door Lock Relay
BRAKE Anti
-Lock Brake System
RR WIPER Not Used
ILLUM Interior Lamps, Cargo Lamps
SEAT Power Seat Circuit Breaker
TURN Exterior Lamps, Turn Signals,
Hazard Lamps
UNLOCK Power Door Locks
HTR A/C Climate Control SystemNAME Usage
WS WPR Windshield Wipers
IGN 1 Ignition, Instrument Panel
AIR BAG Air Bag
MIR/LOCK Power Mirrors, Power Door Locks
DR LOCK Power Door Locks
PWR WDO Power Window Circuit Breaker
UNLOCK Power Door Lock Relay
IGN 0 PRND321 Display, Odometer,
VCM/PCM
SEO IGN Special Equipment Option, Ignition
SEO ACCY Special Equipment Option Accessory
RAP #1 Retained Accessory Power Relay
RDO 1 Audio System
RAP #2 Rear Power Windows,
Sunroof, Radio
