CHEVROLET AVALANCHE 2007 2.G Owners Manual

8. Attach the jack handle, extension, and wheel
wrench to the jack and place it (with the
wheel blocks) under the vehicle toward the
front of the rear bumper.9. Position the center lift point of the jack under
the center of the spare tire.
10. Turn the wheel wrench clockwise to raise the
jack until it lifts the end tting.
11. Continue raising the jack until the spare tire
stops moving upward and is held rmly in
place so that the secondary latch has released
and the spare tire is balancing on the jack.
12. Lower the jack by turning the wheel wrench
counterclockwise. Keep lowering the jack
until the spare tire slides off the jack or
is hanging by the cable.
531

{CAUTION:
Someone standing too close during the
procedure could be injured by the jack. If
the spare tire does not slide off the jack
completely, make sure no one is behind
you or on either side of you as you pull
the jack out from under the spare.
13. Disconnect the jack handle from the jack and
carefully remove the jack with the other hand.
14. Use one hand to push against the spare while
rmly pulling the jack out from under the
spare tire with the other hand. If the spare tire
is hanging from the cable, insert the hoist
end of the extension, and wheel wrench into
the hoist shaft hole in the bumper and
turn the wheel wrench counterclockwise to
lower the spare tire the rest of the way.15. Tilt the tire retainer
at the end of the
cable and pull
it through the wheel
opening. Pull the
tire out from
under the vehicle.
16. Turn the wheel wrench in the hoist shaft hole
in the bumper clockwise to raise the cable
back up if the cable is hanging under
the vehicle.
Have the hoist assembly inspected as soon as
you can. You will not be able to store a spare or
at tire using the hoist assembly until it has
been replaced.
To continue changing the at tire, seeRemoving
the Flat Tire and Installing the Spare Tire on
page 522.
532

Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
Notice:Storing an aluminum wheel with a
at tire under your vehicle for an extended
period of time or with the valve stem pointing
up may damage the wheel. Always stow
the wheel with the valve stem pointing down
and have the wheel/tire repaired as soon
as possible.
Store the tire under the rear of the vehicle in the
spare tire carrier. Refer to the following graphics
and instructions to help you:A. Spare Tire/Flat
Tire (Valve Stem
Pointed Down)
B. Hoist Assembly
C. Hoist Cable
D. Tire Retainer
E. Hoist ShaftF. Hoist End of
Extension Tool
G. Hoist Shaft
Access Hole
H. Wheel Wrench
I. Jack Handle Extension
J. Spare Tire Lock
1. Put the tire (A) on the ground at the rear of
the vehicle with the valve stem pointed down,
and to the rear.
533

2. Tilt the tire
retainer (D)
downward and
through the wheel
opening. Make
sure the retainer is
fully seated
across the underside
of the wheel.
3. Assemble the two jack handle extensions (I)
and wheel wrench (H) as shown.4. Insert the open end
of the extension (F)
through the hole
in the rear
bumper (G) (hoist
shaft access hole).
5. Raise the tire part way upward. Make sure the
retainer is seated in the wheel opening.
6. Raise the tire fully against the underside of
the vehicle by turning the wheel wrench
clockwise until you hear two clicks or feel it
skip twice. You cannot overtighten the cable.
534

7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire. If the
tire moves, use the wheel wrench to tighten
the cable.
8. Reinstall the spare tire lock.
9. Close the hoist shaft access cover.To store the tools, follow these steps:
1. Return the tools to the tool bag and place it
back in the top-box storage unit.
2. Assemble the wheel blocks and jack together
with the wing nut by reversing Step 2 under
Removing the Spare Tire and Tools on
page 518.
3. Replace the jack cover and tighten the
jack-cover wing nuts.
535

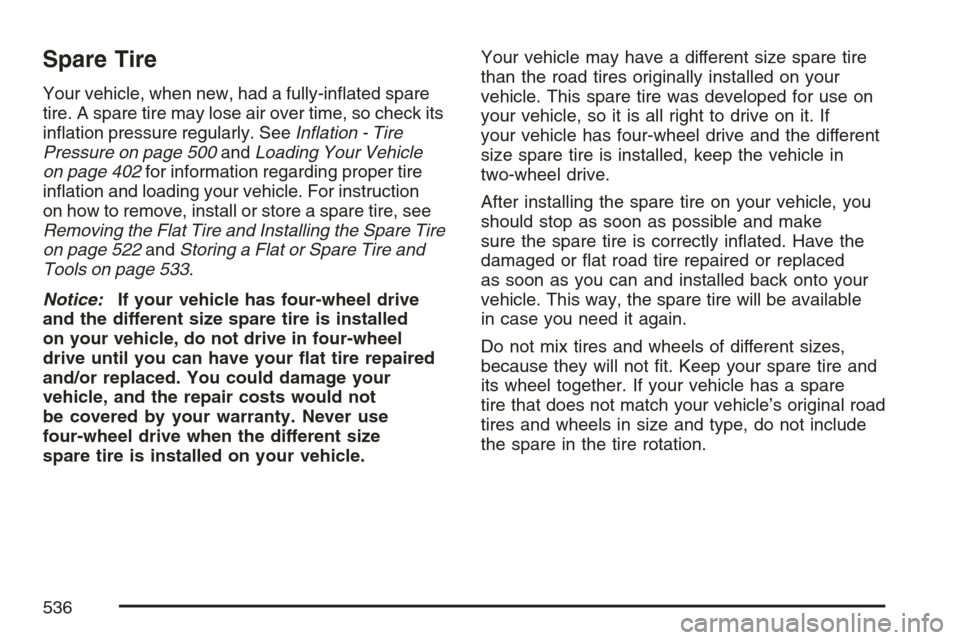

Spare Tire
Your vehicle, when new, had a fully-inated spare
tire. A spare tire may lose air over time, so check its
ination pressure regularly. SeeInation - Tire
Pressure on page 500andLoading Your Vehicle
on page 402for information regarding proper tire
ination and loading your vehicle. For instruction
on how to remove, install or store a spare tire, see
Removing the Flat Tire and Installing the Spare Tire
on page 522andStoring a Flat or Spare Tire and
Tools on page 533.
Notice:If your vehicle has four-wheel drive
and the different size spare tire is installed
on your vehicle, do not drive in four-wheel
drive until you can have your at tire repaired
and/or replaced. You could damage your
vehicle, and the repair costs would not
be covered by your warranty. Never use
four-wheel drive when the different size
spare tire is installed on your vehicle.Your vehicle may have a different size spare tire
than the road tires originally installed on your
vehicle. This spare tire was developed for use on
your vehicle, so it is all right to drive on it. If
your vehicle has four-wheel drive and the different
size spare tire is installed, keep the vehicle in
two-wheel drive.
After installing the spare tire on your vehicle, you
should stop as soon as possible and make
sure the spare tire is correctly inated. Have the
damaged or at road tire repaired or replaced
as soon as you can and installed back onto your
vehicle. This way, the spare tire will be available
in case you need it again.
Do not mix tires and wheels of different sizes,
because they will not t. Keep your spare tire and
its wheel together. If your vehicle has a spare
tire that does not match your vehicle’s original road
tires and wheels in size and type, do not include
the spare in the tire rotation.
536

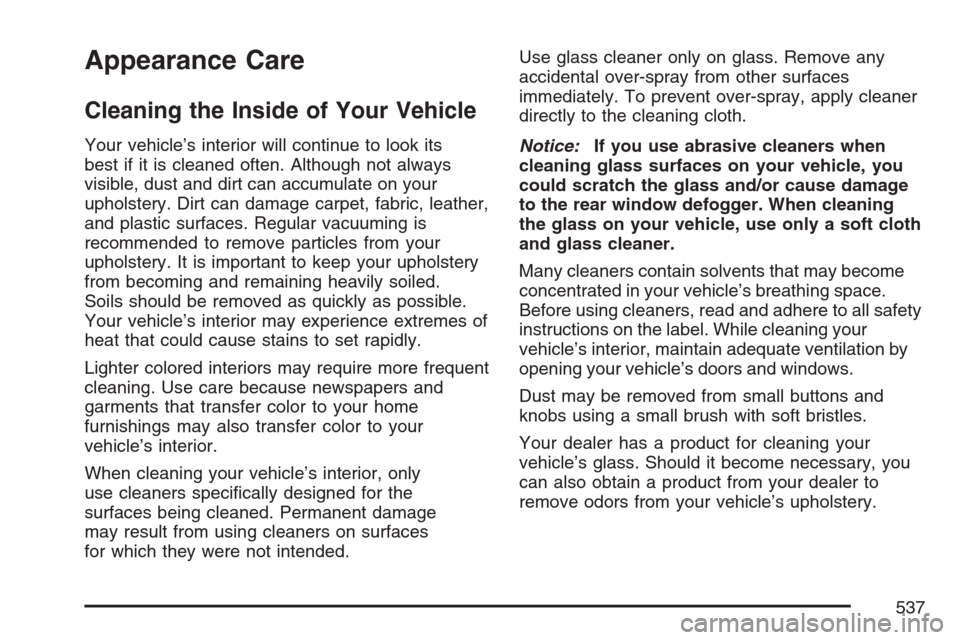

Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes of
heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
When cleaning your vehicle’s interior, only
use cleaners specically designed for the
surfaces being cleaned. Permanent damage
may result from using cleaners on surfaces
for which they were not intended.Use glass cleaner only on glass. Remove any
accidental over-spray from other surfaces
immediately. To prevent over-spray, apply cleaner
directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage
to the rear window defogger. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your
vehicle’s interior, maintain adequate ventilation by
opening your vehicle’s doors and windows.
Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your dealer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your dealer to
remove odors from your vehicle’s upholstery.
537

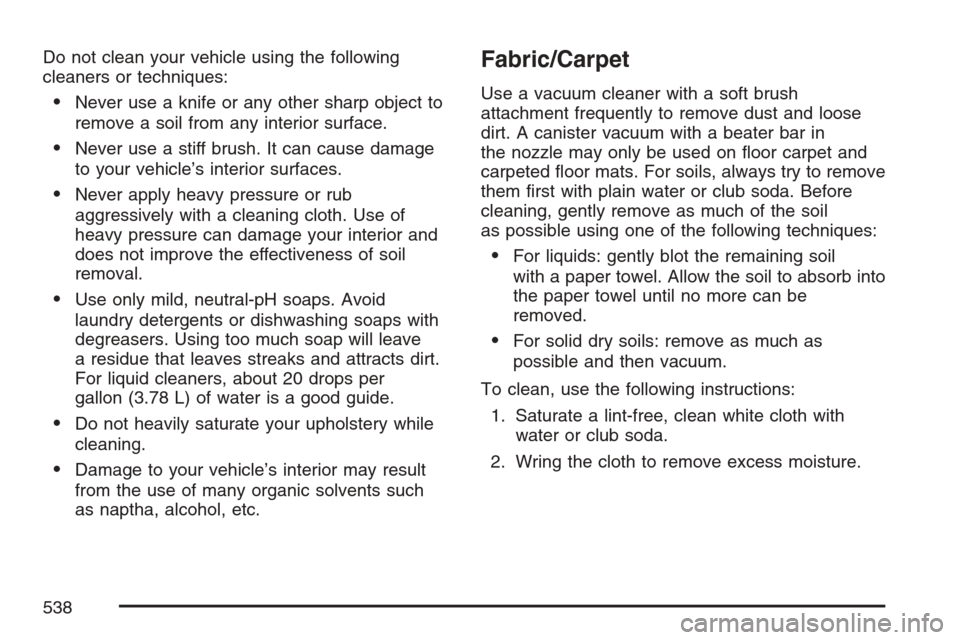

Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on oor carpet and
carpeted oor mats. For soils, always try to remove
them rst with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
For liquids: gently blot the remaining soil
with a paper towel. Allow the soil to absorb into
the paper towel until no more can be
removed.
For solid dry soils: remove as much as
possible and then vacuum.
To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.
538

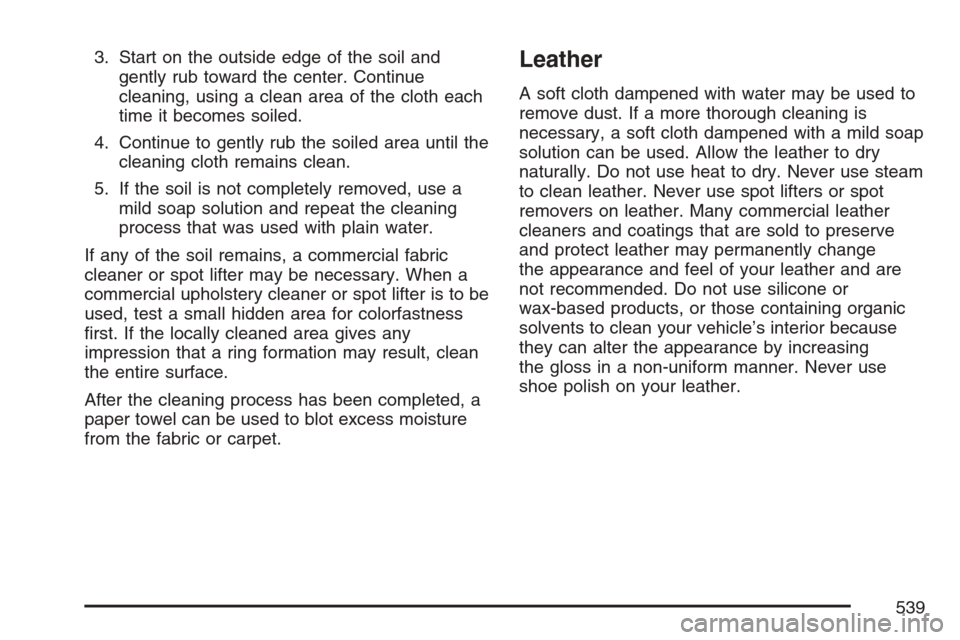

3. Start on the outside edge of the soil and
gently rub toward the center. Continue
cleaning, using a clean area of the cloth each
time it becomes soiled.
4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to be
used, test a small hidden area for colorfastness
rst. If the locally cleaned area gives any
impression that a ring formation may result, clean
the entire surface.
After the cleaning process has been completed, a
paper towel can be used to blot excess moisture
from the fabric or carpet.Leather
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a soft cloth dampened with a mild soap
solution can be used. Allow the leather to dry
naturally. Do not use heat to dry. Never use steam
to clean leather. Never use spot lifters or spot
removers on leather. Many commercial leather
cleaners and coatings that are sold to preserve
and protect leather may permanently change
the appearance and feel of your leather and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner. Never use
shoe polish on your leather.
539

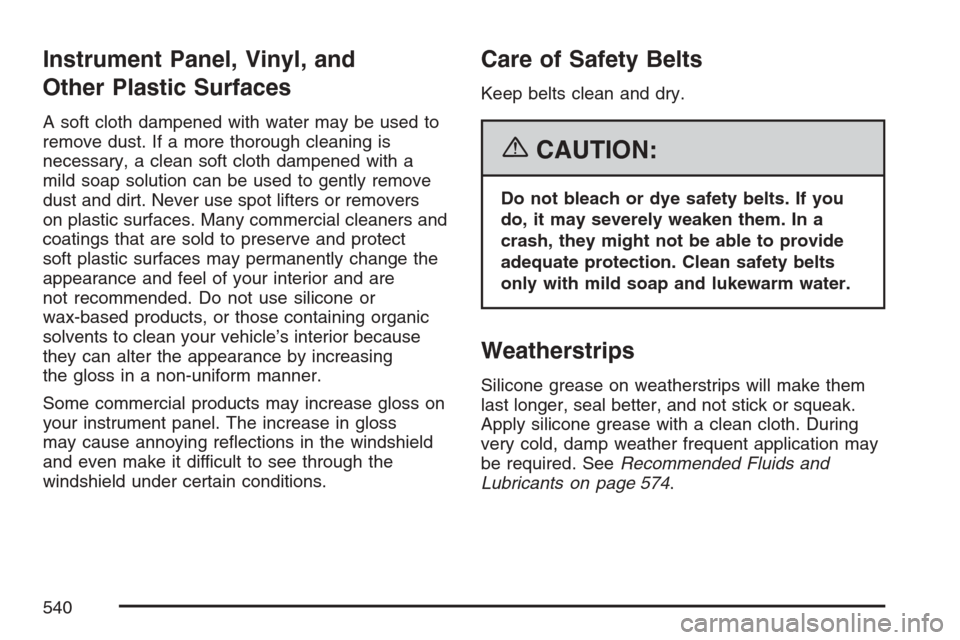

Instrument Panel, Vinyl, and
Other Plastic Surfaces
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a clean soft cloth dampened with a
mild soap solution can be used to gently remove
dust and dirt. Never use spot lifters or removers
on plastic surfaces. Many commercial cleaners and
coatings that are sold to preserve and protect
soft plastic surfaces may permanently change the
appearance and feel of your interior and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner.
Some commercial products may increase gloss on
your instrument panel. The increase in gloss
may cause annoying reections in the windshield
and even make it difficult to see through the
windshield under certain conditions.
Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you
do, it may severely weaken them. In a
crash, they might not be able to provide
adequate protection. Clean safety belts
only with mild soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them
last longer, seal better, and not stick or squeak.
Apply silicone grease with a clean cloth. During
very cold, damp weather frequent application may
be required. SeeRecommended Fluids and
Lubricants on page 574.
540
