alarm CHEVROLET AVALANCHE 2007 2.G Owners Manual

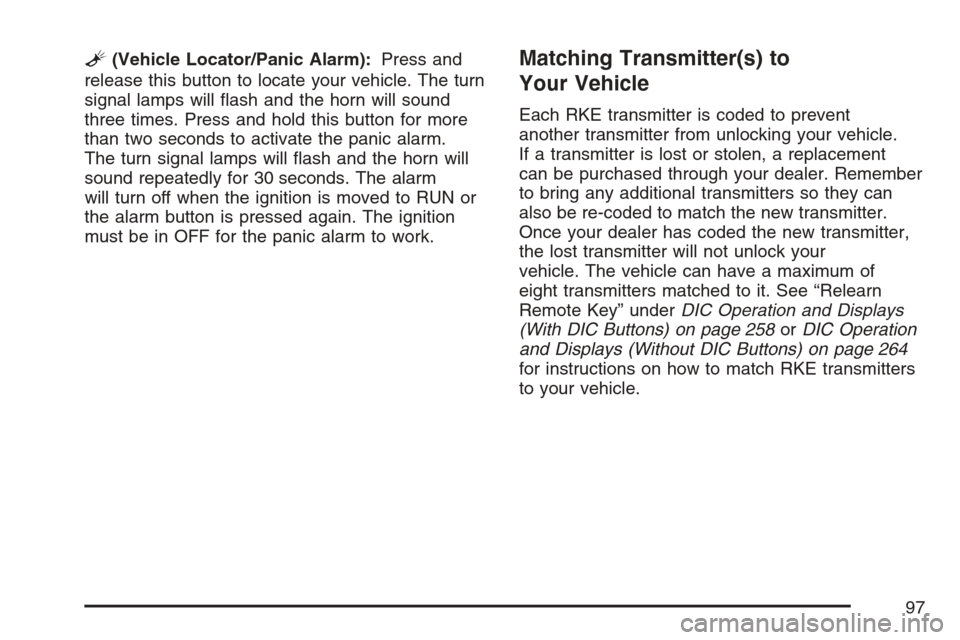

L(Vehicle Locator/Panic Alarm):Press and
release this button to locate your vehicle. The turn
signal lamps will ash and the horn will sound
three times. Press and hold this button for more
than two seconds to activate the panic alarm.
The turn signal lamps will ash and the horn will
sound repeatedly for 30 seconds. The alarm
will turn off when the ignition is moved to RUN or
the alarm button is pressed again. The ignition
must be in OFF for the panic alarm to work.Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent
another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement
can be purchased through your dealer. Remember
to bring any additional transmitters so they can
also be re-coded to match the new transmitter.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your
vehicle. The vehicle can have a maximum of
eight transmitters matched to it. See “Relearn
Remote Key” underDIC Operation and Displays
(With DIC Buttons) on page 258orDIC Operation
and Displays (Without DIC Buttons) on page 264
for instructions on how to match RKE transmitters
to your vehicle.
97

Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about four years.
The battery is weak if the transmitter will not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
The REPLACE BATTERY IN REMOTE KEY
message in the vehicle’s DIC will display if the
RKE transmitter battery is low. See “REPLACE
BATTERY IN REMOTE KEY” underDIC Warnings
and Messages on page 267for additional
information.
Notice:When replacing the battery, use
care not to touch any of the circuitry.
Static from your body transferred to these
surfaces may damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Use a at object with a thin edge into the
notch, located below the vehicle locator/panic
alarm button, and separate the bottom half
from the top half of the transmitter.
2. Remove the old battery, but do not use a
metal object to do this.
98

Sun Visors
Sun Visors with Slide Rod
Your vehicle may have this feature. Pull the sun
visor down to block glare. Detach the sun visor from
the center mount and slide it along the rod from
side-to-side to cover the driver or passenger side
of the front window. Swing the sun visor to the side
to cover the side window. It can also be moved
along the rod from side-to-side in this position.
Sun Visors with Fixed Rod and
Pull-out Extension
Your vehicle may have this feature. Pull the sun
visor down to block glare. Pull the sun visor
extender out for additional coverage. Detach
the sun visor from the center mount and swing
it to the side to cover the side window.
Lighted Visor Vanity Mirror
Your vehicle has lighted visor vanity mirrors on
both the driver’s and passenger’s sun visors.
Pull the sun visor down and lift the mirror cover
to turn the lamps on.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle has a content theft-deterrent
alarm system.
To activate the theft-deterrent system,
do the following:
1. Open the door.
2. Lock the door with the power door lock switch
or the Remote Keyless Entry (RKE) transmitter.
The security light will come on to inform the
driver the system is arming. If a door is open
when the doors are locked, the security light
will ash.
118

3. Close all doors. The security light should go
off after about 30 seconds. The alarm is not
armed until the security light goes off.
If the delayed locking feature is turned on, the
theft-deterrent system will not start the arming
process until the last door is closed and the
delay timer has expired. SeeDelayed Locking
on page 103.
The content theft deterrent system does not
sense if the midgate is open or ajar, therefore,
vehicle contents may not be protected if the
midgate is left open or ajar.
If a locked door is opened without the key or the
RKE transmitter, a ten second pre-alarm will occur.
The horn will chirp and the lights will ash. If the
door is not unlocked using the key or by pressing
the unlock button on the RKE transmitter during
the ten second pre-alarm, the alarm will go off.
The headlamps and parking lamps will ash
for two minutes, and the horn will sound for
30 seconds, then will turn off to save the battery
power. You can choose different feedback options
for the alarm. SeeDIC Vehicle Customization
(With DIC Buttons) on page 278.Remember, the theft-deterrent system will not
activate if you lock the doors with the vehicle’s key
or use the manual door lock. It activates only if
you use a power door lock switch while the door is
open, or when you use the RKE transmitter.
You should also remember that you can start your
vehicle with the correct ignition key if the alarm
has been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to activate the
theft-deterrent system, the vehicle should
be locked with the door keyafterthe doors
are closed.
Always unlock a door with a key, or use the
RKE transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, unlock any
door with the key. You can also turn off the alarm
by pressing unlock on the RKE transmitter.
The alarm will not stop if you try to unlock a
door any other way.
119

Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, lower the driver’s
window and open the driver’s door.
2. Activate the system by locking the doors with
the power door lock switch while the door is
open, or with the RKE transmitter.
3. Get out of the vehicle, close the door and wait
for the security light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the
door. This should set off the alarm.
While the alarm is set, the power door unlock
switch is not operational.
If the alarm does not sound when it should but the
headlamps ash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
seeInstrument Panel Fuse Block on page 548
andUnderhood Fuse Block on page 551.
If the alarm does not sound or the headlamps
do not ash, the vehicle should be serviced
by your dealer.
PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by
other than an authorized service facility could
void authorization to use this equipment.
120

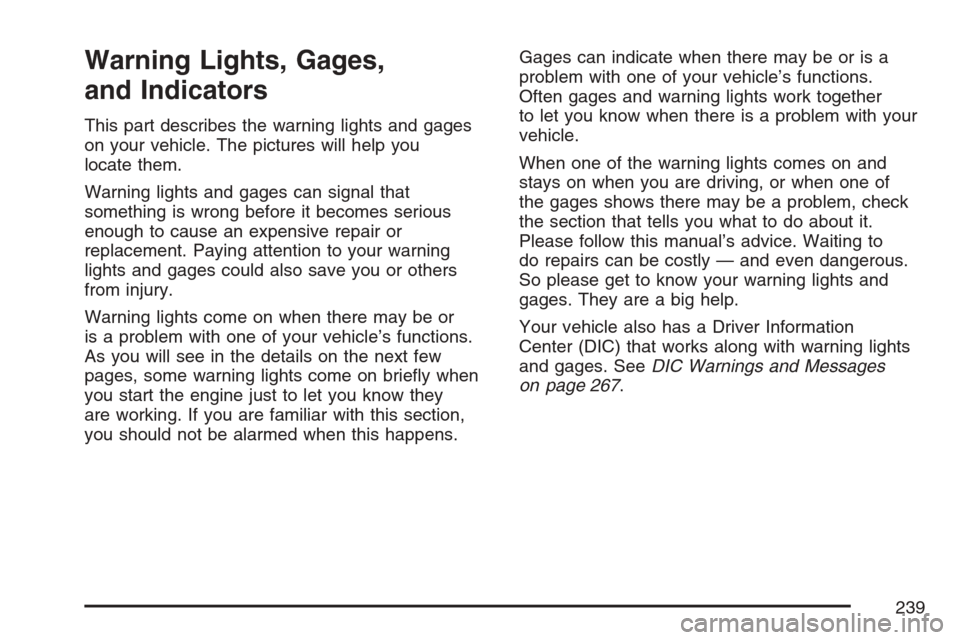

Warning Lights, Gages,
and Indicators
This part describes the warning lights and gages
on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that
something is wrong before it becomes serious
enough to cause an expensive repair or
replacement. Paying attention to your warning
lights and gages could also save you or others
from injury.
Warning lights come on when there may be or
is a problem with one of your vehicle’s functions.
As you will see in the details on the next few
pages, some warning lights come on briey when
you start the engine just to let you know they
are working. If you are familiar with this section,
you should not be alarmed when this happens.Gages can indicate when there may be or is a
problem with one of your vehicle’s functions.
Often gages and warning lights work together
to let you know when there is a problem with your
vehicle.
When one of the warning lights comes on and
stays on when you are driving, or when one of
the gages shows there may be a problem, check
the section that tells you what to do about it.
Please follow this manual’s advice. Waiting to
do repairs can be costly — and even dangerous.
So please get to know your warning lights and
gages. They are a big help.
Your vehicle also has a Driver Information
Center (DIC) that works along with warning lights
and gages. SeeDIC Warnings and Messages
on page 267.
239
