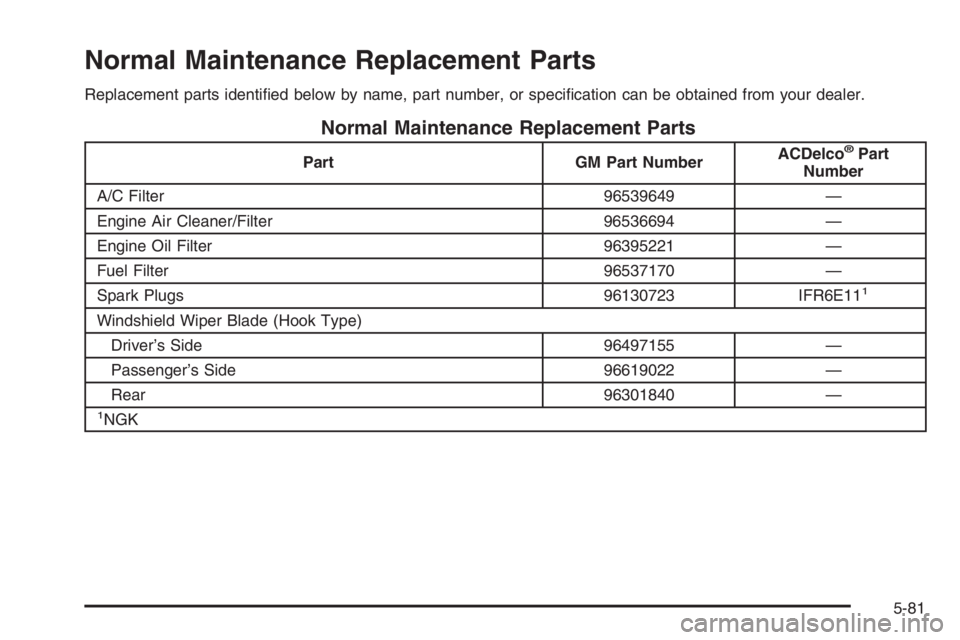

Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Normal Maintenance Replacement Parts
Part GM Part NumberACDelco®Part
Number
A/C Filter 96539649 —
Engine Air Cleaner/Filter 96536694 —
Engine Oil Filter 96395221 —
Fuel Filter 96537170 —
Spark Plugs 96130723 IFR6E11
1
Windshield Wiper Blade (Hook Type)
Driver’s Side 96497155 —
Passenger’s Side 96619022 —
Rear 96301840 —
1NGK
5-81

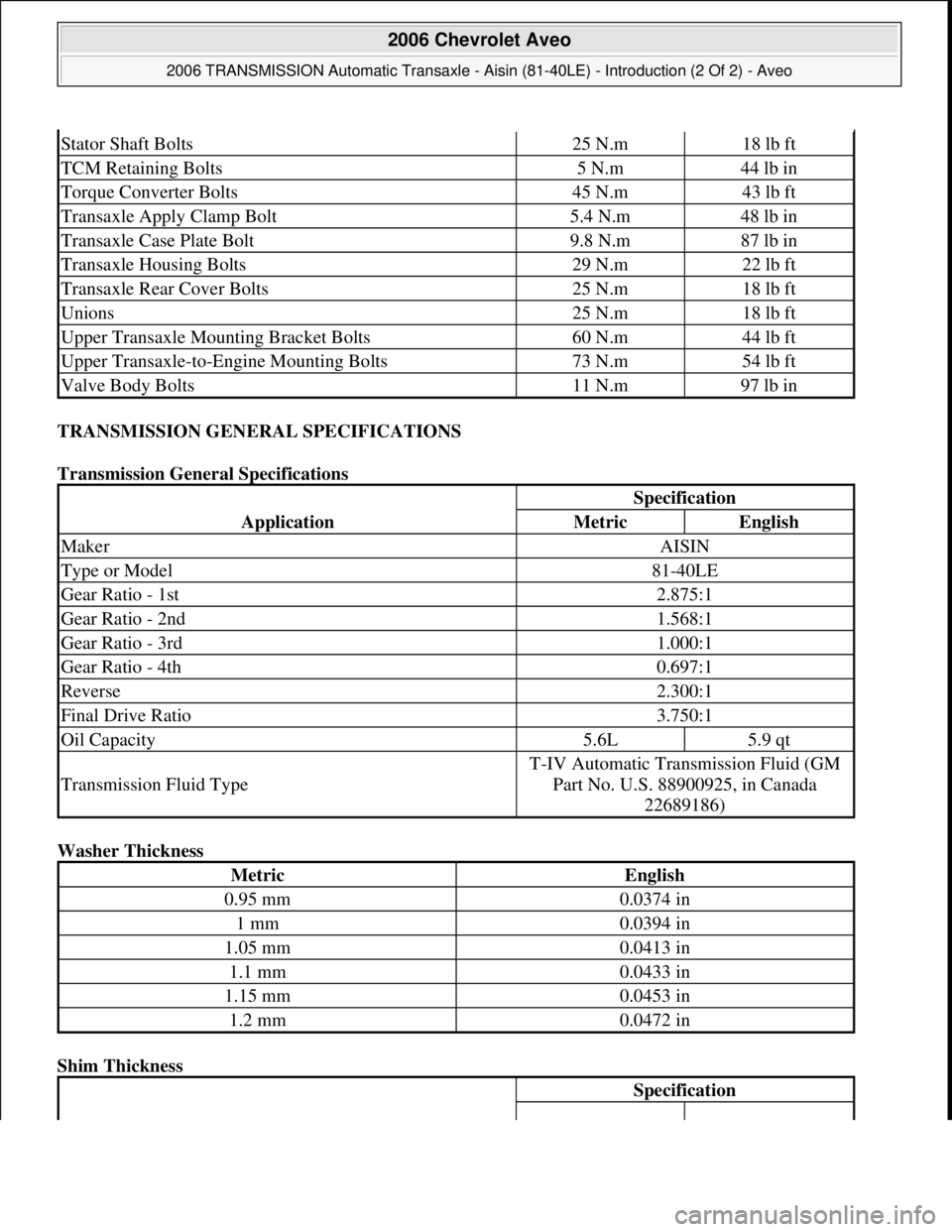

TRANSMISSION GENERAL SPECIFICATIONS
Transmission General Specifications
Washer Thickness
Shim Thickness
Stator Shaft Bolts25 N.m18 lb ft
TCM Retaining Bolts5 N.m44 lb in
Torque Converter Bolts45 N.m43 lb ft
Transaxle Apply Clamp Bolt5.4 N.m48 lb in
Transaxle Case Plate Bolt9.8 N.m87 lb in
Transaxle Housing Bolts29 N.m22 lb ft
Transaxle Rear Cover Bolts25 N.m18 lb ft
Unions25 N.m18 lb ft
Upper Transaxle Mounting Bracket Bolts60 N.m44 lb ft
Upper Transaxle-to-Engine Mounting Bolts73 N.m54 lb ft
Valve Body Bolts11 N.m97 lb in
Application
Specification
MetricEnglish
MakerAISIN
Type or Model81-40LE
Gear Ratio - 1st2.875:1
Gear Ratio - 2nd1.568:1
Gear Ratio - 3rd1.000:1
Gear Ratio - 4th0.697:1
Reverse2.300:1
Final Drive Ratio3.750:1
Oil Capacity5.6L5.9 qt
Transmission Fluid Type
T-IV Automatic Transmission Fluid (GM
Part No. U.S. 88900925, in Canada
22689186)
MetricEnglish
0.95 mm0.0374 in
1 mm0.0394 in
1.05 mm0.0413 in
1.1 mm0.0433 in
1.15 mm0.0453 in
1.2 mm0.0472 in
Specification

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
