To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.To return the seatback to an upright position:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.
1-7

{CAUTION:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even if when buckled
up, the safety belts cannot do their job when
reclined like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.Do not have a seatback reclined if the vehicle is
moving.
1-8

Rear Seats
Rear Seat Operation (Sedan)
Folding the Seatbacks
The rear seatbacks can be folded down to increase
cargo space.
To fold down the seatbacks:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Remove the safety belt strap from the safety belt
guide by pulling it through the slot.
2. Push the head restraints all the way down.
3. Unlatch the center safety belt by pressing the red
button on the buckle.
1-9

4. Detach the center safety belt from the mini buckle
by inserting the ignition key into the slot in the mini
buckle, pressing the release button, and allowing
the belt to retract.5. Pull up the release knob located on top of either of
the rear seatbacks.
6. Fold the rear seatback forward and down.
To return the seatback to the upright position:
1. Hook the safety belts into the safety belt guide.
2. Lift the seatback up and push it to its original
position.
1-10

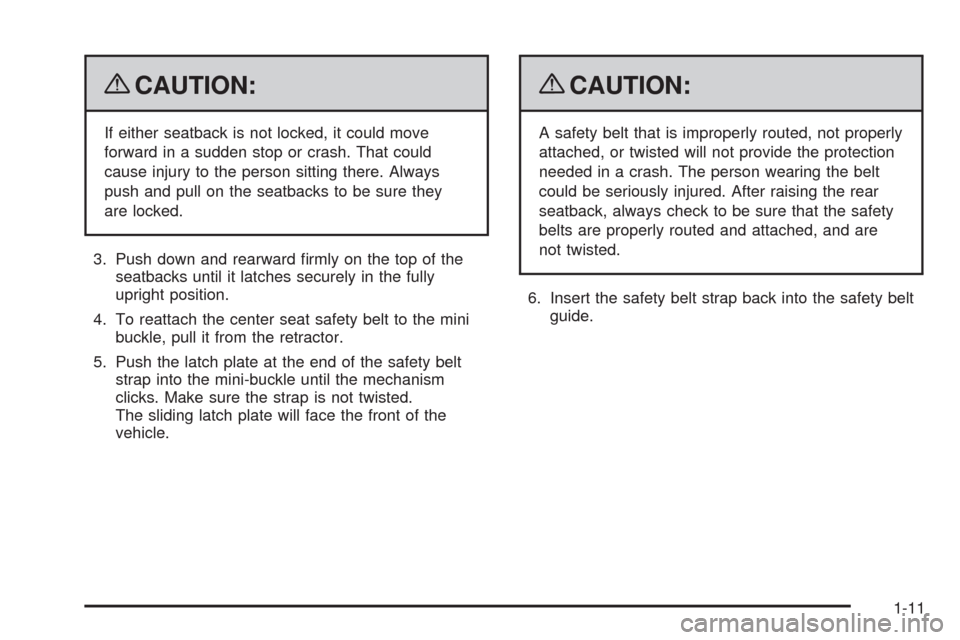

{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
3. Push down and rearward rmly on the top of the
seatbacks until it latches securely in the fully
upright position.
4. To reattach the center seat safety belt to the mini
buckle, pull it from the retractor.
5. Push the latch plate at the end of the safety belt
strap into the mini-buckle until the mechanism
clicks. Make sure the strap is not twisted.
The sliding latch plate will face the front of the
vehicle.
{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
6. Insert the safety belt strap back into the safety belt
guide.
1-11

Rear Seat Operation (Hatchback)
Folding the Rear Seats
The rear seats can be folded to increase cargo space.
To fold the rear seats:
1. Lower the head restraints completely.
2. Unlatch the center safety belt by pressing the red
button on the buckle.
3. Detach the center safety belt from the mini buckle
by inserting the key into the slot in the mini buckle,
pressing the release button, and allowing it to
retract.
1-12

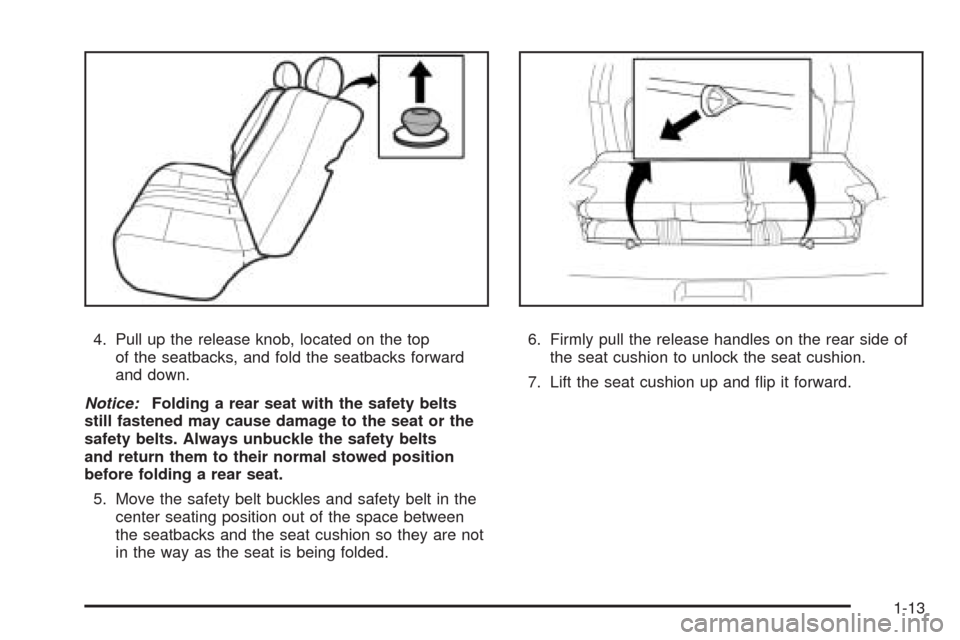

4. Pull up the release knob, located on the top
of the seatbacks, and fold the seatbacks forward
and down.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
5. Move the safety belt buckles and safety belt in the
center seating position out of the space between
the seatbacks and the seat cushion so they are not
in the way as the seat is being folded.6. Firmly pull the release handles on the rear side of
the seat cushion to unlock the seat cushion.
7. Lift the seat cushion up and ip it forward.
1-13

8. Clip the hook to the front seat head restraint to
keep the rear seat secure.
Unfolding the Seats
To return the rear seats to the normal seating position:
1. Unclip the hook from the front seat head restraint.
2. Position the buckles in back of the seat latches
when moving the rear seats to the sitting position.Notice:Damage to the safety belt buckle or rear
seat locking mechanism can occur if the safety belt
and buckles are pinched under the rear seat
cushion. Do not place the safety belt and buckles
on the oor under the rear seat cushion when
the rear seat is put back to the sitting position.
3. Push the seat cushion down to its original position
until it latches securely. Try to pull up on the seat to
make sure it is locked in place.
4. Hook the safety belts in the outboard seating
positions into the retaining clips.
1-14

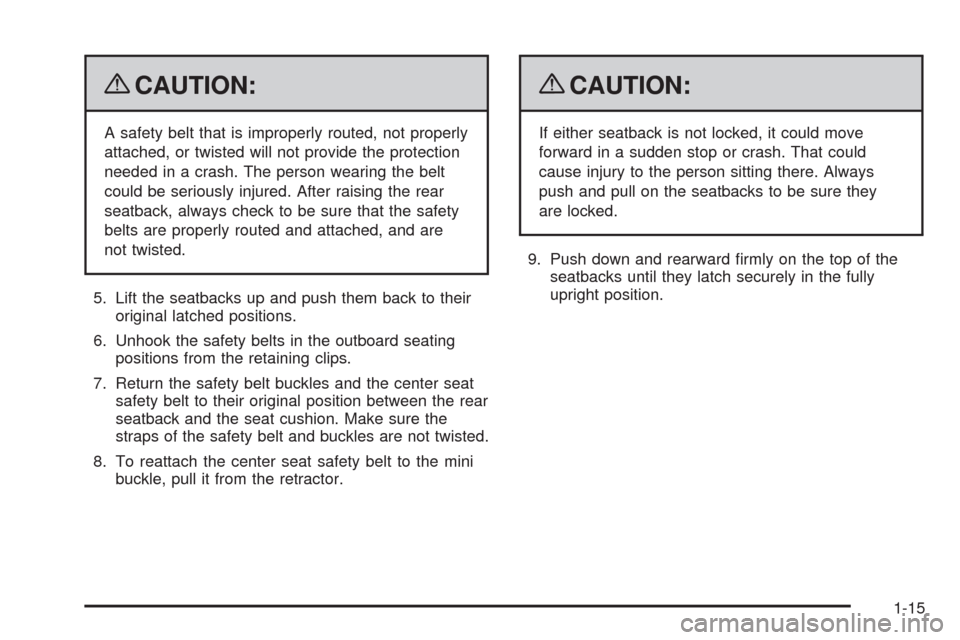

{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
5. Lift the seatbacks up and push them back to their
original latched positions.
6. Unhook the safety belts in the outboard seating
positions from the retaining clips.
7. Return the safety belt buckles and the center seat
safety belt to their original position between the rear
seatback and the seat cushion. Make sure the
straps of the safety belt and buckles are not twisted.
8. To reattach the center seat safety belt to the mini
buckle, pull it from the retractor.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
9. Push down and rearward rmly on the top of the
seatbacks until they latch securely in the fully
upright position.
1-15

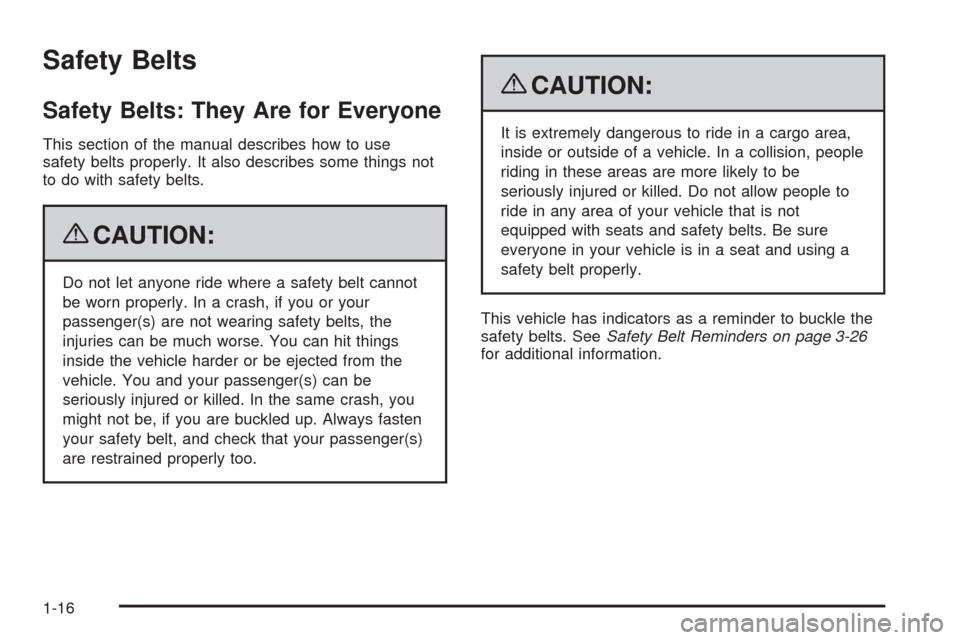

Safety Belts
Safety Belts: They Are for Everyone
This section of the manual describes how to use
safety belts properly. It also describes some things not
to do with safety belts.
{CAUTION:
Do not let anyone ride where a safety belt cannot
be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
This vehicle has indicators as a reminder to buckle the
safety belts. SeeSafety Belt Reminders on page 3-26
for additional information.
