keyless CHEVROLET BOLT EV 2018 Get To Know Guide

4
GETTING STARTED
REMOTE KEYLESS ENTRY (RKE)
The RKE transmitter (key fob) performs several remote functions and mu\
st be in the vehicle to start the Bolt EV.
Keyless Access
With the RKE transmitter within 3 ft. (1 m) of the door, press the button on the driver’s door handle to unlock the door. Press it again within 5 seconds to unlock all doors and the liftgate.
Press the button on a passen-ger’s door handle to unlock all doors and the liftgate.
When unlocked, press the button on any door handle to lock all doors and the liftgate.
Key Release
Press the side button on the transmitter to remove the key, which can be used to unlock the driver’s door.
Unlock
Press to unlock the driver’s door. Press again to unlock all doors.
Lock
Press to lock all doors.
Panic Alarm
Press and release to locate the vehicle.
Press and hold for 3 seconds to sound the panic alarm.

Remote Start
Press the Lock button and then press and hold the
button until the turn signal lamps flash to start the vehicle and condi-tion the passenger cabin temperature from outside the vehicle. The heating or air conditioning system and rear window defogger (if needed) will turn on.
After entering the vehicle, press the brake pedal and then press the POWER
button before driving.
Note:
• Press and hold the Remote Start button until the parking lamps turn off to cancel a remote start.
• Only two remote starts are allowed between ignition cycles.
• It’s RECOMMENDED to use this feature when the vehicle is plugged in to allow energy from the wall outlet to assist in getting the cabin to a comfortable temperature and to leave more battery energy for driving.
See Keys, Doors and Windows in your Owner’s Manual.

13
CHARGING
START CHARGING
The provided 120-volt portable charge cord is located under the storage \
floor in the cargo area and can be used to charge the vehicle when a 240V charging st\
ation is not available.
1. With the vehicle parked, turn off the vehi-cle and select the Charging button at the
bottom of the Energy Summary screen.
2. Review the selected Charge Mode and Charge Limit. Select the Charge Limit
toggle button if an increased charging limit is desired. Use the 8-amp charge limit until a qualified electrician inspects your home’s electrical circuit capacity, or if the electrical circuit or outlet capacity is not known.
Note: The charge level selection returns to the 8-amp setting each time the vehicle is driven.
3. Plug the charge cord into an electrical
outlet. DO NOT PLUG INTO AN EXTENSION CORD. Charge cord indicators should be green. Where possible, secure the charge cord to the wall.
4. Press and release the rear edge of the charge port door, located just in front of the driver’s door, to open it. Plug the charge cord into the charge port.
5. The Charging Status indicator on top of the instrument panel will illuminate green and the horn will chirp when properly connected.
Note: To change the horn chirp setting, go to the Energy Settings menu.
6. Periodically check the electrical outlet/plug while charging. Discontinue use if the electrical outlet/plug is hot and have the electrical outlet serviced by a qualified electrician.
If the vehicle is locked with the Remote Keyless Entry transmitter, the \
charge cord theft alert is armed automatically after 30 seconds.
Note: When the theft alert is armed, the alarm will sound when the plug is disconnected from the vehicle. To change charge cord theft alert options, go to the Energy Settings menu.
To temporarily override a delayed charge event, remove and reconnect the\
charge cord to the vehicle within 5 seconds. It will begin charging immediately\
.
See Driving and Operating in your Owner’s Manual.

14
CHARGING

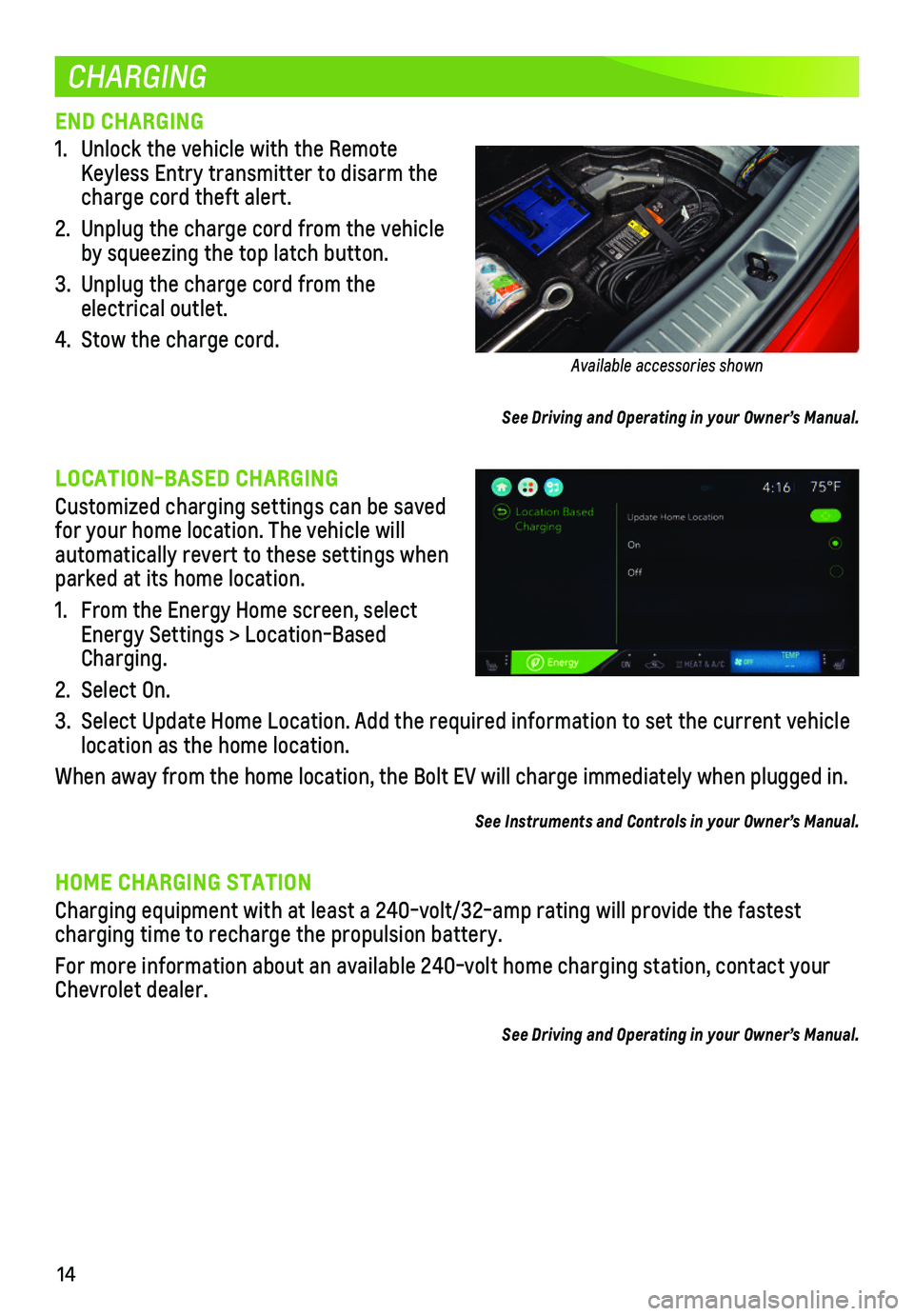

END CHARGING
1. Unlock the vehicle with the Remote Keyless Entry transmitter to disarm the charge cord theft alert.
2. Unplug the charge cord from the vehicle by squeezing the top latch button.
3. Unplug the charge cord from the electrical outlet.
4. Stow the charge cord.
See Driving and Operating in your Owner’s Manual.
LOCATION-BASED CHARGING
Customized charging settings can be saved for your home location. The vehicle will auto matically revert to these settings when parked at its home location.
1. From the Energy Home screen, select Energy Settings > Location-Based Charging.
2. Select On.
3. Select Update Home Location. Add the required information to set the cur\
rent vehicle location as the home location.
When away from the home location, the Bolt EV will charge immediately wh\
en plugged in.
See Instruments and Controls in your Owner’s Manual.
HOME CHARGING STATION
Charging equipment with at least a 240-volt/32-amp rating will provide t\
he fastest charging time to recharge the propulsion battery.
For more information about an available 240-volt home charging station, \
contact your Chevrolet dealer.
See Driving and Operating in your Owner’s Manual.
Available accessories shown

15
DC CHARGING (IF EQUIPPED)
DC charging stations are typically found in public locations.
CHARGING TIME
Using a DC charging station with at least 80 kW of available power, it w\
ill take approxi-mately 30 minutes to recharge a depleted battery to an estimated 90 mile\
s of EV range. Charge times will vary with outside temperature. Charging will continue \
to 100%, but at a slower rate. At 100% state of charge, the vehicle may continue to draw p\
ower to condition the battery if needed. Once battery conditioning is complete, the vehicl\
e will stop the charging session.
START DC CHARGING
1. With the vehicle parked and turned off, push and release the rear edge o\
f the charge port door, located just in front of the driver’s door, to open the do\
or.
2. Unlatch and lower the DC charging dust cover on the charge port.
3. Plug the charge cord into the vehicle’s charge port.
4. Follow the steps on the charging station to start charging. The electric\
parking brake will automatically apply and the DC plug will be locked and cannot be di\
sconnected while charging is active.
5. The Charging Status Indicator on top of the instrument panel will illumi\
nate green and the horn will chirp when properly connected.
Note: To change the horn chirp setting, go to the Energy Settings menu.
If the vehicle is locked with the Remote Keyless Entry (RKE) transmitt\
er, the charge cord theft alert is armed automatically after 30 seconds.
END DC CHARGING
1. Unlock the vehicle with the RKE transmitter to disarm the charge cord th\
eft alert.
2. When the vehicle is fully charged, it will stop charging and the plug wi\
ll be unlocked. To stop charging at any time, use the controls on the charging station o\
r touch the Stop button on the Battery Information screen on the vehicle touchscreen\
.
3. When the Charging Status Indicator is solid green or off, unplug the cha\
rge cord from the vehicle.
4. Close the DC charging dust cover and close the charge port door.
5. Disengage the electric parking brake before driving the vehicle.
See Driving and Operating in your Owner’s Manual.
