bulb CHEVROLET BOLT EV 2020 Owner's Manual

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
120 Instruments and Controls
Timer :This display can be used as
a timer. To start the timer, press
V
while this display is active. The
display will show the amount of time
that has passed since the timer was
last reset. To stop the timer, press
V
briefly while this display is active
and the timer is running. To reset
the timer to zero, press and hold
V
while this display is active.
Follow Distance Indicator : The
current follow time to the vehicle
ahead is displayed as a time value
on this page.
Blank Page : The Blank Page
display allows for no information to
be displayed in the cluster info
display areas.
Vehicle Messages
Messages displayed on the DIC
indicate the status of the vehicle or
some action that may be needed to
correct a condition. Multiple
messages may appear one after
another.
The messages that do not require
immediate action can be
acknowledged and cleared by
pressing
V. The messages that
require immediate action cannot be
cleared until that action is
performed.
All messages should be taken
seriously; clearing the message
does not correct the problem.
If a SERVICE message appears,
see your dealer.
Follow the instructions given in the
messages. The system displays
messages regarding the following
topics:
. Service Messages
. Fluid Levels
. Vehicle Security .
Brakes
. Ride Control Systems
. Driver Assistance Systems
. Cruise Control
. Lighting and Bulb Replacement
. Wiper/Washer Systems
. Doors and Windows
. Seat Belts
. Airbag Systems
. Propulsion and Transmission
. Tire Pressure
. Battery
Propulsion Power
Messages
PROPULSION POWER IS
REDUCED
This message displays when the
propulsion power is reduced and
can affect the ability to accelerate.
The vehicle may be driven at a
reduced speed while this message
is on, but maximum acceleration
and speed may be reduced.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

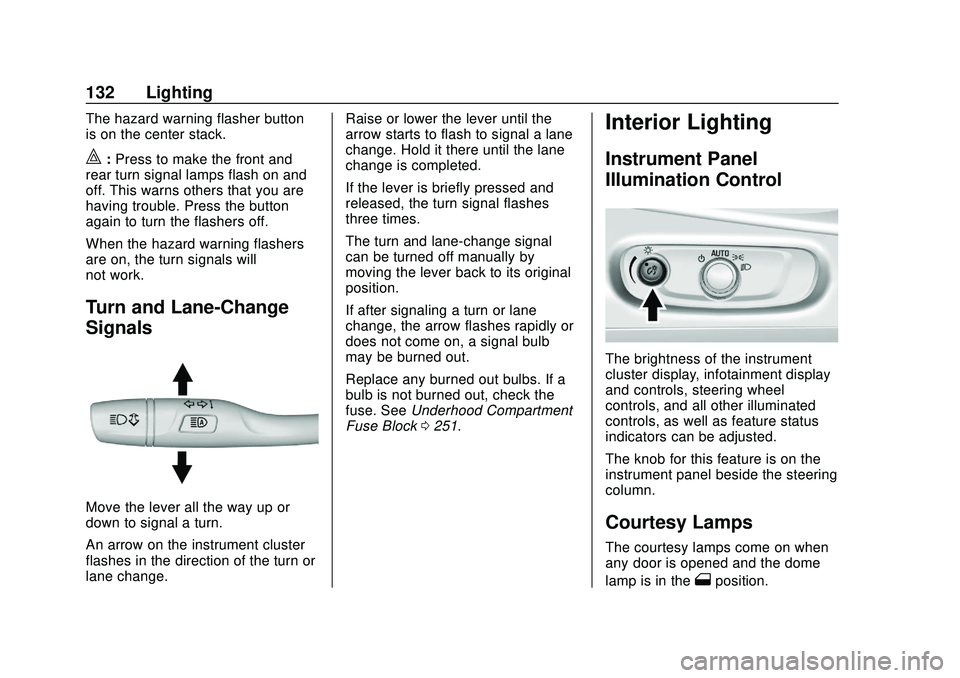

132 Lighting
The hazard warning flasher button
is on the center stack.
|:Press to make the front and
rear turn signal lamps flash on and
off. This warns others that you are
having trouble. Press the button
again to turn the flashers off.
When the hazard warning flashers
are on, the turn signals will
not work.
Turn and Lane-Change
Signals
Move the lever all the way up or
down to signal a turn.
An arrow on the instrument cluster
flashes in the direction of the turn or
lane change. Raise or lower the lever until the
arrow starts to flash to signal a lane
change. Hold it there until the lane
change is completed.
If the lever is briefly pressed and
released, the turn signal flashes
three times.
The turn and lane-change signal
can be turned off manually by
moving the lever back to its original
position.
If after signaling a turn or lane
change, the arrow flashes rapidly or
does not come on, a signal bulb
may be burned out.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. See
Underhood Compartment
Fuse Block 0251.
Interior Lighting
Instrument Panel
Illumination Control
The brightness of the instrument
cluster display, infotainment display
and controls, steering wheel
controls, and all other illuminated
controls, as well as feature status
indicators can be adjusted.
The knob for this feature is on the
instrument panel beside the steering
column.
Courtesy Lamps
The courtesy lamps come on when
any door is opened and the dome
lamp is in the
1position.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

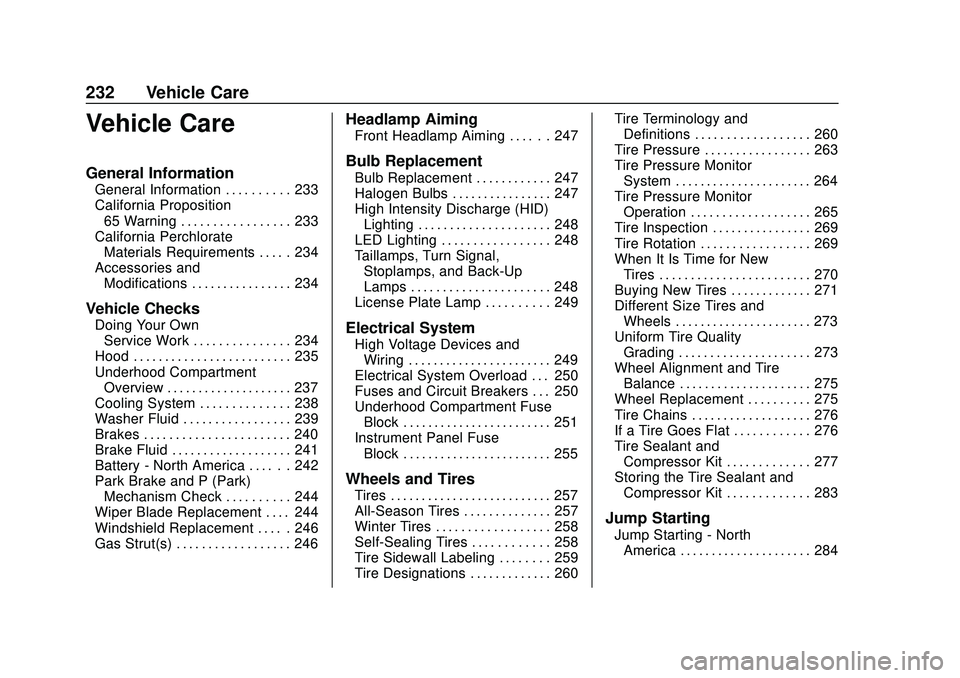

232 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 233
California Proposition65 Warning . . . . . . . . . . . . . . . . . 233
California Perchlorate Materials Requirements . . . . . 234
Accessories and Modifications . . . . . . . . . . . . . . . . 234
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 234
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 235
Underhood Compartment Overview . . . . . . . . . . . . . . . . . . . . 237
Cooling System . . . . . . . . . . . . . . 238
Washer Fluid . . . . . . . . . . . . . . . . . 239
Brakes . . . . . . . . . . . . . . . . . . . . . . . 240
Brake Fluid . . . . . . . . . . . . . . . . . . . 241
Battery - North America . . . . . . 242
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 244
Wiper Blade Replacement . . . . 244
Windshield Replacement . . . . . 246
Gas Strut(s) . . . . . . . . . . . . . . . . . . 246
Headlamp Aiming
Front Headlamp Aiming . . . . . . 247
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 247
Halogen Bulbs . . . . . . . . . . . . . . . . 247
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 248
LED Lighting . . . . . . . . . . . . . . . . . 248
Taillamps, Turn Signal, Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 248
License Plate Lamp . . . . . . . . . . 249
Electrical System
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . 249
Electrical System Overload . . . 250
Fuses and Circuit Breakers . . . 250
Underhood Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 251
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 255
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 257
All-Season Tires . . . . . . . . . . . . . . 257
Winter Tires . . . . . . . . . . . . . . . . . . 258
Self-Sealing Tires . . . . . . . . . . . . 258
Tire Sidewall Labeling . . . . . . . . 259
Tire Designations . . . . . . . . . . . . . 260 Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 260
Tire Pressure . . . . . . . . . . . . . . . . . 263
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 264
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 265
Tire Inspection . . . . . . . . . . . . . . . . 269
Tire Rotation . . . . . . . . . . . . . . . . . 269
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 270
Buying New Tires . . . . . . . . . . . . . 271
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 273
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 273
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 275
Wheel Replacement . . . . . . . . . . 275
Tire Chains . . . . . . . . . . . . . . . . . . . 276
If a Tire Goes Flat . . . . . . . . . . . . 276
Tire Sealant and Compressor Kit . . . . . . . . . . . . . 277
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . 283
Jump Starting
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . 284

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Vehicle Care 247
Liftgate
Headlamp Aiming
Front Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, or any bulb changing
procedure not listed in this section,
contact your dealer.
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
Halogen Bulbs
{Warning
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

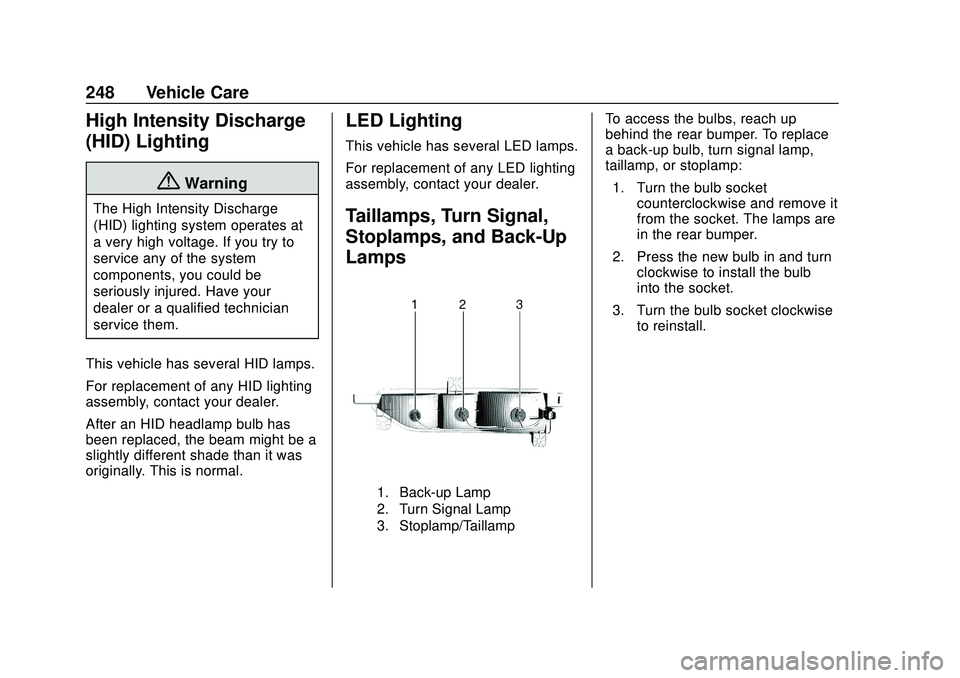

248 Vehicle Care
High Intensity Discharge
(HID) Lighting
{Warning
The High Intensity Discharge
(HID) lighting system operates at
a very high voltage. If you try to
service any of the system
components, you could be
seriously injured. Have your
dealer or a qualified technician
service them.
This vehicle has several HID lamps.
For replacement of any HID lighting
assembly, contact your dealer.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Back-up Lamp
2. Turn Signal Lamp
3. Stoplamp/Taillamp
To access the bulbs, reach up
behind the rear bumper. To replace
a back-up bulb, turn signal lamp,
taillamp, or stoplamp: 1. Turn the bulb socket counterclockwise and remove it
from the socket. The lamps are
in the rear bumper.
2. Press the new bulb in and turn clockwise to install the bulb
into the socket.
3. Turn the bulb socket clockwise to reinstall.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Vehicle Care 249
License Plate Lamp
1. Press the spring clip on theright end of the lamp assembly
to the left to unlock the lamp
assembly.
2. Pull down on the lamp assembly to remove it from the
fascia.
4. Turn the bulb socket (1)counterclockwise to remove it
from the lamp assembly (3).
5. Pull the bulb (2) straight out of the bulb socket (1).
6. Push the replacement bulb straight into the bulb socket (1)
and turn the bulb socket (1)
clockwise to install it into the
lamp assembly (3).
7. Reinstall the lamp assembly (3) into the fascia by inserting the
left side first.
8. Push the spring clip into place.
Electrical System
High Voltage Devices and
Wiring
{Warning
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering or labels. Do not
probe, tamper with, cut, or modify
high voltage cable or wiring.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
336 Index
ArmrestRear Seat . . . . . . . . . . . . . . . . . . . . . . 38
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 316
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 203
Assistance Systems for
Parking and Backing . . . . . . . . . . 200
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 150
Theft-Deterrent Feature . . . . . . . 136
Automatic Climate Control System . . . . . . . 163
Door Locks . . . . . . . . . . . . . . . . . . . . . 19
Emergency Braking (AEB) . . . . 205
Headlamp System . . . . . . . . . . . . 131
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 149
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 98Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 134
Power Protection . . . . . . . . . . . . . 134
Battery - North America . . . . 242, 284
Battery Gauge High Voltage . . . . . . . . . . . . . . . . . . . . 98
Blade Replacement, Wiper . . . . . 244 Bluetooth
Overview . . . . . . . . . . . . . . . . . . . . . 153
Bluetooth Audio . . . . . . . . . . . . . . . . 150
Brake Parking, Electric . . . . . . . . . . . . . . 192
System Warning Light . . . . . . . . 102
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Antilock . . . . . . . . . . . . . . . . . . . . . . . 191
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 193
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Regenerative Braking . . . . . . . . . 194
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 173 AutomaticEmergency (AEB) . . . . . . . . . . . 205
Braking System Front Pedestrian (FPB) . . . . . . . 207
Break-In, New Vehicle . . . . . . . . . . 182
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . 247
Headlamp Aiming . . . . . . . . . . . . . 247
Headlamps . . . . . . . . . . . . . . . . . . . 247
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 248
License Plate Lamps . . . . . . . . . 249
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 248
Buying New Tires . . . . . . . . . . . . . . . 271
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 89
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 234
California Proposition
65 Warning . . . . . . . . . .233, 242, 284, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 311
Carbon Monoxide Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 21
Winter Driving . . . . . . . . . . . . . . . . 177
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Management System . . . . . . . . . . . 83
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . . 82
Chains, Tire . . . . . . . . . . . . . . . . . . . . 276
Charge Cord . . . . . . . . . . . . . . . . . . . . 222
Charging Delay Override . . . . . . . . . . . . . . . 217
Electrical Requirements . . . . . . 229
Plug-In . . . . . . . . . . . . . . . . . . . . . . . 214
Programmable . . . . . . . . . . . . . . . . 107
Utility Interruption . . . . . . . . . . . . . 228

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

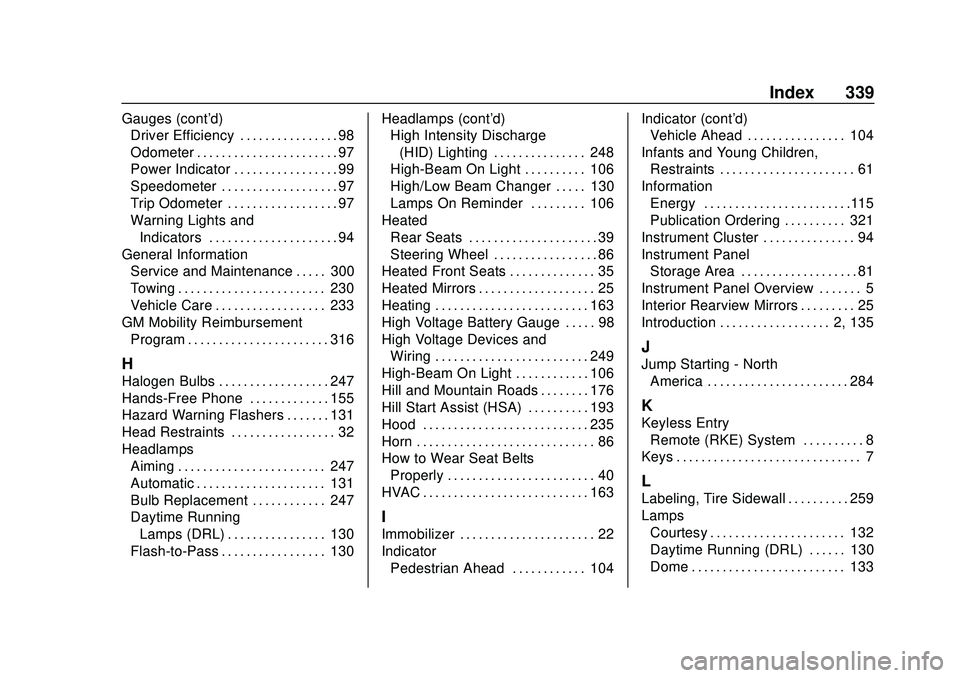

Index 339
Gauges (cont'd)Driver Efficiency . . . . . . . . . . . . . . . . 98
Odometer . . . . . . . . . . . . . . . . . . . . . . . 97
Power Indicator . . . . . . . . . . . . . . . . . 99
Speedometer . . . . . . . . . . . . . . . . . . . 97
Trip Odometer . . . . . . . . . . . . . . . . . . 97
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . . 94
General Information Service and Maintenance . . . . . 300
Towing . . . . . . . . . . . . . . . . . . . . . . . . 230
Vehicle Care . . . . . . . . . . . . . . . . . . 233
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 316
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 247
Hands-Free Phone . . . . . . . . . . . . . 155
Hazard Warning Flashers . . . . . . . 131
Head Restraints . . . . . . . . . . . . . . . . . 32
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 247
Automatic . . . . . . . . . . . . . . . . . . . . . 131
Bulb Replacement . . . . . . . . . . . . 247
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 130
Flash-to-Pass . . . . . . . . . . . . . . . . . 130 Headlamps (cont'd)
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 248
High-Beam On Light . . . . . . . . . . 106
High/Low Beam Changer . . . . . 130
Lamps On Reminder . . . . . . . . . 106
Heated
Rear Seats . . . . . . . . . . . . . . . . . . . . . 39
Steering Wheel . . . . . . . . . . . . . . . . . 86
Heated Front Seats . . . . . . . . . . . . . . 35
Heated Mirrors . . . . . . . . . . . . . . . . . . . 25
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 163
High Voltage Battery Gauge . . . . . 98
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 249
High-Beam On Light . . . . . . . . . . . . 106
Hill and Mountain Roads . . . . . . . . 176
Hill Start Assist (HSA) . . . . . . . . . . 193
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 40
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
I
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 22
Indicator Pedestrian Ahead . . . . . . . . . . . . 104 Indicator (cont'd)
Vehicle Ahead . . . . . . . . . . . . . . . . 104
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 61
Information Energy . . . . . . . . . . . . . . . . . . . . . . . .115
Publication Ordering . . . . . . . . . . 321
Instrument Cluster . . . . . . . . . . . . . . . 94
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . 81
Instrument Panel Overview . . . . . . . 5
Interior Rearview Mirrors . . . . . . . . . 25
Introduction . . . . . . . . . . . . . . . . . . 2, 135
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 284
K
Keyless Entry
Remote (RKE) System . . . . . . . . . . 8
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
L
Labeling, Tire Sidewall . . . . . . . . . . 259
Lamps
Courtesy . . . . . . . . . . . . . . . . . . . . . . 132
Daytime Running (DRL) . . . . . . 130
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 133

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Index 343
Seat Belts (cont'd)Use During Pregnancy . . . . . . . . . . 44
Seats Adjustment, Front . . . . . . . . . . . . . . . 34
Head Restraints . . . . . . . . . . . . . . . . 32
Heated Front . . . . . . . . . . . . . . . . . . . 35
Heated, Rear . . . . . . . . . . . . . . . . . . . 39
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Reclining Seatbacks . . . . . . . . . . . . 34
Securing Child Restraints . . . . 76, 78
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 106
OnStar . . . . . . . . . . . . . . . . . . . . . . . 328
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 22
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 22
Self-Sealing Tires . . . . . . . . . . . . . . . 258
Service . . . . . . . . . . . . . . . . . . . . . . . . . 169
Accessories andModifications . . . . . . . . . . . . . . . . 234
Doing Your Own Work . . . . . . . . 234
Maintenance Records . . . . . . . . 309
Maintenance, General Information . . . . . . . . . . . . . . . . . . 300
Parts Identification . . . . . . . . . . . . 310
Scheduling Appointments . . . . . 318
Vehicle Soon Light . . . . . . . . . . . . 102
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . 103 Servicing the Airbag . . . . . . . . . . . . . 57
Settings . . . . . . . . . . . . . . . . . . . . . . . . 157
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . 185
Out of Park . . . . . . . . . . . . . . . . . . . 185
Side Blind Zone Alert (SBZA) . . . 209
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 132
Software Updates . . . . . . . . . . . . . . 139
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 311
Speedometer . . . . . . . . . . . . . . . . . . . . 97
Sport Mode Light . . . . . . . . . . . . . . . 103
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 105
Start
Remote . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start Assist, Hill . . . . . . . . . . . . . . . . . 193
Starting and Stopping the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 184
Status Screens
Charging . . . . . . . . . . . . . . . . . . . . . 218
Steering . . . . . . . . . . . . . . . . . . . . . . . . 174 Heated Wheel . . . . . . . . . . . . . . . . . . 86
Wheel Adjustment . . . . . . . . . . . . . . 85
Wheel Controls . . . . . . . . . . . . . . . . . 85
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . 248 Storage Areas
Cargo Cover . . . . . . . . . . . . . . . . . . . . 82
Cargo Management System . . . . 83
Center Console . . . . . . . . . . . . . . . . . 82
Instrument Panel . . . . . . . . . . . . . . . 81
Storage Compartments . . . . . . . . . . 81
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . 283
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 178
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 30
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System
Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 204
Systems Driver Assistance . . . . . . . . . . . . . 199
T
TaillampsBulb Replacement . . . . . . . . . . . . 248
Teen Driver . . . . . . . . . . . . . . . . . . . . . 158
Text Telephone (TTY) Users . . . . 315
Theft-Deterrent Systems . . . . . . . . . 23 Immobilizer . . . . . . . . . . . . . . . . . . . . . 22
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

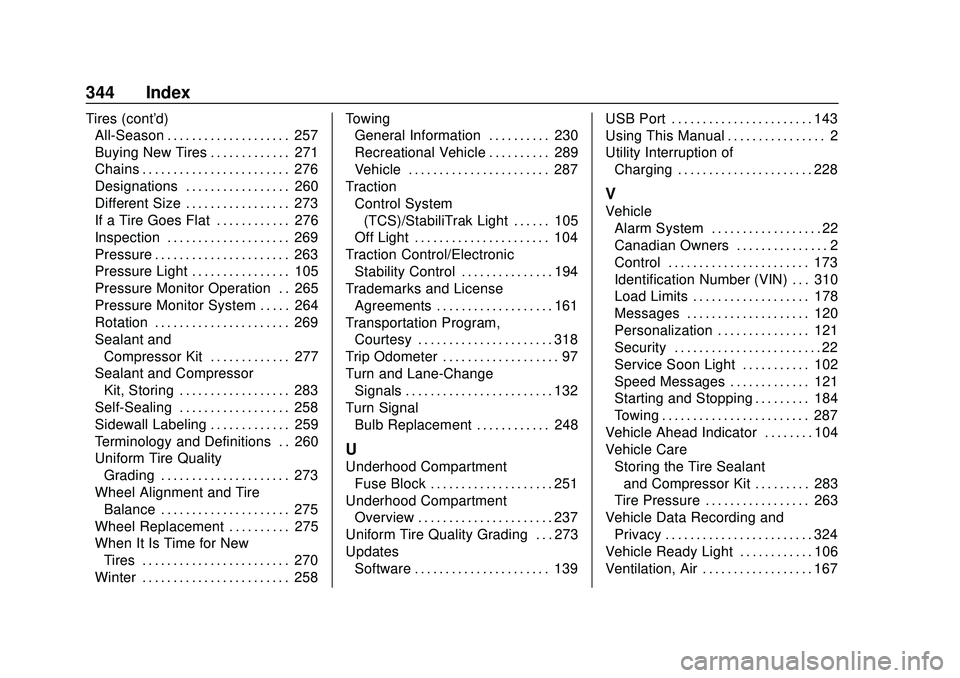

344 Index
Tires (cont'd)All-Season . . . . . . . . . . . . . . . . . . . . 257
Buying New Tires . . . . . . . . . . . . . 271
Chains . . . . . . . . . . . . . . . . . . . . . . . . 276
Designations . . . . . . . . . . . . . . . . . 260
Different Size . . . . . . . . . . . . . . . . . 273
If a Tire Goes Flat . . . . . . . . . . . . 276
Inspection . . . . . . . . . . . . . . . . . . . . 269
Pressure . . . . . . . . . . . . . . . . . . . . . . 263
Pressure Light . . . . . . . . . . . . . . . . 105
Pressure Monitor Operation . . 265
Pressure Monitor System . . . . . 264
Rotation . . . . . . . . . . . . . . . . . . . . . . 269
Sealant and
Compressor Kit . . . . . . . . . . . . . 277
Sealant and Compressor
Kit, Storing . . . . . . . . . . . . . . . . . . 283
Self-Sealing . . . . . . . . . . . . . . . . . . 258
Sidewall Labeling . . . . . . . . . . . . . 259
Terminology and Definitions . . 260
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 273
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 275
Wheel Replacement . . . . . . . . . . 275
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 270
Winter . . . . . . . . . . . . . . . . . . . . . . . . 258 Towing
General Information . . . . . . . . . . 230
Recreational Vehicle . . . . . . . . . . 289
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 287
Traction Control System(TCS)/StabiliTrak Light . . . . . . 105
Off Light . . . . . . . . . . . . . . . . . . . . . . 104
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 194
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . . 161
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 318
Trip Odometer . . . . . . . . . . . . . . . . . . . 97
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 132
Turn Signal Bulb Replacement . . . . . . . . . . . . 248
U
Underhood CompartmentFuse Block . . . . . . . . . . . . . . . . . . . . 251
Underhood Compartment Overview . . . . . . . . . . . . . . . . . . . . . . 237
Uniform Tire Quality Grading . . . 273
Updates
Software . . . . . . . . . . . . . . . . . . . . . . 139 USB Port . . . . . . . . . . . . . . . . . . . . . . . 143
Using This Manual . . . . . . . . . . . . . . . . 2
Utility Interruption of
Charging . . . . . . . . . . . . . . . . . . . . . . 228
V
VehicleAlarm System . . . . . . . . . . . . . . . . . . 22
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 173
Identification Number (VIN) . . . 310
Load Limits . . . . . . . . . . . . . . . . . . . 178
Messages . . . . . . . . . . . . . . . . . . . . 120
Personalization . . . . . . . . . . . . . . . 121
Security . . . . . . . . . . . . . . . . . . . . . . . . 22
Service Soon Light . . . . . . . . . . . 102
Speed Messages . . . . . . . . . . . . . 121
Starting and Stopping . . . . . . . . . 184
Towing . . . . . . . . . . . . . . . . . . . . . . . . 287
Vehicle Ahead Indicator . . . . . . . . 104
Vehicle Care Storing the Tire Sealantand Compressor Kit . . . . . . . . . 283
Tire Pressure . . . . . . . . . . . . . . . . . 263
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 324
Vehicle Ready Light . . . . . . . . . . . . 106
Ventilation, Air . . . . . . . . . . . . . . . . . . 167
