fuel filter CHEVROLET CAMARO 1998 4.G Owners Manual

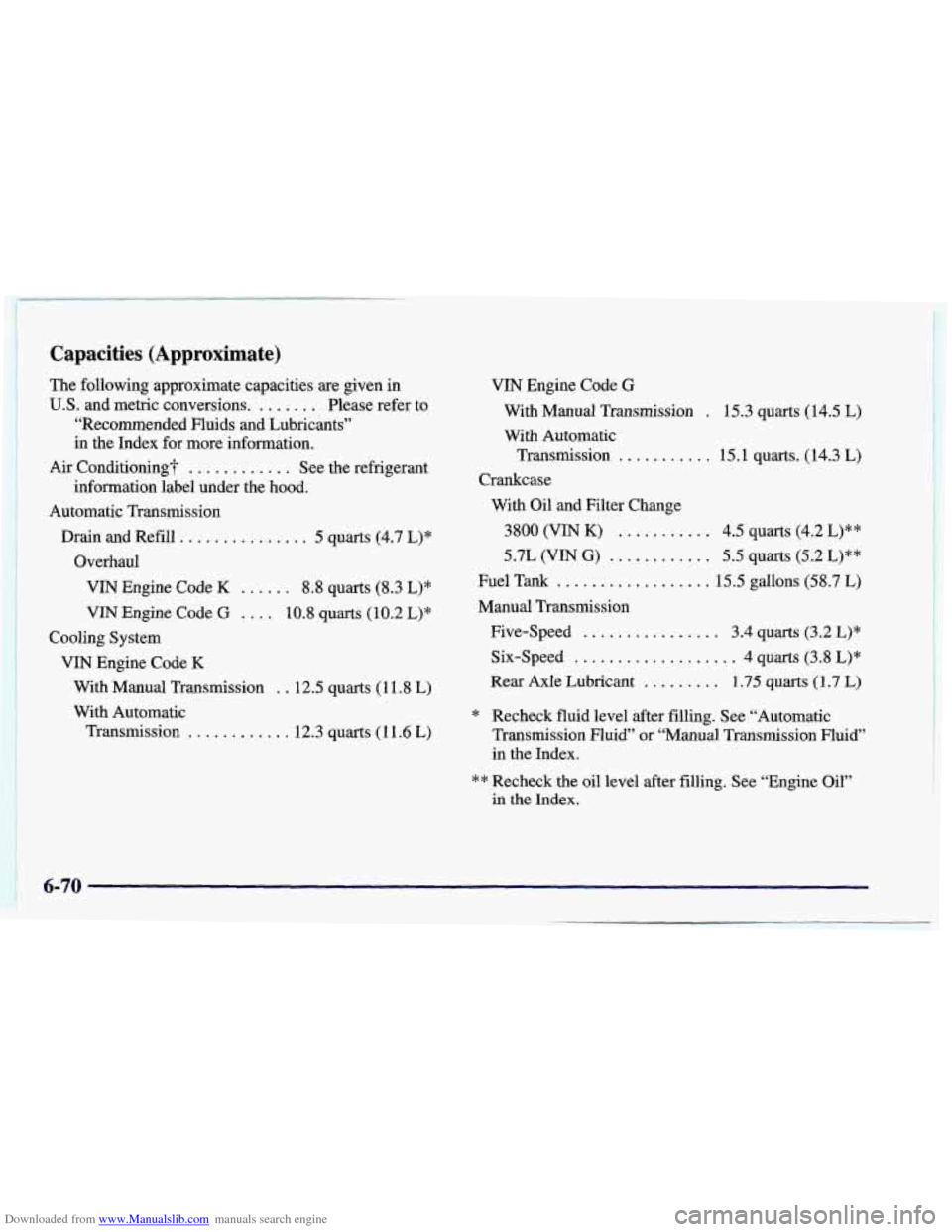

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate)
The following approximate capacities are given in
U.S. and metric conversions. ....... Please refer to
“Recommended Fluids and Lubricants”
in the Index for more information.
information label under the hood.
Air Conditioning? ............ See the refrigerant
Automatic Transmission Drain and Refill
............... 5 quarts (4.7 L)*
VIN Engine Code K ...... 8.8 quarts (8.3 L)*
Overhaul
VIN Engine Code
G .... 10.8 quarts (10.2 L)*
Cooling System VIN Engine Code
K
With Manual Transmission . . 12.5 quarts (11.8 L)
With Automatic
Transmission
............ 12.3 quarts (1 1.6 L)
VIN Engine Code G
With Manual Transmission . 15.3 quarts (14.5 L)
With Automatic Transmission
........... 15.1 quarts. (14.3 L)
Crankcase
With Oil and Filter Change
3800 (VIN K) ........... 4.5 quarts (4.2 L)**
5.7L (VIN G) ............ 5.5 quarts (5.2 L)**
Fuel Tank .................. 15.5 gallons (58.7 L)
Manual Transmission
Five-Speed
................ 3.4 quarts (3.2 L)*
Six-Speed ................... 4 quarts (3.8 L)*
Rear Axle Lubricant ......... 1.75 quarts (1.7 L)
* Recheck fluid level after filling. See “Automatic
Transmission Fluid” or “Manual Transmission Fluid”
in the Index.
** Recheck the oil level after filling. See “Engine Oil”
in the Index.
6-70

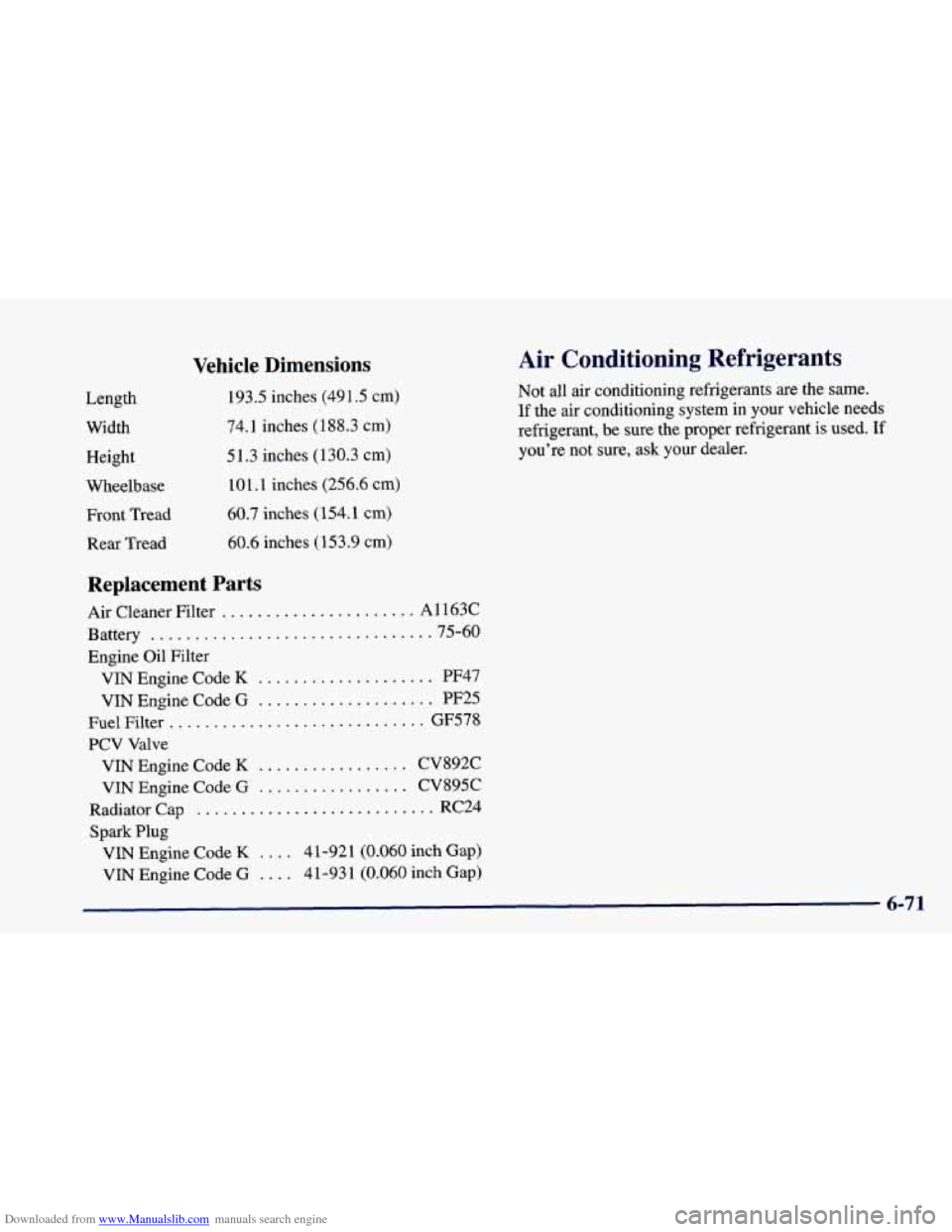

Downloaded from www.Manualslib.com manuals search engine Length
Width Height
Wheelbase Front Tread
Rear Tread
Vehicle Dimensions
193.5 inches (49 1.5 cm)
74.1 inches (1 88.3 cm)
51.3 inches (130.3 cm) 10 1.1 inches
(256.6 cm)
60.7 inches (154.1 cm)
60.6 inches (153.9 cm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure,
ask your dealer.
Replacement Parts
Air Cleaner Filter ...................... A1163C
Battery
............................... .75-60
Engine Oil Filter
VIN Engine Code
K .................... PF47
VIN Engine Code G .................... PF25
Fuel Filter ............................. GF578
PCV Valve
VIN Engine Code
K ................. CV892C
VIN Engine Code G
................. CV895C
Radiator Cap
........................... RC24
Spark Plug VIN Engine Code
K . . , . 41-921 (0.060 inch Gap)
VIN Engine Code G .... 41-931 (0.060 inch Gap)
6-71

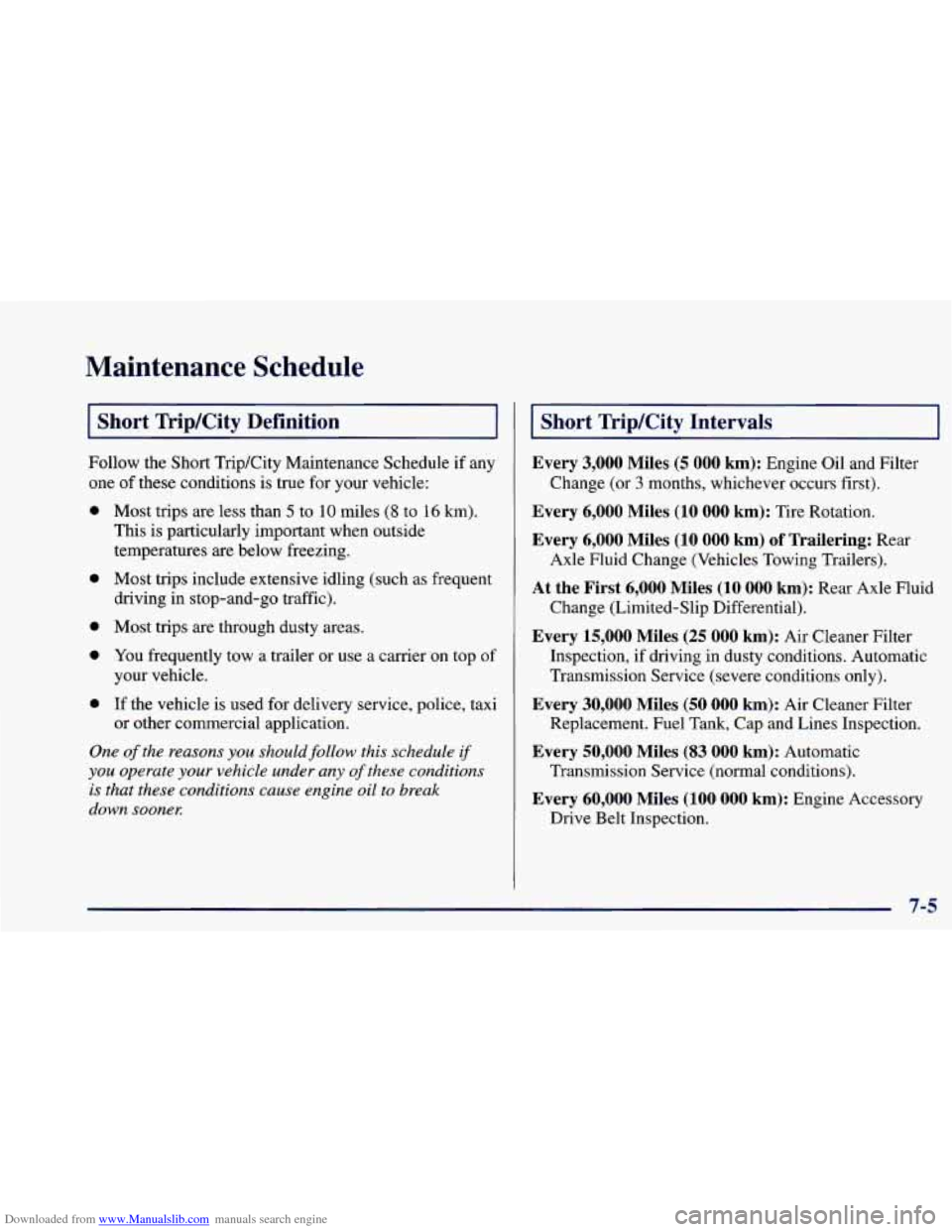

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
I Short Trip/City Definition 1
Follow the Short TripKity Maintenance Schedule if any
one
of these conditions is true for your vehicle:
a
a
a
a
a
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top
of
your vehicle.
If the vehicle is used for delivery service, police, taxi
or other commercial application.
One of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil to break
down soonex
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or
3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Tire Rotation.
Every 6,000 Miles (10 000 km) of Trailering: Rear
Axle Fluid Change (Vehicles Towing Trailers).
At the First 6,000 Miles (10 000 km): Rear Axle Fluid
Change (Limited-Slip Differential).
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection, if driving
in dusty conditions. Automatic
Transmission Service (severe conditions only).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (normal conditions).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
7-5

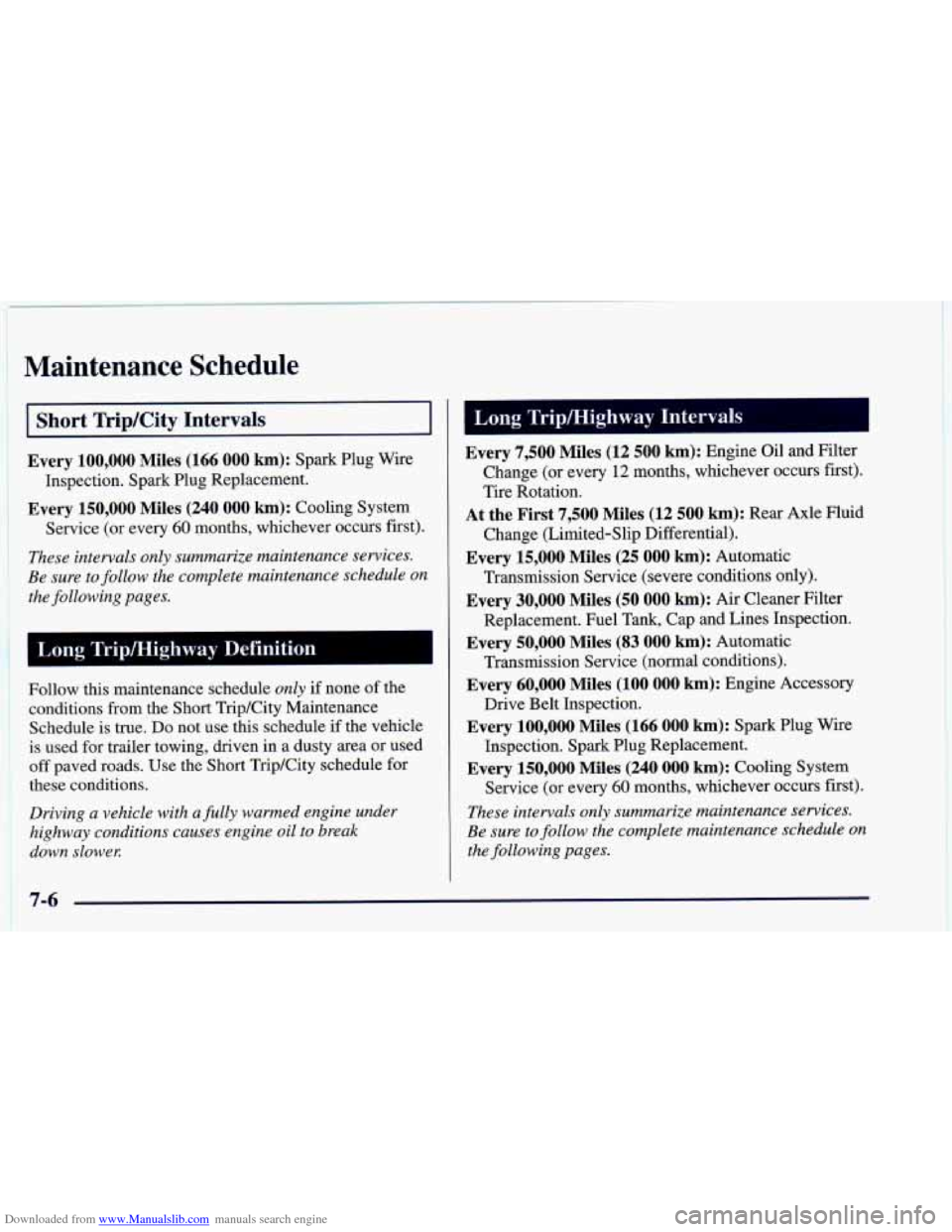

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
I Short Trip/City Intervals I
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure
to follow the complete maintenance schedule on
the following pages.
Follow this maintenance schedule only if none of the
conditions
from the Short Trip/City Maintenance
Schedule is true.
Do not use this schedule if the vehicle
is used for trailer towing, driven in a dusty area or used
off paved roads. Use the Short Trip/City schedule for
these conditions.
Driving a vehicle with ahlly warmed engine under
highway conditions causes engine
oil to break
down slower.
.
Long Tripmighway Intervals
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every
12 months, whichever occurs first).
Tire Rotation.
At the First 7,500 Miles (12 500 km): Rear Axle Fluid
Change (Limited-Slip Differential).
Every 15,000 Miles (25 000 km): Automatic
Transmission Service (severe conditions only).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and
Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (normal conditions).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure to follow the complete maintenance schedule on
the following pages.

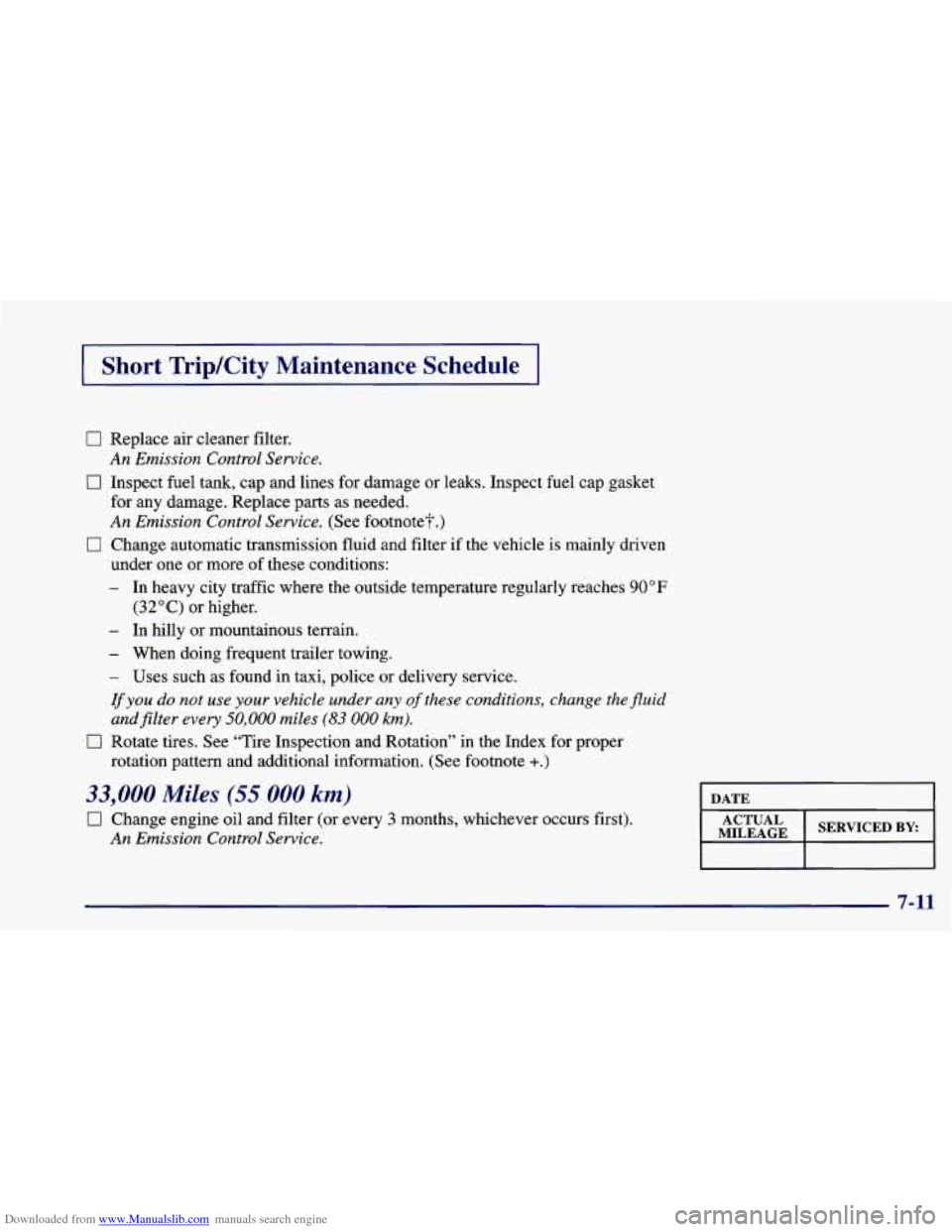

Downloaded from www.Manualslib.com manuals search engine I Short TripKity Maintenance Schedule I
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
(32°C)
or higher.
If you do not use your vehicle under any of these conditions, change the fluid
and filter every 50,000 miles (83 000 km).
rotation pattern and additional information. (See footnote +.)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
33,000 Miles (55 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service. MILEAGE
7-11

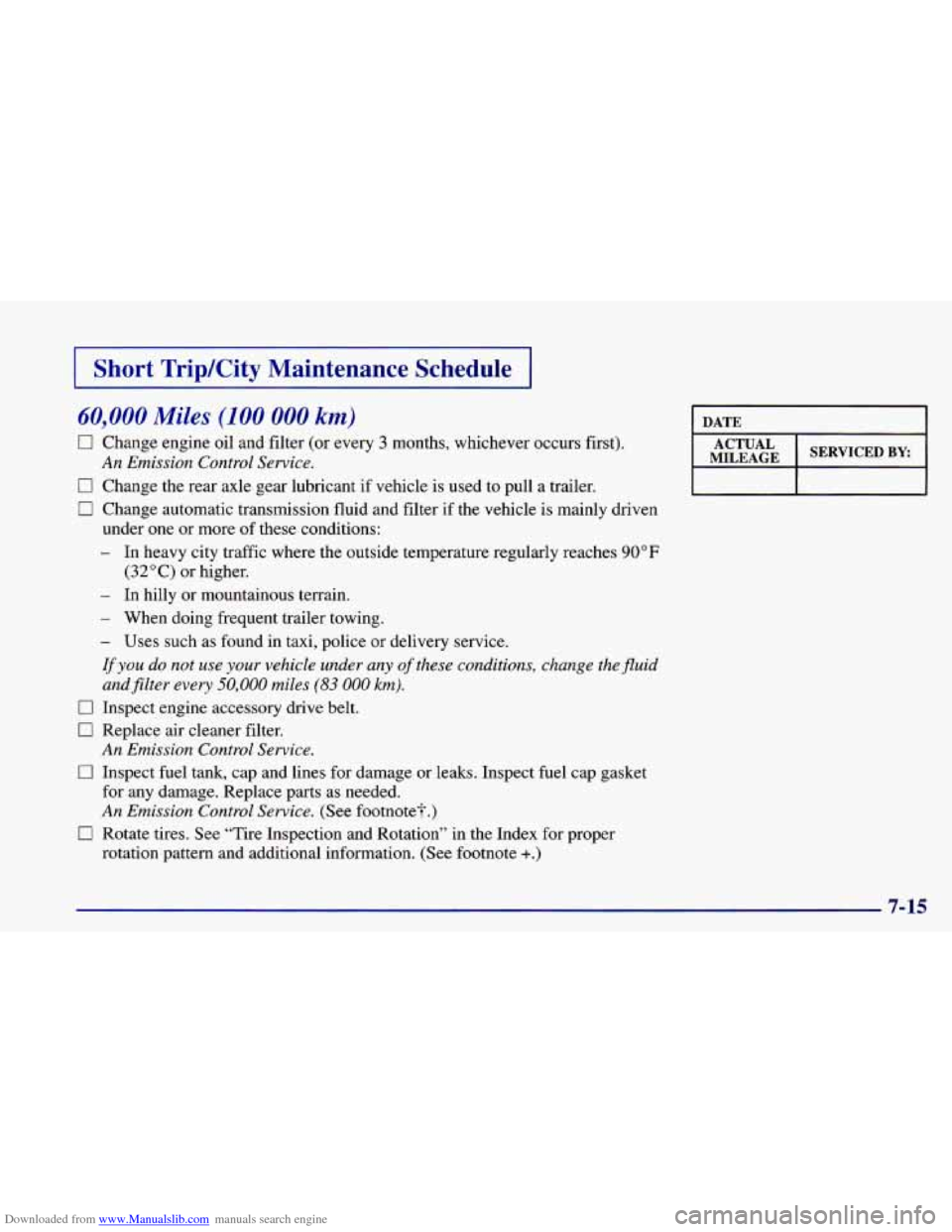

Downloaded from www.Manualslib.com manuals search engine I Short TripKity Maintenance Schedule I
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
0 Change the rear axle gear lubricant if vehicle is used to pull a trailer.
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
(32°C)
or higher.
- Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, change the fluid
andfilter every
50,000 miles (83 000 km).
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
rotation pattern and additional information. (See footnote
+.)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
DATE I
7-15

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule I
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
Change the rear axle gear lubricant if vehicle is used to pull a trailer.
Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more
of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
An Emission Control Service.
(32 O C) or higher.
- Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, change the fluid
and filter every 50,000 miles (83 000 km).
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
rotation pattern and additional information. (See footnote
+.)
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
I DATE I
1
MILEAGE ACTUAL SERVICED BY:
7-19

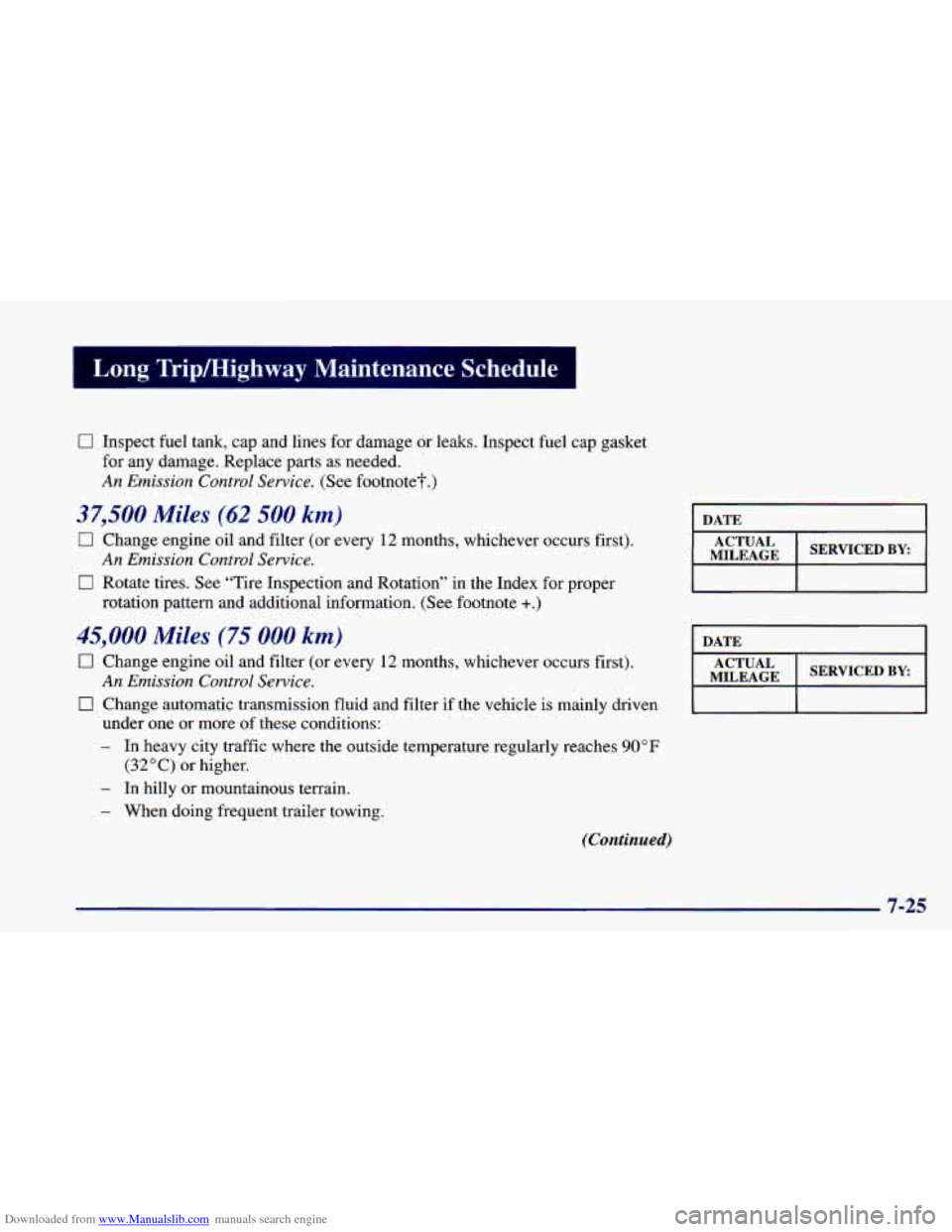

Downloaded from www.Manualslib.com manuals search engine Long Trip/Highway Maintenance Schedule
J
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
37,500 Miles (62 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more
of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
(32
O C) or
higher.
(Continued)
DATE I
I MILEAGE ACTUAL I SERVICEDBY I
DATE I
7-25

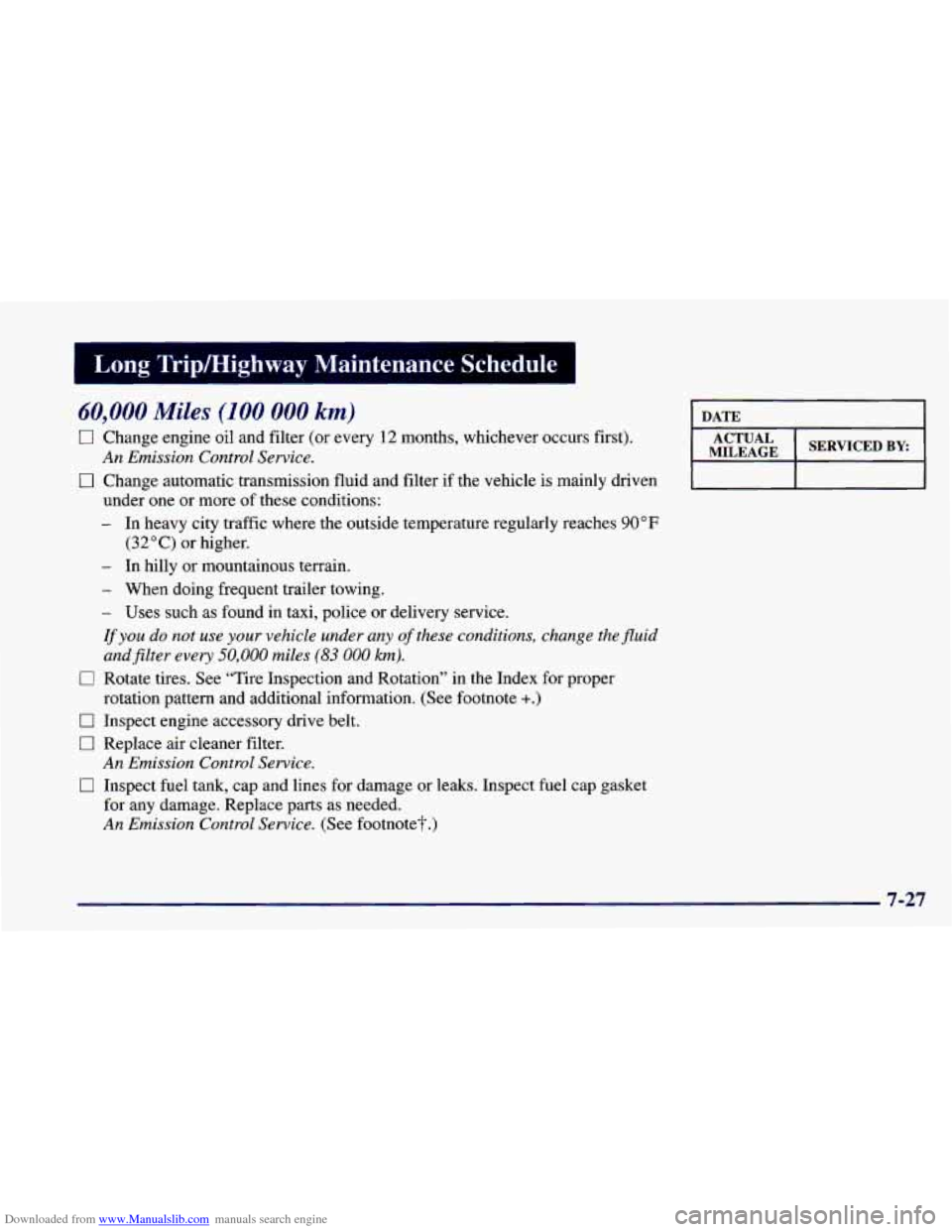

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F - -
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, chang,
andJiEter every
50,000 miles (83 000 km).
e thc D fluid
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
rotation
pattern and additional information. (See footnote
+.)
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
I
DATE
I MILEAGE ACTUAL I SERVICED BY:
7-27

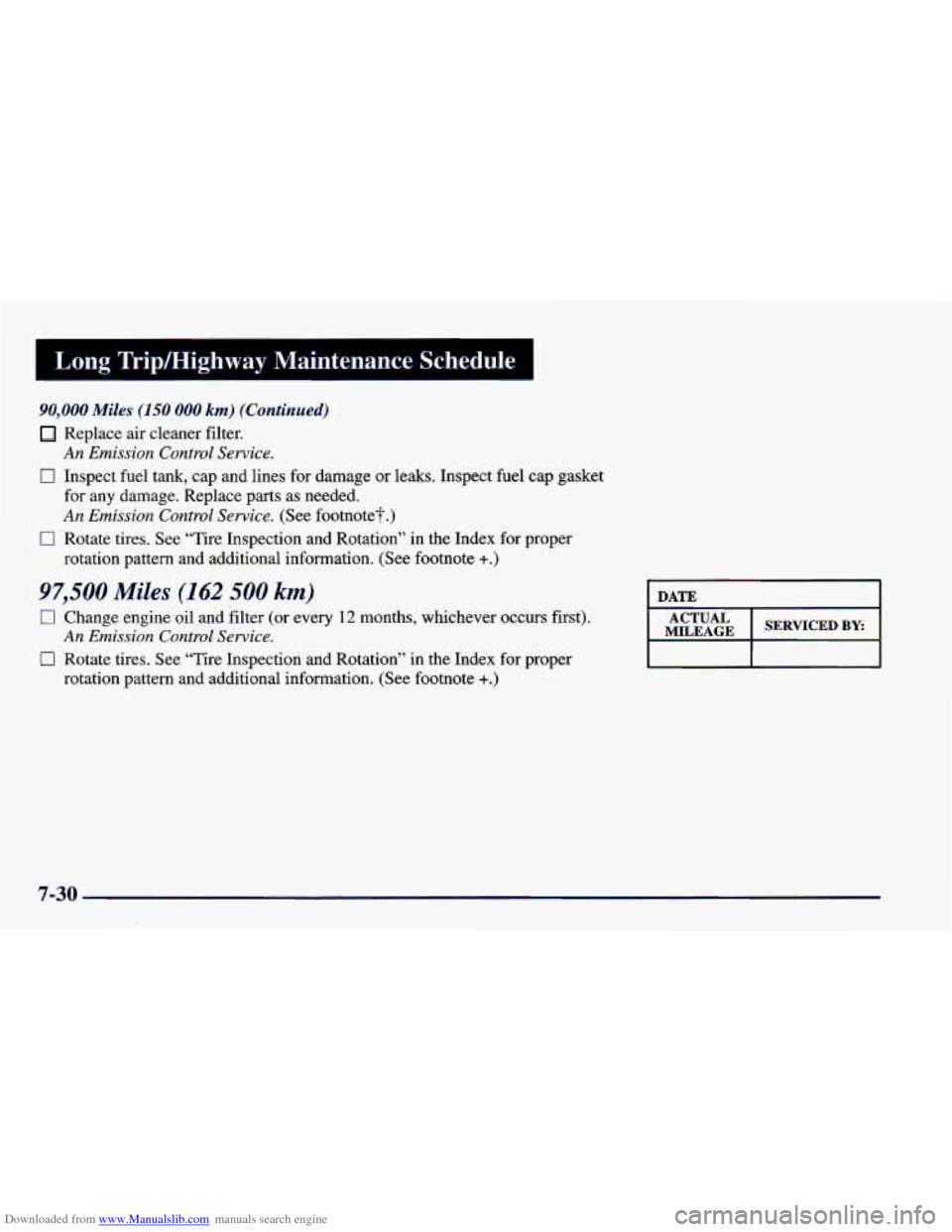

Downloaded from www.Manualslib.com manuals search engine Long Trip/Highway Maintenance Schedule I
90,000 Miles (150 000 km) (Continued)
0
0
Replace air cleaner filter.
An Emission Control Service.
Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
for any damage. Replace
parts as needed.
An Emission Control Service. (See footnote?’.)
Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information. (See footnote
+.)
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
DATE I
7-30
