relay CHEVROLET CAMARO 1998 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fuse
TAIL LPS
HVAC
PWR ACCY
COURTESY GAUGES
AIR BAG
CIG/ACCY
Usage
Daytime Running Lamps (DRL)
Module, Headlamp Switch
HVAC Selector Switch, Rear
Defogger SwitcWTimer
Park Lamp Relay, Hatch Release
Relay, Power Mirror Switch,
Radio, Shock Sensor, Instrument
Cluster
Body Control Module (BCM)
Body Control Module (BCM),
Brake Switch Assembly (BTSI),
Instrument Cluster, Daytime
Running Lamps (DRL) Module,
Auxiliary Accessory Wire
Air Bag System, Dual
Pole
Arming Sensor
Cigarette Lighter, Data Link
Connector (DLC), Auxiliary
Accessory Wire
Fuse
DEFOGEEATS
WIPEWASH
WINDOWS
IP DIMMER
RADIO
Usage
Rear Defogger Switch/Timer,
Power Seats
Wiper Motor Assembly,
Wipermasher Switch
Power Windows Switch (RH, LH),
Express Down Module,
Convertible Top Switch
Door Illumination Lamp
(LH,
RH), Headlamp Switch, Fog
Lamp Switch, Instrument Cluster,
HVAC Control Assembly, PRNDL
Illumination Lamp, Ashtray
Lamp, Radio, Steering Wheel
Controls-Radio, Rear Window
Defogger Switch/Timer, Traction
Control (ASR) Second Gear Start Switch
Body Control Module (BCM),
Radio, Amplifier, Steering Wheel
Controls-Radio
6-65

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center Fuses
ABS BAT SOL TCS BAT COOL FAN
000
PCM BAT FUEL PUMP AIR PUMP
LH HOW OR RH HDLP DR HORN
r
FAN $43 1L
1
15305529 A
The two underhood fuse and relay centers are located
in the engine compartment. Open the cover to expose
the fuses.
Fuse
ABS BAT SOL
TCS BAT
COOL FAN
PCM BAT
FUEL PUMP
AIR PUMP
--- 1
-
Fuse and Relay Center 1
Usage
Anti-Lock Brake System
Traction Control System
Cooling Fan Control
Powertrain Control Module
Fuel Pump
Air Pump Relay and Bleed Valve
6-66

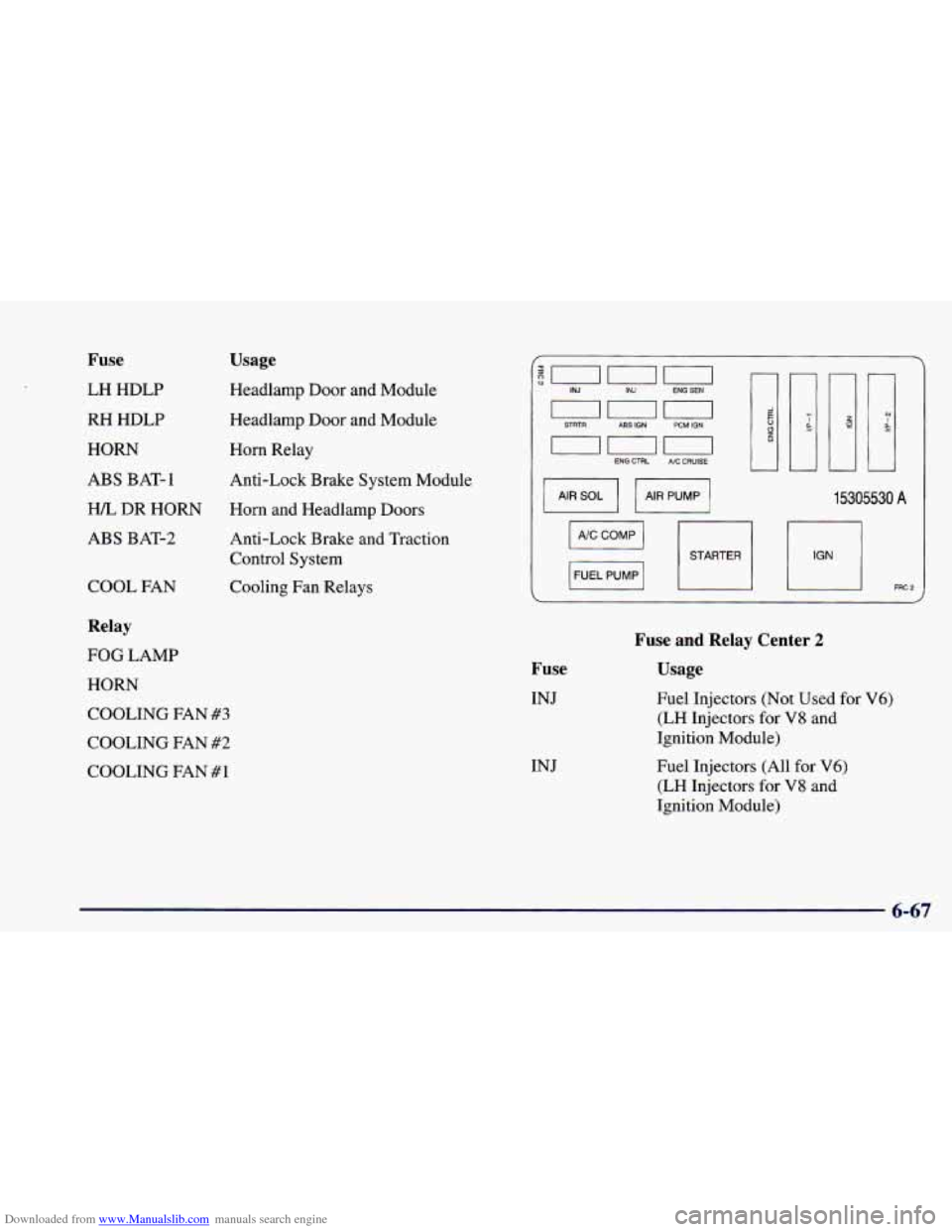

Downloaded from www.Manualslib.com manuals search engine Fuse
LH HDLP
RH HDLP
HORN
Usage
Headlamp Door and Module
Headlamp Door and Module
Horn Relay
ABS BAT-1 Anti-Lock Brake System Module
H/L DR HORN Horn and Headlamp Doors
ABS BAT-2 Anti-Lock Brake and Traction
Control System
Cooling Fan Relays
COOL
FAN
Relay
FOG LAMP
HORN COOLING FAN
#3
COOLING FAN #2
COOLING FAN #1
on0
on0
INJ INJ ENG SEN
STRTR ABS IGN PCM IGN
ENG CTRL A/C CRUISE
z
15305530 A
FRC 2
Fuse
INJ
INJ
Fuse and Relay Center 2
Usage
Fuel Injectors (Not Used for V6)
(LH Injectors for V8 and
Ignition Module)
Fuel Injectors (All for
V6)
(LH Injectors for V8 and
Ignition Module)
6-67

Downloaded from www.Manualslib.com manuals search engine Fuse
ENG SEN
STRTR
ABS IGN PCM IGN
ENG CTRL
Usage
Mass Air Flow, Heated Oxygen
Sensor, Skip Shift Solenoid
(V8
Only), Reverse Lockout Solenoid,
Brake Switch
Powertrain Control Module and
Clutch Pedal Switch
Anti-Lock Brake System Module
Powertrain Control Module
Ignition Module (V6 Only),
Automatic Transmission and
Charcoal Canister Purge Solenoid
A/C CRUISE Air Conditioning Compressor Relay,
Cruise Control Switches and Module
ENG CTRL Engine Controls, Fuel Pump, PCM,
A.I.R. and Cooling Fans
Fuse
I/P- 1
IGN
UP- 2
Relay
AIR SOL
AIR PUMP
A/C COMP
FUEL PUMP STARTER
IGN
Usage
HVAC Blower Control and Relay
Ignition Switch, Relay and Starter
Enable Relay
Instrument Panel Fuse Center
6-68
