CHEVROLET CAMARO 2010 5.G User Guide

Black plate (5,1)Chevrolet Camaro Owner Manual - 2010
Keys, Doors and Windows 1-5
Remote Vehicle Start
Your vehicle may have this feature
which allows you to start the engine
from outside the vehicle.
/(Remote Vehicle Start):
This button will be on the RKE
transmitter if you have remote start.
To enable and disable remote start,
see “Remote Start” underVehicle
Personalization on page 4‑38.
During a remote start the climate
control system will turn on with
the fan speed, air delivery mode,
and temperature settings that the
system was set to when the vehicle
was last turned off. If the fan is
set to O (Off), the climate control
system will not turn on.
Laws in some local communities
may restrict the use of remote
starters. For example, some laws
may require a person using remote
start to have the vehicle in view.
Check local regulations for any
requirements. There are other conditions which
can affect the performance of the
transmitter, see
Remote Keyless
Entry (RKE) System
on page 1‑3for additional information.
Starting the Engine Using Remote
Start
To start the engine using the remote
start feature:
1. Press
Qon the RKE transmitter.
2. Press and hold
/for about
two seconds. The turn signal
lamps will flash to confirm the
vehicle has been started. The
parking lamps will turn on and
remain on as long as the engine
is running. The vehicle's doors
will be locked.
3. The key must be inserted and turned to ON/RUN before
driving.
The engine will shut off after
10 minutes unless a time
extension is done or the key is
inserted and turned to ON/RUN. Extending Engine Run Time
For a 10 minute extension, repeat
Steps 1 and 2 while the engine is
still running. The remote start can
only be extended once.
When the remote start is extended,
the second 10 minutes will start
immediately.
For example, if the vehicle has
been running for five minutes, and
10 minutes are added, the engine
will run for a total of 15 minutes.
A maximum of two remote starts or
remote start attempts are allowed
between ignition cycles.
The vehicle's ignition switch must
be turned to ON/RUN and then back
to LOCK/OFF using the key before
the remote start procedure can be
used again.

Black plate (6,1)Chevrolet Camaro Owner Manual - 2010
1-6 Keys, Doors and Windows
Shutting the Engine Off After a
Remote Start
To shut off the engine:
.Press/until the parking lamps
turn off.
.Turn on the hazard warning
flashers.
.Insert the key and turn it to
ON/RUN and then back to
LOCK/OFF.
Conditions in Which Remote Start
Will Not Work
The remote start will not operate if:
.The key is in the ignition.
.The hood is not closed.
.The hazard warning flashers
are on.
.There is an emission control
system malfunction.
.The engine coolant temperature
is too high.
.The oil pressure is low.
.Two remote vehicle starts have
already been used.
.The vehicle is not in P (Park).
Door Locks
{WARNING
Unlocked doors can be
dangerous.
.Passengers, especially
children, can easily open the
doors and fall out of a moving
vehicle. The chance of being
thrown out of the vehicle in
a crash is increased if the
doors are not locked. So, all
passengers should wear
safety belts properly and the
doors should be locked
whenever the vehicle is
driven. (Continued)
WARNING (Continued)
.Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
.Outsiders can easily enter
through an unlocked door
when you slow down or stop
your vehicle. Locking your
doors can help prevent this
from happening.
Manual Door Locks
Lock the doors from inside the
vehicle by pressing down the button
on the top of the door.
The doors can also be unlocked
from the inside by pulling the door
handle. Pulling the door handle
again unlatches the door.

Black plate (7,1)Chevrolet Camaro Owner Manual - 2010
Keys, Doors and Windows 1-7
Unlock the door from the outside by
turning the key counterclockwise.
Lock all doors from the outside by
turning the key clockwise.
The door lock cylinder turns freely
when either the wrong key is used,
or the correct key is not fully
inserted. The free turning door lock
feature prevents the lock from being
forced open.
To reset the lock, turn it to the
vertical position with the correct key
fully inserted. Remove the key and
insert it again.
If this does not reset the lock, turn
the key half-way around in the
cylinder and repeat the reset
procedure.Power Door Locks
The power door lock switch is on
the center console.
K(Unlock):Press to unlock both
doors.
Q(Lock): Press to lock both doors.
To program the power door locks,
see Vehicle Personalization
on
page 4‑38.
Lockout Protection
The vehicle can be programmed
to prevent lockout if set in
personalization.
If the driver door is open and the
RKE lock button is pressed, the
driver door will not lock. When the
driver door is opened, and the key is
in the ignition, a reminder chime
sounds continuously. The vehicle
remains locked only when both
doors are closed. See Vehicle
Personalization on page 4‑38.

Black plate (8,1)Chevrolet Camaro Owner Manual - 2010
1-8 Keys, Doors and Windows
Doors
Trunk
{WARNING
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or
with any objects that pass
through the seal between the
body and the trunk/hatch or
liftgate. Engine exhaust contains
Carbon Monoxide (CO) which
cannot be seen or smelled. It can
cause unconsciousness and even
death.(Continued)
WARNING (Continued)
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
.Close all of the windows.
.Fully open the air outlets on
or under the instrument
panel.
.Adjust the Climate Control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See Climate
Control System in the Index.
.If the vehicle has a power
liftgate, disable the power
liftgate function.
For more information about
carbon monoxide, see Engine
Exhaust on page 8‑25.
Remote Trunk Release
To open the trunk from the outside
the vehicle, press the
Vbutton on
the Remote Keyless Entry (RKE)
transmitter.
From inside the vehicle, press
the
Vbutton located on the
driver door.

Black plate (9,1)Chevrolet Camaro Owner Manual - 2010
Keys, Doors and Windows 1-9
Emergency Trunk Release
Handle
Notice:Do not use the
emergency trunk release handle
as a tie-down or anchor point
when securing items in the trunk
as it could damage the handle.
The emergency trunk release
handle is only intended to aid a
person trapped in a latched trunk,
enabling them to open the trunk
from the inside.
There is an emergency trunk
release handle located inside the
trunk on the trunk latch. On some
vehicles, the release handle can be
accessed by folding the rear seat
center seatback. See Rear Seats
on page 2‑6.
Pull the release handle to open the
trunk from the inside.
Return the release handle to
its original position for proper
operation.
Vehicle Security
Vehicle theft is big business,
especially in some cities.
This vehicle has theft-deterrent
features; however, they do not
make it impossible to steal.
Anti-Theft Alarm System
This vehicle has an anti-theft alarm
system.
The security light is located on the
instrument panel.

Black plate (10,1)Chevrolet Camaro Owner Manual - 2010
1-10 Keys, Doors and Windows
Arming the System
To arm the system, pressQon the
RKE transmitter.
The alarm automatically arms after
about 30 seconds. The security
light, located on the instrument
panel, flashes.
Disarming the System
To disarm the system, do one of the
following:
.PressKon the RKE transmitter.
.Turn the ignition to ON/RUN.
The security light stays on for
approximately one second when the
vehicle is disarming.
If the system is armed when there
are people inside of the vehicle,
pulling the door handle from the
inside one time will unlock the door.
Pulling the handle a second time will
unlatch the door.
How the System Alarm is
Activated
To activate the system if it is armed,
open any door, the trunk or hood.
The horn will sound and the hazard
warning flashers will flash.
How to Turn Off the System
Alarm
To turn off the system alarm, do one
of the following:
.PressKon the RKE transmitter.
.Turn the ignition to ON/RUN.
The theft-deterrent system is
disarmed when the alarm is
turned off.
How to Detect a Tamper
Condition
If the horn sounds and the turn
signal lamps flash three times
when
Kis pressed, an attempted
break-in has occurred while the
system was armed. The vehicle
may also display a message on the
DIC. See Anti-Theft Alarm System
Messages
on page 4‑36for more
information.
Immobilizer
See Radio Frequency Statementon
page 12‑17for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-210/220/310.

Black plate (11,1)Chevrolet Camaro Owner Manual - 2010
Keys, Doors and Windows 1-11

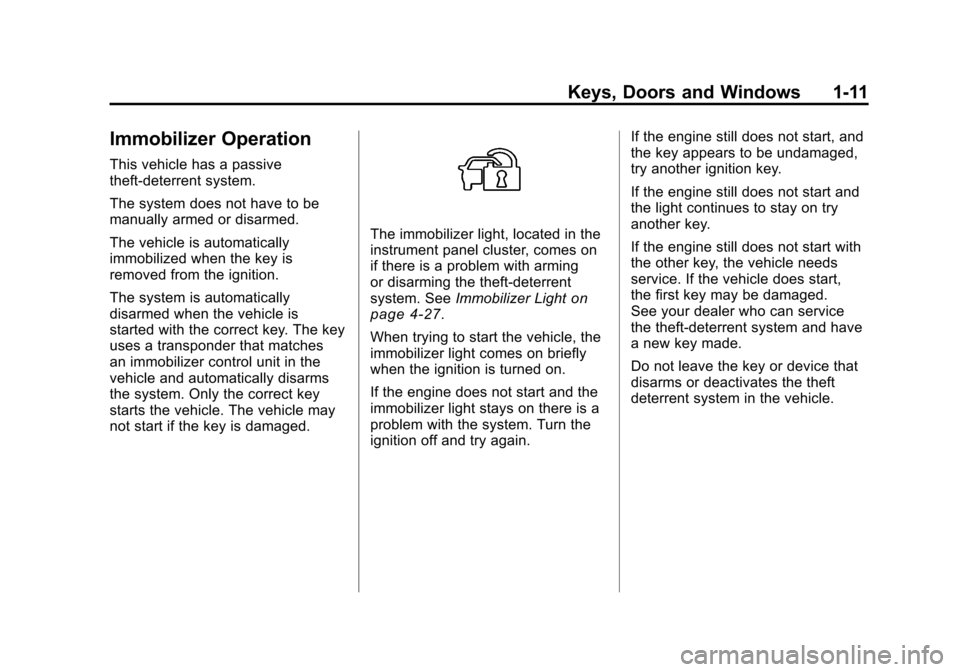

Immobilizer Operation
This vehicle has a passive
theft-deterrent system.
The system does not have to be
manually armed or disarmed.
The vehicle is automatically
immobilized when the key is
removed from the ignition.
The system is automatically
disarmed when the vehicle is
started with the correct key. The key
uses a transponder that matches
an immobilizer control unit in the
vehicle and automatically disarms
the system. Only the correct key
starts the vehicle. The vehicle may
not start if the key is damaged.
The immobilizer light, located in the
instrument panel cluster, comes on
if there is a problem with arming
or disarming the theft-deterrent
system. SeeImmobilizer Light
on
page 4‑27.
When trying to start the vehicle, the
immobilizer light comes on briefly
when the ignition is turned on.
If the engine does not start and the
immobilizer light stays on there is a
problem with the system. Turn the
ignition off and try again. If the engine still does not start, and
the key appears to be undamaged,
try another ignition key.
If the engine still does not start and
the light continues to stay on try
another key.
If the engine still does not start with
the other key, the vehicle needs
service. If the vehicle does start,
the first key may be damaged.
See your dealer who can service
the theft-deterrent system and have
a new key made.
Do not leave the key or device that
disarms or deactivates the theft
deterrent system in the vehicle.

Black plate (12,1)Chevrolet Camaro Owner Manual - 2010
1-12 Keys, Doors and Windows
Exterior Mirrors
Convex Mirrors
{WARNING
A convex mirror can make things,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convex
shaped. A convex mirror's surface is
curved so more can be seen from
the driver seat.
Power Mirrors
Vehicles with outside power mirrors
have controls located on the driver
door armrest. To adjust each mirror:
1. Press the switch to select the
driver or passenger side mirror.
2. Press one of the four sides on the
i(control pad) to adjust the
mirror.
3. Adjust each outside mirror so that a little of the vehicle and the
area behind it can be seen.

Black plate (13,1)Chevrolet Camaro Owner Manual - 2010
Keys, Doors and Windows 1-13
Heated Mirrors
For vehicles with heated mirrors:
<(Rear Window Defogger):
Press to heat the mirrors.
See “Rear Window Defogger” under
Climate Control Systems
on
page 7‑1for more information.
Automatic Dimming
Mirror
If the vehicle is equipped with an
automatic dimming outside mirror
on the driver side, the mirror will
adjust for the glare of headlamps
behind you.
Interior Mirrors
Manual Rearview Mirror
Adjust the inside rearview mirror
for a clear view of the area behind
your vehicle. To avoid glare of the
headlamps from behind, push the
tab forward for daytime and pull it
for nighttime use.
Vehicles with OnStar have
additional control buttons located at
the bottom of the mirror. See your
dealer for more information on the
system and how to subscribe to
OnStar. See the OnStar owner's
guide for more information about
the services OnStar provides.
Automatic Dimming
Rearview Mirror
Vehicles with an automatic dimming
inside rearview mirror reduces the
glare from the headlamps of the
vehicle behind you. The dimming
feature comes on and the indicator
light illuminates each time the
vehicle is started.
Vehicles with OnStar have
additional control buttons located at
the bottom of the mirror. See your
dealer for more information on the
system and how to subscribe to
OnStar. See the OnStar owner's
guide for more information about
the services OnStar provides.
Cleaning the Mirror
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water.

Black plate (14,1)Chevrolet Camaro Owner Manual - 2010
1-14 Keys, Doors and Windows
Windows
{WARNING
Leaving children, helpless adults,
or pets in a vehicle with the
windows closed is dangerous.
They can be overcome by
the extreme heat and suffer
permanent injuries or even death
from heat stroke. Never leave a
child, a helpless adult, or a pet
alone in a vehicle, especially with
the windows closed in warm or
hot weather.
Power Windows
The power window switches located
on the driver door control all
windows. The window switches on
the passenger door are only for that
window. Push the front of the switch
down to open the window. Pull the
switch up to close it.
The switches work when the ignition
is in ON/RUN, ACC/ACCESSORY,
or in Retained Accessory Power
(RAP). SeeRetained Accessory
Power (RAP) on page 8‑19.
