CHEVROLET CAMARO 2011 5.G Owners Manual

Black plate (5,1)Chevrolet Camaro Owner Manual - 2011
Service and Maintenance 11-5
.Accelerator pedal check for
damage, high effort, or binding.
Replace if needed.
.If the vehicle has a Tire Sealant
and Compressor Kit, check the
sealant expiration date printed
on the instruction label of
the kit. SeeTire Sealant and
Compressor Kit on page 10‑78.
.Underbody flushing service.
.Hood/Decklid/Liftgate/Liftglass
Support Gas Strut Service:
Visually inspect gas strut,
if equipped, for signs of wear,
cracks, or other damage. Check
the hold open ability of the gas
strut. Contact your dealer if
service is required. First Engine Oil Change After
Every 40 000 km/25,000 Miles
.Passenger compartment
air filter replacement (or every
24 months, whichever occurs
first). More frequent replacement
may be needed if you drive
in areas with heavy traffic,
areas with poor air quality,
or areas with high dust levels.
Replacement may also be
needed if you notice reduced
air flow, windows fogging up,
or odors. Your dealer can help
you determine when it is the
right time to replace the filter.
First Engine Oil Change After
Every 80 000 km/50,000 Miles.Engine air cleaner filter
replacement. See
Engine Air
Cleaner/Filter on page 10‑16.
.Automatic transmission fluid
change (severe service) for
vehicles mainly driven in
heavy city traffic in hot weather,
in hilly or mountainous terrain,
when frequently towing a
trailer, or used for taxi,
police, or delivery service.
See Automatic Transmission
Fluid on page 10‑15.

Black plate (6,1)Chevrolet Camaro Owner Manual - 2011
11-6 Service and Maintenance
.Rear axle fluid change (severe
service) for vehicles mainly
driven in hilly or mountainous
terrain, when frequently towing
a trailer, used for high speed or
competitive driving, or used for
taxi, police, or delivery service.
See your dealer.
.Evaporative control system
inspection. Check all fuel and
vapor lines and hoses for proper
hook‐up, routing, and condition.
Check that the purge valve,
if the vehicle has one, works
properly. Replace as needed.
An Emission Control Service.
The U.S. Environmental
Protection Agency or the
California Air Resources Board
has determined that the failure
to perform this maintenance
item will not nullify the emissionwarranty or limit recall liability
prior to the completion of
the vehicle's useful life.
We, however, urge that all
recommended maintenance
services be performed at the
indicated intervals and the
maintenance be recorded.
First Engine Oil Change After
Every 160 000 km/100,000 Miles
.Automatic transmission fluid
change (normal service).
See Automatic Transmission
Fluid on page 10‑15.
.Rear axle fluid change (normal
service). See your dealer.
.Spark plug replacement and
spark plug wires inspection.
An Emission Control Service. First Engine Oil Change After
Every 240 000 km/150,000 Miles
.Engine cooling system drain,
flush, and refill (or every five
years, whichever occurs first).
See
Cooling System on
page 10‑18. An Emission
Control Service.
.Engine drive belts inspection
for fraying, excessive cracks,
or obvious damage (or every
10 years, whichever occurs
first). Replace, if needed.

Black plate (7,1)Chevrolet Camaro Owner Manual - 2011
Service and Maintenance 11-7

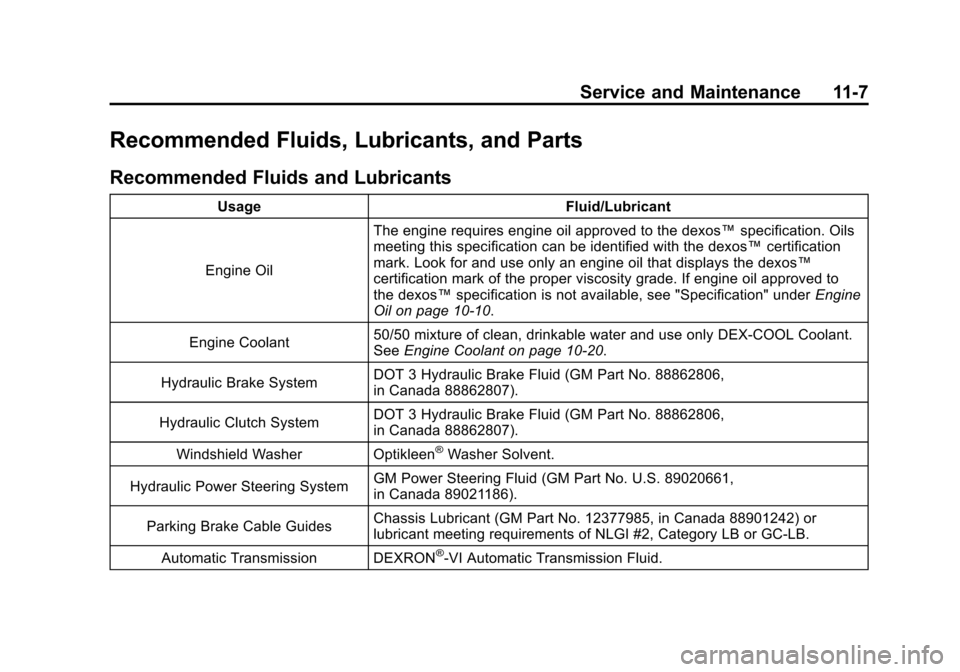

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil The engine requires engine oil approved to the dexos™
specification. Oils
meeting this specification can be identified with the dexos™ certification
mark. Look for and use only an engine oil that displays the dexos™
certification mark of the proper viscosity grade. If engine oil approved to
the dexos™ specification is not available, see "Specification" under Engine
Oil on page 10‑10.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See
Engine Coolant on page 10‑20.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 88862806,
in Canada 88862807).
Hydraulic Clutch System DOT 3 Hydraulic Brake Fluid (GM Part No. 88862806,
in Canada 88862807).
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89020661,
in Canada 89021186).
Parking Brake Cable Guides Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC‐LB.
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.

Black plate (8,1)Chevrolet Camaro Owner Manual - 2011
11-8 Service and Maintenance

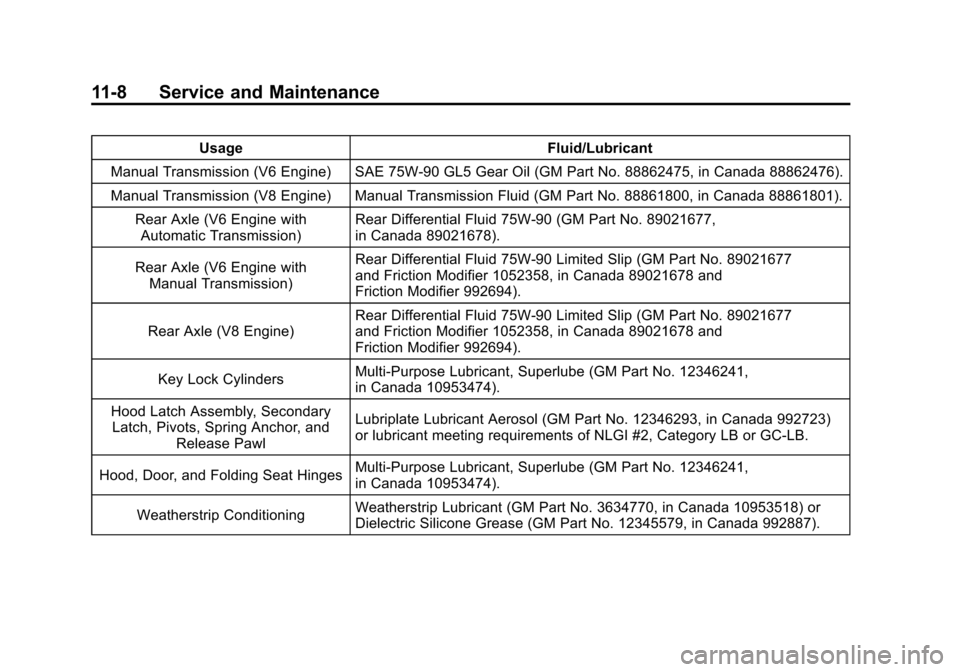

UsageFluid/Lubricant
Manual Transmission (V6 Engine) SAE 75W-90 GL5 Gear Oil (GM Part No. 88862475, in Canada 88862476).
Manual Transmission (V8 Engine) Manual Transmission Fluid (GM Part No. 88861800, in Canada 88861801). Rear Axle (V6 Engine withAutomatic Transmission) Rear Differential Fluid 75W-90 (GM Part No. 89021677,
in Canada 89021678).
Rear Axle (V6 Engine with Manual Transmission) Rear Differential Fluid 75W-90 Limited Slip (GM Part No. 89021677
and Friction Modifier 1052358, in Canada 89021678 and
Friction Modifier 992694).
Rear Axle (V8 Engine) Rear Differential Fluid 75W-90 Limited Slip (GM Part No. 89021677
and Friction Modifier 1052358, in Canada 89021678 and
Friction Modifier 992694).
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. 12346241,
in Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 12346293, in Canada 992723)
or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hood, Door, and Folding Seat Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
Dielectric Silicone Grease (GM Part No. 12345579, in Canada 992887).

Black plate (9,1)Chevrolet Camaro Owner Manual - 2011
Service and Maintenance 11-9

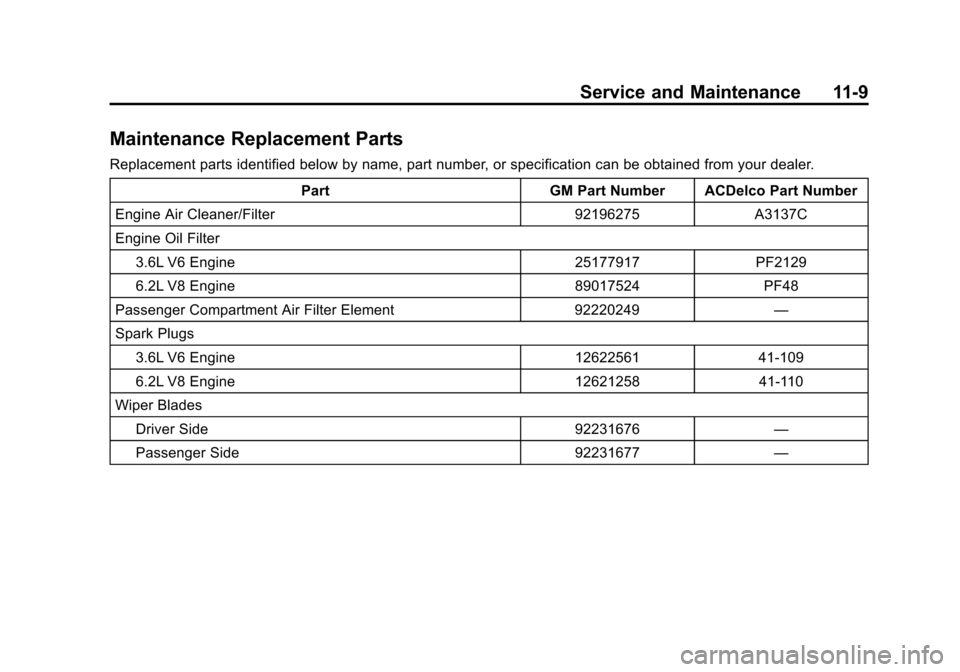

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 92196275 A3137C
Engine Oil Filter
3.6L V6 Engine 25177917 PF2129
6.2L V8 Engine 89017524 PF48
Passenger Compartment Air Filter Element 92220249 —
Spark Plugs 3.6L V6 Engine 12622561 41-109
6.2L V8 Engine 12621258 41-110
Wiper Blades
Driver Side 92231676 —
Passenger Side 92231677 —

Black plate (10,1)Chevrolet Camaro Owner Manual - 2011
11-10 Service and Maintenance

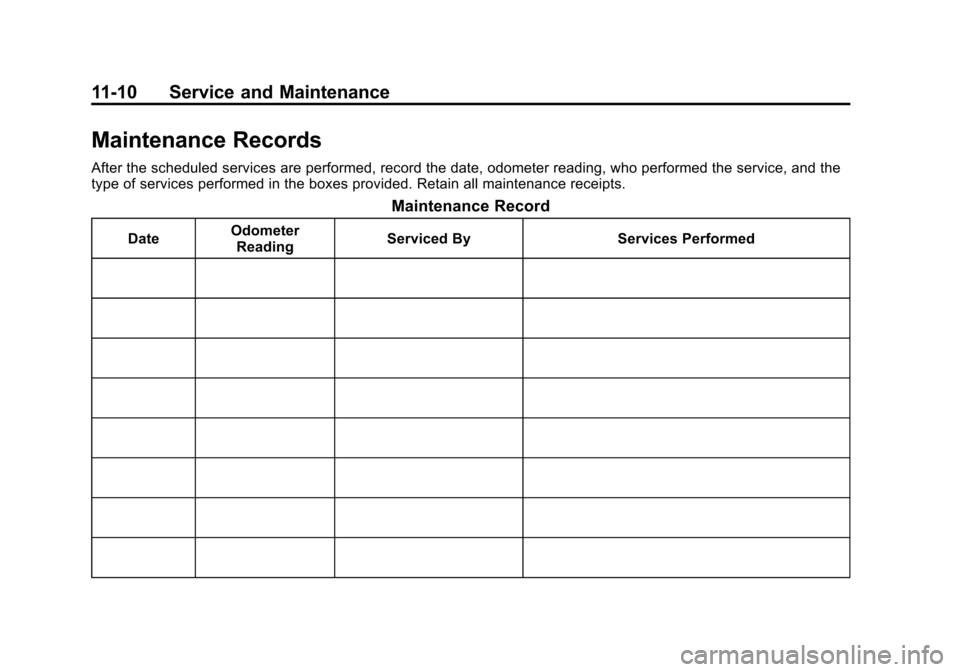

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed

Black plate (11,1)Chevrolet Camaro Owner Manual - 2011
Service and Maintenance 11-11

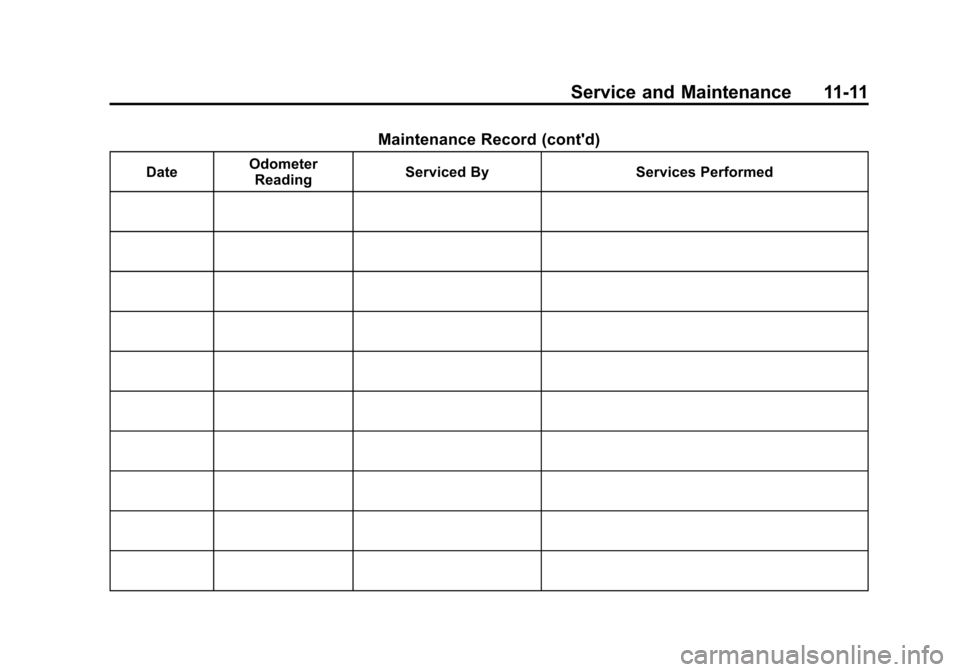

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (12,1)Chevrolet Camaro Owner Manual - 2011
11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Chevrolet Camaro Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
Your vehicle may have one of the
following legal identifiers.
The legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle
engine code.
Service Parts
Identification Label
This label, in the trunk, has the
following information:
.Vehicle Identification
Number (VIN).
.Model designation.
.Paint information.
.Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)Chevrolet Camaro Owner Manual - 2011
12-2 Technical Data

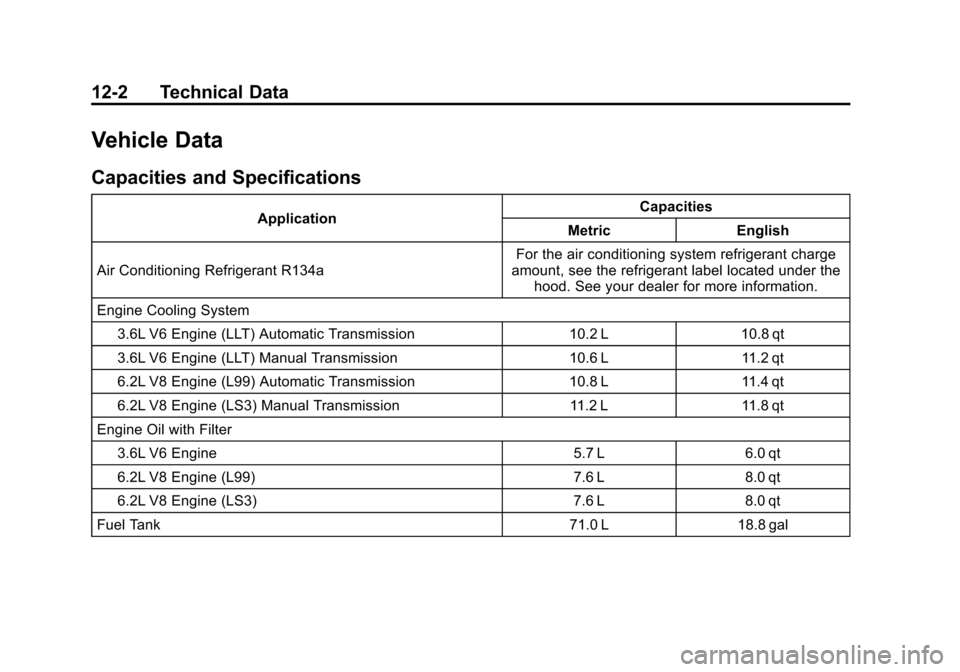

Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Engine Cooling System 3.6L V6 Engine (LLT) Automatic Transmission 10.2 L 10.8 qt
3.6L V6 Engine (LLT) Manual Transmission 10.6 L 11.2 qt
6.2L V8 Engine (L99) Automatic Transmission 10.8 L 11.4 qt
6.2L V8 Engine (LS3) Manual Transmission 11.2 L 11.8 qt
Engine Oil with Filter 3.6L V6 Engine 5.7 L 6.0 qt
6.2L V8 Engine (L99) 7.6 L 8.0 qt
6.2L V8 Engine (LS3) 7.6 L 8.0 qt
Fuel Tank 71.0 L 18.8 gal
