Black plate (5,1)Canadian Limited Warranty and Owner Assistance Information - 2012
New Vehicle Limited Warranty 5
Engine Coverage includes:All
internally lubricated parts, engine oil
cooling hoses, lines, and radiators.
Also included are all actuators and
electrical components internal
to the engine (e.g., Active Fuel
Management Valve Lifter Oil
Manifold) cylinder head, block,
timing gears, timing chain, timing
cover, oil pump/oil pump housing,
OHC carriers, valve covers, oil pan,
seals, gaskets, manifolds, flywheel,
water pump, harmonic balancer,
engine mount, turbocharger, and
supercharger. Timing belts are
covered until the first scheduled
maintenance interval.Exclusions:Excluded from the
powertrain coverage are sensors,
wiring, connectors, engine radiator,
coolant hoses, coolant, and heater
core. Coverage on the engine
cooling system begins at the inlet to
the water pump and ends with the
thermostat housing and/or outlet
that attaches to the return hose.
Also excluded is the starter motor,
entire pressurized fuel system
(in-tank fuel pump, pressure lines,
fuel rail(s), regulator, injectors, and
return line) as well as the Engine/
Powertrain Control Module and/or
module programming.Transmission/Transaxle Coverage
includes:All internally lubricated
parts, case, torque converter,
mounts, seals, and gaskets as
well as any electrical components
internal to the transmission/
transaxle. Also covered are any
actuators directly connected to the
transmission (slave cylinder, etc.).
Exclusions:Excluded from
the powertrain coverage are
transmission cooling lines,
hoses, radiator, sensors, wiring,
and electrical connectors. Also
excluded are the clutch and
pressure plate as well as any
Transmission Control Module
and/or module programming.

Black plate (10,1)Canadian Limited Warranty and Owner Assistance Information - 2012
10 New Vehicle Limited Warranty
When a tire is removed from service
due to a covered warranty condition
under a tire manufacturer's limited
warranty program, you may be
eligible for a tire replacement
or a comparable new tire on a
prorated basis.
The tire manufacturer's limited
warranty program, which can
be obtained by calling or visiting
the tire manufacturer's website
or any authorized dealer, is in
lieu of all other remedies or
warranties, expressed or implied,
arising by law or otherwise,
including fitness for a particular
purpose or merchantability.
The tire manufacturer's expressly
disclaim liability for indirect,
special, incidental, or consequential
damages, lost profit, loss of
business, loss of goodwill, loss of
reputation, punitive or any other
damage, cost, or loss of any kind.Towing
Towing is covered to the nearest
authorized dealer if your vehicle
cannot be driven because of a
warranted defect.
6.6L Duramax Diesel Engine
Coverage
For trucks equipped with a
6.6L Duramax Diesel Engine, the
diesel engine assembly, including
turbocharger components (except
those items listed under“What Is
Not Covered”) is covered for defects
in material or workmanship without
a deductible for up to 5 years or
160 000 kilometres whichever
comes first.
.Cylinder block and heads and all
internal lubricant parts, intake
and exhaust manifolds, timing
gears, timing gear chain or belt
and cover, flywheel, harmonic
balancer, valve covers, oil pan,
oil pump, water pump, fuel
pump, engine mounts, seals,
and gaskets.
.Diesel Fuel Metering System:
injection pump, nozzles, high
pressure lines, high pressure
sealing devices.
.Glow Plug Control System:
control/glow plug assembly,
glow plugs, cold advance relay,
Engine Control Module (ECM).
.Fuel injection control module,
integral oil cooler, transmission
adapter plate, left and right
common fuel rails, fuel filter
assembly, fuel temperature
sensor, and function blocks.
Important:Some of the above
components may also be covered
by the Emissions Warranty with
no deductible. See theEmission
Warranty Parts List on page 31
for details.

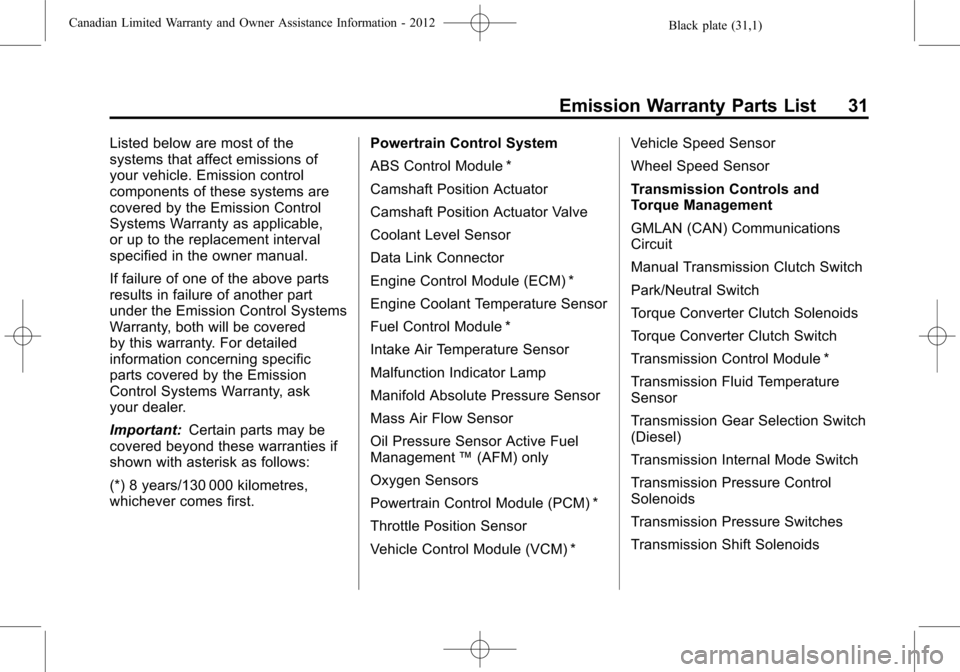

Black plate (31,1)Canadian Limited Warranty and Owner Assistance Information - 2012
Emission Warranty Parts List 31
Listed below are most of the
systems that affect emissions of
your vehicle. Emission control
components of these systems are
covered by the Emission Control
Systems Warranty as applicable,
or up to the replacement interval
specified in the owner manual.
If failure of one of the above parts
results in failure of another part
under the Emission Control Systems
Warranty, both will be covered
by this warranty. For detailed
information concerning specific
parts covered by the Emission
Control Systems Warranty, ask
your dealer.
Important:Certain parts may be
covered beyond these warranties if
shown with asterisk as follows:
(*) 8 years/130 000 kilometres,
whichever comes first.Powertrain Control System
ABS Control Module *
Camshaft Position Actuator
Camshaft Position Actuator Valve
Coolant Level Sensor
Data Link Connector
Engine Control Module (ECM) *
Engine Coolant Temperature Sensor
Fuel Control Module *
Intake Air Temperature Sensor
Malfunction Indicator Lamp
Manifold Absolute Pressure Sensor
Mass Air Flow Sensor
Oil Pressure Sensor Active Fuel
Management™(AFM) only
Oxygen Sensors
Powertrain Control Module (PCM) *
Throttle Position Sensor
Vehicle Control Module (VCM) *Vehicle Speed Sensor
Wheel Speed Sensor
Transmission Controls and
Torque Management
GMLAN (CAN) Communications
Circuit
Manual Transmission Clutch Switch
Park/Neutral Switch
Torque Converter Clutch Solenoids
Torque Converter Clutch Switch
Transmission Control Module *
Transmission Fluid Temperature
Sensor
Transmission Gear Selection Switch
(Diesel)
Transmission Internal Mode Switch
Transmission Pressure Control
Solenoids
Transmission Pressure Switches
Transmission Shift Solenoids

Black plate (32,1)Canadian Limited Warranty and Owner Assistance Information - 2012
32 Emission Warranty Parts List
Transmission Speed Sensor (Input)
Transmission Speed Sensor
(Output)
Fuel Management System
Diesel Fuel Injection Pump
Direct Fuel Injector Assembly
(6.6L Duramax Diesel)
Fuel Injector
Fuel Pressure Regulator
Fuel Pressure Sensor
Fuel Rail Assembly
Fuel Temperature Sensor
High Pressure Fuel Pump (SIDI)
Air Management System
Active Aero Shutters
Air Cleaner
Air Cleaner Resonator
Intake Manifold
Intake Manifold GasketAir Intake Ducts
Charge Air Control Actuator
Charge Air Control Solenoid Valve
Charge Air Control Valve
Charge Air Cooler
Charge Air Cooler Fan
Idle Air Control Valve
Idle Speed Control Motor
Intake Air Heater
Intake Manifold
Intake Manifold Heater
Intake Manifold Tuning Valve
Supercharger Assembly
Throttle Body
Throttle Body Heater
Turbocharger Assembly
Turbocharger Boost Sensor
Turbocharger Oil SeparatorIgnition System
Camshaft Position Sensor(s)
Crankshaft Position Sensor(s)
Glow Plug(s) (Diesel)
Glow Plug Controller (Diesel)
Ignition Coil(s)
Knock Sensor
Spark Plug Wires
Spark Plugs
Catalytic Converter System
Catalytic Converter(s) and muffler if
attached as assembly *
Diesel Exhaust Temperature and
Pressure Sensors
Diesel Particulate Filter (DPF)
Diesel Exhaust (DPF) Indirect Fuel
Injector
Diesel Exhaust Emission Reduction
Fluid Injector
Diesel Exhaust Emission Reduction
Fluid Tank

Black plate (33,1)Canadian Limited Warranty and Owner Assistance Information - 2012
Emission Warranty Parts List 33
Diesel Exhaust NOx Sensors
Exhaust Manifold
Exhaust Manifold with Catalytic
Converter attached as assembly *
Exhaust Manifold Gasket
Exhaust pipes and/or mufflers when
located between converter and
exhaust manifold
Positive Crankcase Ventilation
(PCV) System
Oil Filler Cap
PCV Filter
PCV Oil Separator
PCV Valve
Exhaust Gas Recirculation (EGR)
System
EGR Feed and Delivery Pipes or
Cast-In Passages
EGR Valve Cooler (6.6L Duramax
Diesel)
EGR ValveSecondary Air Injection System
Air Pump
Check Valves
Evaporative Emission Control
System (Gasoline Engines)
Canister
Canister Purge Solenoid Valve
Canister Vent Solenoid
Fuel Feed and Return Pipes and
Hoses
Fuel Filler Cap
Fuel Level Sensor
Fuel Limiter Vent Valve
Fuel Tank(s)
Fuel Tank Filler Pipe
(with Restrictor)
Fuel Tank Vacuum or Pressure
SensorHybrid
Auxiliary Transmission Fluid Pump
Battery Cooling Fan
Battery Pack Control
Module (BPCM)
Battery Pack Current Sensor
Brake Pedal Travel Sensor
Drive Motors
Drive Motor Resolvers
Drive Motor/Generator Control
Module *
Electro-Hydraulic Brake Control
Module (EBCM) *
Energy Storage Control Module *
Fuel Filler Pipe Adapter Seal
Hybrid Batteries
Hybrid Battery Temperature Sensors
Hybrid Battery Voltage Sensors
SGCM Coolant Circuit
(fan, fan relay, and pump)
Starter Generator
