CHEVROLET CAMARO 2013 5.G Owners Manual

Black plate (3,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
Vehicle Care 10-3
California Proposition 65
Warning
Most motor vehicles, including this
one, contain and/or emit chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm. Engine
exhaust, many parts and systems,
many fluids, and some component
wear by-products contain and/or
emit these chemicals.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non‐dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.

Black plate (4,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
10-4 Vehicle Care
Damage to vehicle components
resulting from modifications or the
installation or use of non‐GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, seeAdding Equipment to the
Airbag-Equipped Vehicle on
page 3‑28.Vehicle Checks
Doing Your Own
Service Work
{WARNING
You can be injured and the
vehicle could be damaged if you
try to do service work on a vehicle
without knowing enough about it.
.Be sure you have sufficient
knowledge, experience, the
proper replacement parts,
and tools before attempting
any vehicle
maintenance task.
.Be sure to use the proper
nuts, bolts, and other
fasteners. Metric and English
fasteners can be easily
confused. If the wrong
fasteners are used, parts can
later break or fall off. You
could be hurt. If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see
Service
Publications Ordering Information
on page 13‑16.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle on
page 3‑28.
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records on
page 11‑16.

Black plate (5,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
Vehicle Care 10-5
Hood
To open the hood:
1. Pull the release handle locatedbelow the instrument panel to
the left of the steering wheel.
2. Pull up on the secondary hoodrelease. The lever is located
near the middle of the hood.
3. Lift the hood.
Before closing the hood, be sure all
filler caps are on properly. Then lift
the hood to relieve pressure. Pull
the hood down on the passenger
side to close it firmly.

Black plate (6,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
10-6 Vehicle Care

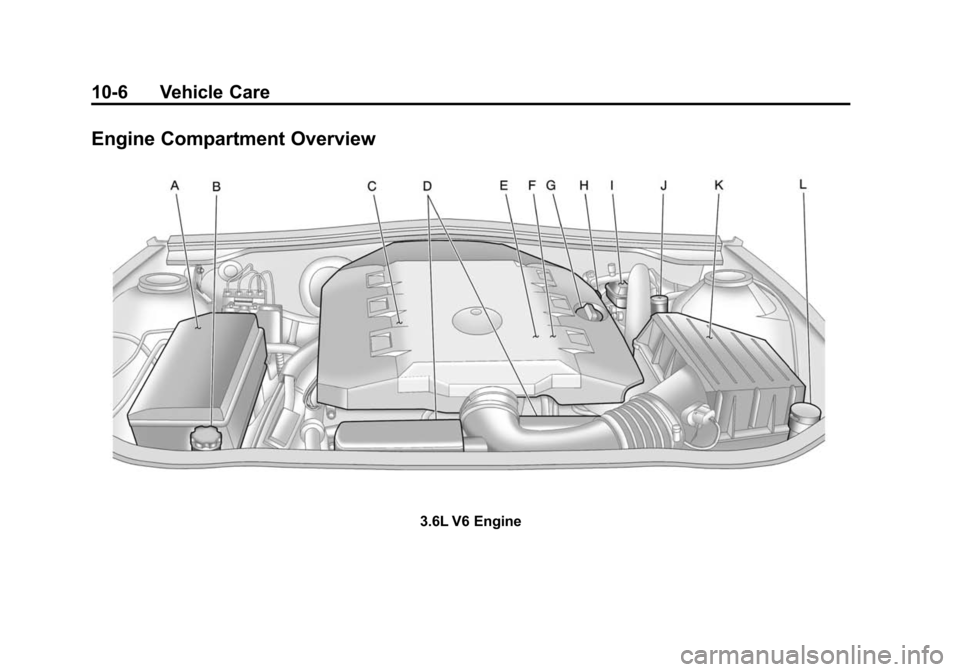

Engine Compartment Overview
3.6L V6 Engine

Black plate (7,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
Vehicle Care 10-7
A. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10‑40.
B. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10‑19.
C. Engine Cover on page 10‑10.
D. Engine Cooling Fans (Out of View). See Cooling System on
page 10‑18.
E. Radiator Fill Cap (Out of View). See Engine Coolant on
page 10‑19. F. Power Steering Reservoir and
Cap (Out of View). See Power
Steering Fluid on page 10‑26.
G. Engine Oil Fill Cap. See Engine
Oil on page 10‑10.
H. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10‑10.
I. Brake Master Cylinder and Hydraulic Clutch Reservoir
(if equipped with manual
transmission). See Brakes on
page 10‑28 orHydraulic Clutch
on page 10‑15. J. Remote Positive (+) Terminal.
See Battery on page 10‑30.
K. Engine Air Cleaner/Filter on
page 10‑16.
L. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑27.

Black plate (8,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
10-8 Vehicle Care

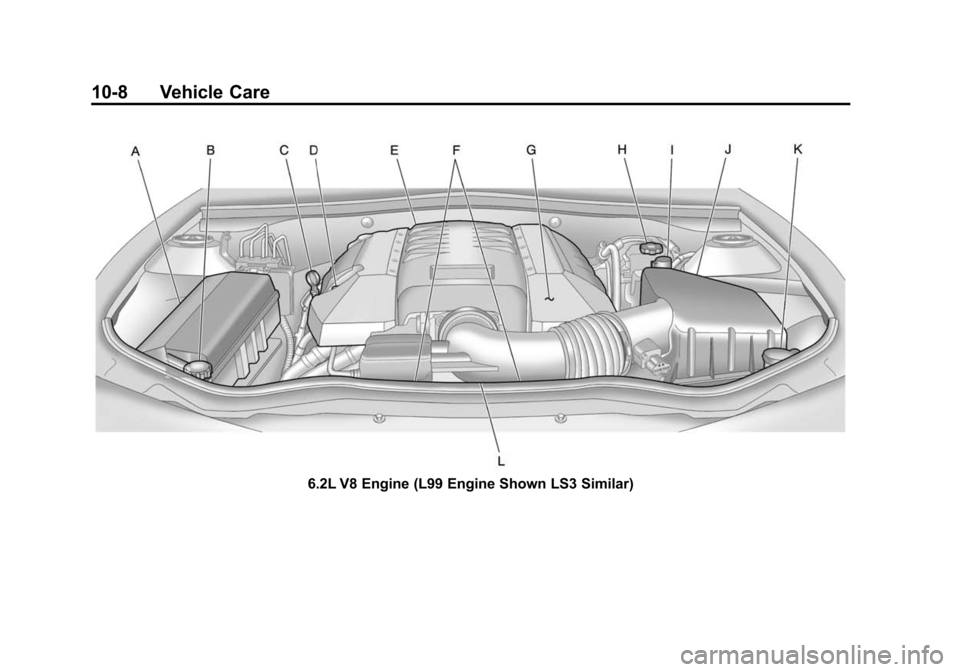

6.2L V8 Engine (L99 Engine Shown LS3 Similar)

Black plate (9,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
Vehicle Care 10-9
A. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10‑40.
B. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10‑19.
C. Engine Oil Dipstick. See Engine
Oil on page 10‑10.
D. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10‑10.
E. Engine Cover on page 10‑10. F. Engine Cooling Fans (Out of
View). See Cooling System on
page 10‑18.
G. Power Steering Reservoir and Cap (Under Engine Cover). See
Power Steering Fluid on
page 10‑26.
H. Brake Master Cylinder and Hydraulic Clutch Reservoir
(if equipped with manual
transmission). See Brakes on
page 10‑28 orHydraulic Clutch
on page 10‑15. I. Remote Positive (+) Terminal.
See Battery on page 10‑30.
J. Engine Air Cleaner/Filter on
page 10‑16.
K. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑27.
L. Radiator Fill Cap (Out of View). See Engine Coolant on
page 10‑19.

Black plate (10,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
10-10 Vehicle Care

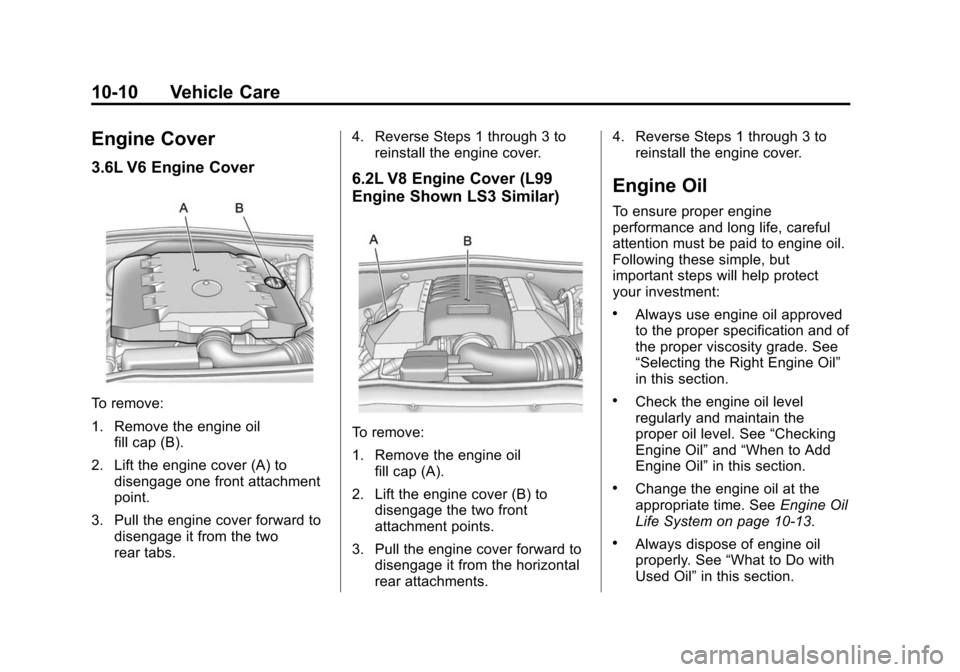

Engine Cover
3.6L V6 Engine Cover
To remove:
1. Remove the engine oilfill cap (B).
2. Lift the engine cover (A) to disengage one front attachment
point.
3. Pull the engine cover forward to disengage it from the two
rear tabs. 4. Reverse Steps 1 through 3 to
reinstall the engine cover.
6.2L V8 Engine Cover (L99
Engine Shown LS3 Similar)
To remove:
1. Remove the engine oil
fill cap (A).
2. Lift the engine cover (B) to disengage the two front
attachment points.
3. Pull the engine cover forward to disengage it from the horizontal
rear attachments. 4. Reverse Steps 1 through 3 to
reinstall the engine cover.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.Always use engine oil approved
to the proper specification and of
the proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
.Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
.Change the engine oil at the
appropriate time. See Engine Oil
Life System on page 10‑13.
.Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.

Black plate (11,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
Vehicle Care 10-11

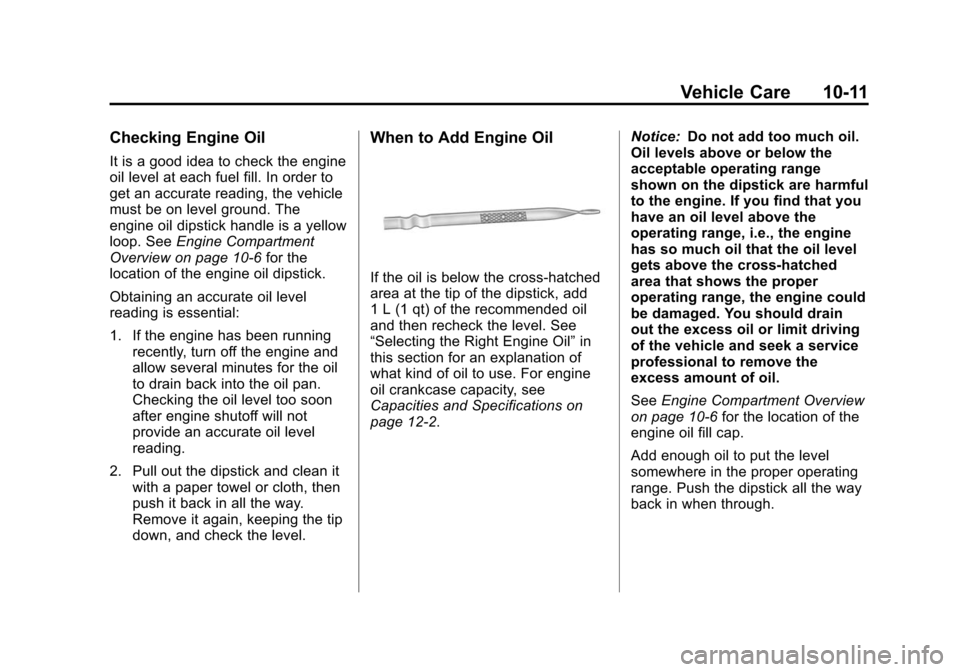

Checking Engine Oil
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the vehicle
must be on level ground. The
engine oil dipstick handle is a yellow
loop. SeeEngine Compartment
Overview on page 10‑6 for the
location of the engine oil dipstick.
Obtaining an accurate oil level
reading is essential:
1. If the engine has been running recently, turn off the engine and
allow several minutes for the oil
to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.
2. Pull out the dipstick and clean it with a paper towel or cloth, then
push it back in all the way.
Remove it again, keeping the tip
down, and check the level.
When to Add Engine Oil
If the oil is below the cross-hatched
area at the tip of the dipstick, add
1 L (1 qt) of the recommended oil
and then recheck the level. See
“Selecting the Right Engine Oil” in
this section for an explanation of
what kind of oil to use. For engine
oil crankcase capacity, see
Capacities and Specifications on
page 12‑2. Notice:
Do not add too much oil.
Oil levels above or below the
acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See Engine Compartment Overview
on page 10‑6 for the location of the
engine oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.

Black plate (12,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
10-12 Vehicle Care

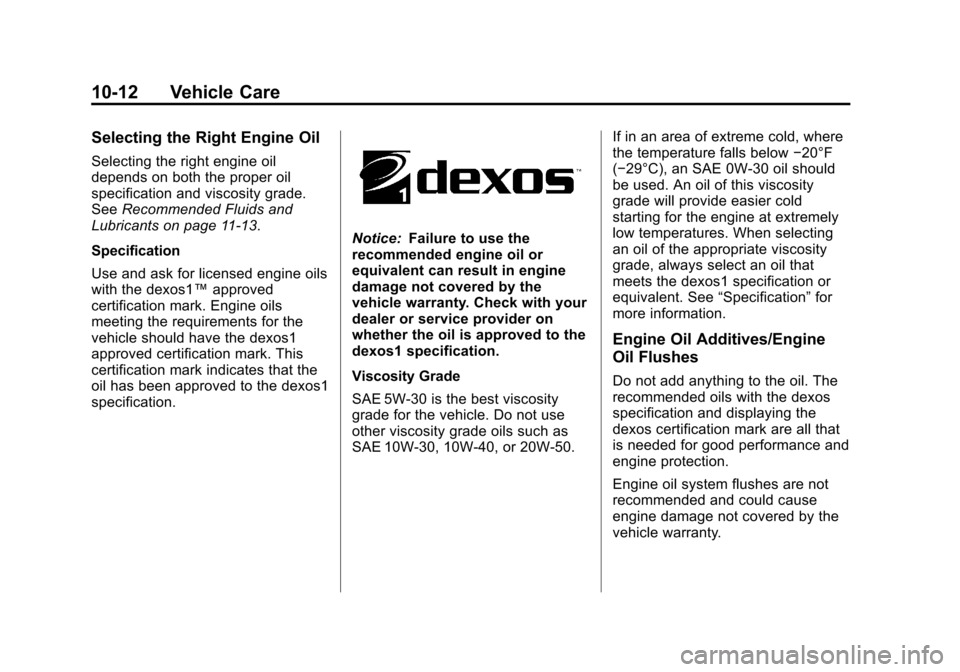

Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and viscosity grade.
SeeRecommended Fluids and
Lubricants on page 11‑13.
Specification
Use and ask for licensed engine oils
with the dexos1™ approved
certification mark. Engine oils
meeting the requirements for the
vehicle should have the dexos1
approved certification mark. This
certification mark indicates that the
oil has been approved to the dexos1
specification.
Notice: Failure to use the
recommended engine oil or
equivalent can result in engine
damage not covered by the
vehicle warranty. Check with your
dealer or service provider on
whether the oil is approved to the
dexos1 specification.
Viscosity Grade
SAE 5W‐30 is the best viscosity
grade for the vehicle. Do not use
other viscosity grade oils such as
SAE 10W‐30, 10W‐40, or 20W‐50. If in an area of extreme cold, where
the temperature falls below
−20°F
(−29°C), an SAE 0W‐30 oil should
be used. An oil of this viscosity
grade will provide easier cold
starting for the engine at extremely
low temperatures. When selecting
an oil of the appropriate viscosity
grade, always select an oil that
meets the dexos1 specification or
equivalent. See “Specification”for
more information.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. The
recommended oils with the dexos
specification and displaying the
dexos certification mark are all that
is needed for good performance and
engine protection.
Engine oil system flushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
