fuel filter CHEVROLET CAMARO 2013 5.G Owners Manual

Black plate (18,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
1-18 In Brief
indicator that the tire pressures are
getting low and the tires need to be
inflated to the proper pressure.
The TPMS does not replace normal
monthly tire maintenance. It is the
driver’s responsibility to maintain
correct tire pressures.
See Tire Pressure Monitor System
on page 10‑55.
Tire Sealant and
Compressor Kit
This vehicle may come with a spare
tire and tire changing equipment or
a tire sealant and compressor kit.
The kit can be used to temporarily
seal small punctures in the tread
area of the tire.
See Tire Sealant and Compressor
Kit on page 10‑70 for complete
operating information.
If the vehicle came with a spare tire
and tire changing equipment, see If
a Tire Goes Flat on page 10‑68.
Engine Oil Life System
The engine oil life system calculates
engine oil life based on vehicle use
and displays the CHANGE ENGINE
OIL SOON message when it is time
to change the engine oil and filter.
The oil life system should be reset
to 100% only following an oil
change.
Resetting the Oil Life System
1. Turn the ignition to ON/RUN with the engine off.
2. Fully press and release the accelerator pedal three times
within five seconds.
See Engine Oil Life System on
page 10‑13.
Driving for Better Fuel
Economy
Driving habits can affect fuel
mileage. Here are some driving
tips to get the best fuel economy
possible.
.Avoid fast starts and accelerate
smoothly.
.Brake gradually and avoid
abrupt stops.
.Avoid idling the engine for long
periods of time.
.When road and weather
conditions are appropriate, use
cruise control.
.Always follow posted speed
limits or drive more slowly when
conditions require.
.Keep vehicle tires properly
inflated.
.Combine several trips into a
single trip.

Black plate (2,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
12-2 Technical Data

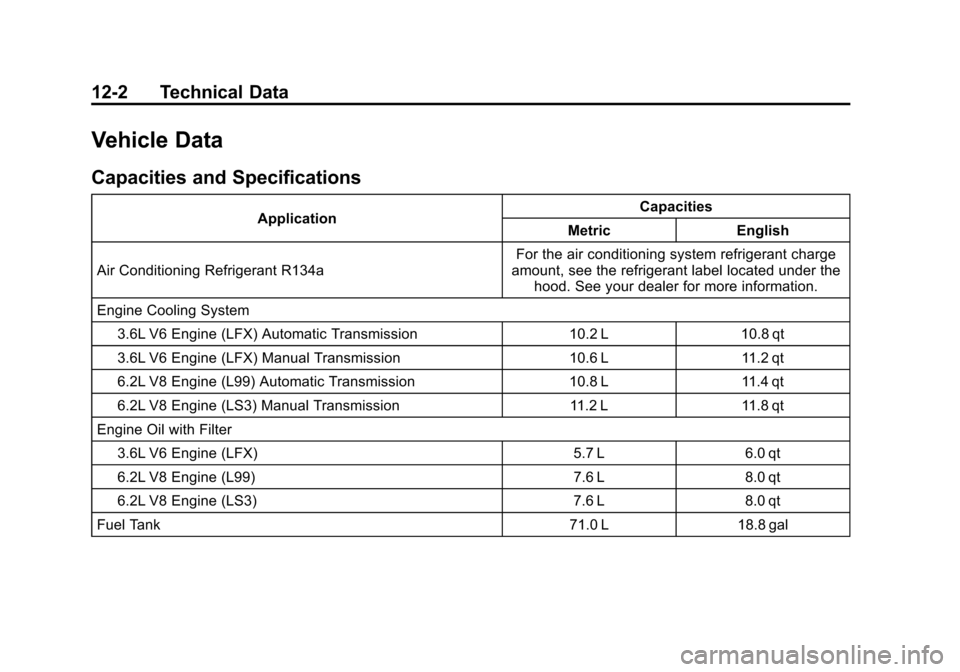

Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Engine Cooling System 3.6L V6 Engine (LFX) Automatic Transmission 10.2 L 10.8 qt
3.6L V6 Engine (LFX) Manual Transmission 10.6 L 11.2 qt
6.2L V8 Engine (L99) Automatic Transmission 10.8 L 11.4 qt
6.2L V8 Engine (LS3) Manual Transmission 11.2 L 11.8 qt
Engine Oil with Filter 3.6L V6 Engine (LFX) 5.7 L 6.0 qt
6.2L V8 Engine (L99) 7.6 L 8.0 qt
6.2L V8 Engine (LS3) 7.6 L 8.0 qt
Fuel Tank 71.0 L 18.8 gal

Black plate (1,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
INDEX i-1
A
Accessories andModifications . . . . . . . . . . . . . . . . . 10-3
Accessory Power . . . . . . . . . . . . . . 9-21
Active Fuel Management
®. . . . . 9-25
Add-On Electrical Equipment . . . . . . . . . . . . . . . . . . . 9-54
Additional Information, OnStar
®. . . . . . . . . . . . . . . . . . . . . . 14-5
Air Cleaner/Filter, Engine . . . . . 10-16
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 8-3
Airbag Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . 3-28
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . 3-30
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . 3-21
Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . . 3-23
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . 3-21 Airbag System (cont.)
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . 3-22
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . 3-20
Where Are the Airbags? . . . . . . 3-18
Airbags Passenger Status Indicator . . . 5-15
Readiness Light . . . . . . . . . . . . . . 5-14
Servicing Airbag-EquippedVehicles . . . . . . . . . . . . . . . . . . . . . 3-28
System Check . . . . . . . . . . . . . . . . 3-16
Alarm System Anti-theft . . . . . . . . . . . . . . . . . . . . . . 2-10
AM-FM Radio . . . . . . . . . . . . . . . . . . . 7-8
Antenna Satellite Radio . . . . . . . . . . . . . . . . 7-14
Anti-theft
Alarm System . . . . . . . . . . . . . . . . 2-10
Alarm System Messages . . . . . 5-36
Antilock Brake System (ABS) . . . . . . . . . . . . . . . . 9-32
Warning Light . . . . . . . . . . . . . . . . . 5-19 Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . 10-88
Interior . . . . . . . . . . . . . . . . . . . . . . 10-91
Assistance Program, Roadside . . . . . . . . . . . . . . . 13-7, 13-9
Audio Players . . . . . . . . . . . . . . . . . 7-14 CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Audio System Backglass Antenna . . . . . . . . . . . 7-13
Diversity Antenna System . . . . 7-14
Fixed Mast Antenna . . . . . . . . . . 7-13
Radio Reception . . . . . . . . . . . . . . 7-12
Theft-Deterrent Feature . . . . . . . . 7-2
Automatic Dimming Mirrors . . . . . . . . . . . . . . 2-13
Headlamp System . . . . . . . . . . . . . 6-3
Automatic Transmission . . . . . . . 9-26 Fluid . . . . . . . . . . . . . . . . . . . . . . . . 10-14
Manual Mode . . . . . . . . . . . . . . . . . 9-29
Shift Lock ControlFunction Check . . . . . . . . . . . 10-32
Auxiliary Devices . . . . . . . . . . . . . . 7-16

Black plate (4,1)Chevrolet Camaro Owner Manual (Include Mex) - 2012
i-4 INDEX
E
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . 9-54
Electrical System Engine CompartmentFuse Block . . . . . . . . . . . . . . . . 10-40
Fuses and Circuit
Breakers . . . . . . . . . . . . . . . . . . 10-40
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . 10-43
Overload . . . . . . . . . . . . . . . . . . . 10-39
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . 10-45
Emergency, OnStar
®. . . . . . . . . . 14-2
Engine Air Cleaner/Filter . . . . . . . . . . . 10-16
Check and Service Engine
Soon Light . . . . . . . . . . . . . . . . . . 5-16
Compartment Overview . . . . . . . 10-6
Coolant . . . . . . . . . . . . . . . . . . . . . 10-19
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 5-11
Cooling System . . . . . . . . . . . . . 10-18
Cooling System Messages . . . 5-33
Cover . . . . . . . . . . . . . . . . . . . . . . . 10-10
Drive Belt Routing . . . . . . . . . . . . 12-4 Engine (cont.)
Exhaust . . . . . . . . . . . . . . . . . . . . . . 9-25
Heater . . . . . . . . . . . . . . . . . . . . . . . . 9-20
Oil Pressure Gauge . . . . . . . . . . . 5-9
Overheating . . . . . . . . . . . . . . . . 10-24
Power Messages . . . . . . . . . . . . . 5-34
Pressure Light . . . . . . . . . . . . . . . . 5-22
Running While Parked . . . . . . . . 9-26
Starting . . . . . . . . . . . . . . . . . . . . . . . 9-19
Engine Oil Life System . . . . . . . . . . . . . . . . . 10-13
Messages . . . . . . . . . . . . . . . . . . . . 5-34
Temperature Gauge . . . . . . . . . . 5-10
Entry Lighting . . . . . . . . . . . . . . . . . . . 6-6
Equipment, Towing . . . . . . . . . . . . 9-54
Event Data Recorders . . . . . . . . 13-19
Extender, Safety Belt . . . . . . . . . . 3-14
Exterior Lamp Controls . . . . . . . . . 6-1
F
Filter,
Engine Air Cleaner . . . . . . . . . 10-16
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 6-2
Flashers, Hazard Warning . . . . . . 6-4
Flat Tire . . . . . . . . . . . . . . . . . . . . . . 10-68 Changing . . . . . . . . . . . . . . . . . . . 10-76 Floor Mats . . . . . . . . . . . . . . . . . . . . 10-93
Fluid
Automatic Transmission . . . . 10-14
Brakes . . . . . . . . . . . . . . . . . . . . . . 10-29
Power Steering . . . . . . . . . . . . . 10-26
Washer . . . . . . . . . . . . . . . . . . . . . 10-27
Fog Lamps
Bulb Replacement . . . . . . . . . . 10-37
Front . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . 3-3
Heated . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-44 Additives . . . . . . . . . . . . . . . . . . . . . 9-45
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 9-48
Filling the Tank . . . . . . . . . . . . . . . 9-46
Fuels in Foreign Countries . . . . 9-45
Gasoline Specifications . . . . . . . 9-45
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Management, Active . . . . . . . . . . 9-25
Recommended . . . . . . . . . . . . . . . 9-44
Requirements, California . . . . . 9-45
System Messages . . . . . . . . . . . . 5-34
