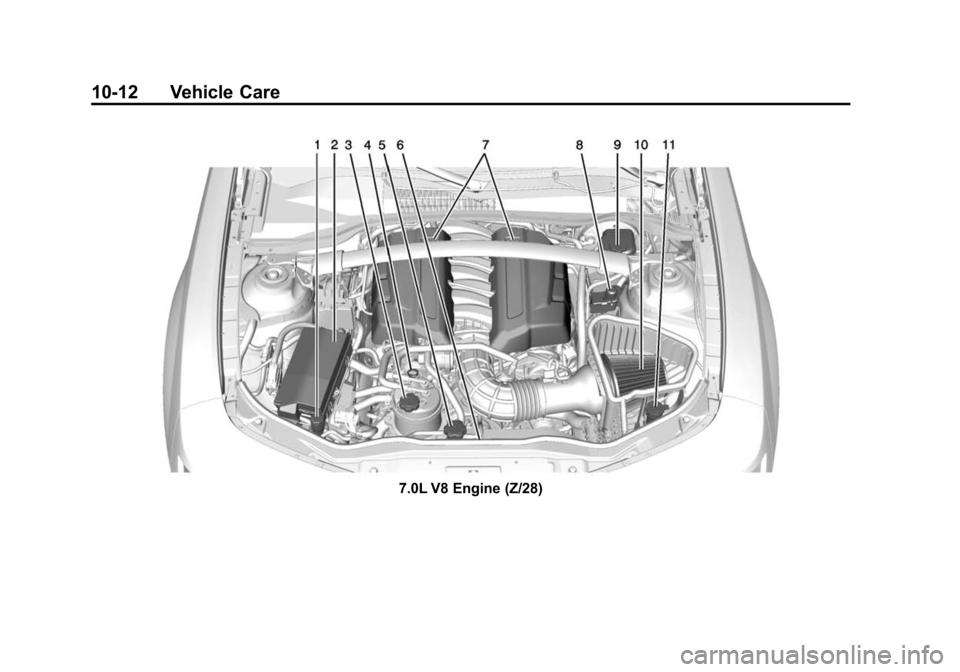

1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Radiator Fill Cap. See Engine
Coolant on page 10-30.
7. Intercooler Fill Cap (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 8. Engine Cooling Fans (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29.
9. Engine Air Cleaner/Filter (Except
ZL1 and Z/28) on page 10-22 or
Engine Air Cleaner/Filter (ZL1
Only) on page 10-23 orEngine
Air Cleaner/Filter (Z/28 Only) on
page 10-24.
10. Remote Positive (+) Terminal. SeeBattery on page 10-41. 11. Brake Fluid and Hydraulic
Clutch Reservoir (If Equipped
with Manual Transmission).
SeeBrakes on page 10-38 or
Hydraulic Clutch on
page 10-21.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.

Black plate (12,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-12 Vehicle Care
7.0L V8 Engine (Z/28)

Black plate (13,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-13
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Reservoir and Oil Fill Cap. See Engine Oil on
page 10-15.
4. Engine Oil Dipstick. See Engine
Oil on page 10-15.
5. Radiator Fill Cap. See Engine
Coolant on page 10-30.
6. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 7.
Engine Cover on page 10-13.
8. Remote Positive (+) Terminal. See Battery on page 10-41.
9. Brake Fluid and Hydraulic Clutch Reservoir. See Brakes on
page 10-38 orHydraulic Clutch
on page 10-21.
10. Engine Air Cleaner/Filter
(Except ZL1 and Z/28) on
page 10-22 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
11. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.Engine Cover

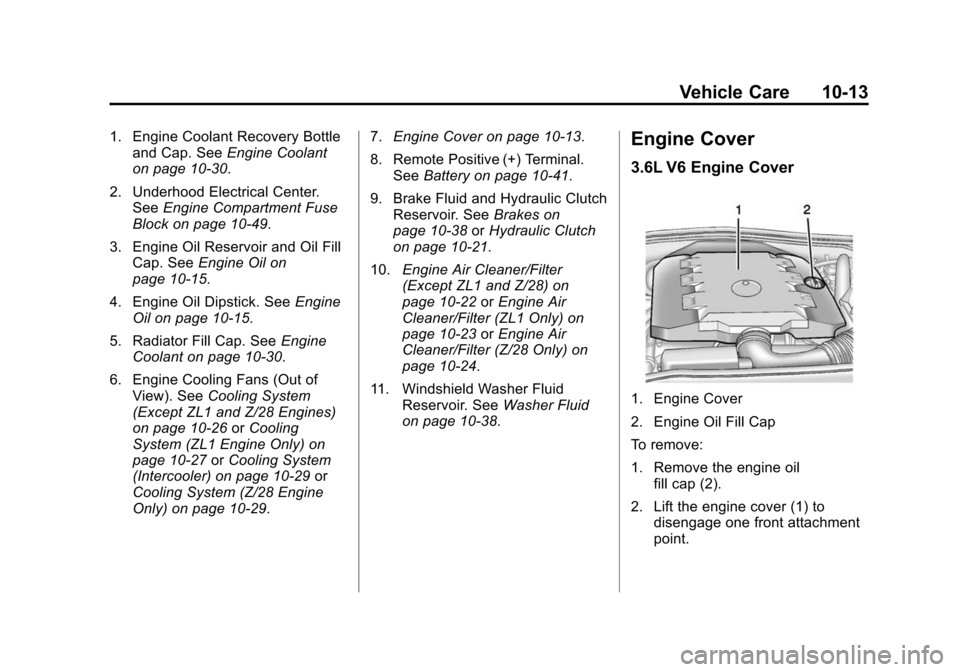

3.6L V6 Engine Cover
1. Engine Cover
2. Engine Oil Fill Cap
To remove:
1. Remove the engine oil
fill cap (2).
2. Lift the engine cover (1) to disengage one front attachment
point.

Black plate (14,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-14 Vehicle Care
3. Pull the engine cover forward todisengage it from the two
rear tabs.
4. Reverse Steps 1–3 to reinstall the engine cover.

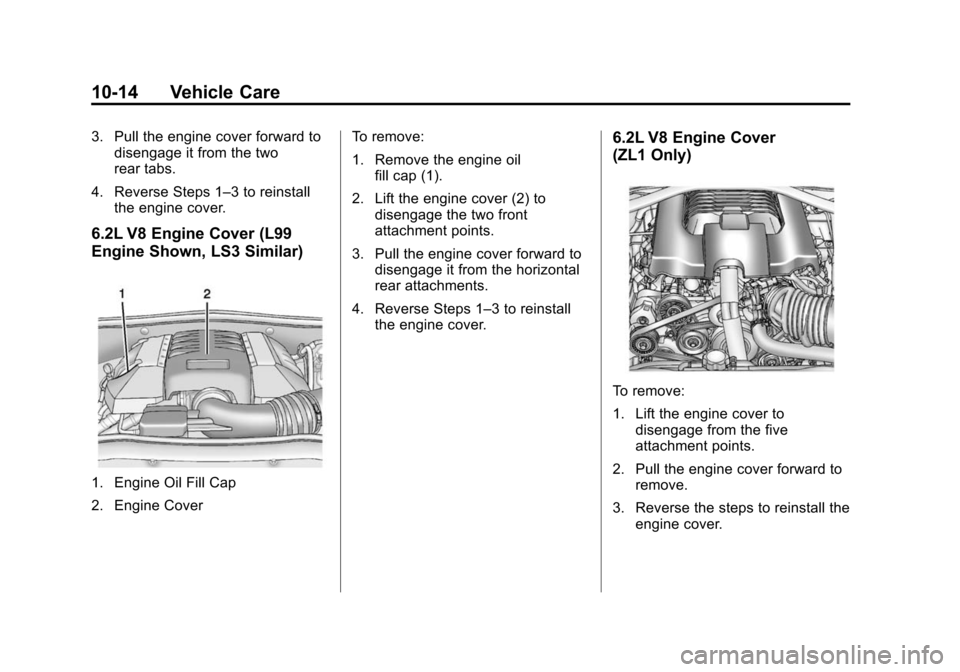

6.2L V8 Engine Cover (L99
Engine Shown, LS3 Similar)
1. Engine Oil Fill Cap
2. Engine Cover To remove:
1. Remove the engine oil
fill cap (1).
2. Lift the engine cover (2) to disengage the two front
attachment points.
3. Pull the engine cover forward to disengage it from the horizontal
rear attachments.
4. Reverse Steps 1–3 to reinstall the engine cover.
6.2L V8 Engine Cover
(ZL1 Only)
To remove:
1. Lift the engine cover todisengage from the five
attachment points.
2. Pull the engine cover forward to remove.
3. Reverse the steps to reinstall the engine cover.

Black plate (15,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-15
7.0L V8 Engine (Z/28)

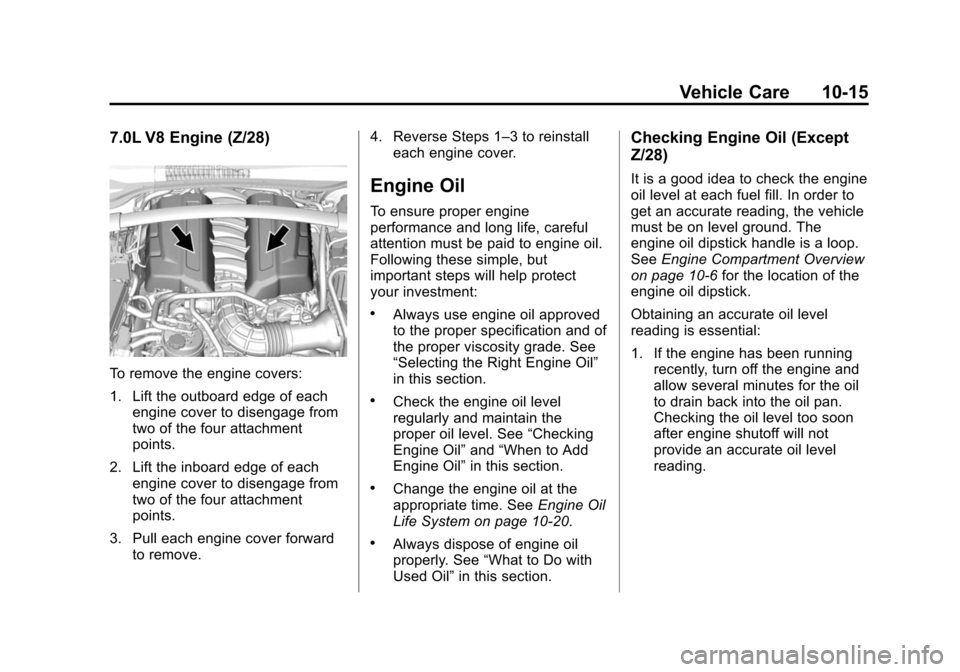

To remove the engine covers:
1. Lift the outboard edge of eachengine cover to disengage from
two of the four attachment
points.
2. Lift the inboard edge of each engine cover to disengage from
two of the four attachment
points.
3. Pull each engine cover forward to remove. 4. Reverse Steps 1–3 to reinstall
each engine cover.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.Always use engine oil approved
to the proper specification and of
the proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
.Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
.Change the engine oil at the
appropriate time. See Engine Oil
Life System on page 10-20.
.Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil (Except
Z/28)
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the vehicle
must be on level ground. The
engine oil dipstick handle is a loop.
SeeEngine Compartment Overview
on page 10-6 for the location of the
engine oil dipstick.
Obtaining an accurate oil level
reading is essential:
1. If the engine has been running recently, turn off the engine and
allow several minutes for the oil
to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.

Black plate (16,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-16 Vehicle Care
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
2. Pull out the dipstick and clean it with a paper towel or cloth, then
push it back in all the way.
Remove it again, keeping the tip
down, and check the level.
When to Add Engine Oil
(Except Z/28)

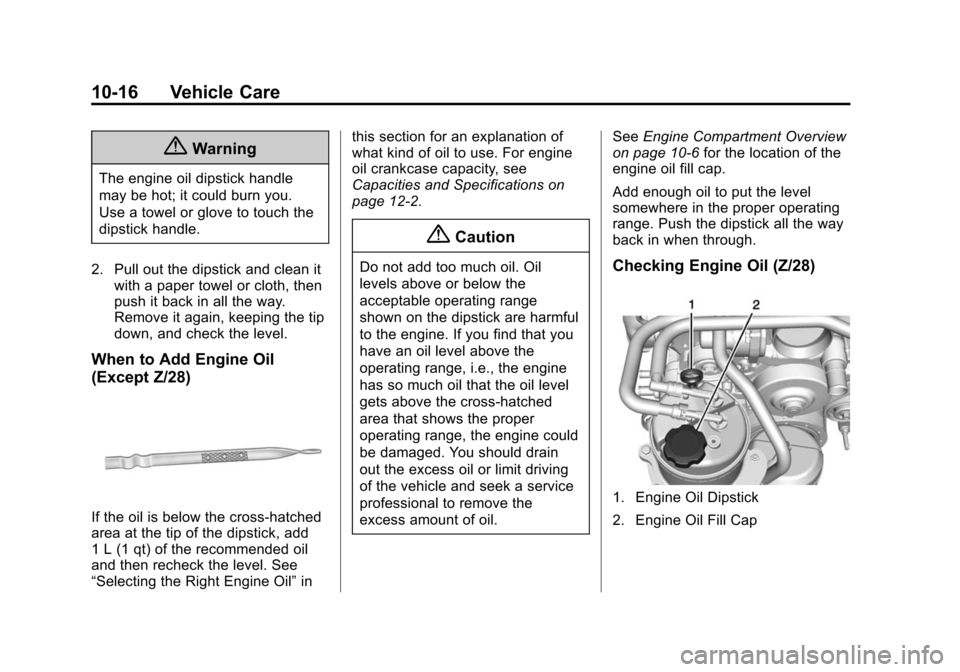

If the oil is below the cross-hatched
area at the tip of the dipstick, add
1 L (1 qt) of the recommended oil
and then recheck the level. See
“Selecting the Right Engine Oil” inthis section for an explanation of
what kind of oil to use. For engine
oil crankcase capacity, see
Capacities and Specifications on
page 12-2.
{Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See
Engine Compartment Overview
on page 10-6 for the location of the
engine oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.Checking Engine Oil (Z/28)
1. Engine Oil Dipstick
2. Engine Oil Fill Cap

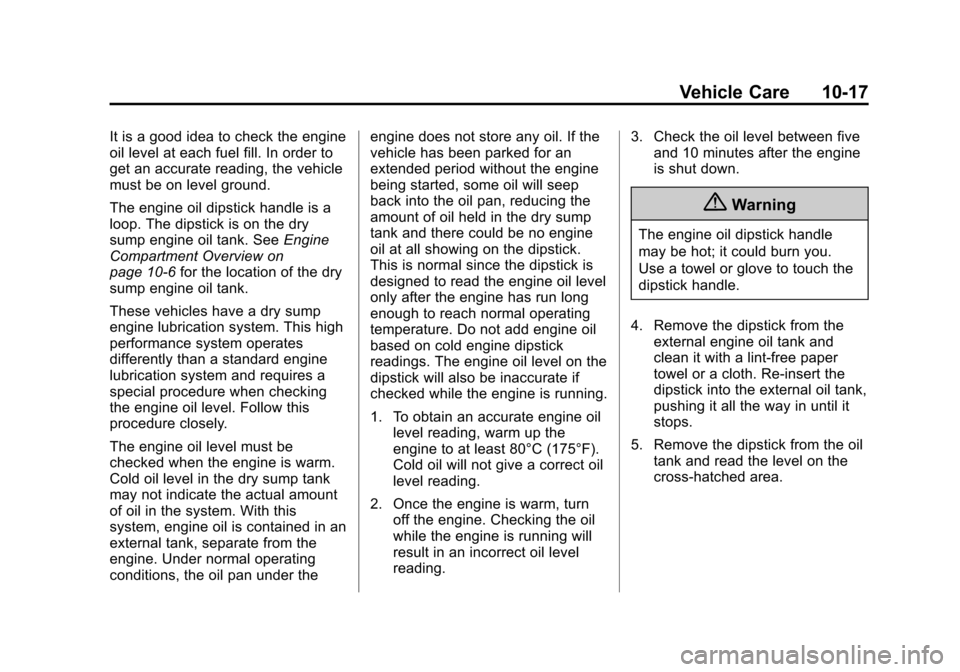

Black plate (17,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-17
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the vehicle
must be on level ground.
The engine oil dipstick handle is a
loop. The dipstick is on the dry
sump engine oil tank. SeeEngine
Compartment Overview on
page 10-6 for the location of the dry
sump engine oil tank.
These vehicles have a dry sump
engine lubrication system. This high
performance system operates
differently than a standard engine
lubrication system and requires a
special procedure when checking
the engine oil level. Follow this
procedure closely.
The engine oil level must be
checked when the engine is warm.
Cold oil level in the dry sump tank
may not indicate the actual amount
of oil in the system. With this
system, engine oil is contained in an
external tank, separate from the
engine. Under normal operating
conditions, the oil pan under the engine does not store any oil. If the
vehicle has been parked for an
extended period without the engine
being started, some oil will seep
back into the oil pan, reducing the
amount of oil held in the dry sump
tank and there could be no engine
oil at all showing on the dipstick.
This is normal since the dipstick is
designed to read the engine oil level
only after the engine has run long
enough to reach normal operating
temperature. Do not add engine oil
based on cold engine dipstick
readings. The engine oil level on the
dipstick will also be inaccurate if
checked while the engine is running.
1. To obtain an accurate engine oil
level reading, warm up the
engine to at least 80°C (175°F).
Cold oil will not give a correct oil
level reading.
2. Once the engine is warm, turn off the engine. Checking the oil
while the engine is running will
result in an incorrect oil level
reading. 3. Check the oil level between five
and 10 minutes after the engine
is shut down.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
4. Remove the dipstick from the external engine oil tank and
clean it with a lint-free paper
towel or a cloth. Re-insert the
dipstick into the external oil tank,
pushing it all the way in until it
stops.
5. Remove the dipstick from the oil tank and read the level on the
cross-hatched area.

Black plate (18,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-18 Vehicle Care

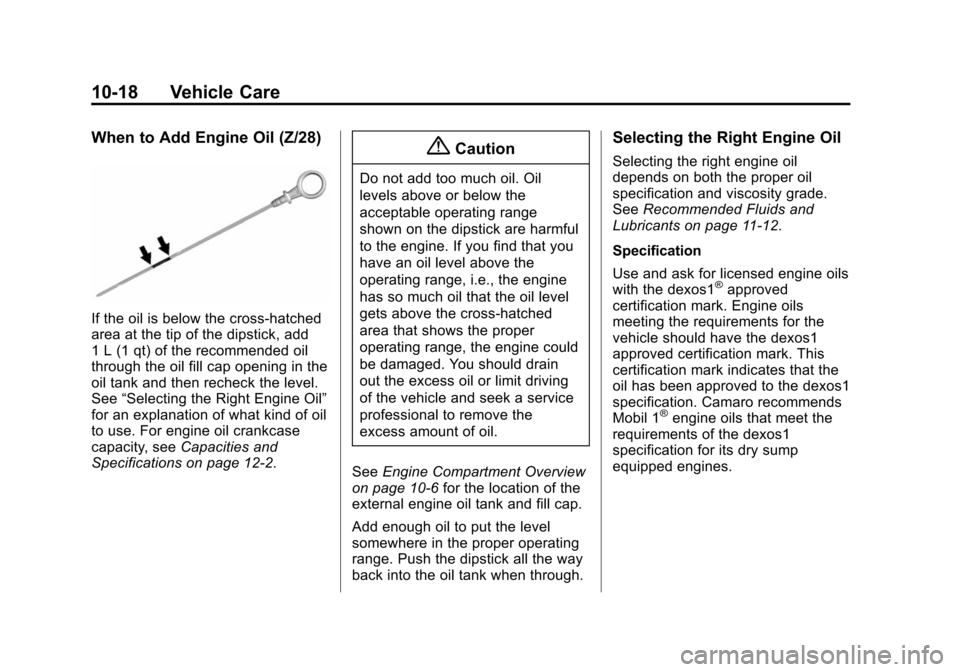

When to Add Engine Oil (Z/28)
If the oil is below the cross-hatched
area at the tip of the dipstick, add
1 L (1 qt) of the recommended oil
through the oil fill cap opening in the
oil tank and then recheck the level.
See“Selecting the Right Engine Oil”
for an explanation of what kind of oil
to use. For engine oil crankcase
capacity, see Capacities and
Specifications on page 12-2.
{Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See Engine Compartment Overview
on page 10-6 for the location of the
external engine oil tank and fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back into the oil tank when through.
Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and viscosity grade.
See Recommended Fluids and
Lubricants on page 11-12.
Specification
Use and ask for licensed engine oils
with the dexos1
®approved
certification mark. Engine oils
meeting the requirements for the
vehicle should have the dexos1
approved certification mark. This
certification mark indicates that the
oil has been approved to the dexos1
specification. Camaro recommends
Mobil 1
®engine oils that meet the
requirements of the dexos1
specification for its dry sump
equipped engines.

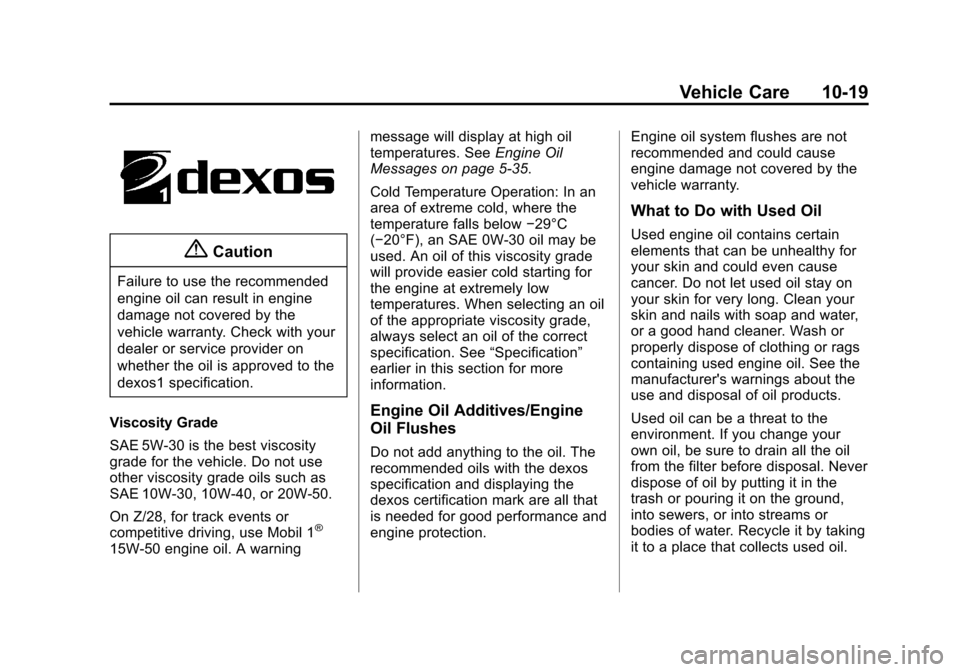

Black plate (19,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-19
{Caution
Failure to use the recommended
engine oil can result in engine
damage not covered by the
vehicle warranty. Check with your
dealer or service provider on
whether the oil is approved to the
dexos1 specification.
Viscosity Grade
SAE 5W-30 is the best viscosity
grade for the vehicle. Do not use
other viscosity grade oils such as
SAE 10W-30, 10W-40, or 20W-50.
On Z/28, for track events or
competitive driving, use Mobil 1
®
15W-50 engine oil. A warning message will display at high oil
temperatures. See
Engine Oil
Messages on page 5-35.
Cold Temperature Operation: In an
area of extreme cold, where the
temperature falls below −29°C
(−20°F), an SAE 0W-30 oil may be
used. An oil of this viscosity grade
will provide easier cold starting for
the engine at extremely low
temperatures. When selecting an oil
of the appropriate viscosity grade,
always select an oil of the correct
specification. See “Specification”
earlier in this section for more
information.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. The
recommended oils with the dexos
specification and displaying the
dexos certification mark are all that
is needed for good performance and
engine protection. Engine oil system flushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer's warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your
own oil, be sure to drain all the oil
from the filter before disposal. Never
dispose of oil by putting it in the
trash or pouring it on the ground,
into sewers, or into streams or
bodies of water. Recycle it by taking
it to a place that collects used oil.

Black plate (20,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-20 Vehicle Care

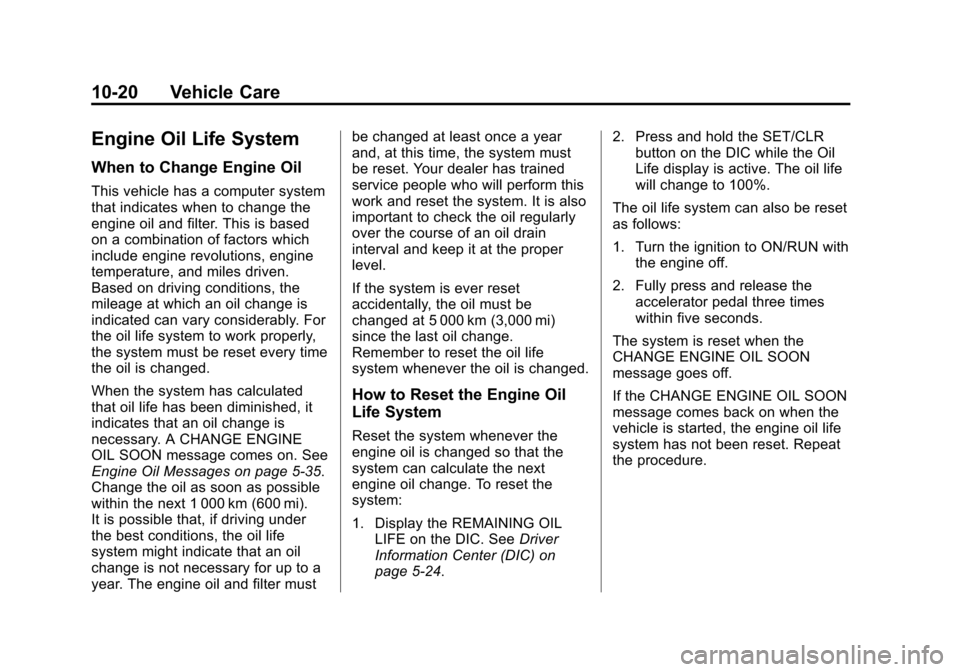

Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system
that indicates when to change the
engine oil and filter. This is based
on a combination of factors which
include engine revolutions, engine
temperature, and miles driven.
Based on driving conditions, the
mileage at which an oil change is
indicated can vary considerably. For
the oil life system to work properly,
the system must be reset every time
the oil is changed.
When the system has calculated
that oil life has been diminished, it
indicates that an oil change is
necessary. A CHANGE ENGINE
OIL SOON message comes on. See
Engine Oil Messages on page 5-35.
Change the oil as soon as possible
within the next 1 000 km (600 mi).
It is possible that, if driving under
the best conditions, the oil life
system might indicate that an oil
change is not necessary for up to a
year. The engine oil and filter mustbe changed at least once a year
and, at this time, the system must
be reset. Your dealer has trained
service people who will perform this
work and reset the system. It is also
important to check the oil regularly
over the course of an oil drain
interval and keep it at the proper
level.
If the system is ever reset
accidentally, the oil must be
changed at 5 000 km (3,000 mi)
since the last oil change.
Remember to reset the oil life
system whenever the oil is changed.
How to Reset the Engine Oil
Life System
Reset the system whenever the
engine oil is changed so that the
system can calculate the next
engine oil change. To reset the
system:
1. Display the REMAINING OIL
LIFE on the DIC. See Driver
Information Center (DIC) on
page 5-24. 2. Press and hold the SET/CLR
button on the DIC while the Oil
Life display is active. The oil life
will change to 100%.
The oil life system can also be reset
as follows:
1. Turn the ignition to ON/RUN with the engine off.
2. Fully press and release the accelerator pedal three times
within five seconds.
The system is reset when the
CHANGE ENGINE OIL SOON
message goes off.
If the CHANGE ENGINE OIL SOON
message comes back on when the
vehicle is started, the engine oil life
system has not been reset. Repeat
the procedure.
