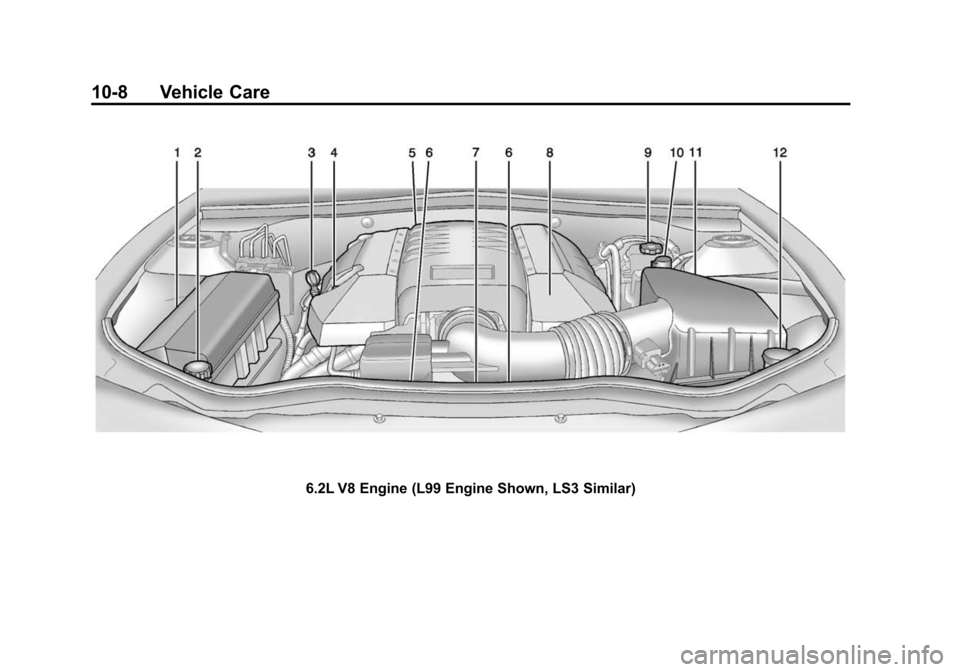

6.2L V8 Engine (L99 Engine Shown, LS3 Similar)

Black plate (9,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-9
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13. 6. Engine Cooling Fans (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29.
7. Radiator Fill Cap (Out of View). See Engine Coolant on
page 10-30.
8. Power Steering Reservoir and Cap (Under Engine Cover) (if
equipped). See Power Steering
Fluid (L99, LS3, ZL1 and Z/28)
on page 10-36 orPower
Steering Fluid (LFX) on
page 10-36. 9. Brake Fluid and Hydraulic Clutch
Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21.
10. Remote Positive (+) Terminal. SeeBattery on page 10-40.
11. Engine Air Cleaner/Filter
(Except ZL1 and Z/28)) on
page 10-21 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-37.

Black plate (10,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-10 Vehicle Care

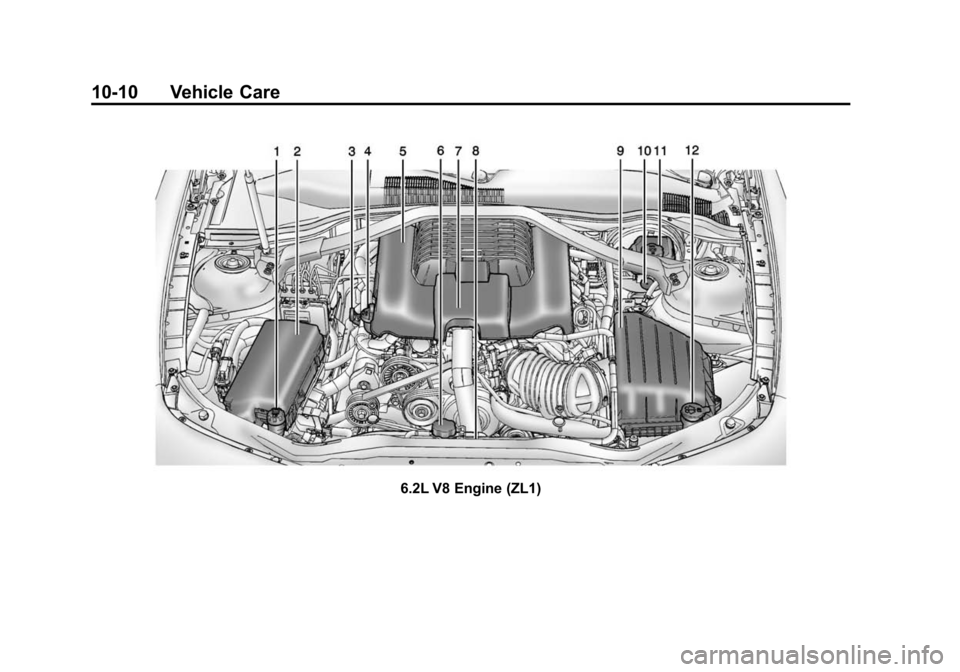

6.2L V8 Engine (ZL1)

Black plate (11,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-11
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Radiator Fill Cap. See Engine
Coolant on page 10-30. 7. Intercooler Fill Cap (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29.
8. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29. 9.
Engine Air Cleaner/Filter (Except
ZL1 and Z/28)) on page 10-21 or
Engine Air Cleaner/Filter (ZL1
Only) on page 10-23 orEngine
Air Cleaner/Filter (Z/28 Only) on
page 10-24.
10. Remote Positive (+) Terminal. SeeBattery on page 10-40.
11. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped
with Manual Transmission).
SeeBrakes on page 10-38 or
Hydraulic Clutch on
page 10-21.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-37.

Black plate (12,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-12 Vehicle Care

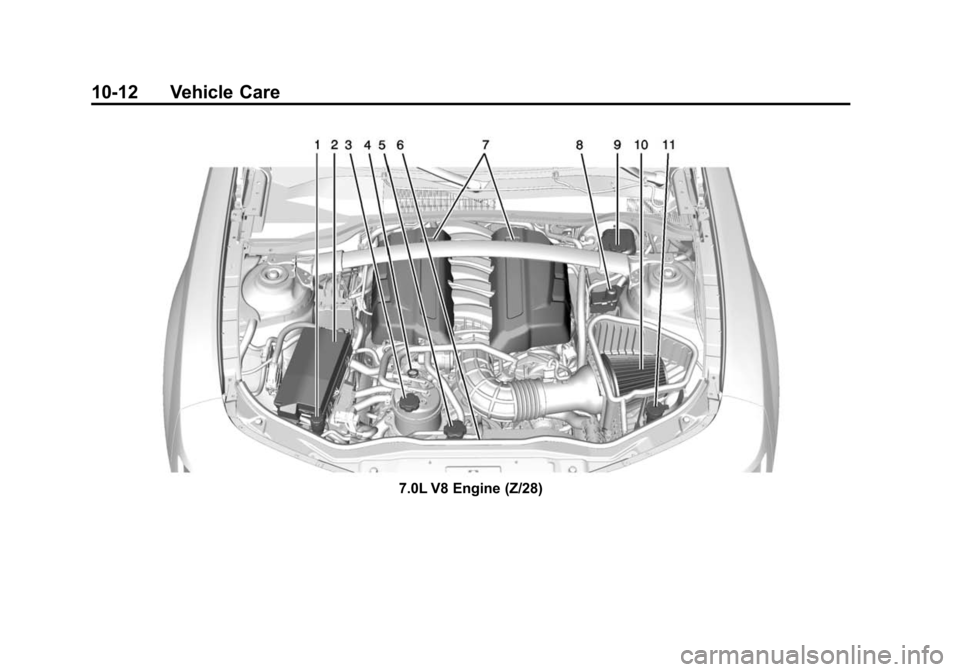

7.0L V8 Engine (Z/28)

Black plate (13,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-13
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Reservoir and Oil Fill Cap. See Engine Oil on
page 10-15.
4. Engine Oil Dipstick. See Engine
Oil on page 10-15.
5. Radiator Fill Cap. See Engine
Coolant on page 10-30.
6. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29.
7. Engine Cover on page 10-13.
8. Remote Positive (+) Terminal. See Battery on page 10-40. 9. Brake Fluid and Hydraulic Clutch
Reservoir. See Brakes on
page 10-38 orHydraulic Clutch
on page 10-21.
10. Engine Air Cleaner/Filter
(Except ZL1 and Z/28)) on
page 10-21 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
11. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-37.Engine Cover

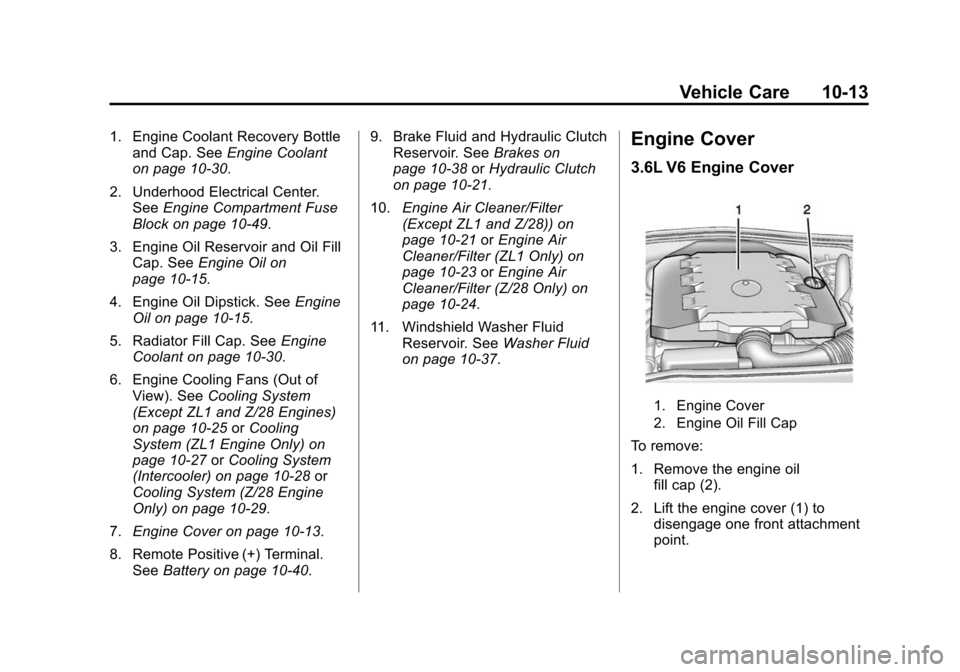

3.6L V6 Engine Cover
1. Engine Cover
2. Engine Oil Fill Cap
To remove:
1. Remove the engine oil fill cap (2).
2. Lift the engine cover (1) to disengage one front attachment
point.

Black plate (14,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-14 Vehicle Care
3. Pull the engine cover forward todisengage it from the two
rear tabs.
4. Reverse Steps 1–3 to reinstall the engine cover.

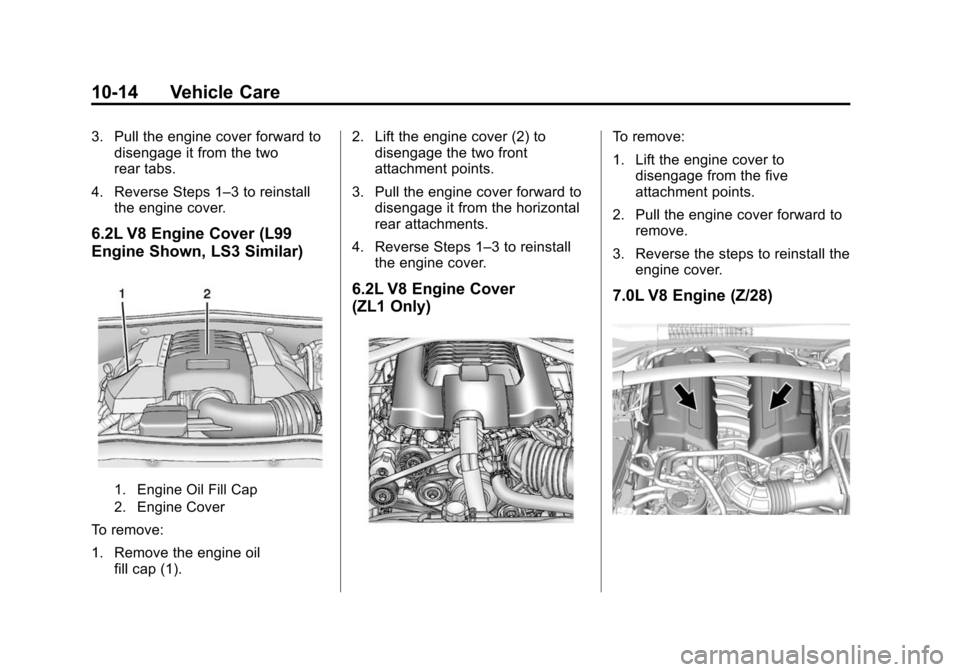

6.2L V8 Engine Cover (L99
Engine Shown, LS3 Similar)
1. Engine Oil Fill Cap
2. Engine Cover
To remove:
1. Remove the engine oilfill cap (1). 2. Lift the engine cover (2) to
disengage the two front
attachment points.
3. Pull the engine cover forward to disengage it from the horizontal
rear attachments.
4. Reverse Steps 1–3 to reinstall the engine cover.
6.2L V8 Engine Cover
(ZL1 Only)
To remove:
1. Lift the engine cover todisengage from the five
attachment points.
2. Pull the engine cover forward to remove.
3. Reverse the steps to reinstall the engine cover.
7.0L V8 Engine (Z/28)

Black plate (15,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-15

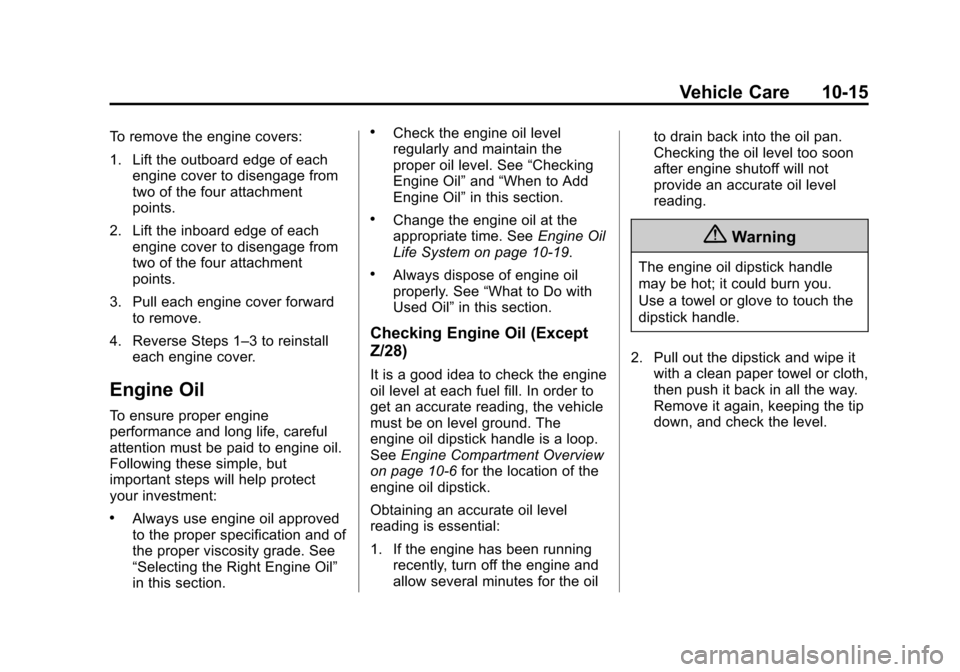

To remove the engine covers:
1. Lift the outboard edge of eachengine cover to disengage from
two of the four attachment
points.
2. Lift the inboard edge of each engine cover to disengage from
two of the four attachment
points.
3. Pull each engine cover forward to remove.
4. Reverse Steps 1–3 to reinstall each engine cover.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.Always use engine oil approved
to the proper specification and of
the proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
.Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
.Change the engine oil at the
appropriate time. See Engine Oil
Life System on page 10-19.
.Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil (Except
Z/28)
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the vehicle
must be on level ground. The
engine oil dipstick handle is a loop.
SeeEngine Compartment Overview
on page 10-6 for the location of the
engine oil dipstick.
Obtaining an accurate oil level
reading is essential:
1. If the engine has been running recently, turn off the engine and
allow several minutes for the oil to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
2. Pull out the dipstick and wipe it with a clean paper towel or cloth,
then push it back in all the way.
Remove it again, keeping the tip
down, and check the level.

Black plate (16,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-16 Vehicle Care

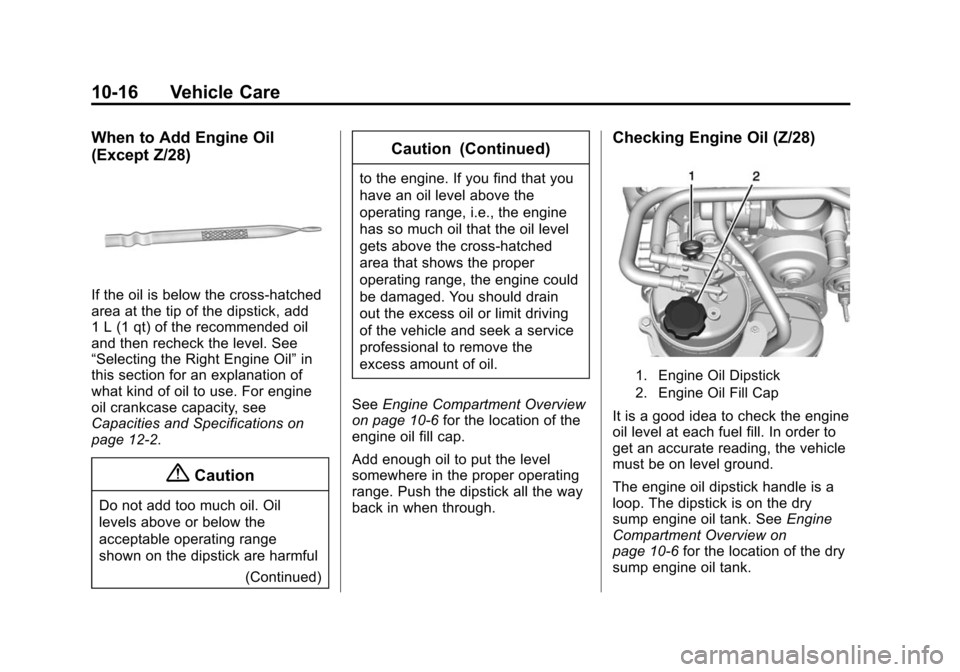

When to Add Engine Oil
(Except Z/28)
If the oil is below the cross-hatched
area at the tip of the dipstick, add
1 L (1 qt) of the recommended oil
and then recheck the level. See
“Selecting the Right Engine Oil”in
this section for an explanation of
what kind of oil to use. For engine
oil crankcase capacity, see
Capacities and Specifications on
page 12-2.
{Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are harmful
(Continued)
Caution (Continued)
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See Engine Compartment Overview
on page 10-6 for the location of the
engine oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.
Checking Engine Oil (Z/28)
1. Engine Oil Dipstick
2. Engine Oil Fill Cap
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the vehicle
must be on level ground.
The engine oil dipstick handle is a
loop. The dipstick is on the dry
sump engine oil tank. See Engine
Compartment Overview on
page 10-6 for the location of the dry
sump engine oil tank.

Black plate (17,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-17

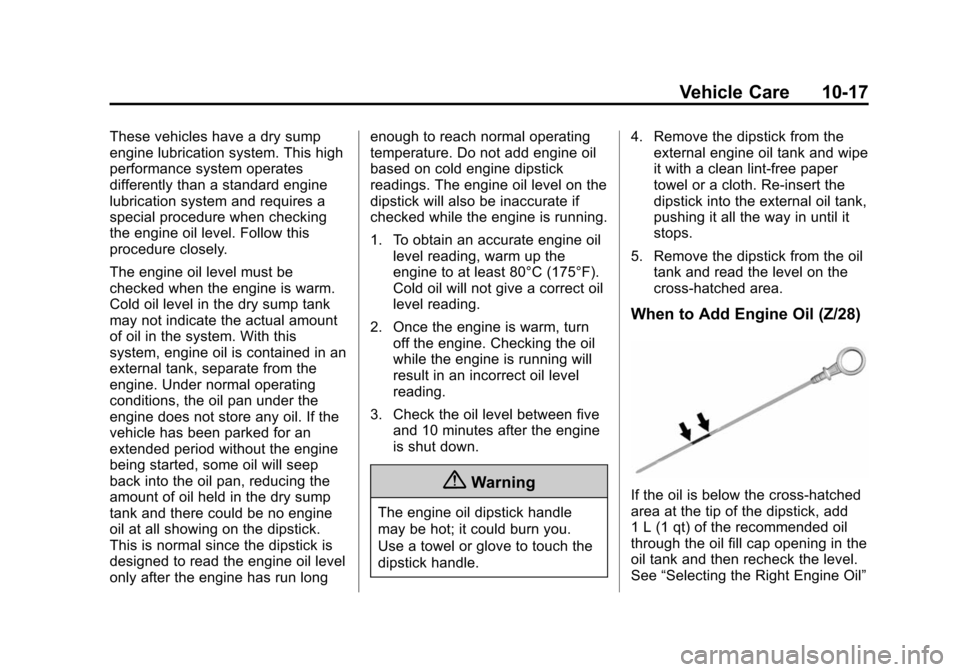

These vehicles have a dry sump
engine lubrication system. This high
performance system operates
differently than a standard engine
lubrication system and requires a
special procedure when checking
the engine oil level. Follow this
procedure closely.
The engine oil level must be
checked when the engine is warm.
Cold oil level in the dry sump tank
may not indicate the actual amount
of oil in the system. With this
system, engine oil is contained in an
external tank, separate from the
engine. Under normal operating
conditions, the oil pan under the
engine does not store any oil. If the
vehicle has been parked for an
extended period without the engine
being started, some oil will seep
back into the oil pan, reducing the
amount of oil held in the dry sump
tank and there could be no engine
oil at all showing on the dipstick.
This is normal since the dipstick is
designed to read the engine oil level
only after the engine has run longenough to reach normal operating
temperature. Do not add engine oil
based on cold engine dipstick
readings. The engine oil level on the
dipstick will also be inaccurate if
checked while the engine is running.
1. To obtain an accurate engine oil
level reading, warm up the
engine to at least 80°C (175°F).
Cold oil will not give a correct oil
level reading.
2. Once the engine is warm, turn off the engine. Checking the oil
while the engine is running will
result in an incorrect oil level
reading.
3. Check the oil level between five and 10 minutes after the engine
is shut down.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle. 4. Remove the dipstick from the
external engine oil tank and wipe
it with a clean lint-free paper
towel or a cloth. Re-insert the
dipstick into the external oil tank,
pushing it all the way in until it
stops.
5. Remove the dipstick from the oil tank and read the level on the
cross-hatched area.
When to Add Engine Oil (Z/28)
If the oil is below the cross-hatched
area at the tip of the dipstick, add
1 L (1 qt) of the recommended oil
through the oil fill cap opening in the
oil tank and then recheck the level.
See “Selecting the Right Engine Oil”
