CHEVROLET CAMARO 2021 High Performence

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20

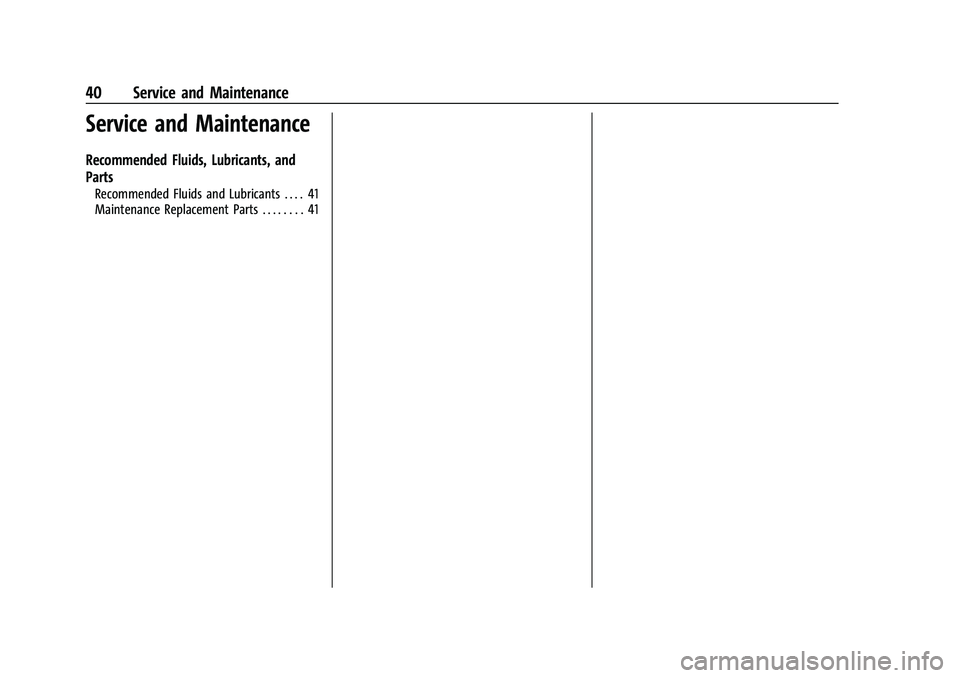

40 Service and Maintenance
Service and Maintenance
Recommended Fluids, Lubricants, and
Parts
Recommended Fluids and Lubricants . . . . 41
Maintenance Replacement Parts . . . . . . . . 41

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Service and Maintenance 41
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
The following fluid applies to the Camaro ZL1 only. For other fluids not listed here, see“Recommended Fluids and Lubricants”in the owner’s
manual.
Fluids and lubricants identified below by name or specification, including fluids or lubricants not listed here, can be obtained from your dealer.
Usage Fluid/Lubricant
Automatic Transmission (10 Speed) DEXRON ULV Automatic Transmission Fluid.
Manual Transmission (6 Speed) See your dealer.
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Oil Filter 12640445 PF64
Spark Plugs 12642722 41-128

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
42 Technical Data
Technical Data
Vehicle Data
Capacities and Specifications . . . . . . . . . . . 43
Engine Drive Belt Routing . . . . . . . . . . . . . . 45

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Technical Data 43
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
The below values are for ZL1 (LT4 engine) vehicles only. For capacities and specifications for 1LE vehicles, see the owner's manual.Application Capacities
Metric English
Engine Cooling System*
I6.2L V8 Engine (LT4) 10.4 L
11.0 qt
I6.2L V8 Engine Low Temperature Radiator (LT4) 2.0 L
2.1 qt
Engine Oil with Filter 9.5 L10.0 qt
Rear Axle Fluid (ZL1 Convertible Only) 1.1 L1.2 qt
Rear Axle Fluid (Coupe Only with eLSD) 1.5 L1.6 qt
eLSD Clutch System Hydraulic Actuation Fluid (ZL1 and SS with the 1LE
package) 160 ml
5.4 oz
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling
*Engine cooling system capacity values are based on the entire cooling system and its components.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
44 Technical Data
Engine Specifications
EngineVIN Code Transmission Spark Plug GapFiring Order
6.2L V8 Engine (LT4) 6Automatic
Manual 0.725–0.875 mm (0.029–
0.034 in) 1–8–7–2–6–5–4–3
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug.
Engine Data
Engine Horsepower TorqueDisplacement Compression Ratio
6.2L V8 Engine (LT4) 650650 lb ft 6.2L10.0:1

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Technical Data 45
Engine Drive Belt Routing
6.2L V8 Engine (LT4)

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20

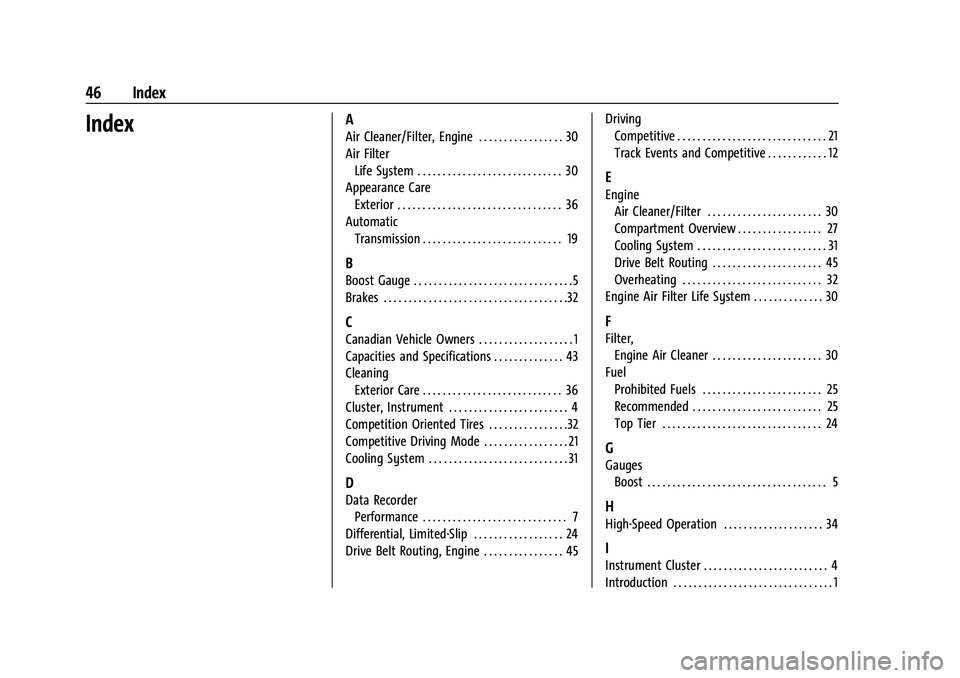

46 Index
IndexA
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . 30
Air FilterLife System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Automatic Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
B
Boost Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
C
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . . 43
CleaningExterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . . 4
Competition Oriented Tires . . . . . . . . . . . . . . . .32
Competitive Driving Mode . . . . . . . . . . . . . . . . . 21
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
D
Data Recorder Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Differential, Limited-Slip . . . . . . . . . . . . . . . . . . 24
Drive Belt Routing, Engine . . . . . . . . . . . . . . . . 45 Driving
Competitive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Track Events and Competitive . . . . . . . . . . . . 12
E
EngineAir Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . . 30
Compartment Overview . . . . . . . . . . . . . . . . . 27
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . . 45
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Engine Air Filter Life System . . . . . . . . . . . . . . 30
F
Filter,
Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . . 30
Fuel
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . 25
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
G
GaugesBoost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
H
High-Speed Operation . . . . . . . . . . . . . . . . . . . . 34
I
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Index 47
L
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Limited-Slip Differential . . . . . . . . . . . . . . . . . . . 24
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . . . . . . . .32
M
Maintenance ScheduleRecommended Fluids and Lubricants . . . . 41
O
OilEngine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . . .32
P
Performance Data Recorder (PDR) . . . . . . . . . . .7
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . . .25
R
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recommended Fluids and Lubricants . . . . . . .41
Replacement Parts
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Ride Control Systems Enhanced Traction System (ETS) . . . . . . . . 24
Routing, Engine Drive Belt . . . . . . . . . . . . . . . . 45
S
Seat Belts
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications and Capacities . . . . . . . . . . . . . . 43
Summer Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Supplement Using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
System Engine Air Filter Life . . . . . . . . . . . . . . . . . . . . 30
T
TiresCompetition Oriented . . . . . . . . . . . . . . . . . . . 32
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Towing Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Track Events and Competitive Driving . . . . . . 12
Traction Limited-Slip Differential . . . . . . . . . . . . . . . . . 24
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
U
Using This Supplement . . . . . . . . . . . . . . . . . . . . .2
V
VehicleCanadian Owners . . . . . . . . . . . . . . . . . . . . . . . . . 1
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
