technical data CHEVROLET CAMARO 2021 High Performence

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Seats and Restraints . . . . . . . . . . . . . . . . . . . . . . 3
Instruments and Controls . . . . . . . . . . . . . . . . . 4
Infotainment System . . . . . . . . . . . . . . . . . . . . . 7
Driving and Operating . . . . . . . . . . . . . . . . . . . 12
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Service and Maintenance . . . . . . . . . . . . . . . . 40
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Introduction
The names, logos, emblems, slogans, vehicle
model names, and vehicle body designs
appearing in this manual including, but not
limited to, GM, the GM logo, CHEVROLET,
the CHEVROLET Emblem, CAMARO, and the
CAMARO Emblem are trademarks and/or
service marks of General Motors LLC, its
subsidiaries, affiliates, or licensors.
For vehicles first sold in Canada, substitute
the name“General Motors of Canada
Company” for Chevrolet Motor Division
wherever it appears in this manual.
This manual describes features that may or
may not be on the vehicle because of
optional equipment that was not purchased
on the vehicle, model variants, country
specifications, features/applications that may not be available in your region, or changes
subsequent to the printing of this owner’s
manual.
Refer to the purchase documentation
relating to your specific vehicle to confirm
the features.
Keep this manual in the vehicle for quick
reference.Canadian Vehicle Owners
A French language manual can be obtained
from your dealer, at www.helminc.com,
or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide
en français auprès du concessionnaire ou à
l'adresse suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Litho in U.S.A.
Part No. 84512287 B Second Printing©2020 General Motors LLC. All Rights Reserved.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20

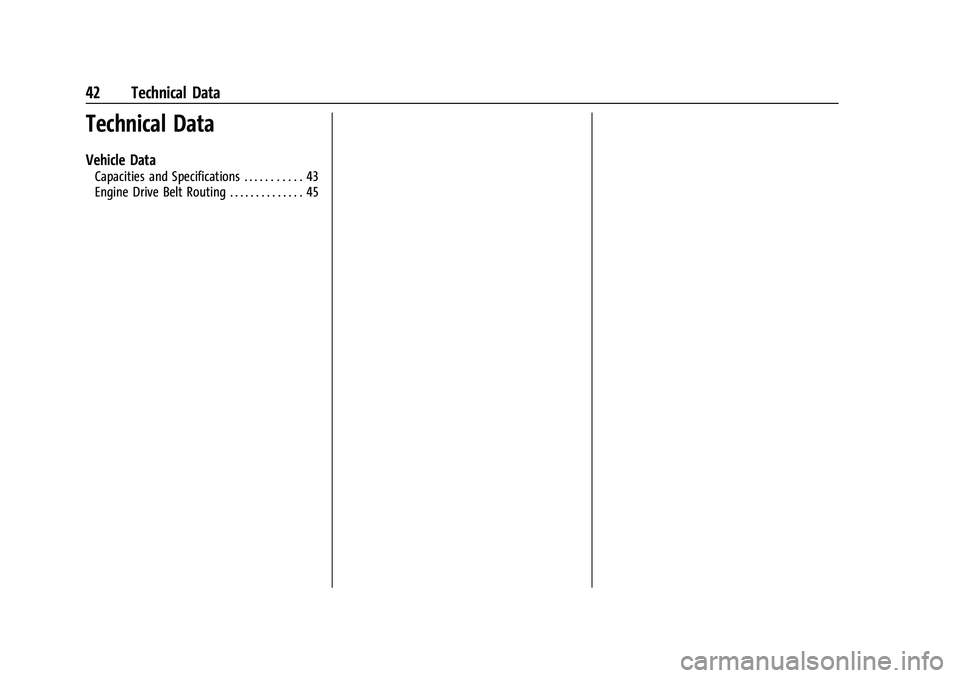

42 Technical Data
Technical Data
Vehicle Data
Capacities and Specifications . . . . . . . . . . . 43
Engine Drive Belt Routing . . . . . . . . . . . . . . 45

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20

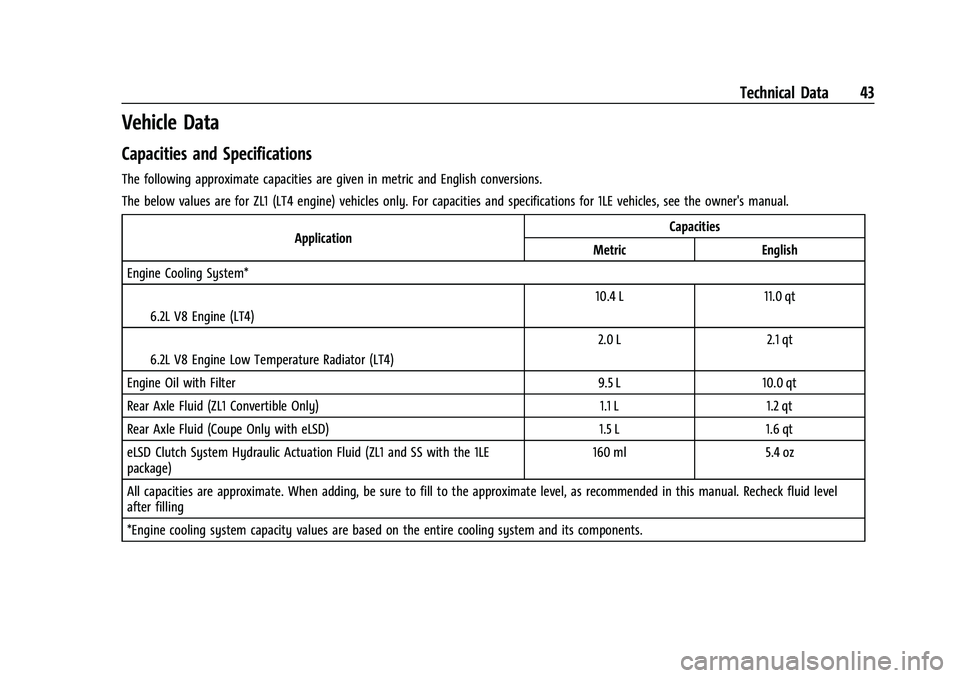

Technical Data 43
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
The below values are for ZL1 (LT4 engine) vehicles only. For capacities and specifications for 1LE vehicles, see the owner's manual.Application Capacities
Metric English
Engine Cooling System*
I6.2L V8 Engine (LT4) 10.4 L
11.0 qt
I6.2L V8 Engine Low Temperature Radiator (LT4) 2.0 L
2.1 qt
Engine Oil with Filter 9.5 L10.0 qt
Rear Axle Fluid (ZL1 Convertible Only) 1.1 L1.2 qt
Rear Axle Fluid (Coupe Only with eLSD) 1.5 L1.6 qt
eLSD Clutch System Hydraulic Actuation Fluid (ZL1 and SS with the 1LE
package) 160 ml
5.4 oz
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling
*Engine cooling system capacity values are based on the entire cooling system and its components.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20

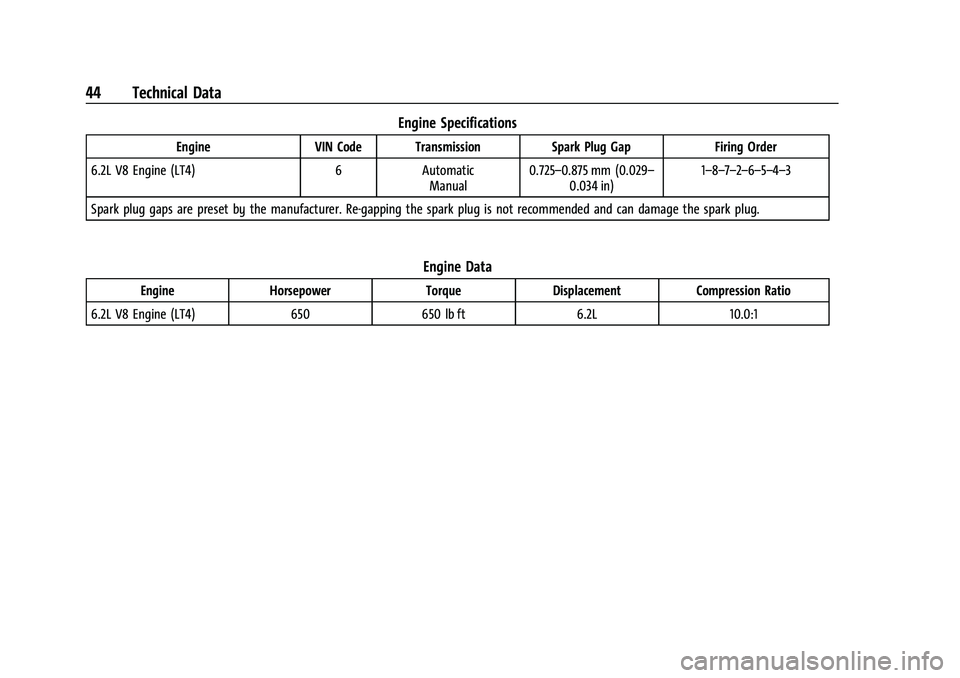

44 Technical Data
Engine Specifications
EngineVIN Code Transmission Spark Plug GapFiring Order
6.2L V8 Engine (LT4) 6Automatic
Manual 0.725–0.875 mm (0.029–
0.034 in) 1–8–7–2–6–5–4–3
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug.
Engine Data
Engine Horsepower TorqueDisplacement Compression Ratio
6.2L V8 Engine (LT4) 650650 lb ft 6.2L10.0:1

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Technical Data 45

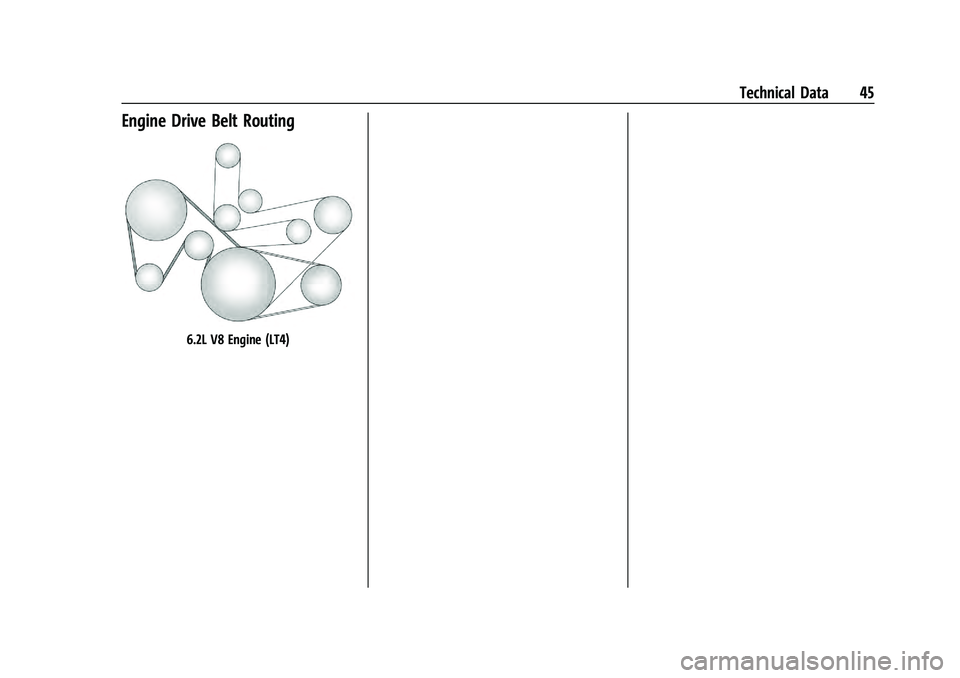

Engine Drive Belt Routing
6.2L V8 Engine (LT4)
