Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22

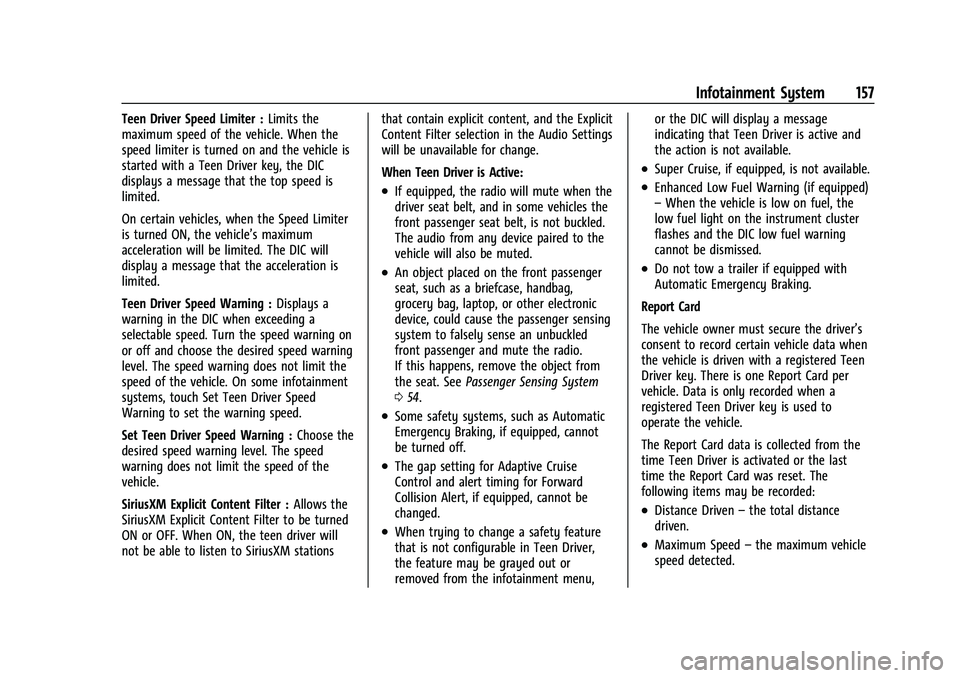

Infotainment System 157
Teen Driver Speed Limiter :Limits the
maximum speed of the vehicle. When the
speed limiter is turned on and the vehicle is
started with a Teen Driver key, the DIC
displays a message that the top speed is
limited.
On certain vehicles, when the Speed Limiter
is turned ON, the vehicle’s maximum
acceleration will be limited. The DIC will
display a message that the acceleration is
limited.
Teen Driver Speed Warning : Displays a
warning in the DIC when exceeding a
selectable speed. Turn the speed warning on
or off and choose the desired speed warning
level. The speed warning does not limit the
speed of the vehicle. On some infotainment
systems, touch Set Teen Driver Speed
Warning to set the warning speed.
Set Teen Driver Speed Warning : Choose the
desired speed warning level. The speed
warning does not limit the speed of the
vehicle.
SiriusXM Explicit Content Filter : Allows the
SiriusXM Explicit Content Filter to be turned
ON or OFF. When ON, the teen driver will
not be able to listen to SiriusXM stations that contain explicit content, and the Explicit
Content Filter selection in the Audio Settings
will be unavailable for change.
When Teen Driver is Active:
.If equipped, the radio will mute when the
driver seat belt, and in some vehicles the
front passenger seat belt, is not buckled.
The audio from any device paired to the
vehicle will also be muted.
.An object placed on the front passenger
seat, such as a briefcase, handbag,
grocery bag, laptop, or other electronic
device, could cause the passenger sensing
system to falsely sense an unbuckled
front passenger and mute the radio.
If this happens, remove the object from
the seat. See
Passenger Sensing System
0 54.
.Some safety systems, such as Automatic
Emergency Braking, if equipped, cannot
be turned off.
.The gap setting for Adaptive Cruise
Control and alert timing for Forward
Collision Alert, if equipped, cannot be
changed.
.When trying to change a safety feature
that is not configurable in Teen Driver,
the feature may be grayed out or
removed from the infotainment menu, or the DIC will display a message
indicating that Teen Driver is active and
the action is not available.
.Super Cruise, if equipped, is not available.
.Enhanced Low Fuel Warning (if equipped)
–
When the vehicle is low on fuel, the
low fuel light on the instrument cluster
flashes and the DIC low fuel warning
cannot be dismissed.
.Do not tow a trailer if equipped with
Automatic Emergency Braking.
Report Card
The vehicle owner must secure the driver’s
consent to record certain vehicle data when
the vehicle is driven with a registered Teen
Driver key. There is one Report Card per
vehicle. Data is only recorded when a
registered Teen Driver key is used to
operate the vehicle.
The Report Card data is collected from the
time Teen Driver is activated or the last
time the Report Card was reset. The
following items may be recorded:
.Distance Driven –the total distance
driven.
.Maximum Speed –the maximum vehicle
speed detected.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22

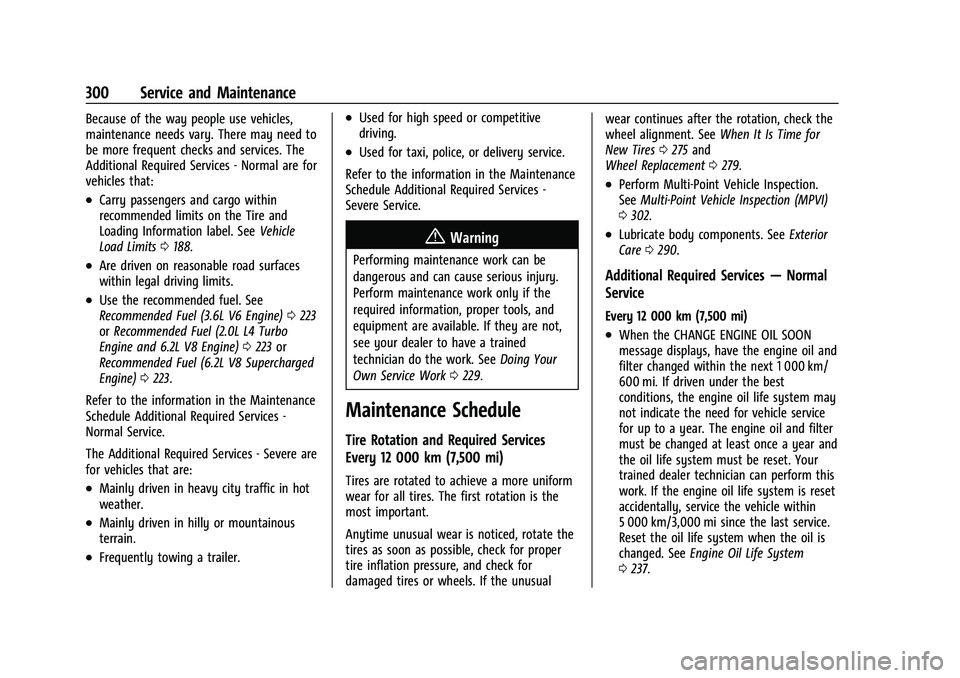

300 Service and Maintenance
Because of the way people use vehicles,
maintenance needs vary. There may need to
be more frequent checks and services. The
Additional Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire and
Loading Information label. SeeVehicle
Load Limits 0188.
.Are driven on reasonable road surfaces
within legal driving limits.
.Use the recommended fuel. See
Recommended Fuel (3.6L V6 Engine) 0223
or Recommended Fuel (2.0L L4 Turbo
Engine and 6.2L V8 Engine) 0223 or
Recommended Fuel (6.2L V8 Supercharged
Engine) 0223.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Normal Service.
The Additional Required Services - Severe are
for vehicles that are:
.Mainly driven in heavy city traffic in hot
weather.
.Mainly driven in hilly or mountainous
terrain.
.Frequently towing a trailer.
.Used for high speed or competitive
driving.
.Used for taxi, police, or delivery service.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Severe Service.
{Warning
Performing maintenance work can be
dangerous and can cause serious injury.
Perform maintenance work only if the
required information, proper tools, and
equipment are available. If they are not,
see your dealer to have a trained
technician do the work. See Doing Your
Own Service Work 0229.
Maintenance Schedule
Tire Rotation and Required Services
Every 12 000 km (7,500 mi)
Tires are rotated to achieve a more uniform
wear for all tires. The first rotation is the
most important.
Anytime unusual wear is noticed, rotate the
tires as soon as possible, check for proper
tire inflation pressure, and check for
damaged tires or wheels. If the unusual wear continues after the rotation, check the
wheel alignment. See
When It Is Time for
New Tires 0275 and
Wheel Replacement 0279.
.Perform Multi-Point Vehicle Inspection.
See Multi-Point Vehicle Inspection (MPVI)
0 302.
.Lubricate body components. See Exterior
Care 0290.
Additional Required Services —Normal
Service
Every 12 000 km (7,500 mi)
.When the CHANGE ENGINE OIL SOON
message displays, have the engine oil and
filter changed within the next 1 000 km/
600 mi. If driven under the best
conditions, the engine oil life system may
not indicate the need for vehicle service
for up to a year. The engine oil and filter
must be changed at least once a year and
the oil life system must be reset. Your
trained dealer technician can perform this
work. If the engine oil life system is reset
accidentally, service the vehicle within
5 000 km/3,000 mi since the last service.
Reset the oil life system when the oil is
changed. See Engine Oil Life System
0 237.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22

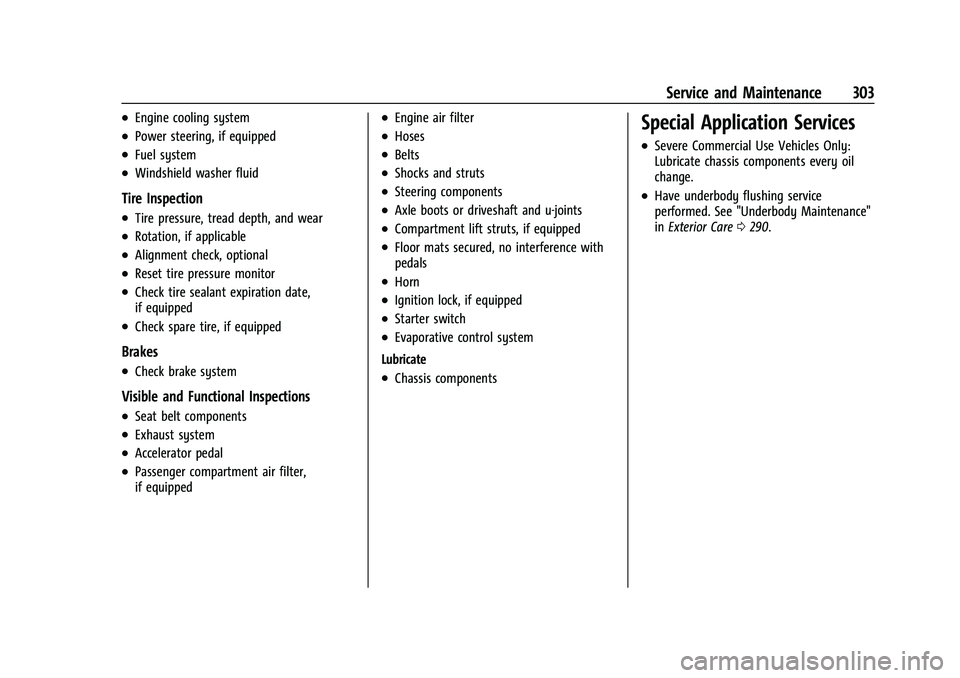

Service and Maintenance 303
.Engine cooling system
.Power steering, if equipped
.Fuel system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth, and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration date,
if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional Inspections
.Seat belt components
.Exhaust system
.Accelerator pedal
.Passenger compartment air filter,
if equipped
.Engine air filter
.Hoses
.Belts
.Shocks and struts
.Steering components
.Axle boots or driveshaft and u-joints
.Compartment lift struts, if equipped
.Floor mats secured, no interference with
pedals
.Horn
.Ignition lock, if equipped
.Starter switch
.Evaporative control system
Lubricate
.Chassis components
Special Application Services
.Severe Commercial Use Vehicles Only:
Lubricate chassis components every oil
change.
.Have underbody flushing service
performed. See "Underbody Maintenance"
in Exterior Care 0290.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22
310 Technical Data
ApplicationCapacities
Metric English
I6.2L V8 Engine (LT1) with Auxiliary Cooler 13.2 L
13.9 qt
Engine Oil with Filter I2.0L L4 Engine (LTG) with Integrated Engine Oil Cooler 4.7 L
5.0 qt
I2.0L L4 Engine (LTG) with External Engine Oil Cooler 5.2 L
5.5 qt
I3.6L V6 Engine (LGX) without Auxiliary Cooler 5.2 L
5.5 qt
I3.6L V6 Engine (LGX) with Auxiliary Cooler 5.7 L
6.0 qt
I6.2L V8 Engine (LT1) 9.5 L
10.0 qt
Fuel Tank 72.0 L19.0 gal
Rear Axle Fluid
I2.0L L4 Engine (LTG) Automatic Transmission 0.5 L
0.53 qt

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22
Index 333
IndexA
Accessories and Modifications . . . . . . . . . . . 228
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 196
ActiveFuel Management . . . . . . . . . . . . . . . . . . . . . 198
Rev Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Add-On Electrical Equipment . . . . . . . . . . . . . 226
Additional OnStar Information . . . . . . . . . . . . . . . . . . . . 327
Agreements
Trademarks and License . . . . . . . . . . . . . . . 158
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . . 239
Conditioning . . . . . . . . . . . . . . . . . . . . . . 165, 168
Filter Life System . . . . . . . . . . . . . . . . . . . . . . 239
Filter, Passenger Compartment . . . . . . . . . 171
Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
How Does an Airbag Restrain? . . . . . . . . . . 53
Passenger Sensing System . . . . . . . . . . . . . . 54
What Makes an Airbag Inflate? . . . . . . . . . 53
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
When Should an Airbag Inflate? . . . . . . . . 52
Where Are the Airbags? . . . . . . . . . . . . . . . . 50
Airbags Adding Equipment to the Vehicle . . . . . . . 58 Airbags (cont'd)
Passenger Status Indicator . . . . . . . . . . . . . . 92
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 92
Replacing System Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Servicing Airbag-Equipped Vehicles . . . . . . 58
Alarm
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 20
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Rear Cross Traffic . . . . . . . . . . . . . . . . . . . . . . 219
Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . 220
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 262
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Antilock Brake System (ABS) . . . . . . . . . . . . . 205 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Apple CarPlay and Android Auto . . . . . . . . . . 151
Assistance Program, Roadside . . . . . . . . . . . . . 317
Assistance Systems
Parking and Backing . . . . . . . . . . . . . . . . . . . . 217
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Automatic Climate Control System . . . . . . . . . . . . . . . . 165

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22
336 Index
DualAutomatic Climate Control System . . . . 168
E
Electric
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Parking Brake Light . . . . . . . . . . . . . . . . . . . . . 95
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . 226
System Overload . . . . . . . . . . . . . . . . . . . . . . 253
Electrical System Engine Compartment Fuse Block . . . . . . . 256
Fuses and Circuit Breakers . . . . . . . . . . . . . 255
Rear Compartment Fuse Block . . . . . . . . . 259
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Engine
Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 239
Air Filter Life System . . . . . . . . . . . . . . . . . . 239
Check Light (Malfunction Indicator) . . . . . 93
Compartment Overview . . . . . . . . . . . . . . . . 231
Coolant Temperature Gauge . . . . . . . . . . . . 90
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 241
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 313
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 237
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . . 89 Engine (cont'd)
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 98
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Power Messages . . . . . . . . . . . . . . . . . . . . . . . 105
Running While Parked . . . . . . . . . . . . . . . . . 199
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 324
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 198
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 47
Exterior
Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . 106
Lighting Battery Saver . . . . . . . . . . . . . . . . . . 111
F
FilterEngine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 239
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Flashers, Hazard Warning . . . . . . . . . . . . . . . . 108
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Fluid Automatic Transmission . . . . . . . . . . . . . . . 238
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Forward Collision Alert (FCA) System . . . . . . . . . . . 219 Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Front Heated and Ventilated Seats . . . . . . . . . . . . 40
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fuel
Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Economy, Driving for Better . . . . . . . . . . . 174
Filling a Portable Fuel Container . . . . . . . 226
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 224
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 224
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Low Fuel Warning Light . . . . . . . . . . . . . . . . 98
Management, Active . . . . . . . . . . . . . . . . . . . 198
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 224
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 223
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Fuses Engine Compartment Fuse Block . . . . . . . 256
Fuses and Circuit Breakers . . . . . . . . . . . . . 255
Rear Compartment Fuse Block . . . . . . . . . 259
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
GaugesBoost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Engine Coolant Temperature . . . . . . . . . . . . 90

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16408685) - 2023 - CRC - 3/28/22

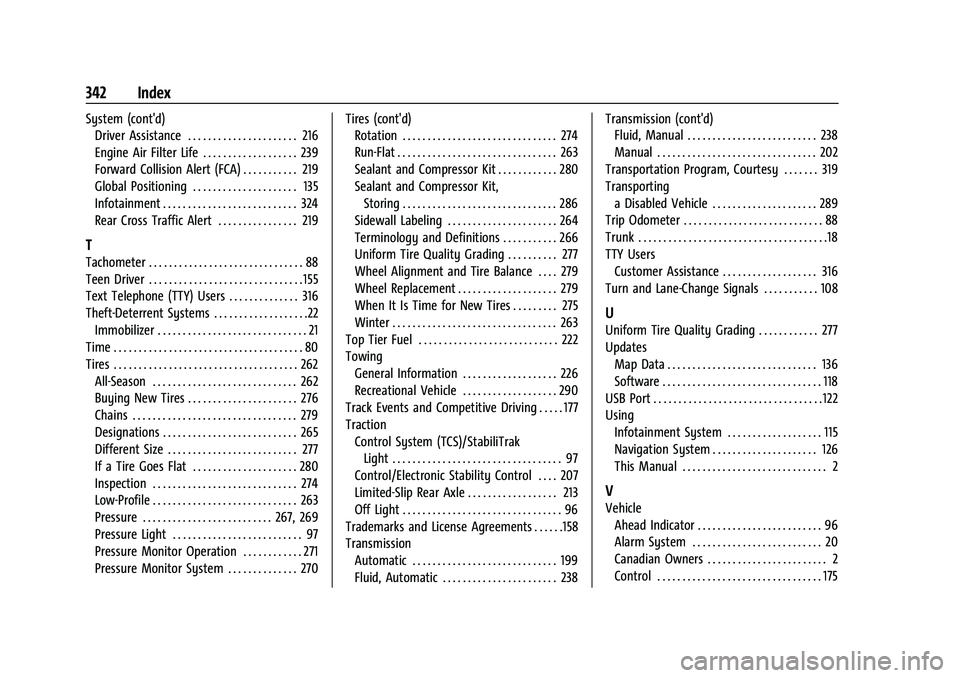

342 Index
System (cont'd)Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 216
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 239
Forward Collision Alert (FCA) . . . . . . . . . . . 219
Global Positioning . . . . . . . . . . . . . . . . . . . . . 135
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Rear Cross Traffic Alert . . . . . . . . . . . . . . . . 219
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Text Telephone (TTY) Users . . . . . . . . . . . . . . 316
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . .22
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 276
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 277
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 280
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Low-Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . 267, 269
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Pressure Monitor Operation . . . . . . . . . . . . 271
Pressure Monitor System . . . . . . . . . . . . . . 270 Tires (cont'd)
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Run-Flat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Sealant and Compressor Kit . . . . . . . . . . . . 280
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 264
Terminology and Definitions . . . . . . . . . . . 266
Uniform Tire Quality Grading . . . . . . . . . . 277
Wheel Alignment and Tire Balance . . . . 279
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 279
When It Is Time for New Tires . . . . . . . . . 275
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Towing General Information . . . . . . . . . . . . . . . . . . . 226
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 290
Track Events and Competitive Driving . . . . . 177
Traction Control System (TCS)/StabiliTrakLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Control/Electronic Stability Control . . . . 207
Limited-Slip Rear Axle . . . . . . . . . . . . . . . . . . 213
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Trademarks and License Agreements . . . . . .158
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 238 Transmission (cont'd)
Fluid, Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Transportation Program, Courtesy . . . . . . . 319
Transporting a Disabled Vehicle . . . . . . . . . . . . . . . . . . . . . 289
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TTY Users
Customer Assistance . . . . . . . . . . . . . . . . . . . 316
Turn and Lane-Change Signals . . . . . . . . . . . 108
U
Uniform Tire Quality Grading . . . . . . . . . . . . 277
Updates Map Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Using Infotainment System . . . . . . . . . . . . . . . . . . . 115
Navigation System . . . . . . . . . . . . . . . . . . . . . 126
This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
V
VehicleAhead Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 96
Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
