CHEVROLET CAVALIER 1993 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Headlight Wiring

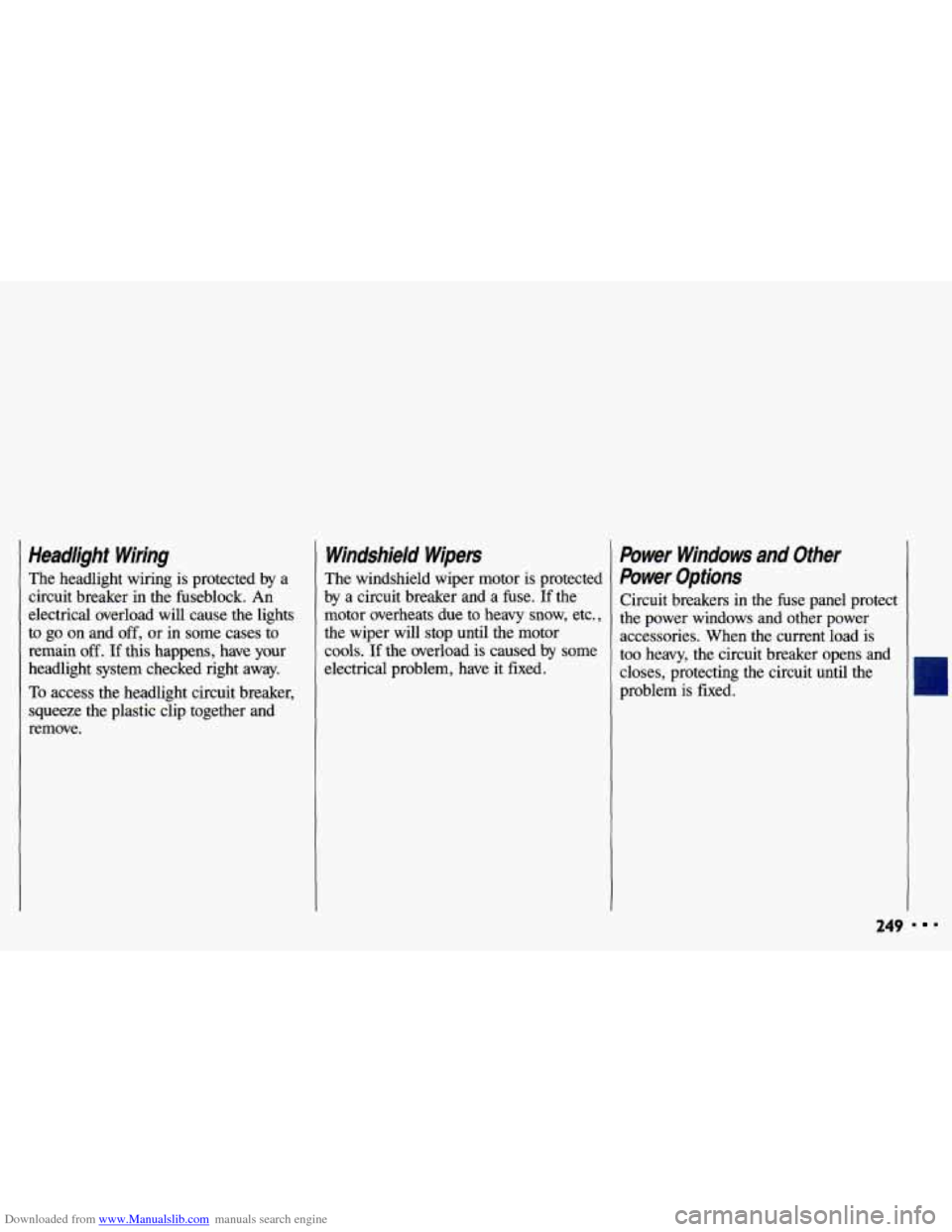

The headlight wiring is protected by a
circuit breaker in the fuseblock. An
electrical overload will cause the lights
to go on and
off, or in some cases to
remain
off. If this happens, have your
headlight system checked right away.
To access the headlight circuit breaker,
squeeze the plastic clip together and
remove.
Windsheld Wipers
The windshield wiper motor is protected
by a circuit breaker and a fuse.
If the
motor overheats due to heavy snow, etc.,
the wiper will stop until the motor
cools.
If the overload is caused by some
electrical problem, have it fixed.
Power Windows and Other
Power Options
Circuit breakers in the fuse panel protect
the power windows and other power
accessories. When the current load is
too heavy, the circuit breaker opens and
closes, protecting the circuit until the
problem is fixed.
249

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

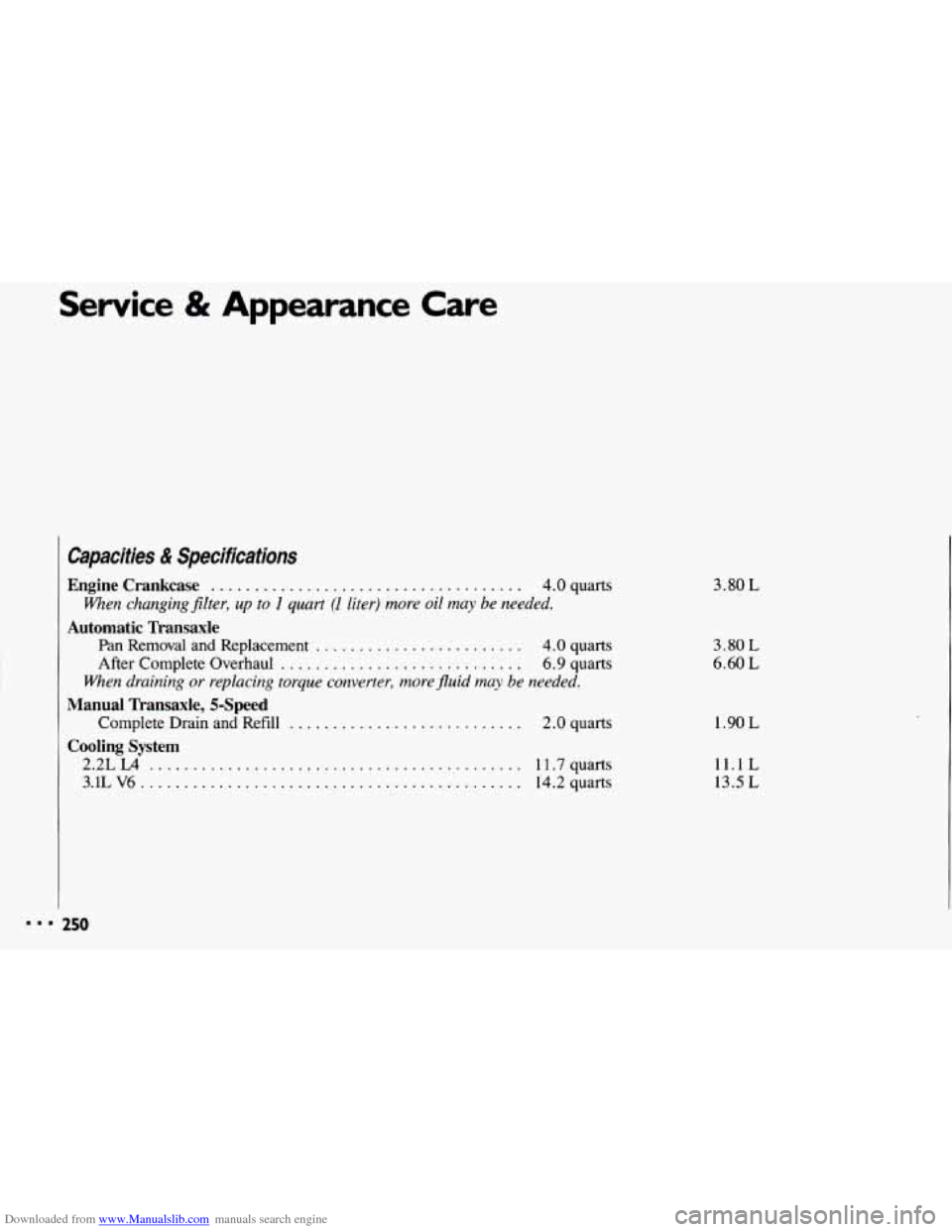

Capacities & Specifications
Engine Crankcase .................................... 4.0 quarts
When changing Jilter, up to I quart (I liter) more oil may be needed.
Automatic Transaxle
Pan Removal and Replacement ........................ 4.0 quarts
After Complete Overhaul
............................ 6.9 quarts
When draining or replacing torque converter, more fluid may be needed.
Manual Transaxle, 5-Speed
Cooling System
Complete Drain and Refill ........................... 2.0 quarts
2.2LL4
........................................... 11.7quarts
3.1LV6............................................ 14.2quarts 3.80
L
3.80 L
6.60 L
1.90 L
11.1 L
13.5 L
. . 250

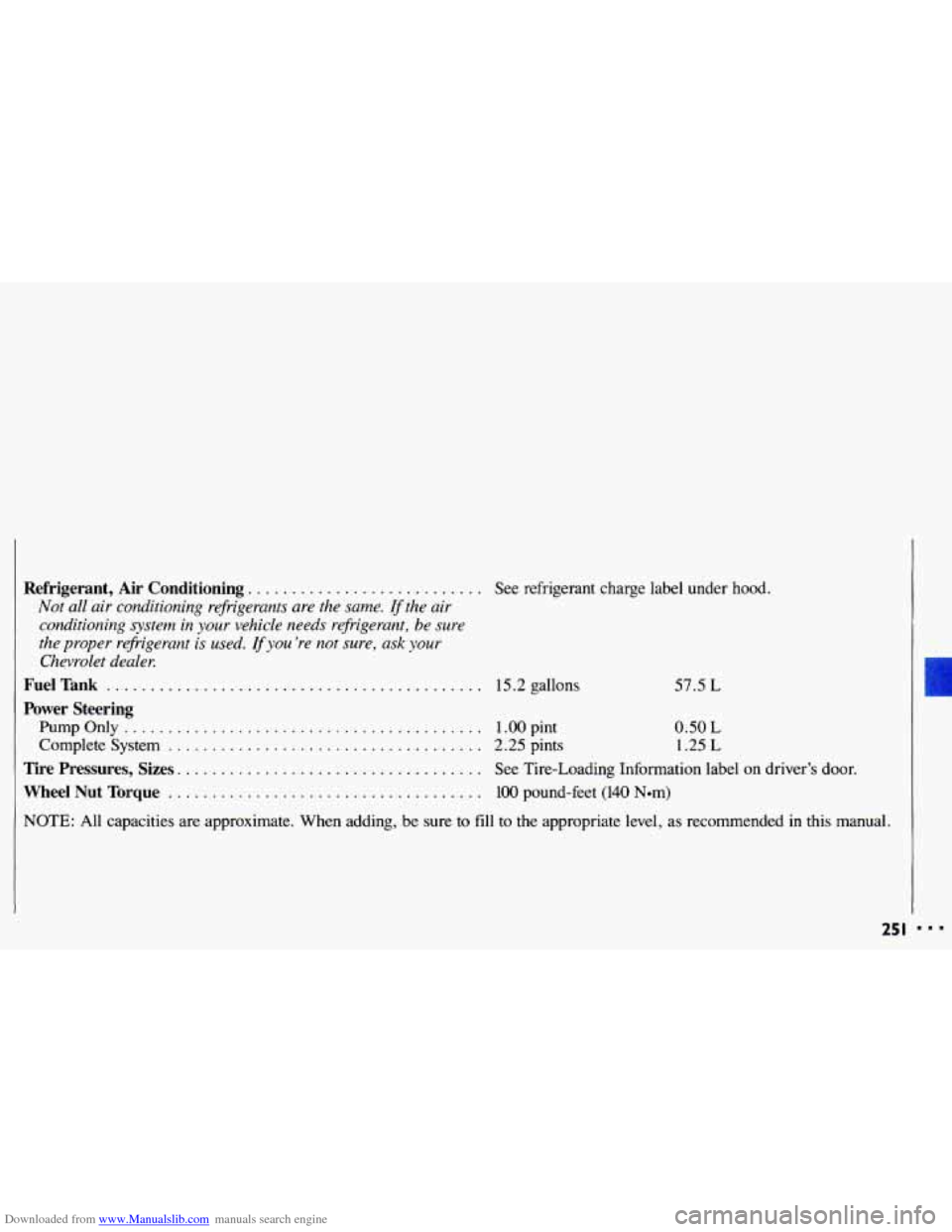

Downloaded from www.Manualslib.com manuals search engine Refrigerant, Air Conditioning. .......................... See refrigerant charge label under hood.
Not all air conditioning refrigerants are the same. If the air
conditioning system in
your vehicle needs refrigerant, be sure
the proper refrigerant is used.
If you 're not sure, ask your
Chmrolet dealer.
Fuel Tank ........................................... 15.2 gallons
Power Steering
Pump Only ......................................... 1 .OO pint
Complete System
.................................... 2.25 pints
57.5 L
0.50 L
1.25 L
Tire Pressures, Sizes. .................................. See Tire-Loading Information label on driver's door.
Wheel Nut Torque .................................... 100 pound-feet (140 Nem)
NOTE: All capacities are approximate. When adding, be sure
to fill to the appropriate level, as recommended in this manual.
25 I

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

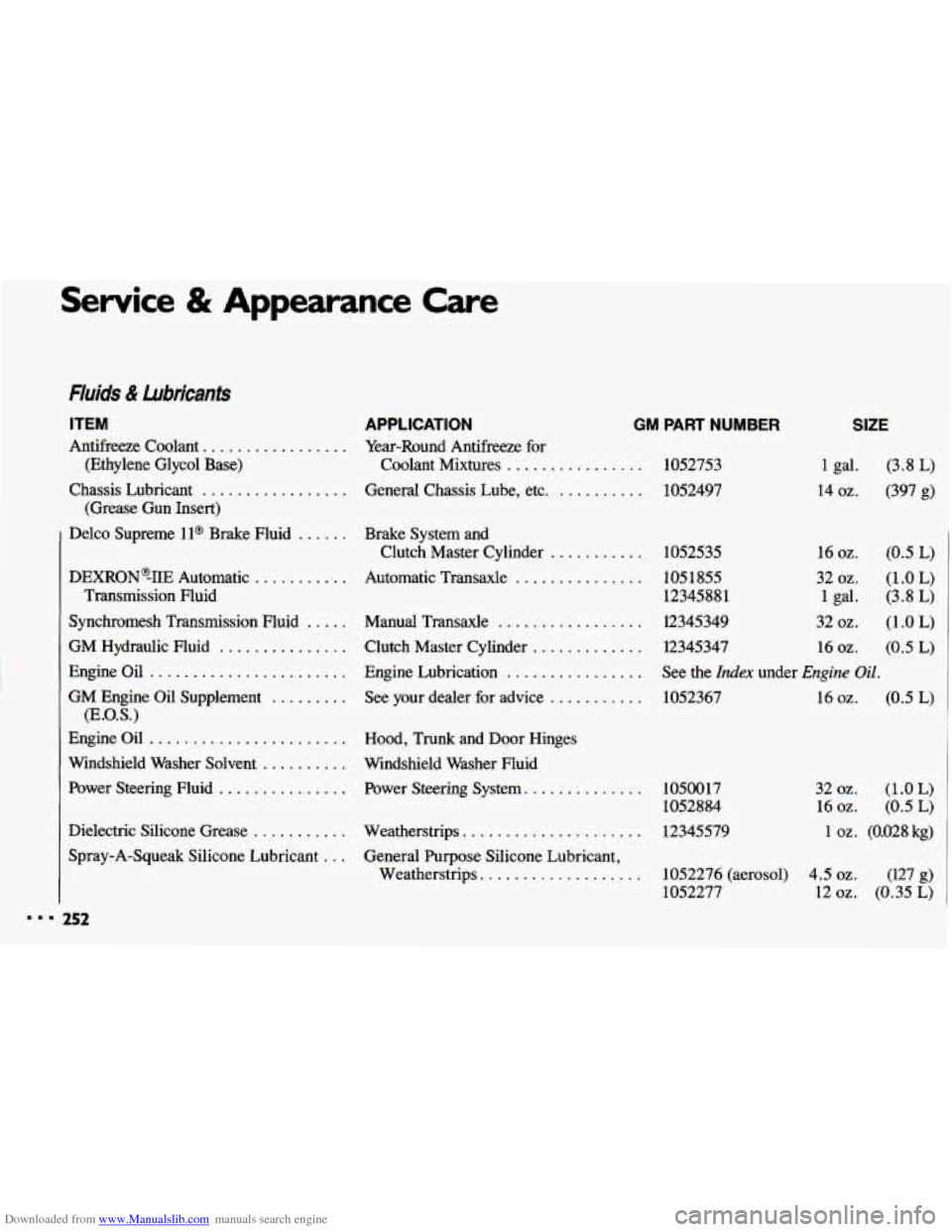

Fluids & Lubricants
ITEM APPLICATION
Antifreeze Coolant ................. Year-Round Antifreeze for
(Ethylene Glycol Base) Coolant Mixtures
................
Chassis Lubricant ................. General Chassis Lube, etc. ..........
(Grease Gun Insert)
GM PART NUMBER
Delco Supreme ll@ Brake Fluid ...... Brake System and
Clutch Master Cylinder
...........
DEXRON %E Automatic ........... Automatic Transaxle ...............
Transmission Fluid
Synchromesh Transmission Fluid
..... Manual Transaxle .................
GM Hydraulic Fluid ............... Clutch Master Cylinder .............
Engine Oil ....................... Engine Lubrication ................
GM Engine Oil Supplement ......... See your dealer for advice ...........
(E.O.S.)
Engine Oil ..................... Hood, Trunk and Door Hinges
Power Steering Fluid
............... Power Steering System. .............
Windshield Washer Solvent .......... Windshield Washer Fluid
Dielectric Silicone Grease
........... Weatherstrips .....................
Spray-A-Squeak Silicone Lubricant ... General Purpose Silicone Lubricant,
Weatherstrips.
..................
1052753
1052497
SIZE
1 gal.
14 02.
1052535 16 oz.
105 1855 32 02.
12345881 1 gal.
12345349 32 oz.
12345347 16 oz.
See the
Index under Engine Oil.
1052367 16 oz.
1050017
1052884
12345579 (3.8
L)
(397 g)
(0.5 L)
(1.0 L)
(3.8 L)
(1 .o L)
(0.5 L)
(0.5 L)
32 02. (1 .O L)
16 oz. (0.5 L)
1 oz. (0.028 kg)
1052276 (aerosol) 4.5 oz. (127 g)
1052277
12 oz. (0.35 L)
252

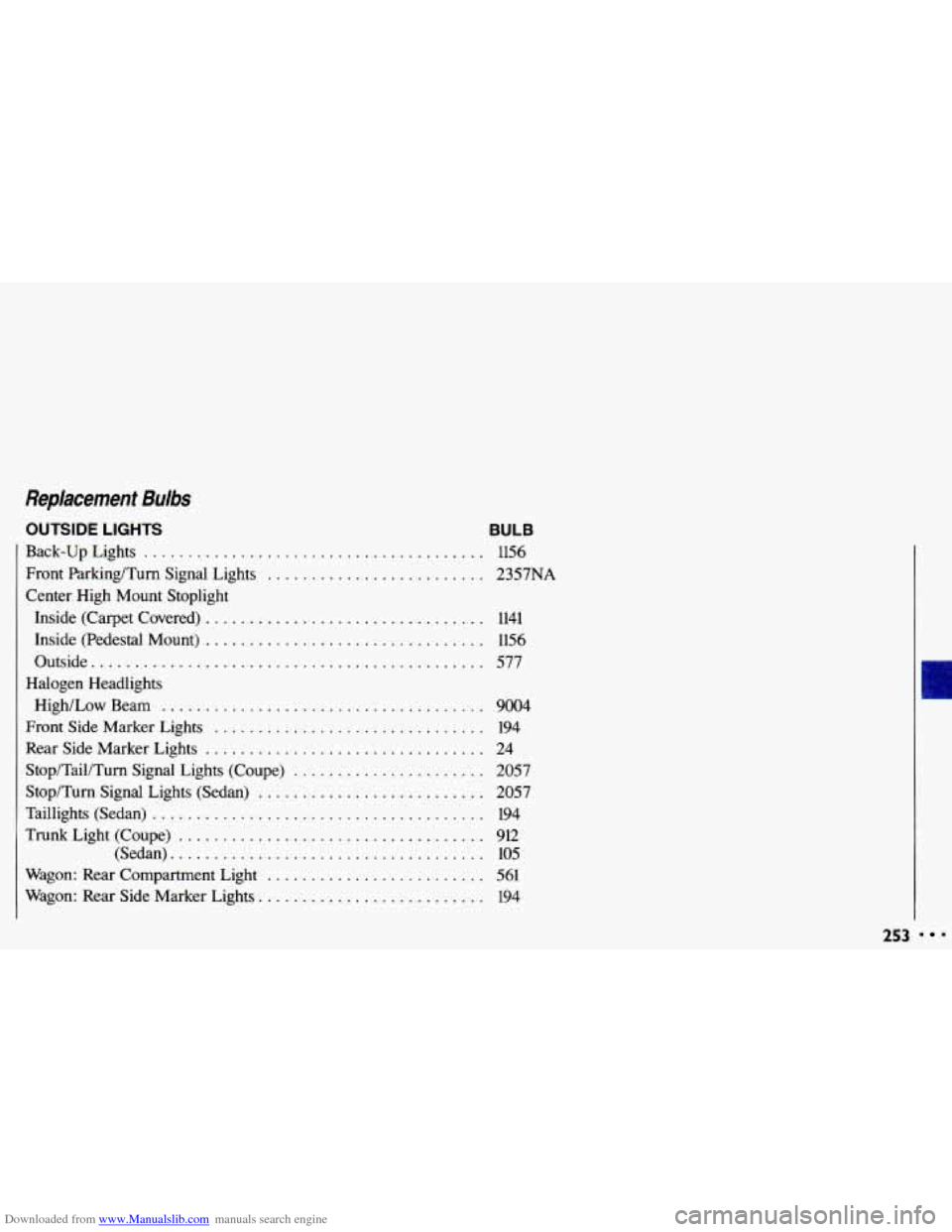

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
OUTSIDE LIGHTS
Back-UpLights .......................................
Front Parking/Turn Signal Lights .........................
Center High Mount Stoplight
Inside (Carpet Covered)
................................
Inside (Pedestal Mount) ................................
Outside .............................................
Halogen Headlights
High/LowBeam
.....................................
Front Side Marker Lights ...............................
Rear Side Marker Lights ................................
Stop/Tail/Turn Signal Lights (Coupe) ......................
Stop/Turn Signal Lights (Sedan) ..........................
Taillights (Sedan) ......................................
Trunk Light (Coupe) ...................................
(Sedan) ....................................
Wagon: Rear Compartment Light .........................
Wagon: Rear Side Marker Lights ..........................
BULB
1156
2357NA
1141
1156
577
9004 194
24
2057
2057
194
912
105
561 194
253 a

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

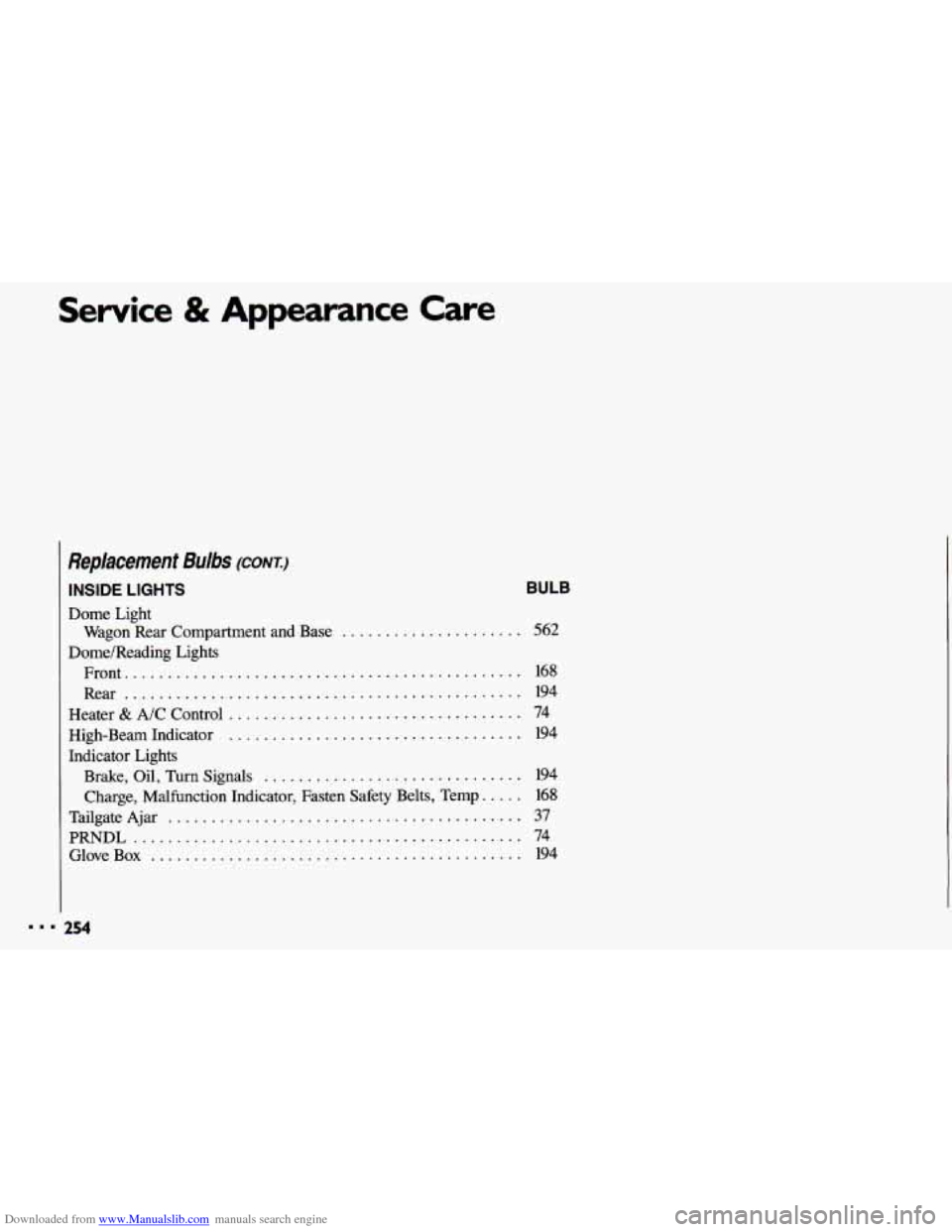

Replacement Bulbs (CONT.)
INSIDE LIGHTS
Dome Light
Dome/Reading Lights Wagon Rear
Compartment and Base
.....................
Front ..............................................
Rear ..............................................
Heater & A/C Control ..................................
Indicator Lights High-Beam Indicator
..................................
Brake. Oil. Turn Signals ..............................
Tailgate Ajar .........................................
Charge. Malfunction Indicator. Fasten Safety Belts. Temp .....
PRNDL .............................................
GloveBox ...........................................
I’ A 254
BULB
562
168
194
74
194
194
168
37
74
194

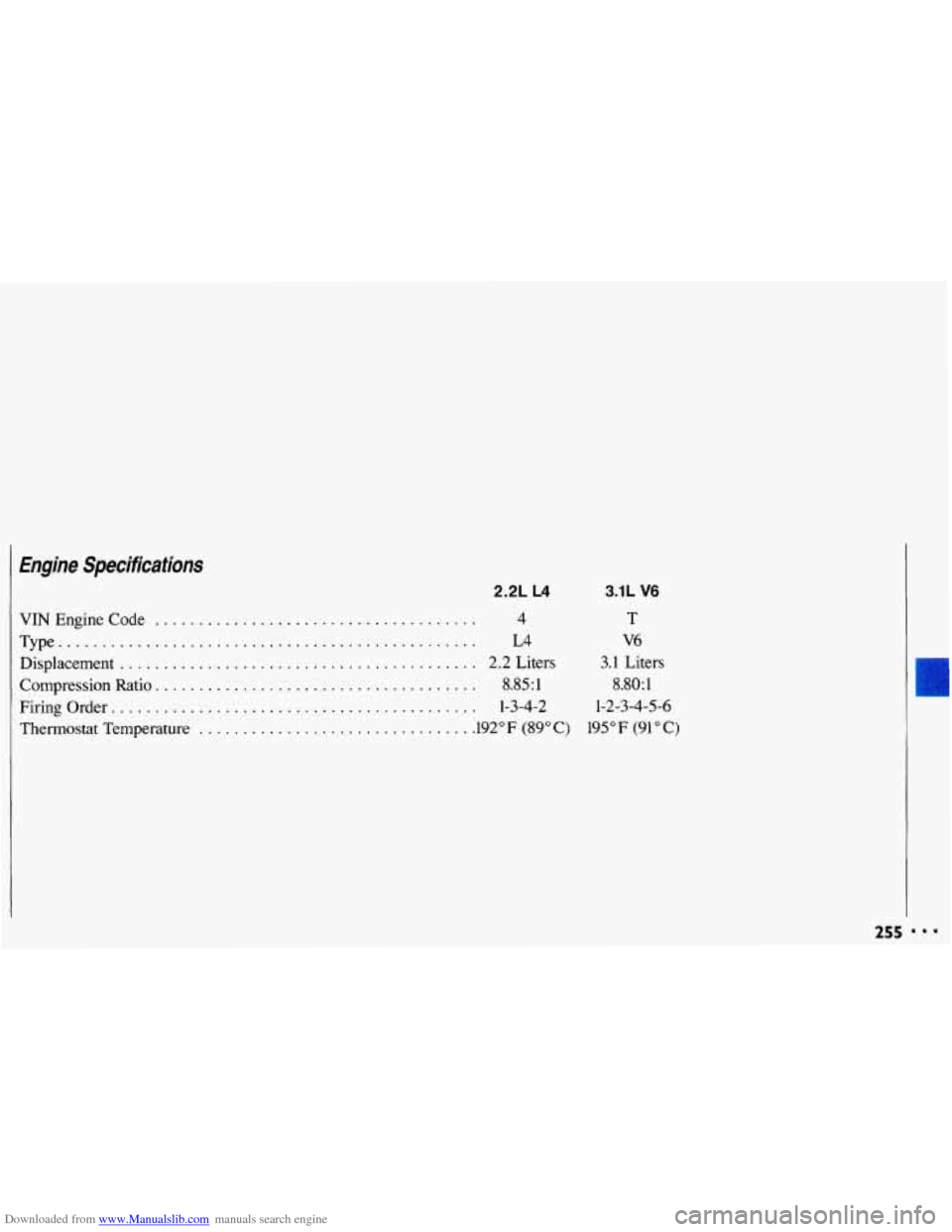

Downloaded from www.Manualslib.com manuals search engine Engine Specifications
2.2L L4 3.1L V6
VINEngineCode ................................... 4 T
Type ................................................ L4 V6
Displacement .......................................... 2.2 Liters 3.1
Liters
Compression Ratio
..................................... 8.85: 1 8.80: 1
Firing Order. ......................................... 1-3-4-2 1-2-3-4-5-6
Thermostat Temperature
............................... .192" F (89" C) 195" F (91 " C)
255

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

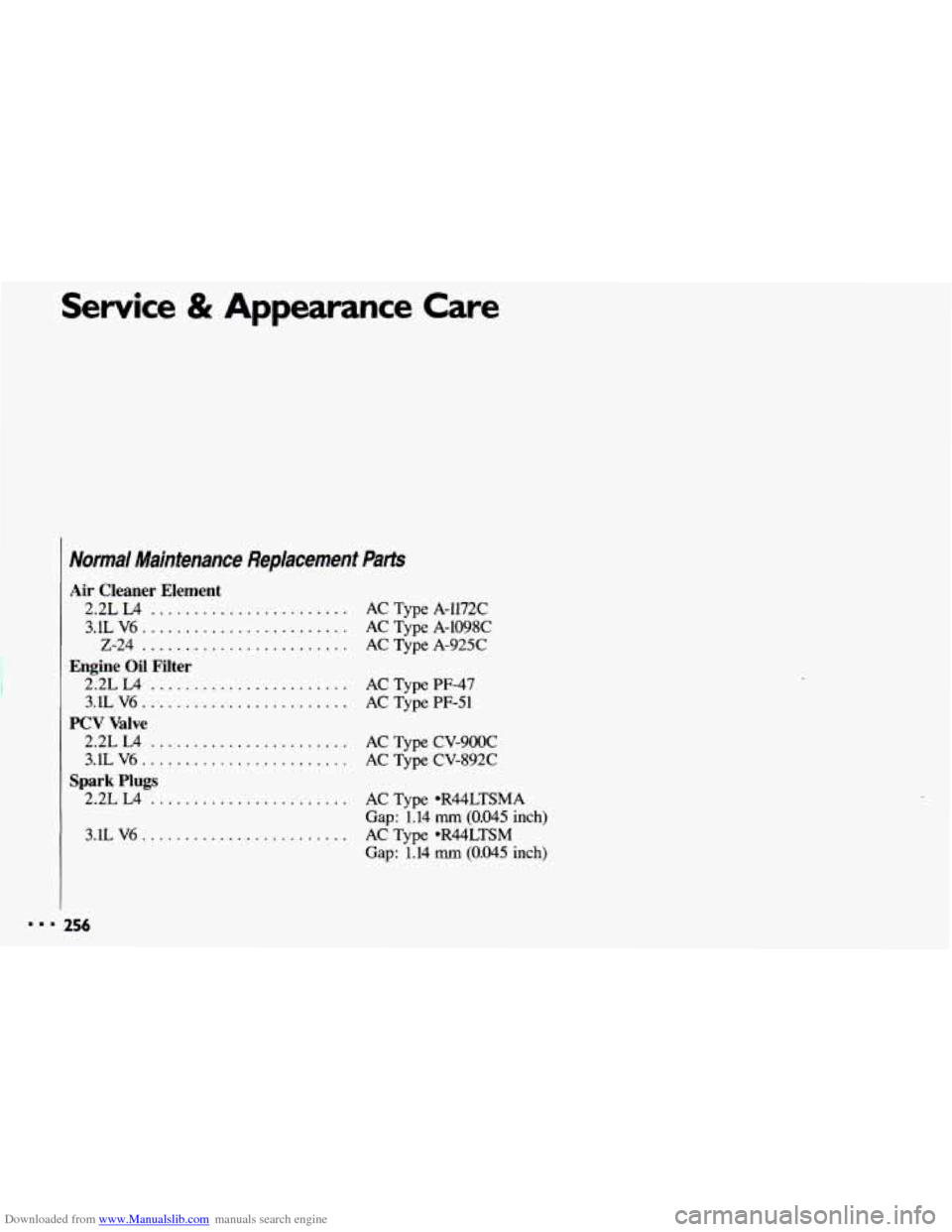

Normal Maintenance Replacement Parts
Air Cleaner Element
2.2L L4 . . . . , . . . . . . . . . . . . . . . . . . AC Type A-1172C
3.1L
V6 . . . . . . . . . . . . . . . . . . . . . . . . AC Type A-1098C
2-24
. . . . . . . . . . . . . . . . . . . . . . . . AC Type A-925C
Engine Oil Filter
2.2L L4 . . . . . . . . . . . . . . . . . . . . . . AC Type PF-47
3.1L
V6 . . . . . . . . . . . . . . . . . . . . . . . . AC Type PF-51
2.2L L4
. . . . . . . . . . . . . . . . . . . . . . . AC Type CV-9OOC
3.1L V6
. . . . . . . . . . . . . . . . . . . . . . . . AC Type CV-892C
2.2L
L4 . . . . . . . . . . . . . . . . . . . . . . . AC Type eR44LTSMA
3.1L V6
. . . . . . . . . . . . . . , . . . . . . . . . AC Type eR44LTSM
PCV Valve
Spark Plugs
Gap: 1.14 mm (0.045 inch)
Gap: 1.14
mm (0.045 inch)
. . . 256
