roof CHEVROLET CAVALIER 1993 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine ..
.; . I

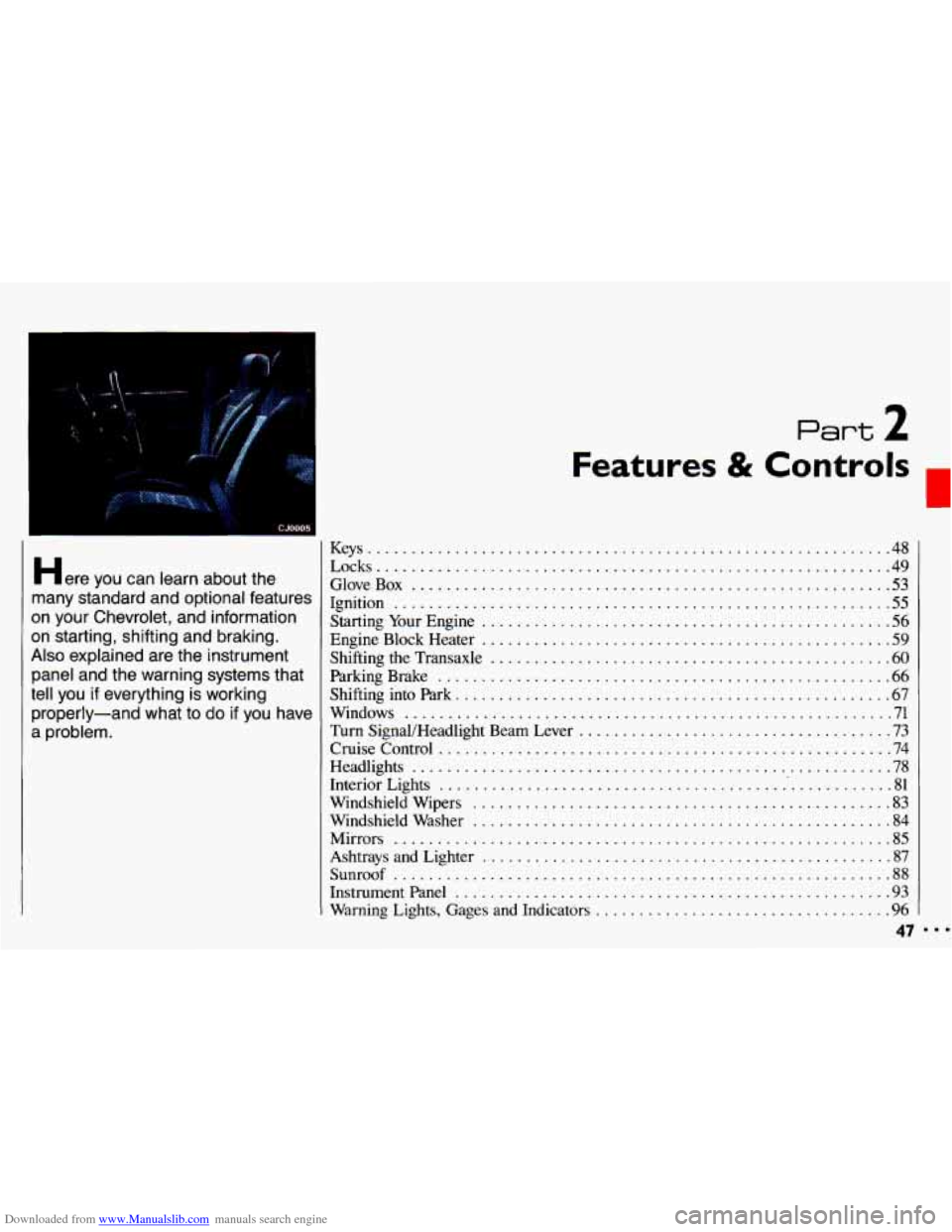

Here you can learn about the
many standard and optional features
on your Chevrolet. and information
on starting. shifting and braking
.
Also explained are the instrument
panel and the warning systems that
tell you
if everything is working
properly-and what to
do if you have
a problem
.
Part 2
Features & Controls
Keys ............................................................ 48
Locks ........................................................... 49
GloveBox ....................................................... 53
Ignition ......................................................... 55
StartingYourEngine ............................................... 56
Engine Block Heater ............................................... 59
Shifting the Transaxle
.............................................. 60
ParkingBrake .................................................... 66
ShiftingintoPark .................................................. 67
Windows
........................................................ 71
Turn SignaVHeadlight Beam Lever
................................... -73
Cruisecontrol
.................................................... 74
Headlights
....................................................... 78
Interior Lights
.................................................... 81
Windshield Wipers
................................................ 83
Windshield Washer
................................................ 84
Mirrors
......................................................... 85
Ashtrays and Lighter
............................................... 87
Sunroof ......................................................... 88
Instrumentpanel .................................................. 93
Warning Lights, Gages and Indicators
.................................. 96
47
c
...

Downloaded from www.Manualslib.com manuals search engine I,

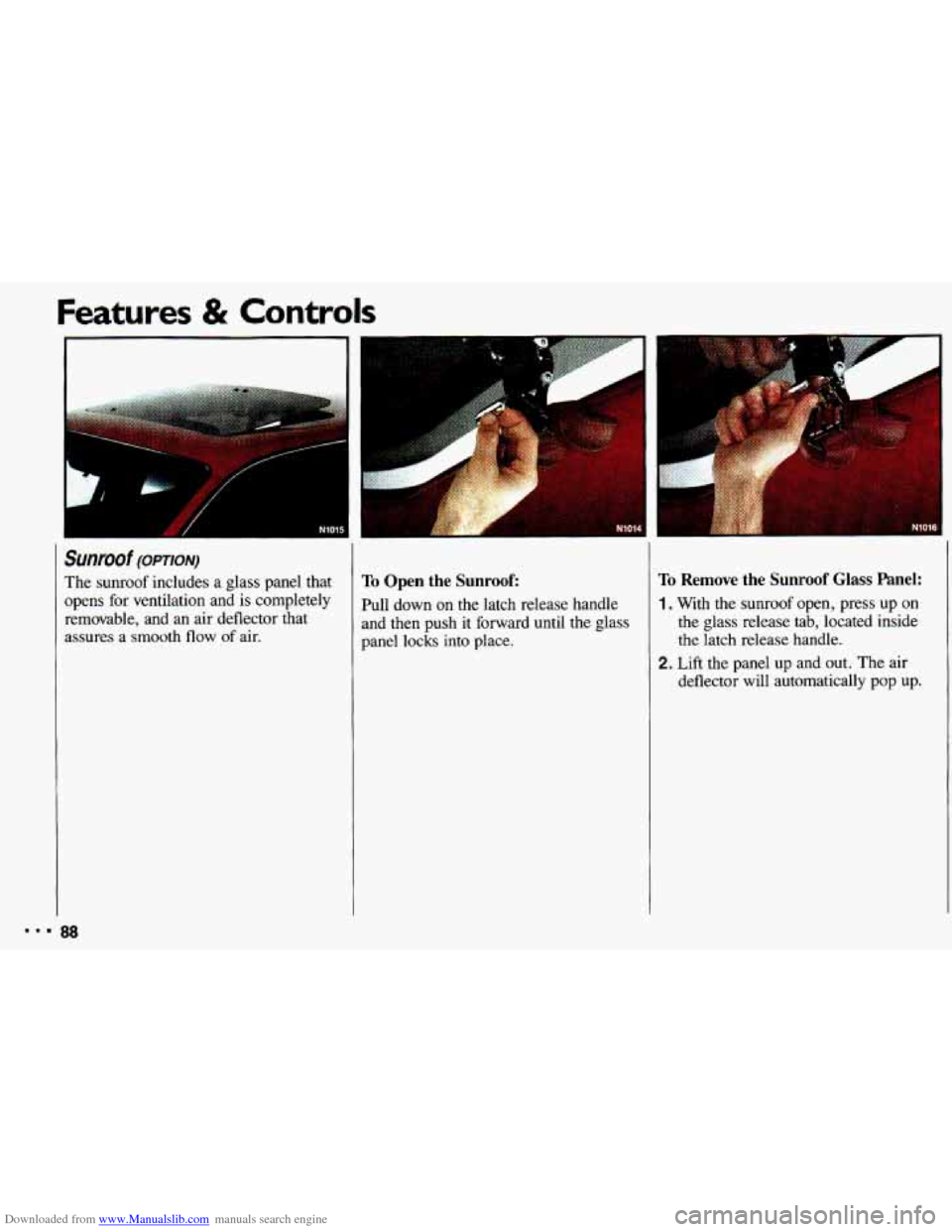

Sunroof (omoN)
The sunroof includes a glass panel that
opens for ventilation and is completely
removable, and an air deflector that
assures a smooth flow of air. To Open the Sunroof:
Pull down on the latch release handle
and then push
it forward until the glass
panel locks into place.
To Remove the Sunroof Glass Panel:
1. With the sunroof open, press up on
the glass release tab, located inside
the latch release handle.
deflector will automatically pop up.
2. Lift the panel up and out. The air

Downloaded from www.Manualslib.com manuals search engine .
. . .. ...

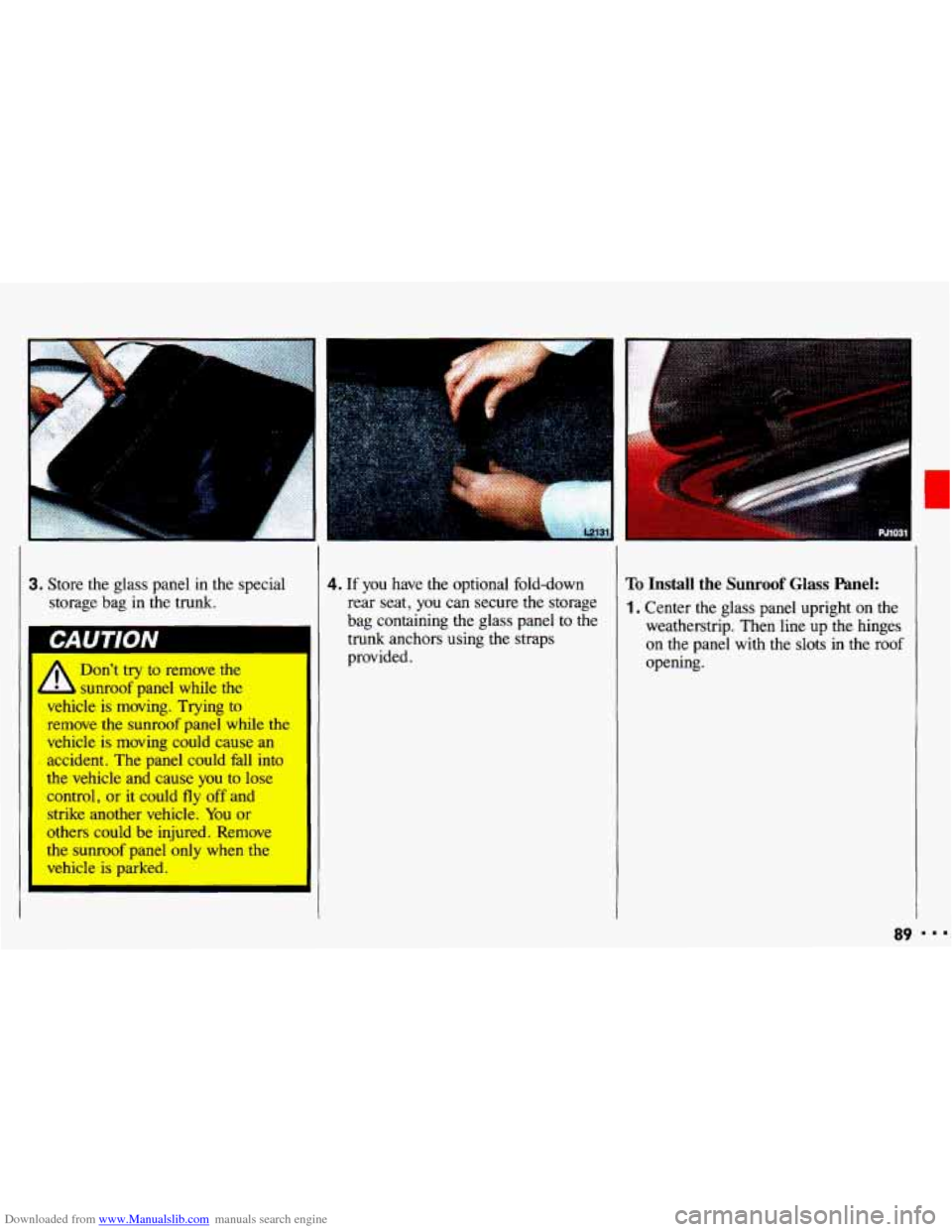

4. If you have the optional fold-down
rear seat,
you can secure the storage
bag containing the glass panel to the
trunk anchors using the straps
provided.
To Install the Sunroof Glass Panel:
1. Center the glass panel upright on the
weatherstrip. Then line
up the hinges
on the panel with the slots in the roof
opening.
3. Store the glass panel in the special
storage bag in
the trunk.
CAllTlbN
I Don't try to remove the
m sunroofpanel while the
whicle is
moving. Trying to
remove the sunroof panel while the
vehicle is moving could cause an
. accident. The panel could a1 into
the vehicle and cause you to lose
control,
or it could fly off and
strike another vehicle. You or
others could be injured. Remove
the sunroof panel only when the
vehicle is parked. I
89

Downloaded from www.Manualslib.com manuals search engine Features & Controls
90
030

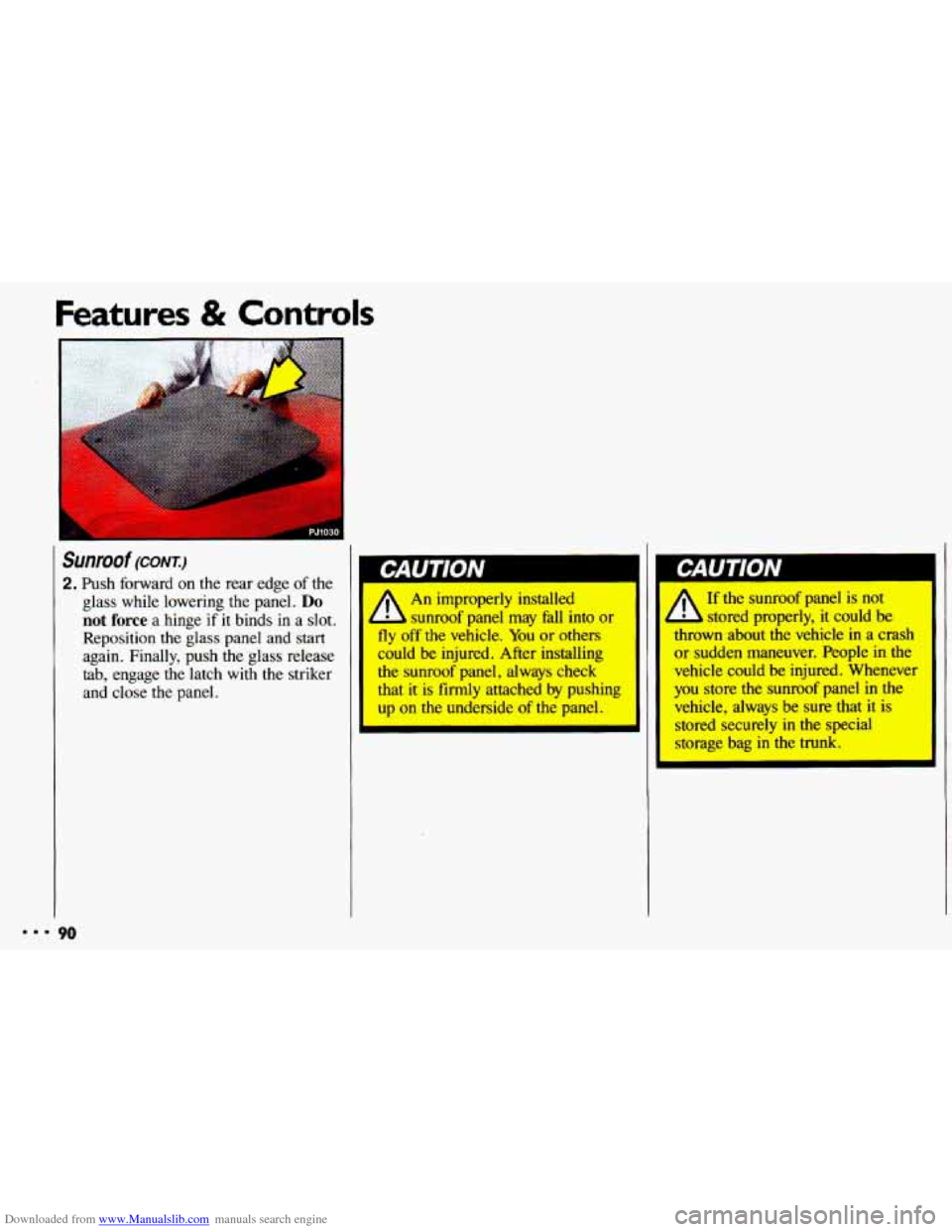

Sunroof (CONT.)
2. Push forward on the rear edge of the
glass while lowering the panel.
Do
not force a hinge if it binds in a slot.
Reposition
the glass panel and start
again. Finally, push the glass release
tab, engage the latch with the striker
and close the panel.
LAU I IUN
An improperly installed
sunroof panel may fall into or I
fly off the vehicle. You or others
could be injured. After installing
the sunroof panel, alwqs check
that it is firmly attached by pushing
up on the underside of the panel. I
A
If the sunroof panel is not
stored properly, it could be
thrown about the vehicle
in a crash
or sudden maneuver. People in the
vehicle could be injured. Whenever
you store
the sunroof panel in the
vehicle, always be sure that
it is
stored securely
in the special
storage bag in the trunk.
I

Downloaded from www.Manualslib.com manuals search engine CJ2081 I

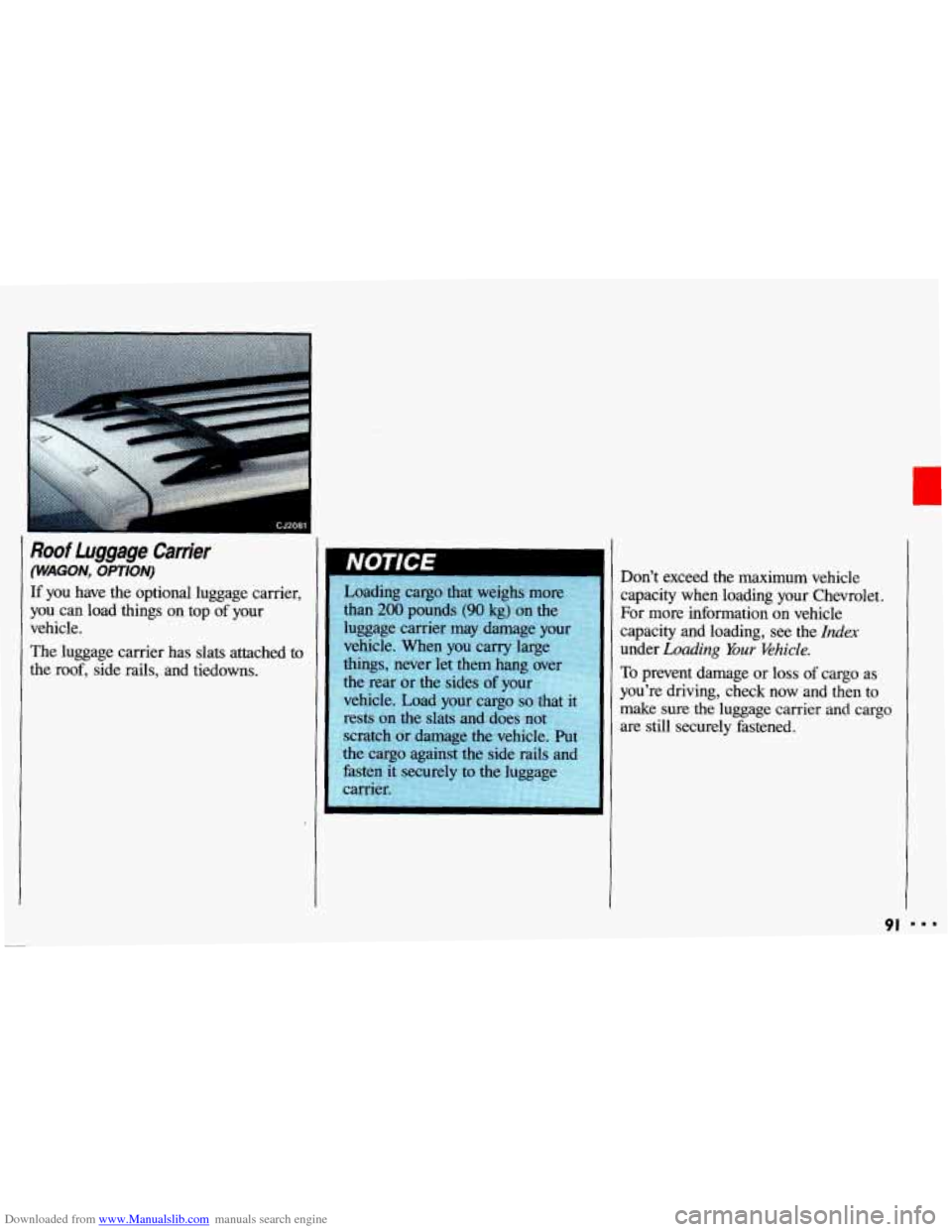

Roof Luggage Carrier
(WAGON, OPTION)
If you have the optional luggage carrier,
you can load things on top of your
vehicle.
The luggage carrier has slats attached to
the roof, side rails, and tiedowns. Don't exceed the maximum vehicle
capacity when loading your Chevrolet.
For more information on vehicle
capacity and loading, see the
Index
under Loading Your Ehicle.
To prevent damage or loss of cargo as
you're driving, check now and then to
make sure the luggage carrier and cargo
are still securely fastened.
91

Downloaded from www.Manualslib.com manuals search engine Identification Number.
Vehicle
................. .56. 246
Idling Your Engine
........... .68. 71
Sand. Mud. Ice or Snow
........ 192
If You're Stuck: In
Ignition
Key
......................... 48
Key Release Button ............ 55
Positions
..................... 55
Illuminated Entry System
.......... 50
Indicator Lights (see
Warning Lights)
Infant Restraint (see Child Restraints)
Inflation. Tires ................. 230
Inside Rearview Mirror
........... 85
Instrument Panel ................ 93
Instrument Panel Wming'Lights
.... 96
Intermittent Windshield Wipers
..... 83
.................... J ack. Tire 185
Jump Starting
.................. 164
Key Release Button
............. 55
Keys .......................... 48 Lane
Change Indicator
........... 73
Lap-Shoulder Safety Belt
.......... 23
Front
..................... 23. 27
Rear
........................ 28
Use by Children ........... .33. 43
Latches. Seatback
................ 14
Liftgate Ajar Light
................... 102
Lock
........................ 52
Lock Release
................. 52
Safety Warning
................ 52
Lighter
........................ 87
Dome/Map
................... 82
Headlights
................... 78
Lights
Daytime Running Lights
......... 80
Flash-to-Pass .................. 81
Instrument Panel Intensity Control
... 81
Rear Compartment
............ 82
Removing
& Replacing
Bulbs
........... .224, 225, 253
Replacement Bulbs
........... 253
Taillights
.............. .225. 253
Turn Signal
.................. 73
Warning Lights
............... 96
Loading Your Vehicle
....... .91. 227 Locks
......................... 49
Long Distance Driving
.......... 152
Low Oil Pressure Warning
........ 98
Luggage Carrier
................. 91
Low Battery
................... 164
Maintenance Record
........... 279
Maintenance Schedule
.......... 259
Malfunction Indicator Lamp
(Check Engine Light)
.......... 102
Manual Front Seat
............... 12
Manual Sunroof
................. 88
Manual Transaxle
Adding Fluid
....... .215. 250, 252
Shifting
..................... 64
Master Cylinder. Brake
.......... 221
Methanol in Gasoline
........... 198
Mileage Indicator
Mirrors Checking
Fluid
............... 213
Starting the Engine
............ 56
(see
Odometer & Speedometer)
Convex Outside ............... 85
Inside Manual Day/Night ....... 85
299 m ..

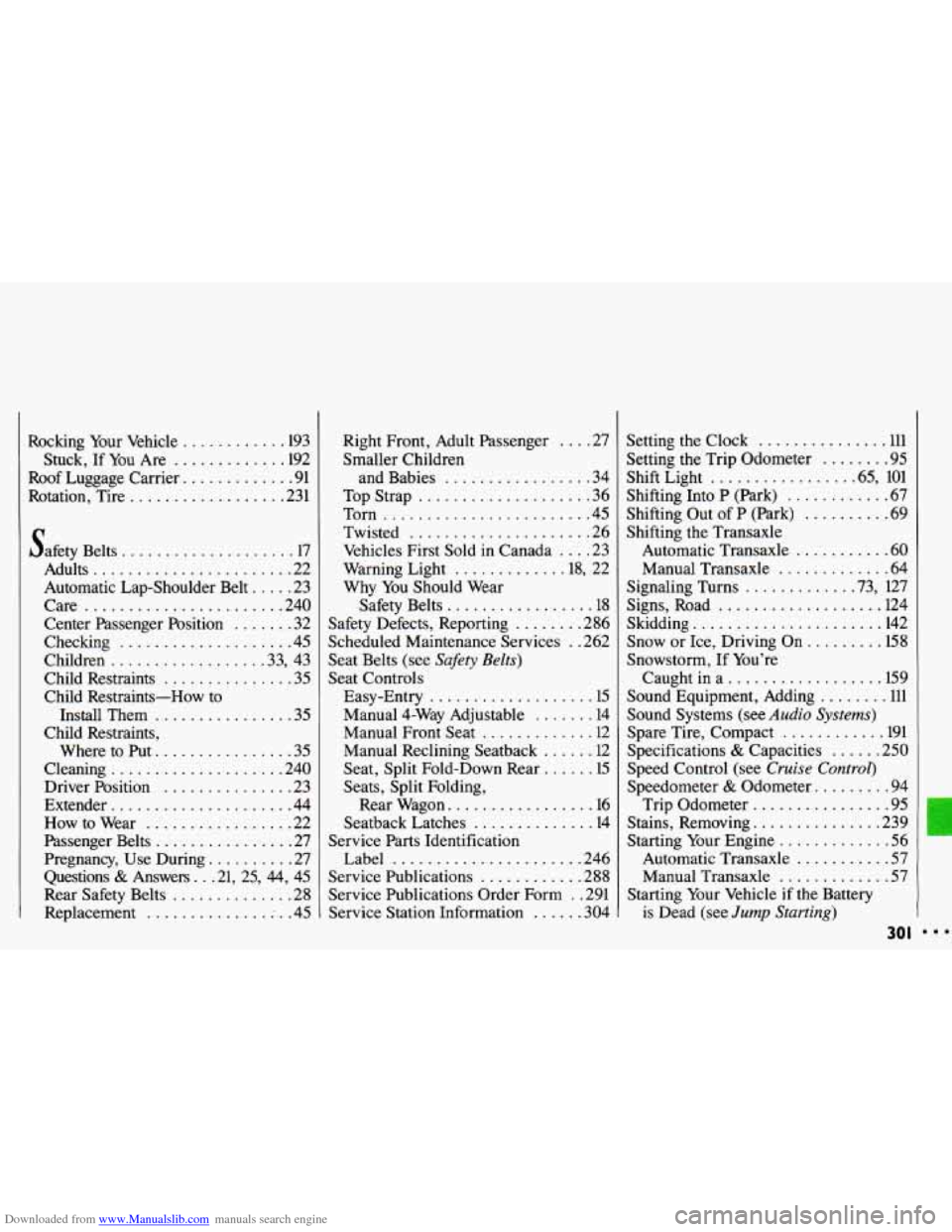

Downloaded from www.Manualslib.com manuals search engine Rocking Your Vehicle ............ 193
Stuck. If You Are ............. 192
Roof Luggage Carrier ............. 91
Rotation. Tire .................. 231
S afety Belts .................... 17
Adults ....................... 22
Automatic Lap-Shoulder Belt ..... 23
Care ....................... 240
Center Passenger Position ....... 32
Checking .................... 45
Children
................. .33. 43
Child Restraints ............... 35
Child Restraints-How to Install Them
................ 35
Child Restraints. Where to Put
................ 35
Cleaning .................... 240
Driver Position ............... 23
Extender ..................... 44
How to Wear ................. 22
Passenger Belts ................ 27
Pregnancy, Use During .......... 27
Questions & Answers .. .21. 25. 44. 45
Rear Safety Belts .............. 28
Replacement .............. : .. 45
Right Front. Adult Passenger .... 27
Smaller Children
and Babies
................. 34
TopStrap .................... 36
Torn ........................ 45
Twisted ..................... 26
Vehicles First Sold in Canada .... 23
Warning Light ............ .18. 22
Why You Should Wear
Safety Belts
................. 18
Scheduled Maintenance Services
. . 262
Seat Belts (see Safety Belts)
Seat Controls
Safety Defects. Reporting
........ 286
Easy-Entry ................... 15
Manual Front
Seat ............. 12
Manual Reclining Seatback ...... 12
Seat. Split Fold-Down Rear ...... 15
Seats. Split Folding.
Rear Wagon
................. 16
Seatback Latches .............. 14
Service Parts Identification
Label
...................... 246
Service Publications ............ 288
Service Publications Order Form . . 291
Service Station Information ...... 304
Manual 4-Way Adjustable ....... 14
Setting the Clock ............... 111
Setting the Trip Odometer
........ 95
Shift Light ................ .65. 101
Shifting Into P (Park) ............ 67
Shifting Out of P (Park) .......... 69
Shifting the Transaxle
Automatic Transaxle
........... 60
Manual Transaxle ............. 64
Signaling Turns ............ .73, 127
Signs. Road ................... 124
Skidding
...................... 142
Snow or Ice. Driving On ......... 158
Snowstorm. If You’re
Caught in
a .................. 159
Sound Equipment. Adding ........ 111
Sound Systems (see Audio Systems)
Spare Tire. Compact ............ 191
Specifications
& Capacities ...... 250
Speed Control (see Cruise Control)
Speedometer & Odometer ......... 94
Trip Odometer ................ 95
Stains. Removing ............... 239
Starting Your Engine ............. 56
Automatic Transaxle ........... 57
Manual Transaxle ............. 57
is Dead (see Jump Starting)
Starting Your Vehicle if the Battery
30 I

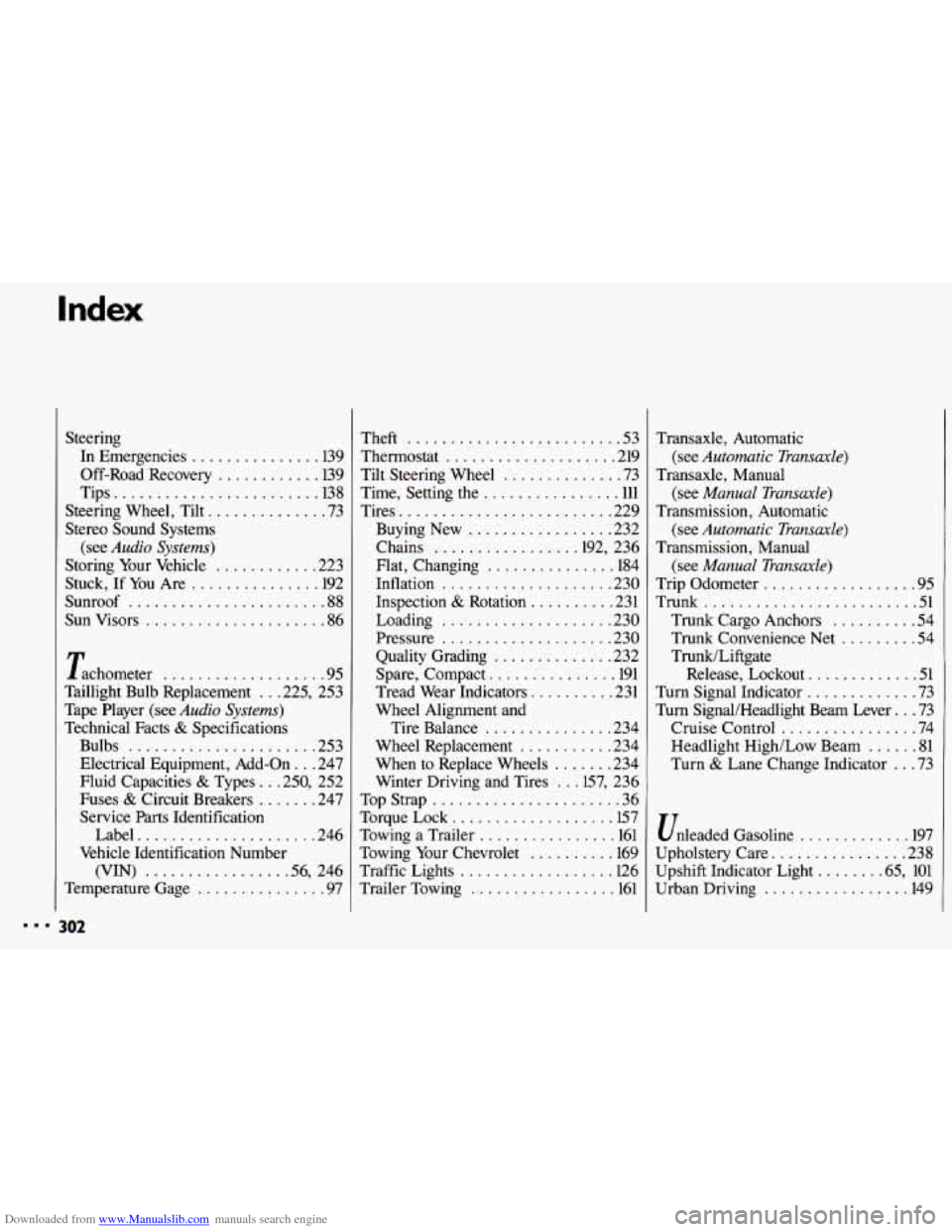

Downloaded from www.Manualslib.com manuals search engine Index
Steering In Emergencies
............... 139
Off-Road Recovery
............ 139
Tips
........................ 138
Steering Wheel. Tilt
.............. 73
Stereo Sound Systems (see
Audio Systems)
Storing Your Vehicle ............ 223
Stuck. If You Are
............... 192
Sunroof
....................... 88
Sun Visors ..................... 86
Tachometer ................... 95
Taillight Bulb Replacement.
.. .225. 253
Tape Player (see
Audio Systems)
Technical Facts & Specifications
Bulbs
...................... 253
Electrical Equipment. Add-on
... 247
Fluid Capacities
& Types .. .250, 252
Fuses
& Circuit Breakers ...... -247
Service
Parts Identification
Label
..................... 246
Vehicle Identification Number
(VIN)
................. 56. 246
Temperature Gage
............... 97
102
Theft ......................... 53
Thermostat
.................... 219
Tilt Steering Wheel .............. 73
Time. Setting the
................ 111
Tires
......................... 229
Buying New
................ -232
Chains
................ .192. 236
Flat. Changing
............... 184
Inflation
.................... 230
Inspection
& Rotation .......... 231
Loading
.................... 230
Pressure
.................... 230
Quality Grading
.............. 232
Spare. Compact
............... 191
Tread Wear Indicators
......... -231
Wheel Alignment and
Tire Balance
............... 234
Wheel Replacement
........... 234
When
to Replace Wheels ....... 234
Winter Driving and Tires
.. .157. 236
Top Strap
...................... 36
Torque Lock
................... 157
Towing a Trailer
................ 161
Towing Your Chevrolet
.......... 169
Traffic Lights
.................. 126
Trailer Towing
................. 161 Transaxle. Automatic
(see
Automatic Transaxle)
Transaxle. Manual (see
Manual Transaxle)
Transmission. Automatic
(see
Automatic Transaxle)
Transmission. Manual
(see
Manual Transaxle)
Trip Odometer .................. 95
Trunk
......................... 51
Trunk Cargo Anchors .......... 54
Trunk Convenience Net
......... 54
Trunk/Liftgate Release, Lockout
............. 51
Turn Signal Indicator
............ -73
Turn SignaYHeadlight Beam Lever
... 73
Cruise Control
................ 74
Headlight High/Low Beam
...... 81
Turn & Lane Change Indicator ... 73
Unleaded Gasoline
............. 197
Upholstery Care
................ 238
Upshift Indicator Light
....... .65. 101
Urban Driving
................. 149

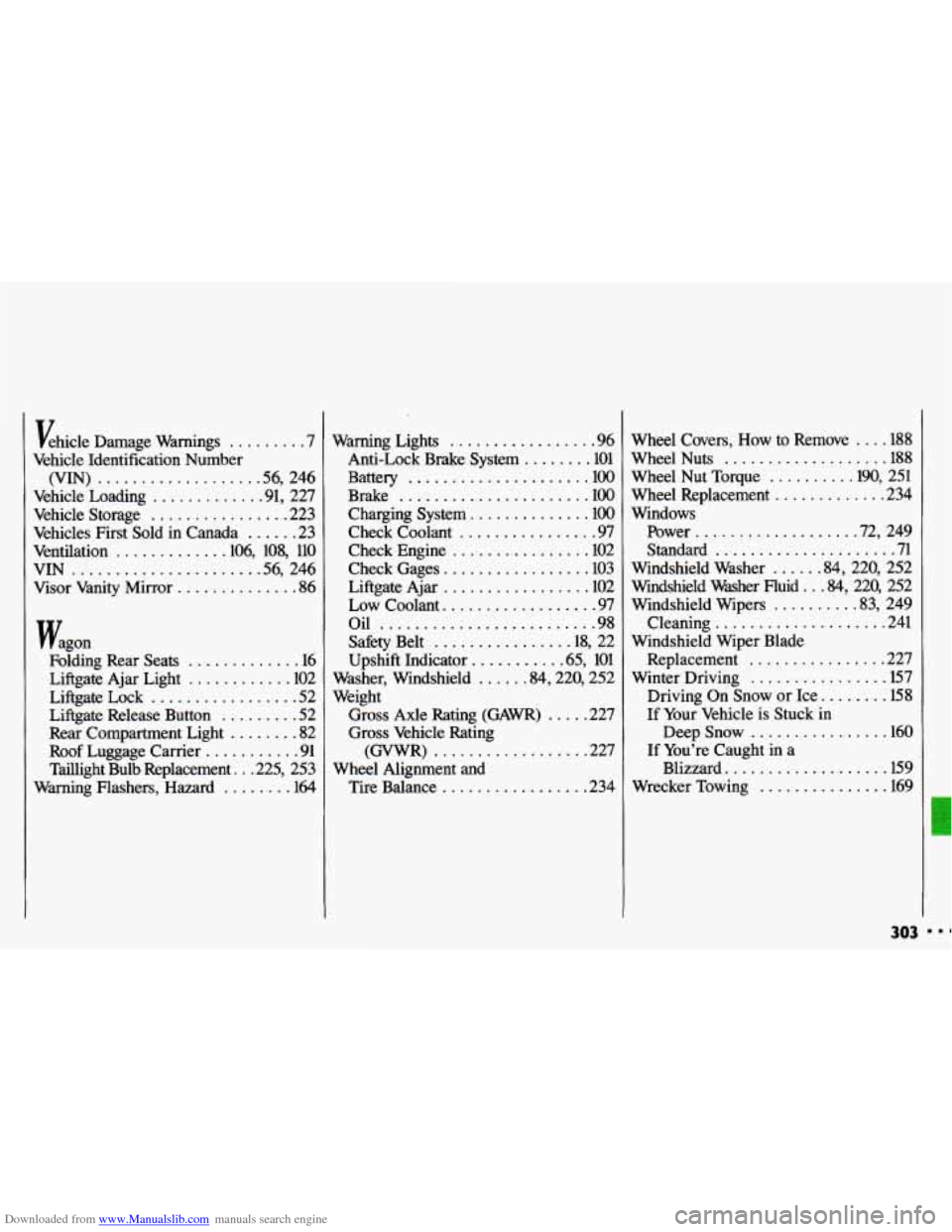

Downloaded from www.Manualslib.com manuals search engine Vehicle Damage Warnings ......... 7
Vehicle Identification Number
Vehicle Loading
............ .91. 227
Vehicle Storage
................ 223
Vehicles First Sold in Canada
...... 23
VIN
...................... 56. 246
Visor Vanity Mirror
.............. 86
(VIN) .................. .56. 246
Ventilation
............ .106. 108. 110
Wagon Folding Rear Seats
............. 16
Liftgate Ajar Light ............ 102
Liftgate
Lock ................. 52
Liftgate Release Button
......... 52
Rear Compartment Light
........ 82
Roof Luggage Carrier
........... 91
Taillight Bulb Replacement
.. .225, 253
Warning Flashers. Hazard
........ 164 Warning Lights
................. 96
Anti-Lock Brake System ........ 101
Battery
..................... lo0
Brake ...................... 100
Charging System .............. lo0
Check Coolant ................ 97
Check Engine
................ 102
Check Gages
................. 103
Liftgate Ajar
................. 102
Low Coolant
.................. 97
Oil ......................... 98
Safety Belt ............... .18, 22
Upshift Indicator
.......... .65, 101
Washer. Windshield
..... .84.220, 252
Weight Gross Axle Rating (GAWR)
..... 227
Gross Vehicle Rating
(GVWR)
.................. 227
Tire Balance
................. 234
Wheel Alignment and Wheel Covers. How to Remove
.... 188
Wheel Nuts
................... 188
Wheel Nut Torque
......... .190. 251
Wheel Replacement
............. 234
Windows Power
.................. .72. 249
Standard
..................... 71
Windshield Washer
..... .84. 220. 252
Windshield Washer Fluid
.. .84. 220. 252
Windshield Wipers
......... .83. 249
Cleaning
.................... 241
Windshield Wiper Blade Replacement
................ 227
Winter Driving
................ 157
Driving
On Snow or Ice ........ 158
If Your Vehicle is Stuck in
Deep Snow
................ 160
If You’re Caught in a
Blizzard
................... 159
Wrecker Towing
............... 169
