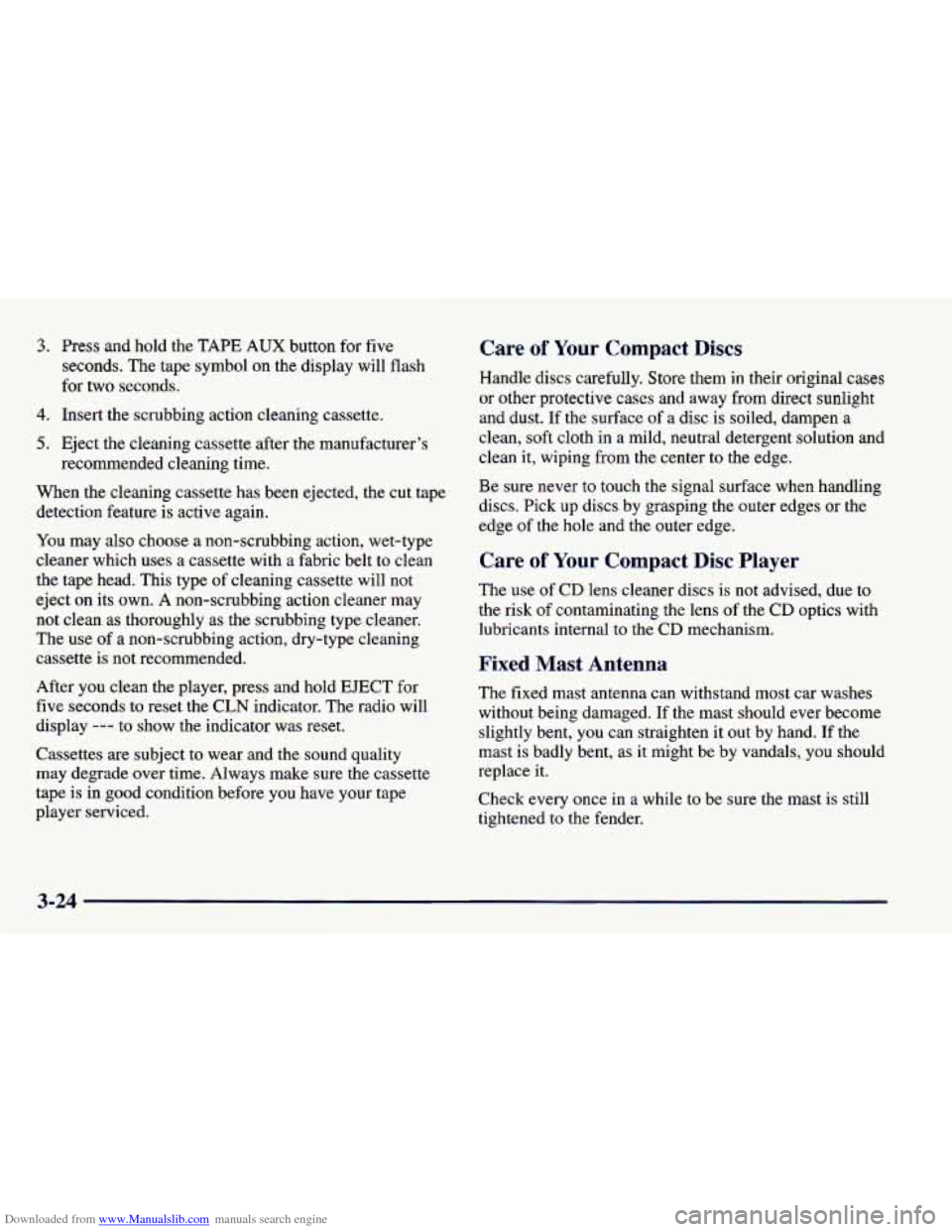

Downloaded from www.Manualslib.com manuals search engine 3. Press and hold the TAPE AUX button for five
seconds. The tape symbol on the display will flash
for two seconds.
4. Insert the scrubbing action cleaning cassette.
5. Eject the cleaning cassette after the manufacturer’s
recommended cleaning time.
When the cleaning cassette has been ejected, the cut tape
detection feature is active again.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will not
eject on its own.
A non-scrubbing action cleaner may
not clean
as thoroughly as the scrubbing type cleaner.
The use of a non-scrubbing action, dry-type cleaning
cassette
is not recommended.
After you clean the player, press and hold EJECT for
five seconds to reset the
CLN indicator. The radio will
display
--- to show the indicator was reset.
Cassettes are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never
to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens of the CD optics with
lubricants internal to the CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever become
slightly bent, you can straighten it out by hand. If the
mast is badly bent, as it might be by vandals, you should
replace it.
Check every once in a while to be sure the mast is still
tightened to the fender.
3-24

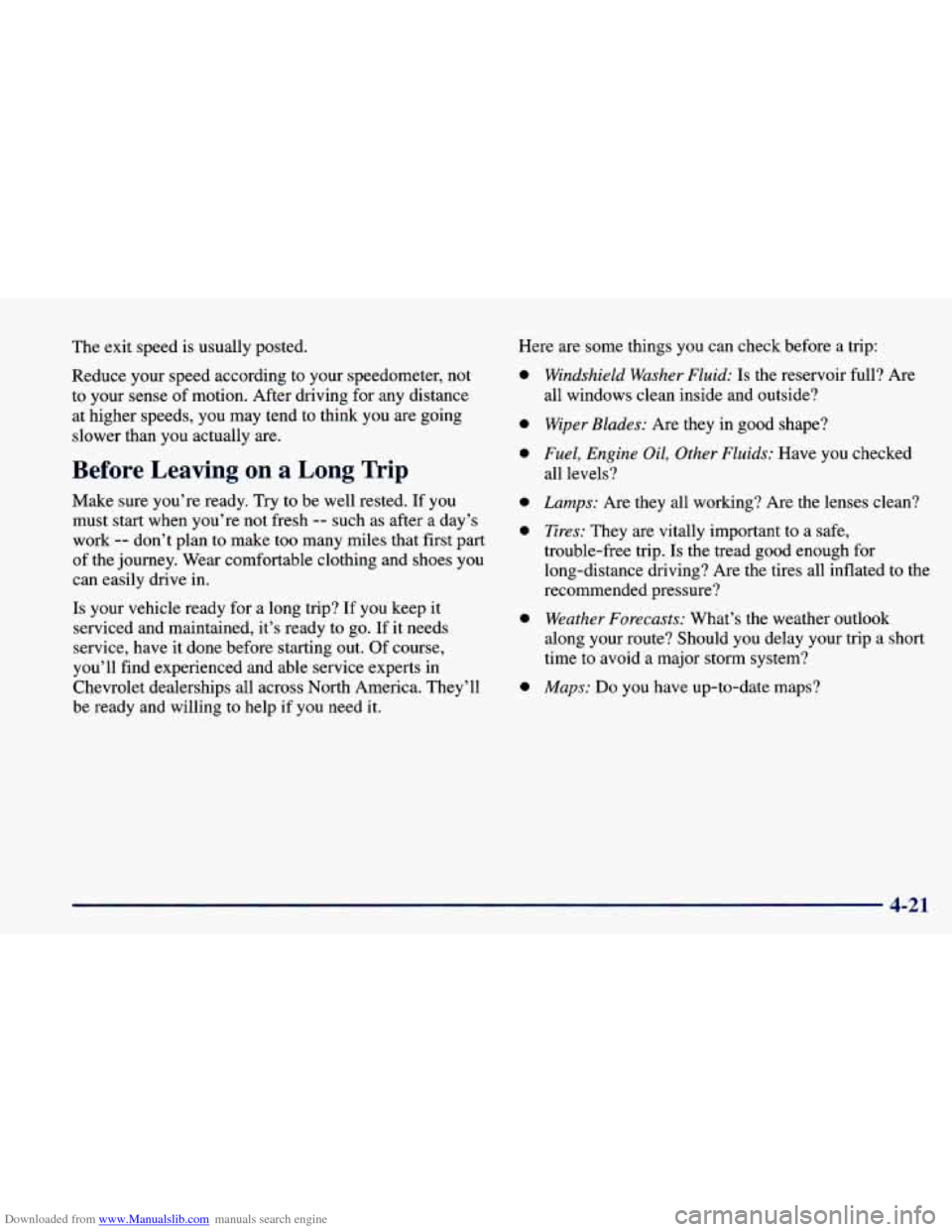

Downloaded from www.Manualslib.com manuals search engine The exit speed is usually posted. Reduce your speed according to your speedometer, not
to your sense of motion. After driving for any distance
at higher speeds, you may tend to think you are going
slower than you actually are.
Before Leaving on a Long Trip
Make sure you’re ready. Try to be well rested. If you
must start when you’re not fresh
-- such as after a day’s
work
-- don’t plan to make too many miles that first part
of the journey. Wear comfortable clothing and shoes you
can easily drive in.
Is your vehicle ready for
a long trip? If you keep it
serviced and maintained, it’s ready to go. If it needs
service, have it done before starting out. Of course,
you’ll find experienced and able service experts in
Chevrolet dealerships all across North America. They’ll
be ready and willing to help
if you need it.
Here are some things you can check before a trip:
0
0
0
0
0
0
0
Windshield Washer Fluid: Is the reservoir full? Are
all windows clean inside and outside?
Wiper Blades: Are they in good shape?
Fuel, Engine Oil, Other Fluids: Have you checked
all levels?
Lamps: Are they all working? Are the lenses clean?
Tires: They are vitally important to a safe,
trouble-free trip. Is the tread
good enough for
long-distance driving? Are the tires all inflated to the
recommended pressure?
Weather Forecasts: What’s the weather outlook
along your route? Should you delay your trip a short
time to avoid a major storm system?
Maps: Do you have up-to-date maps?

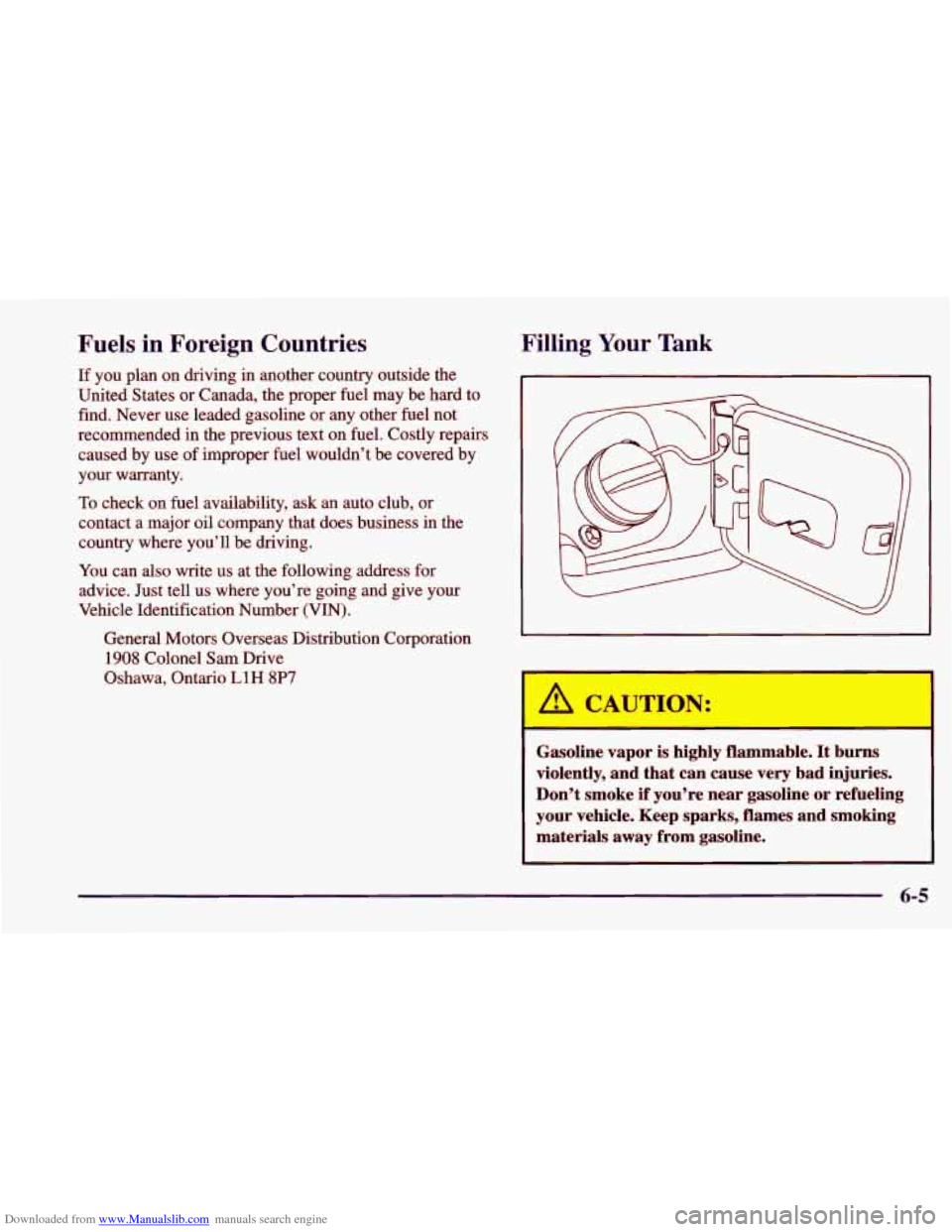

Downloaded from www.Manualslib.com manuals search engine Fuels in Foreign Countries Filli~ : Your Tank
If you plan
on driving in another country outside the
United States or Canada, the proper fuel may be hard to
find. Never use leaded gasoline or any other fuel not
recommended in the previous text on fuel. Costly repairs
caused by use
of improper fuel wouldn’t be covered by
your warranty.
To check on fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you’ll be driving.
You can also write us at the following address for
advice. Just tell us where you’re going and give your
Vehicle Identification Number
(VIN).
General Motors Overseas Distribution Corporation
1908 Colonel Sam Drive
Oshawa, Ontario
LlH 8P7
Gasoline vapor is highly flammable. It burns
violently, and that can cause
very bad injuries.
Don’t smoke if you’re near
gasoline or refueling
your vehicle. Keep sparks, flames and smoking
materials away from gasoline.
I
6-5

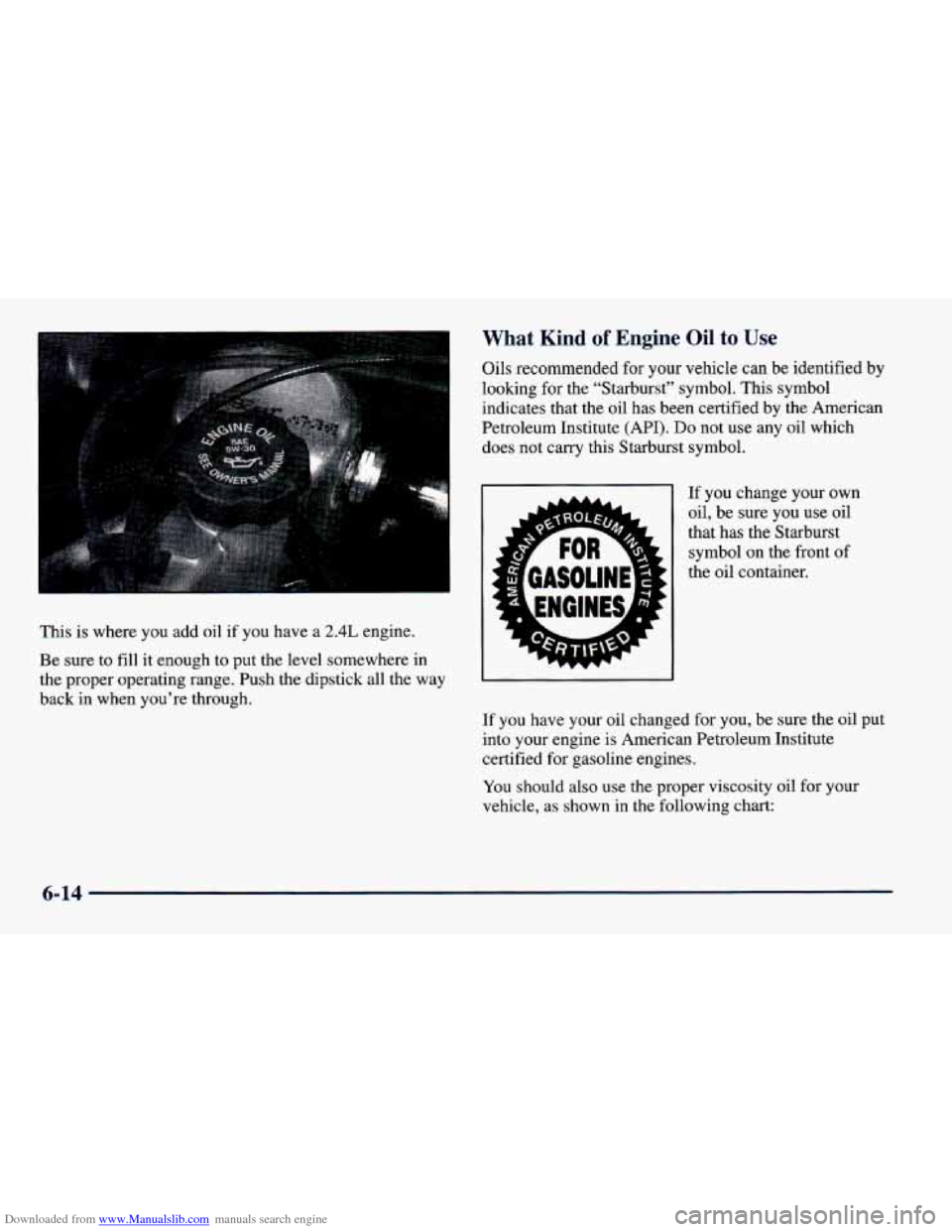

Downloaded from www.Manualslib.com manuals search engine What Kind of Engine Oil to Use
Oils recommended for your vehicle can be identified by
looking
for the “Starburst” symbol. This symbol
indicates that the oil has been certified by the American
Petroleum Institute
(API). Do not use any oil which
does not carry this Starburst symbol.
If you change your own
oil, be sure you use oil
that has the Starburst symbol on the front of
the oil container.
This is where you add oil if you have a 2.4L engine.
Be sure to fill it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you’re through.
If you have your oil changed for you, be sure the oil put
into your engine is American Petroleum Institute
certified for gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown in the following chart:
6-14

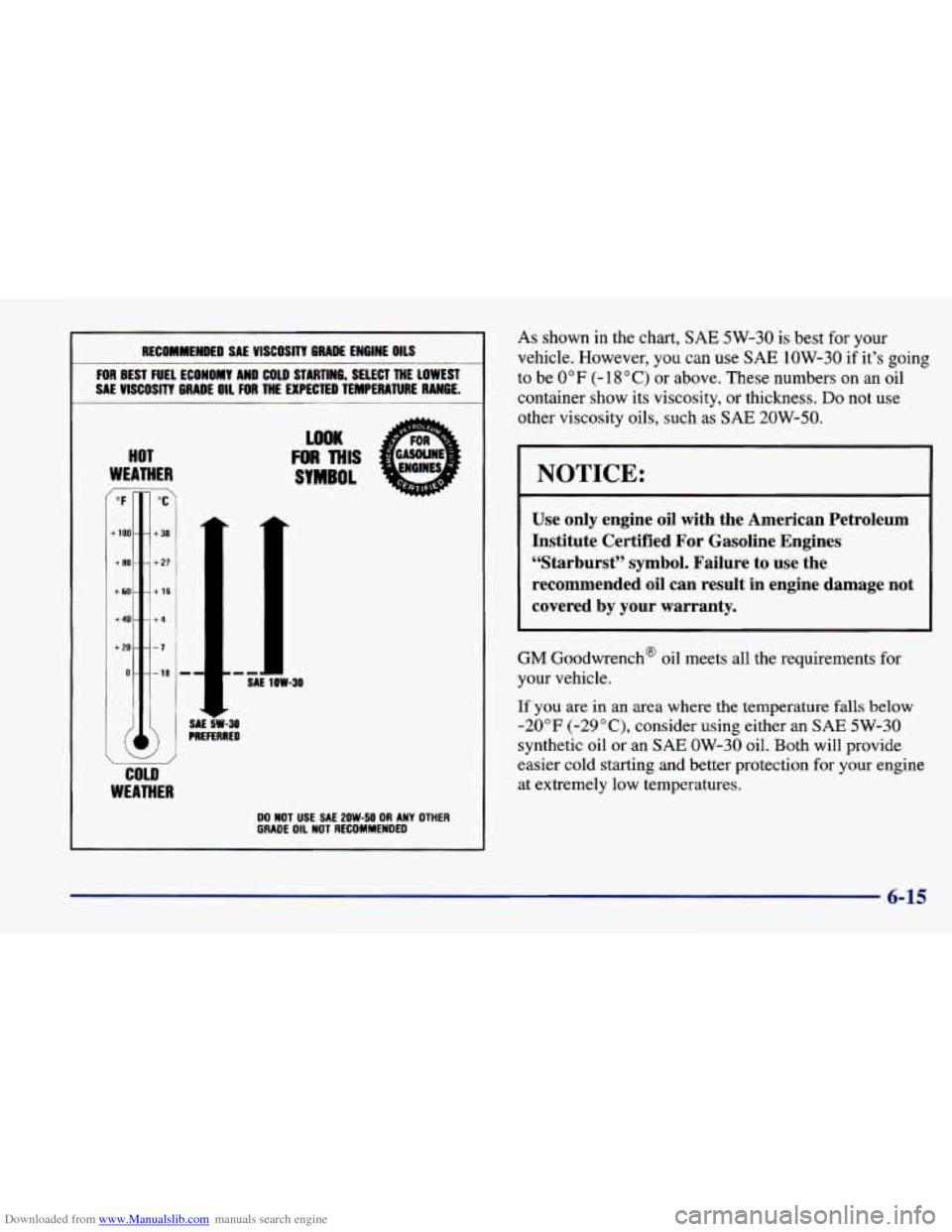

Downloaded from www.Manualslib.com manuals search engine I RECOMMENDED SAE UlSCOSlTV GRADE ENGINE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
I SAL VISCOSITY GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
+60--+16
+40- - +4
+20- - -7
0---18
/
COLD
WEATHER
WOK
FOR THIS
SYMBOL
SAE CW-30 PREFERRED
DO NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
As shown in the chart, SAE 5W-30 is best for your
vehicle. However,
you can use SAE low-30 if it's going
to be
0" F (- 18 " C) or above. These numbers on an oil
container show its viscosity, or thickness.
Do not use
other viscosity oils, such
as SAE 20W-50.
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
"Starburst" symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
GM Goodwrench@ oil meets all the requirements for
your vehicle.
If you are
in an area where the temperature falls below
-20°F (-29"C), consider using either an SAE 5W-30
synthetic oil or an SAE OW-30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
6-15

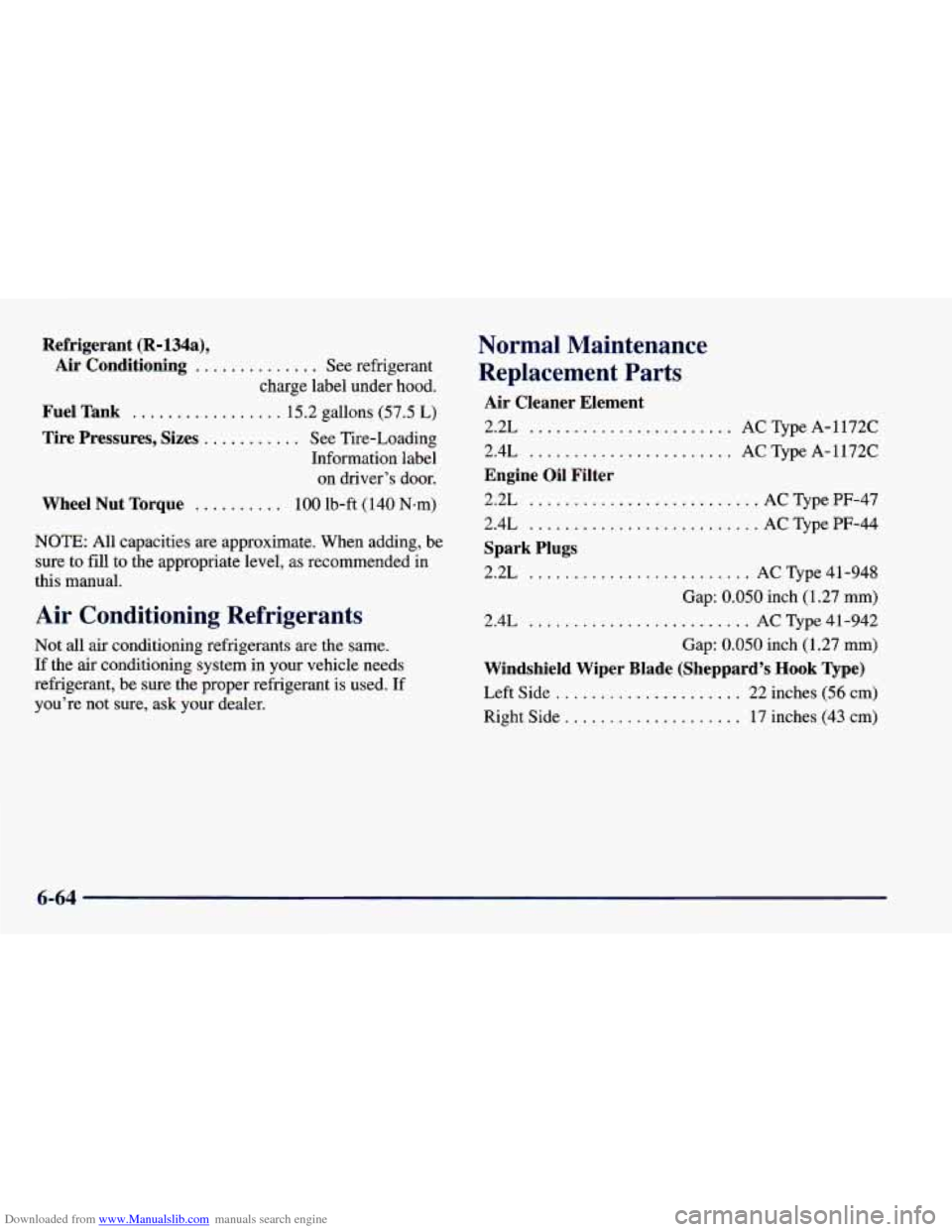

Downloaded from www.Manualslib.com manuals search engine Refrigerant (R=134a), Air Conditioning
.............. See refrigerant
charge label under hood.
Fuel Tank ................. 15.2 gallons (57.5 L)
Tire Pressures, Sizes ........... See Tire-Loading Information label on driver’s door.
Wheel Nut Torque .......... 100 lb-ft (140 Nmm)
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level, as recommended in
this manual.
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Cleaner Element
2.2L ....................... AC Type A- 11 72C
Engine Oil Filter
2.2L .......................... AC Type PF-47
2.4L
.......................... AC Type PF-44
Spark Plugs
2.2L ......................... AC Type 41-948
Gap:
0.050 inch (1.27 mm)
2.4L
......................... AC Type 4 1-942
Gap: 0.050 inch (1.27 mrn)
Windshield Wiper Blade (Sheppard’s Hook vpe)
Left Side ..................... 22 inches (56 cm)
Right Side.
................... 17 inches (43 cm)
2.4L
....................... AC Type A- 1172C
6-64

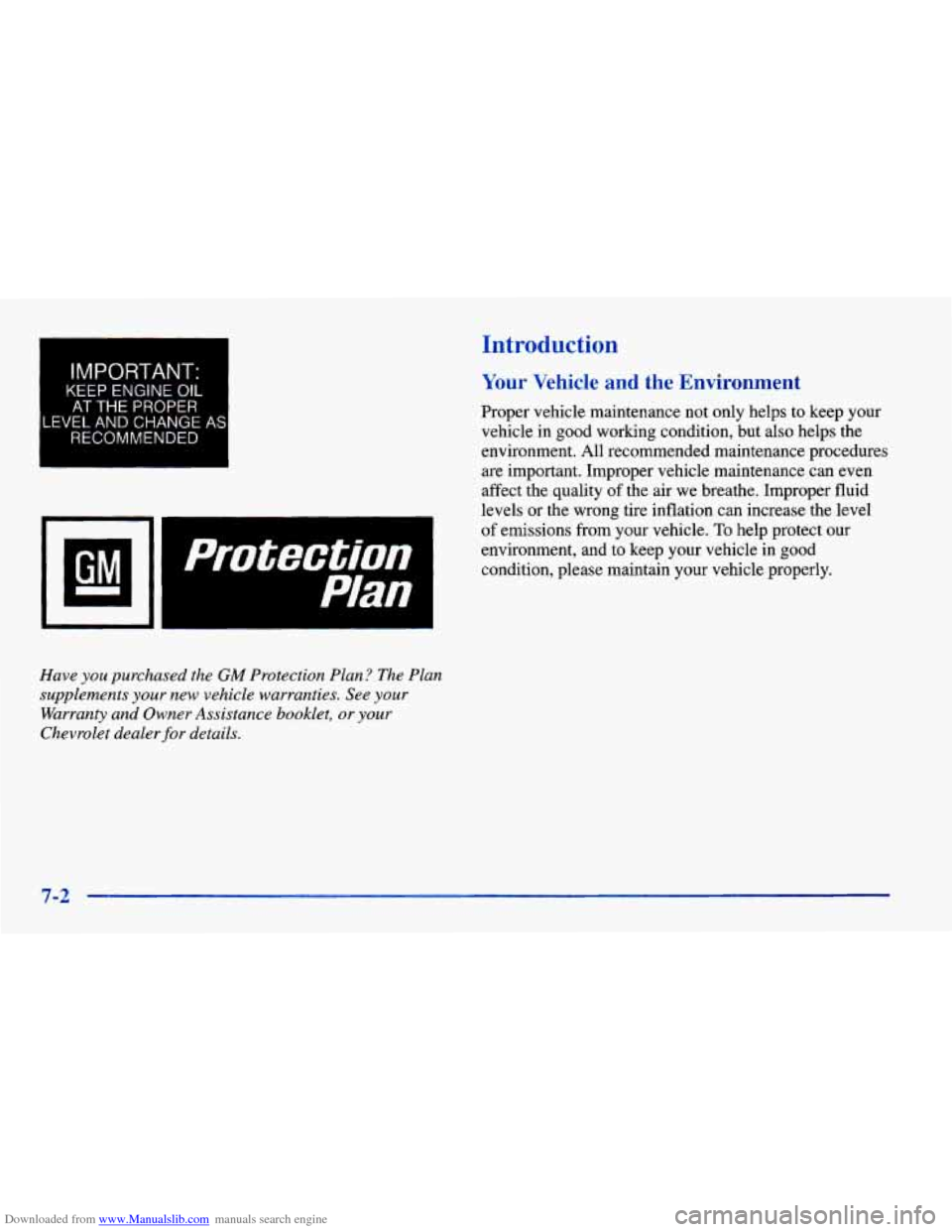

Downloaded from www.Manualslib.com manuals search engine L
IMPORTANT.
KEEP ENGINE OIL
AT THE PROPER
.EVEL AND CHANGE
RECOMMENDED
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your
Chevrolet dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels
or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep
your vehicle in good
condition, please maintain your vehicle properly.
7-2

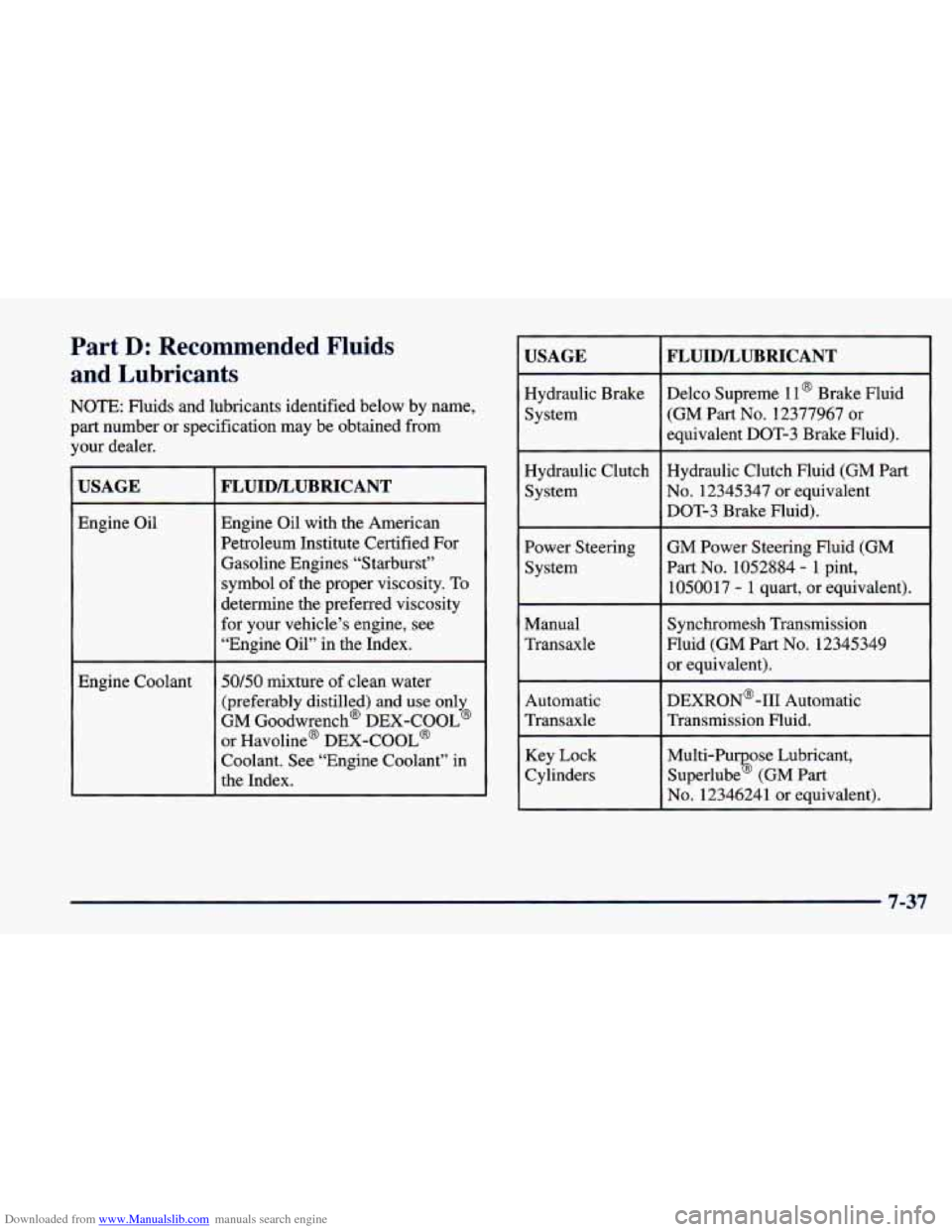

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
Engine Oil
Engine Coolant
FLUIDLUBRICANT
Engine Oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst” symbol
of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture
of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Havoline@ DEX-COOL@
Coolant. See “Engine Coolant” in
the Index.
USAGE
Delco Supreme 11 @ Brake Fluid
Hydraulic Brake
FLUIDLUBRICANT
equivalent DOT-3 Brake Fluid).
(GM Part
No. 12377967 or
System
Hydraulic Clutch
No. 12345347 or equivalent
System Hydraulic Clutch Fluid (GM Part
DOT-3 Brake Fluid).
Power Steering Part
No. 1052884 - 1 pint,
System GM Power Steering Fluid (GM
105001 7
- 1 quart, or equivalent).
Manual Fluid (GM Part No. 12345349 Transaxle Synchromesh Transmission
or equivalent).
Automatic
Superlube
% (GM Part
Cylinders Multi-Pu
ose Lubricant, Key Lock
Transmission
Fluid.
Transaxle DEXRON@-I11 Automatic
No. 12346241
or equivalent).
7-37

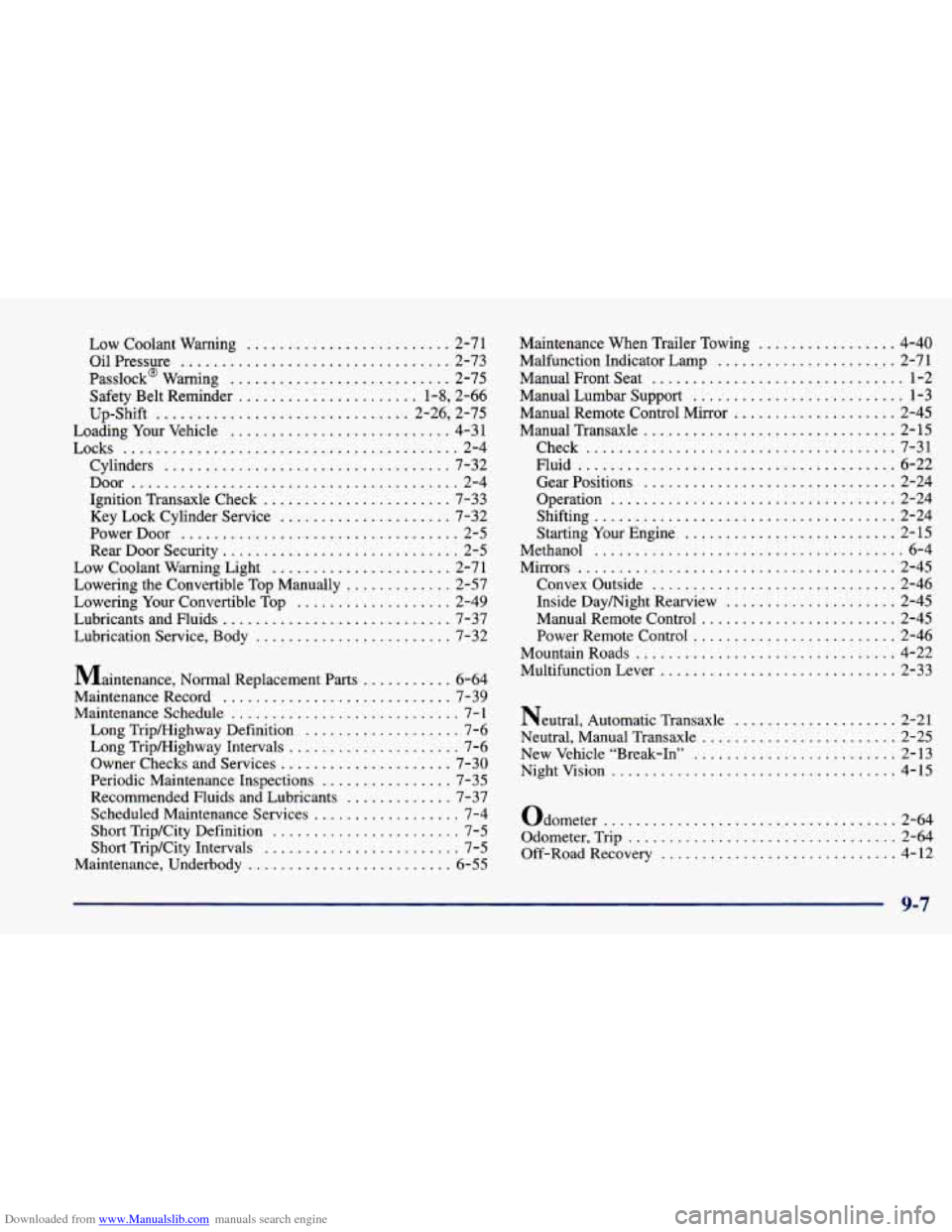

Downloaded from www.Manualslib.com manuals search engine Low Coolant Warning ......................... 2-71
Oil Pressure
................................. 2-73
Passlock@ Warning
........................... 2-75
Safety Belt Reminder
...................... 1.8. 2.66
Up-Shift
............................... 2.26. 2.75
Loading
Your Vehicle ........................... 4-3 1
Locks ......................................... 2-4
Cylinders
................................... 7-32
Door
........................................ 2-4
Ignition Transaxle Check
....................... 7-33
Key Lock Cylinder Service
..................... 7-32
PowerDoor
.................................. 2-5
Rear Door Security
............................. 2-5
Low Coolant Warning Light
...................... 2-71
Lowering the Convertible
Top Manually ............. 2-57
Lowering Your Convertible Top
................... 2-49
Lubricants and Fluids
............................ 7-37
Lubrication Service. Body
........................ 7-32
Maintenance. Normal Replacement parts
........... 6-64
Maintenance Record
............................ 7-39
Maintenance Schedule
............................ 7- 1
Long Tripmighway Definition ................... 7-6
Long Tripmighway Intervals
..................... 7-6
Owner Checks and Services
..................... 7-30
Periodic Maintenance Inspections
................ 7-35
Recommended Fluids and Lubricants
............. 7-37
Scheduled Maintenance Services
.................. 7-4
Short TripKity Definition ....................... 7-5
Short Trip/City Intervals ........................ 7-5
Maintenance. Underbody ......................... 6-55 Maintenance When Trailer Towing
................. 4-40
Malfunction Indicator Lamp
...................... 2-71
Manual Front Seat
............................... 1-2
Manual Lumbar Support
.......................... 1-3
Manual Remote Control Mirror
.................... 2-45
ManualTransaxle ............................... 2-15
Check
...................................... 7-31
Fluid
....................................... 6-22
Gear Positions
............................... 2-24
Operation
................................... 2-24
Shifting
..................................... 2-24
Starting Your Engine
.......................... 2-15
Methanol
...................................... 6-4
Mirrors
....................................... 2-45
Convex Outside
.............................. 2-46
Inside Daymight Rearview
..................... 2-45
Manual Remote Control
........................ 2-45
Power Remote Control
......................... 2-46
Mountain Roads
................................ 4-22
Multifunction Lever
............................. 2-33
Neutral. Automatic Transaxle
.................... 2-21
Neutral. Manual Transaxle ........................ 2-25
New Vehicle “Break-In” ......................... 2-13
Nightvision
................................... 4-15
Odometer
.................................... 2-64
Odometer, Trip
................................. 2-64
Off-Road Recovery
............................. 4-12
9-7

Downloaded from www.Manualslib.com manuals search engine Oil. Engine .................................... 6-12
Oil Pressure Light
.............................. 2-73
Overdrive, Automatic Transaxle
................... 2-23
Overheating Engine
............................. 5- 14
Owner Checks and Services ....................... 7-30
Owner Publications. Ordering
................ 8-1 1, 8-12
Paint Spotting. Chemical
........................ 6-55
Park
Automatic Transaxle
.......................... 2-20
Shifting Into
................................. 2-27
Shifting Out of
............................... 2-29
Parking AtNight
.................................... 2-11
Brake
...................................... 2-26
Brake Mechanism Check
....................... 7-34
Lots
....................................... 2- 12
Over Things That Burn
........................ 2-30
With a Trailer
................................ 4-39
Your Vehicle, Manual Transaxle
................. 2-29
Passenger Position
.................... 1-23, 1-30. 1-36
With
a Trailer ................................ 4-37
Passlock@
..................................... 2-12
Warning Light
............................... 2-75
Periodic Maintenance Inspections
.................. 7-35
Power
DoorLocks
................................... 2-5
Option Fuses ................................ 6-58
Remote Control Mirror ........................ 2-46
Passing
....................................... 4-12 Steering
............................... 4- 10. 6.29
Steering Fluid
................................ 6-29
Windows
................................... 2-32
Pregnancy, Use of Safety Belts
.................... 1-22
Problems on the Road
............................ 5-1
Publications, Service and Owner
.............. 8- 11, 8- 12
Radio Reception .............................. 3-22
Radios
.......................... 3.7.3.9.3.11. 3.16
Rain. Driving In ................................ 4-16
Raising the Convertible Top Manually
.............. 2-57
Raising Your Convertible Top
..................... 2-56
Rear Door Security Locks
........................... 2-5
Outside Seat Position
.......................... 1-30
Safety Belt Comfort Guides
..................... 1-33
Seatpassengers .............................. 1-30
Towing
..................................... 5-12
Window Defogger
............................. 3-6
RearTowing
................................... 5-12
Rear Turn Signal Bulb Replacement
................ 6-37
Rearview Mirror ................................ 2-45
Reclining Front Seatbacks
......................... 1-4
Recommended Fluids and Lubricants
............... 7-37
Recreational Vehicle Towing
...................... 4-28
Refrigerants. Air Conditioning
.................... 6-64
Remote Trunk Release
........................... 2-11
Removing the Boot
............................. 2-54
Rearview Mirror,
Inside Daymight
................. 2-45
9-8
