power steering fluid CHEVROLET CAVALIER 1999 3.G Owners Manual

6-
yellowblue
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel
6
-5 Fuels in Foreign Countries
6
-5 Filling Your Tank
6
-7 Filling a Portable Fuel Container
6
-8 Checking Things Under the Hood
6
-12 Engine Oil
6
-17 Engine Air Cleaner/Filter
6
-18 Automatic Transaxle Fluid
(Three
-Speed Only)
6
-21 Automatic Transaxle Fluid (Four-Speed Only)
6
-22 Manual Transaxle Fluid
6
-24 Hydraulic Clutch
6
-25 Surge Tank Pressure Cap
6
-25 Thermostat
6
-25 Engine Coolant
6
-29 Power Steering Fluid6
-29 Windshield Washer Fluid
6
-31 Brakes
6
-34 Battery
6
-35 Bulb Replacement
6
-40 Tires
6
-48 Appearance Care
6
-49 Cleaning the Inside of Your Vehicle
6
-51 Care of Safety Belts
6
-52 Cleaning the Outside of Your Vehicle
6
-53 Cleaning Your Convertible Top
6
-57 Vehicle Identification Number (VIN)
6
-57 Electrical System
6
-62 Replacement Bulbs
6
-62 Capacities and Specifications
6
-63 Air Conditioning Refrigerants
6
-63 Normal Maintenance Replacement Parts

yellowblue

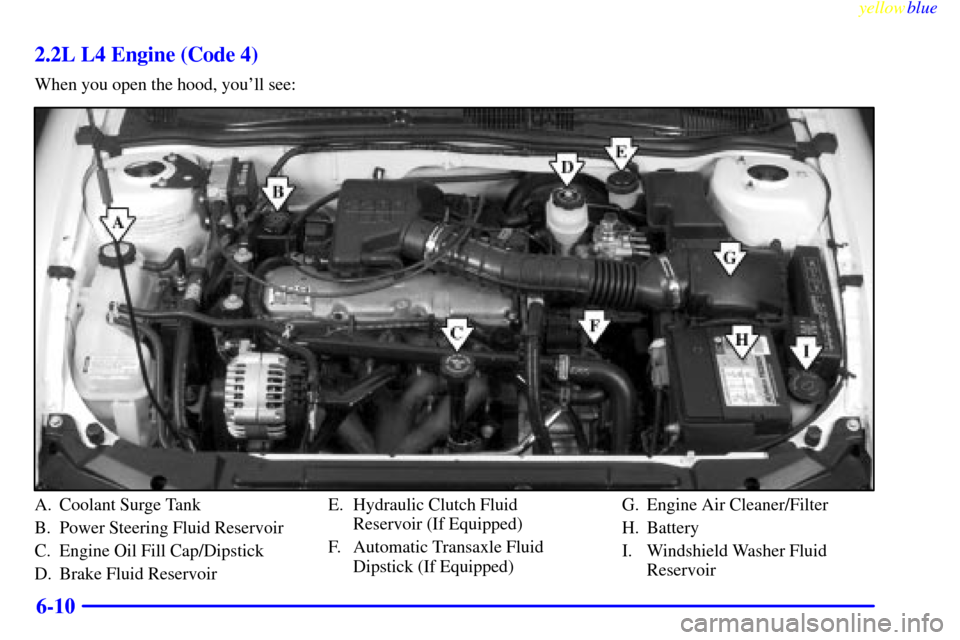

6-10 2.2L L4 Engine (Code 4)
When you open the hood, you'll see:
A. Coolant Surge Tank
B. Power Steering Fluid Reservoir
C. Engine Oil Fill Cap/Dipstick
D. Brake Fluid ReservoirE. Hydraulic Clutch Fluid
Reservoir (If Equipped)
F. Automatic Transaxle Fluid
Dipstick (If Equipped)G. Engine Air Cleaner/Filter
H. Battery
I. Windshield Washer Fluid
Reservoir

yellowblue

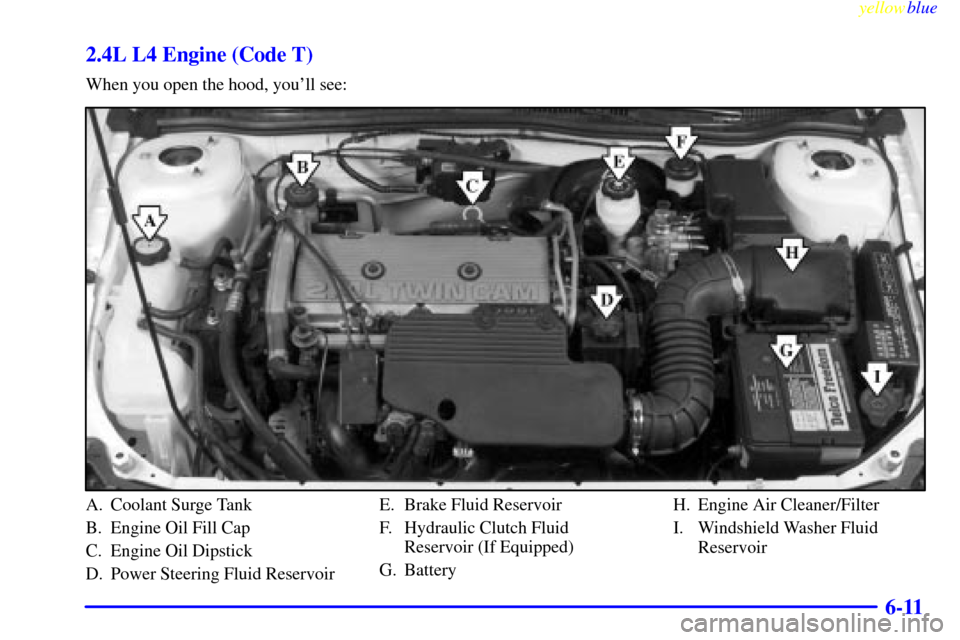

6-11 2.4L L4 Engine (Code T)
When you open the hood, you'll see:
A. Coolant Surge Tank
B. Engine Oil Fill Cap
C. Engine Oil Dipstick
D. Power Steering Fluid ReservoirE. Brake Fluid Reservoir
F. Hydraulic Clutch Fluid
Reservoir (If Equipped)
G. BatteryH. Engine Air Cleaner/Filter
I. Windshield Washer Fluid
Reservoir

yellowblue
6-29
Power Steering Fluid
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How to Check Power Steering Fluid
When the engine compartment is cool, wipe the cap and
the top of the reservoir clean, then unscrew the cap and
wipe the dipstick with a clean rag. Replace the cap and
completely tighten it. Then remove the cap again and
look at the fluid level on the dipstick.
The level should be at the C mark. If necessary, add only
enough fluid to bring the level up to the mark.
What to Use
To determine what kind of fluid to use, see
ªRecommended Fluids and Lubricantsº in the Index.
Always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer's instructions before use. If you will be
operating your vehicle in an area where the temperature
may fall below freezing, use a fluid that has sufficient
protection against freezing.

yellowblue
7-37
Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
FLUID/LUBRICANT
Engine OilEngine Oil with the American
Petroleum Institute Certified For
Gasoline Engines ªStarburstº
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle's engine, see
ªEngine Oilº in the Index.
Engine Coolant50/50 mixture of clean, drinkable
water and use only GM
Goodwrench

DEX-COOL
or
Havoline
DEX-COOL

Coolant. See ªEngine Coolantº in
the Index.
Hydraulic Brake
SystemDelco Supreme 11
Brake Fluid
(GM Part No. 12377967 or
equivalent DOT
-3 Brake Fluid).
USAGEFLUID/LUBRICANT
Windshield
Washer SolventGM Optikleen
Washer Solvent
(GM Part No. 1051515)
or equivalent.
Hydraulic Clutch
SystemHydraulic Clutch Fluid (GM Part
No. 12345347 or equivalent
DOT
-3 Brake Fluid).
Power Steering
SystemGM Power Steering Fluid (GM
Part No. 1052884
- 1 pint,
1050017
- 1 quart, or equivalent).
Manual
TransaxleSynchromesh Transmission Fluid
(GM Part No. 12345349
or equivalent).
Automatic
TransaxleDEXRON
-III Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Manual
Transaxle Shift
LinkageChassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements of
NLGI # 2, Category LB or
GC
-LB.

yellowblue
9-8
Odometer 2-64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer, Trip 2-64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Off-Road Recovery 4-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil, Engine 6-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pressure Light 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overdrive, Automatic Transaxle 2-24 . . . . . . . . . . . . . . . . . . .
Overheating Engine 5-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Owner Checks and Services 7-30 . . . . . . . . . . . . . . . . . . . . . . .
Owner Publications, Ordering 8-11, 8-12 . . . . . . . . . . . . . . . .
Paint Spotting, Chemical 6-55 . . . . . . . . . . . . . . . . . . . . . . . .
Park
Automatic Transaxle 2
-21 . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting Into 2-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting Out of 2-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking
At Night 2
-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Mechanism Check 7-34 . . . . . . . . . . . . . . . . . . . . . . .
Lots 2-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Over Things That Burn 2-32 . . . . . . . . . . . . . . . . . . . . . . . .
With a Trailer 4-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Vehicle, Manual Transaxle 2-31 . . . . . . . . . . . . . . . . .
Passenger Position 1-23, 1-29, 1-36 . . . . . . . . . . . . . . . . . . . .
Passing 4-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
With a Trailer 4-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passlock
2-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Light 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Periodic Maintenance Inspections 7-35 . . . . . . . . . . . . . . . . . . Power
Door Locks 2
-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Option Fuses 6-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Control Mirror 2-46 . . . . . . . . . . . . . . . . . . . . . . . .
Steering 4-10, 6-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering Fluid 6-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows 2-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Outlet 2-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pregnancy, Use of Safety Belts 1-22 . . . . . . . . . . . . . . . . . . . .
Problems on the Road 5-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Publications, Service and Owner 8-11, 8-12 . . . . . . . . . . . . . .
Radio Reception 3-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radios
AM
-FM Stereo 3-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AM-FM Stereo with Cassette Tape 3-9 . . . . . . . . . . . . . . . .
AM-FM Stereo with Cassette Tape and ATC 3-11 . . . . . . .
AM-FM Stereo with Compact Disc and ATC 3-16 . . . . . . .
Rain, Driving In 4-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Raising the Convertible Top Manually 2-57 . . . . . . . . . . . . . .
Raising Your Convertible Top 2-56 . . . . . . . . . . . . . . . . . . . . .
Rear
Door Security Locks 2
-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside Seat Position 1-30 . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Belt Comfort Guides 1-33 . . . . . . . . . . . . . . . . . . . . .
Seat Passengers 1-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Window Defogger 3-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal Bulb Replacement 6-38 . . . . . . . . . . . . . . . .
Rearview Mirror 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
