trunk CHEVROLET CAVALIER 2000 3.G Owners Manual

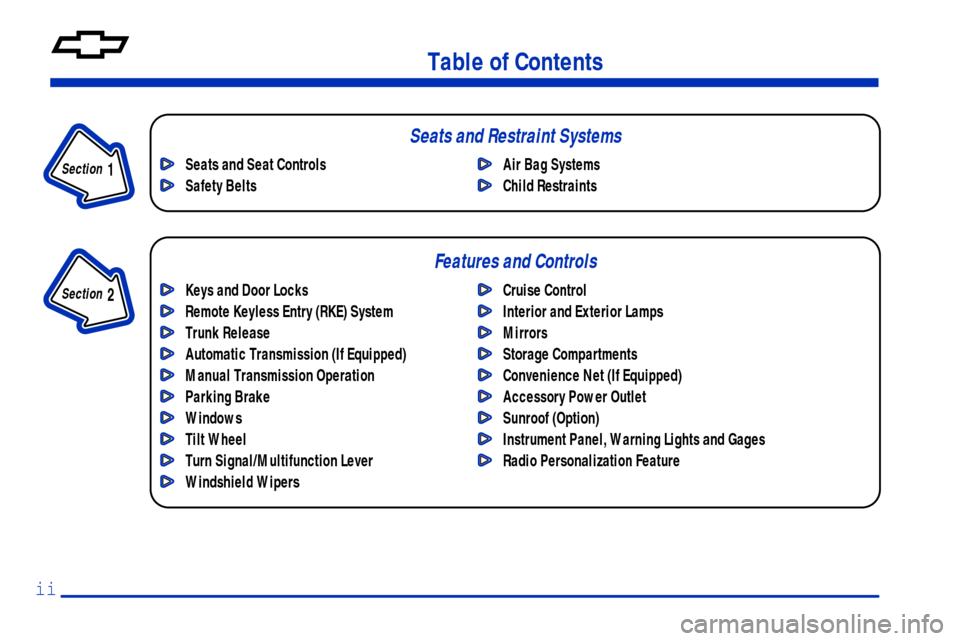

Table of Contents
Keys and Door Locks
Remote Keyless Entry (RKE) System
Trunk Release
Automatic Transmission (If Equipped)
Manual Transmission Operation
Parking Brake
Windows
Tilt Wheel
Turn Signal/Multifunction Lever
Windshield WipersCruise Control
Interior and Exterior Lamps
Mirrors
Storage Compartments
Convenience Net (If Equipped)
Accessory Power Outlet
Sunroof (Option)
Instrument Panel, Warning Lights and Gages
Radio Personalization Feature Seats and Seat Controls
Safety BeltsAir Bag Systems
Child Restraints
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ii

1-7
To close the seat, push the seatback up to its
original position.
Check to ensure the seatback is in its original position
and securely latched by pulling forward on the top
of the seatback. Move any obstructions in the
trunk compartment.
Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the Supplemental Restraint System
(SRS), or air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.

2-7
Remote Keyless Entry (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
In addition, the system illuminates the interior lamps for
a set period of time.
The remote keyless entry
system consists of a
receiver, which is located
in the vehicle, and two
hand held transmitters.Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.

2-8
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
The following functions are available with the remote
keyless entry system:
LOCK: All doors will automatically lock when the
LOCK button is pressed. In addition, if all doors and
the trunk are closed, the headlamps will flash once, the
interior lamps will turn off, and the vehicle anti
-theft
system will arm. If you press the LOCK button again
within five seconds, the horn will chirp to let you know
that the system is armed. The THEFT SYSTEM light
will flash on the instrument panel to let you know the
system is armed. If a door or the trunk is open when
you press the LOCK button, the doors will lock, but the
security system will not arm until all the doors and the
trunk are closed.
Your dealer can change the settings to disable the
headlamp flash feature and horn chirp. Your dealer can
also change the settings to allow the horn to chirp twice
on the first press of the UNLOCK button. See your
dealer for more information.

2-9
UNLOCK: The driver's door will unlock when the
UNLOCK button on the transmitter is pressed. In
addition, the headlamps will flash twice, the dome lamp
will turn on for about 20 seconds or until the ignition
is turned on, and the security system will disarm. The
THEFT SYSTEM light will stop flashing. If you press
UNLOCK again within five seconds, all remaining
doors will unlock.
Your dealer can change the settings to disable the
headlamp flash feature and horn chirp. Your dealer can
also change the settings to allow the horn to chirp twice
on the first press of the UNLOCK button. See your
dealer for more information.
If you use the key to lock or unlock your door or trunk
while the system is armed, you will hear a pre
-alarm
chirp. This will last for 10 seconds, then the full alarm
will sound. This can be avoided by pressing any key fob
button or turning the ignition to START.
If you hear three chirps when you press the UNLOCK
or LOCK button on your transmitter, that means
your security system alarm was triggered while you
were away.Trunk Release: The trunk will unlock anytime when
the vehicle symbol on the transmitter is pressed and the
vehicle speed is less that 2 mph (3 km/h). The headlamps
will flash twice. When the trunk is unlocked using the
transmitter, the security system will be temporarily
disarmed until the trunk is opened and closed again or a
period of one minute elapses at which time the system
will re
-arm.
Your dealer can change the settings to disable the headlamp
flash feature. See your dealer for more information.
Horn Symbol: The horn will sound and the headlamps
and dome lamp will flash alternately when this button is
pressed. This can be turned off by pressing the horn
symbol button again or by turning the ignition to ON.
The alarm will sound for two minutes unless cancelled
by the driver.

2-12
Trunk
To unlock the trunk from the outside, insert the key and
turn the trunk lock cylinder or use the remote keyless
entry transmitter (if equipped).
When closing the trunk, close from the center to ensure
it fully latches.
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.
CAUTION: (Continued)
CAUTION: (Continued)

Turn the fan on your heating or cooling
system to its highest speed with the setting
on any airflow selection except MAX.
That will force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Remote Trunk Release (If Equipped)
Pull upward on the remote
release handle, located on
the floor near the left side
of the driver's seat, to
release the trunk lid.

2-13
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition. If you take the key with you, and you have an
automatic transaxle, it will be locked. And remember to
lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your key?

If possible, park in a busy, well lit area.

Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.

Close all windows.

Lock all the doors except the driver's.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

2-43
After you exit the vehicle and all of the doors have
been closed, the lamps will stay on for an additional
20 seconds before fading off. The lamps will also fade
to off when the key is inserted and turned to RUN
of ACCESSORY, or the lock button on the key fob
is pressed.
Front Reading Lamps (If Equipped)
These lamps are located on the rearview mirror.
Turn each one on and off by pressing its switch.
Map Lamps (If Equipped)
These lamps are located forward of the dome lamp.
To turn the lamps on, press the switch. Press the
switch again to turn them off.
Battery Saver
Your vehicle is equipped with a battery saver feature
designed to protect your vehicle's battery.
When any interior lamp (trunk, reading, dome, etc.)
is left on and the ignition is turned off, the battery
rundown protection system will automatically turn the
lamp off after 20 minutes. This will avoid draining the
battery. This system does not protect against leaving on
the headlamps or parking lamps.
To reactivate the interior lamps, either:

The ignition must be turned on,

the activated lamp switch must be turned off,
then on, or

a front door must be opened.
The battery rundown protection feature will also be
activated when any door is left open.

2-46
Storage Compartments
Center Console Storage Area
To open the center console, pull the lift lever up and
the lid back.
To close the center console, push the lid down until
it clicks.
Center Console Cupholders
There are two cupholders located at the front of the
center console, in front of the shift lever. There are also
cupholders for the rear seat passengers located under the
center console lid. Open the center console lid all the
way to uncover the rear cupholders.
Convenience Net (If Equipped)
Your vehicle may have a convenience net. You'll see it
inside the back wall of the trunk. Put small loads, like
grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and
stops. Un
-clip a corner of the convenience net to fit
larger objects behind the net, then re
-clip it to secure
them in place.The net isn't for larger, heavier loads. Store them in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.
Ashtrays and Cigarette Lighter
(If Equipped)
To use the lighter, just push it in all the way and let go.
When it's ready, it will pop back out by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
To clean the center console ashtray, remove the entire
ashtray and empty it.

2-50 Installing the Three Piece Boot
1. From inside the vehicle, pull the tab on the rear seat
to fold down the seat. See ªFold
-Down Rear Seatº
in the Index.
2. Open the trunk and remove both boot side covers.
Leave the trunk open.
3. Install the boot side cover by inserting the tab (A) on
the underside of the cover into the slot (B) at the top
of the quarter trim panel. Place the rear flap of the
boot side cover in the trunk lid opening, aligning the
eyelet (C) over the boot snap ball stud (D). Repeat
this step for the opposite side boot cover.
