Page 221 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-13

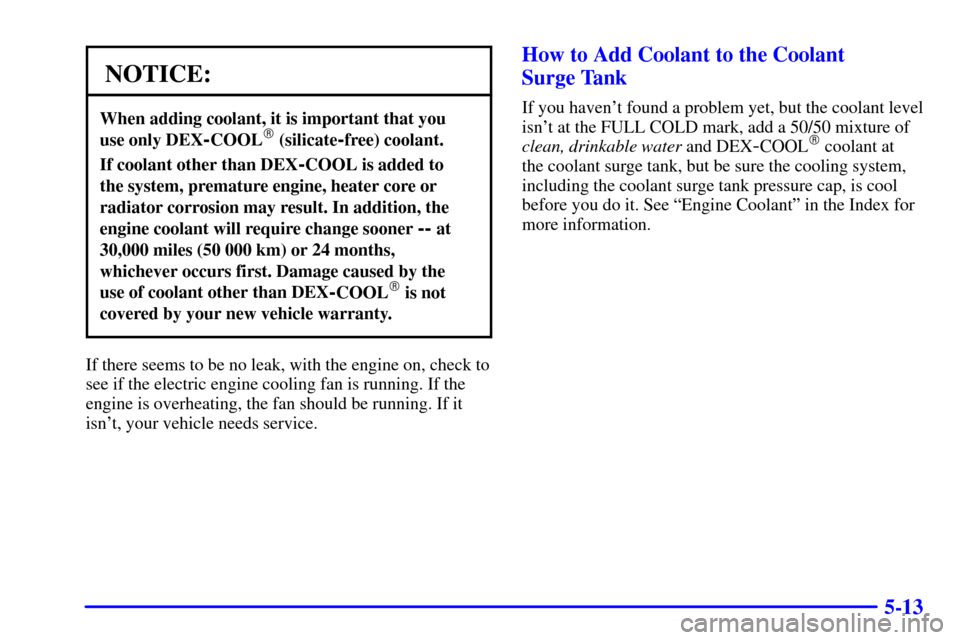

NOTICE:
When adding coolant, it is important that you
use only DEX
-COOL (silicate-free) coolant.
If coolant other than DEX-COOL is added to
the system, premature engine, heater core or
radiat

Page 222 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-14

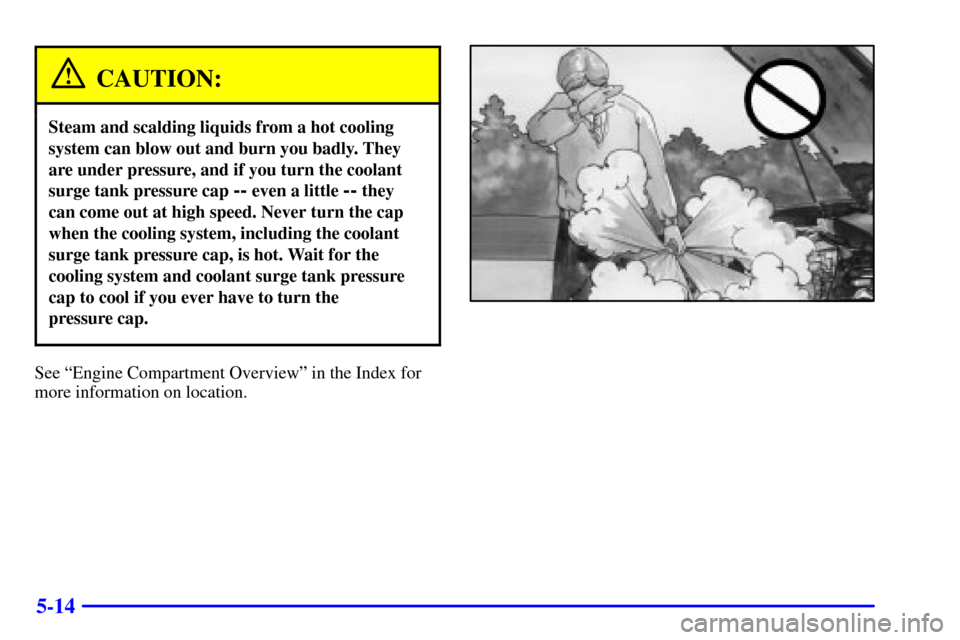

CAUTION:
Steam and scalding liquids from a hot cooling
system can blow out and burn you badly. They
are under pressure, and if you turn the coolant
surge tank pressure cap
-- even a little -- th

Page 223 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-15

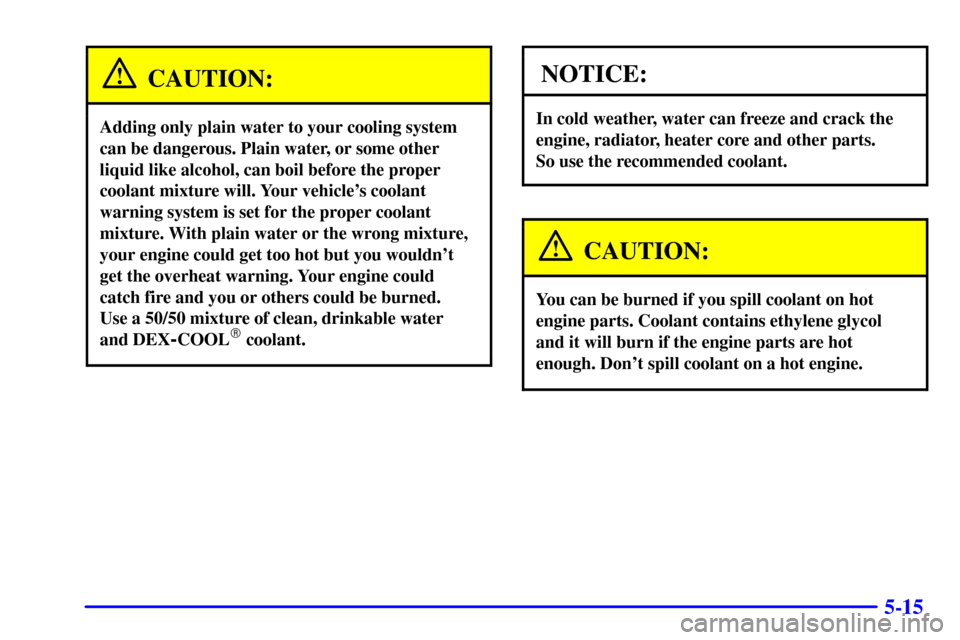

CAUTION:
Adding only plain water to your cooling system
can be dangerous. Plain water, or some other
liquid like alcohol, can boil before the proper
coolant mixture will. Your vehicles coolant
w

Page 224 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-16

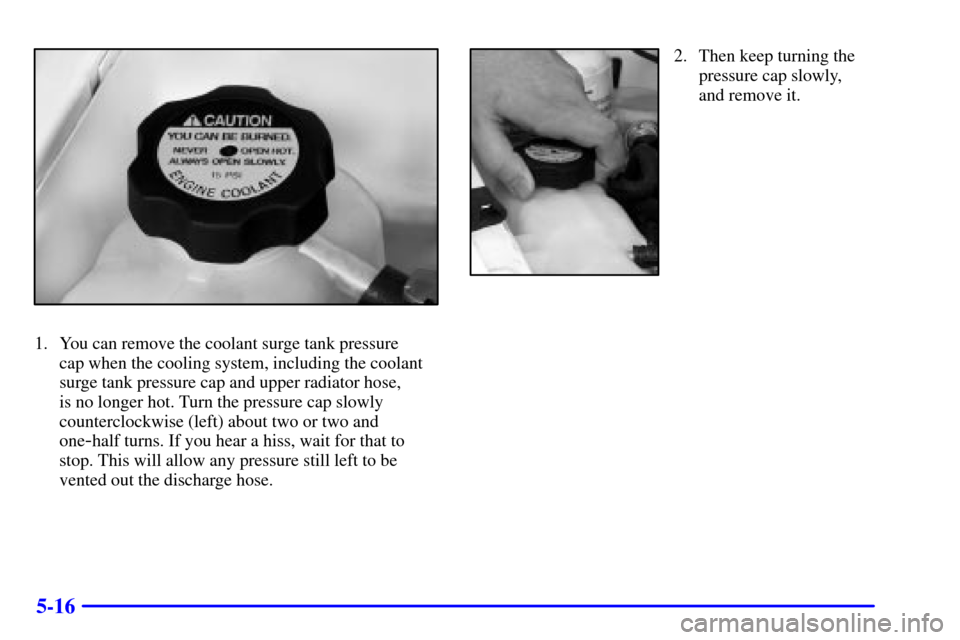

1. You can remove the coolant surge tank pressure
cap when the cooling system, including the coolant
surge tank pressure cap and upper radiator hose,
is no longer hot. Turn the pressure cap slo

Page 225 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-17

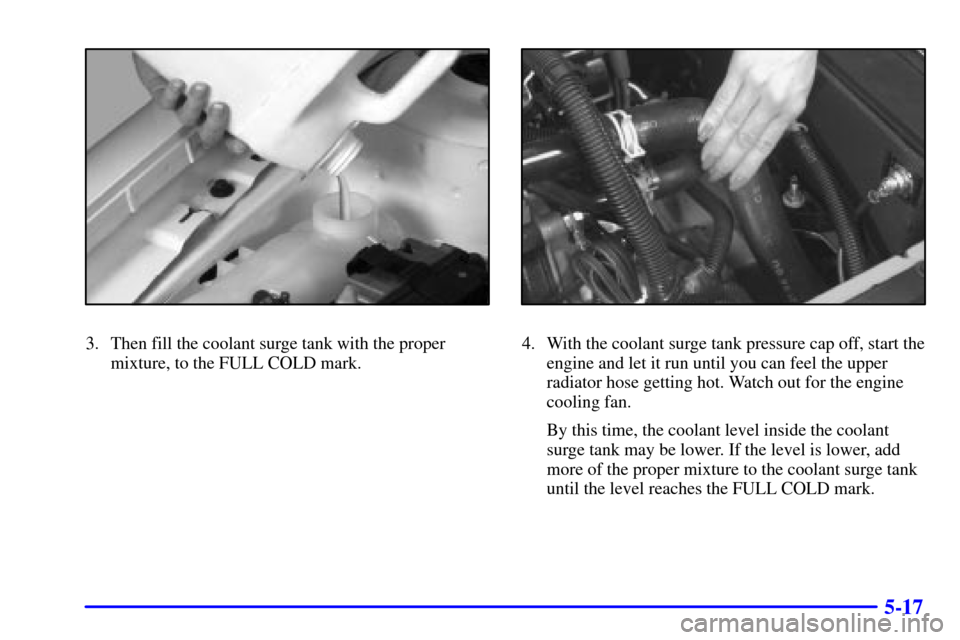

3. Then fill the coolant surge tank with the proper
mixture, to the FULL COLD mark.4. With the coolant surge tank pressure cap off, start the
engine and let it run until you can feel the upper
ra

Page 226 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-18
5. Then replace the
pressure cap. Be
sure the pressure
cap is hand
-tight.
Check the level in the surge tank when the cooling
system has cooled down. If the coolant isnt at the
proper level, rep

Page 227 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-19

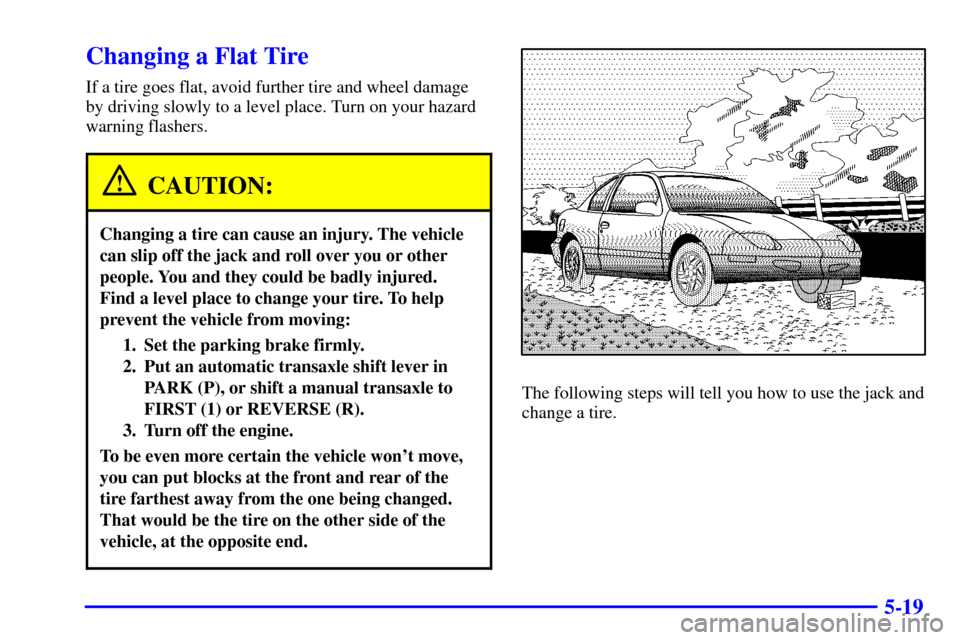

Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injur

Page 228 of 357

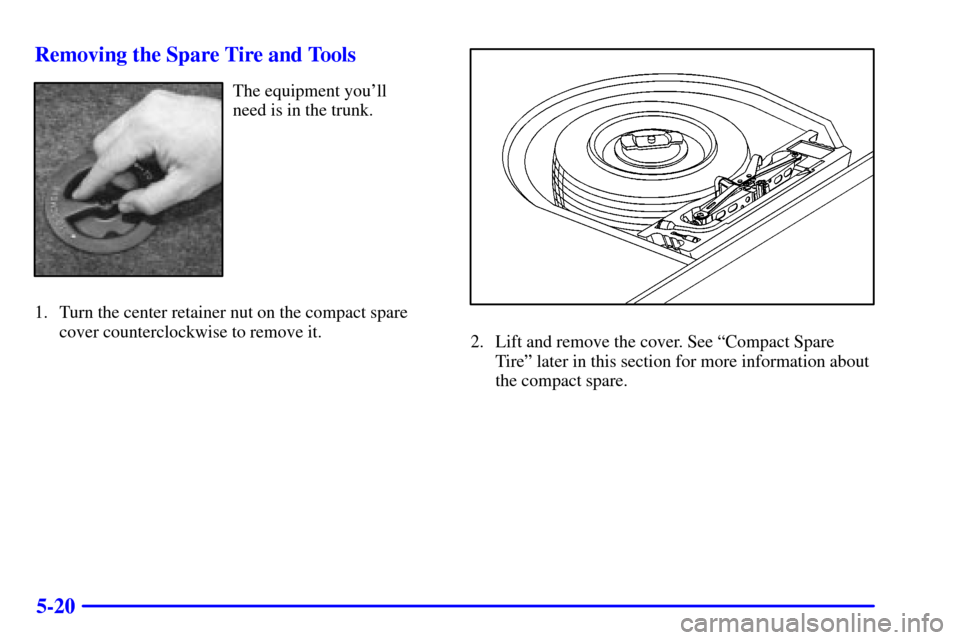

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-20 Removing the Spare Tire and Tools
The equipment youll
need is in the trunk.
1. Turn the center retainer nut on the compact spare
cover counterclockwise to remove it.
2. Lift and remove the cove

Page 229 of 357

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-21
3. Turn the wing bolt
counterclockwise and
remove it. Then lift off
the adapter and remove
the compact spare tire.
4. Your vehicles jack and wheel wrench are stored in a
foam tray. Remove the ja

Page 230 of 357

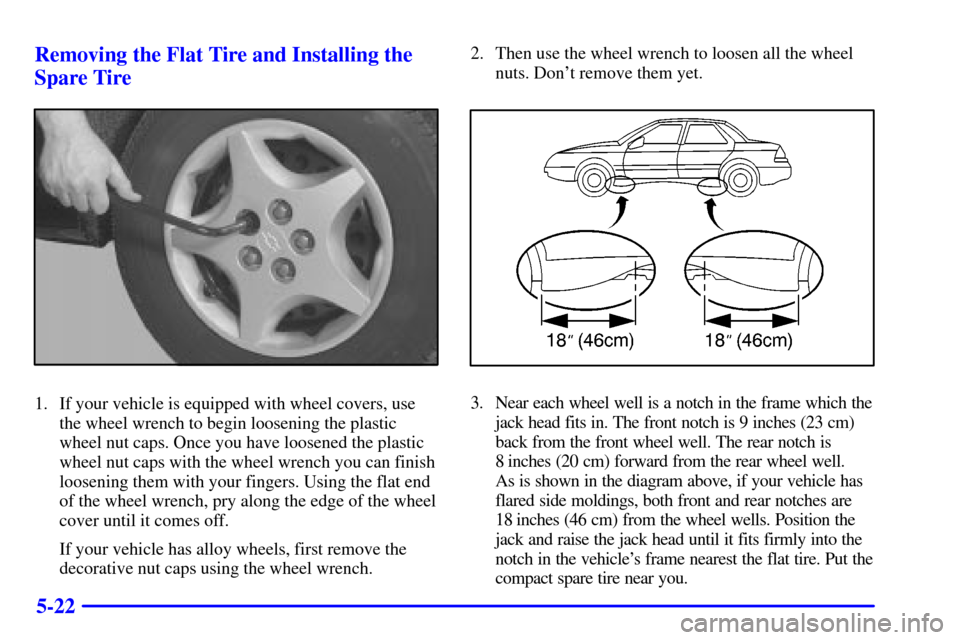

CHEVROLET CAVALIER 2001 3.G Owners Manual 5-22 Removing the Flat Tire and Installing the
Spare Tire
1. If your vehicle is equipped with wheel covers, use
the wheel wrench to begin loosening the plastic
wheel nut caps. Once you have loosened t
