Keys...............................................................2-2
Remote Keyless Entry System.........................2-3
Remote Keyless Entry System Operation...........2-4
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Rear Door Security Locks................................2-9
Lockout Protection........................................2-10
Leaving Your Vehicle....................................2-10
Trunk..........................................................2-10
Windows........................................................2-13
Manual Windows..........................................2-14
Power Windows............................................2-14
Sun Visors...................................................2-14
Theft-Deterrent Systems..................................2-15
Content Theft-Deterrent.................................2-15
Passlock
ž....................................................2-16
Starting and Operating Your Vehicle................2-17
New Vehicle Break-In....................................2-17
Ignition Positions..........................................2-17
Starting Your Engine.....................................2-19
Engine Coolant Heater..................................2-21
Automatic Transaxle Operation.......................2-22Manual Transaxle Operation...........................2-25
Parking Brake..............................................2-26
Shifting Into Park (P)
(Automatic Transaxle)................................2-27
Shifting Out of Park (P)
(Automatic Transaxle)................................2-29
Parking Your Vehicle
(Manual Transaxle)....................................2-29
Parking Over Things That Burn.......................2-30
Engine Exhaust............................................2-30
Running Your Engine While You Are Parked. . . .2-31
Mirrors...........................................................2-32
Manual Rearview Mirror.................................2-32
Outside Remote Control Mirror.......................2-32
Outside Power Mirrors...................................2-32
Outside Convex Mirror...................................2-33
Outside Breakaway Mirror..............................2-33
OnStaržSystem.............................................2-34
Storage Areas................................................2-35
Cupholder(s)................................................2-35
Center Console Storage Area.........................2-35
Convenience Net..........................................2-36
Sunroof.........................................................2-36
Section 2 Features and Controls
2-1

Lockout Protection
If your vehicle is equipped with remote keyless entry,
you have lockout protection. This feature stops the
power door locks from locking when the keys are in the
ignition and the door is open.
If the power door lock switch is pressed when a door is
open and the key is in the ignition, all the doors will
lock and the driver's door will unlock.
Leaving Your Vehicle
If you are leaving the vehicle, open your door and set
the locks from the inside. Then get out and close
the door.
Trunk
To unlock the trunk from the outside, insert the key and
turn the trunk lock cylinder or use the remote keyless
entry transmitter if your vehicle has one.
When closing the trunk, close from the center to ensure
it fully latches. Although you may use one hand to
unlock the trunk, it is recommended that two hands on
the upper surface be used to close the trunk.
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even
death. If you must drive with the trunk lid open
or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
·Make sure all other windows are shut.
·Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See ªClimate Control
Systemº in the Index.
·If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
2-10

Mirrors
Manual Rearview Mirror
To reduce glare from lamps behind you, move the lever
toward you to the night position.

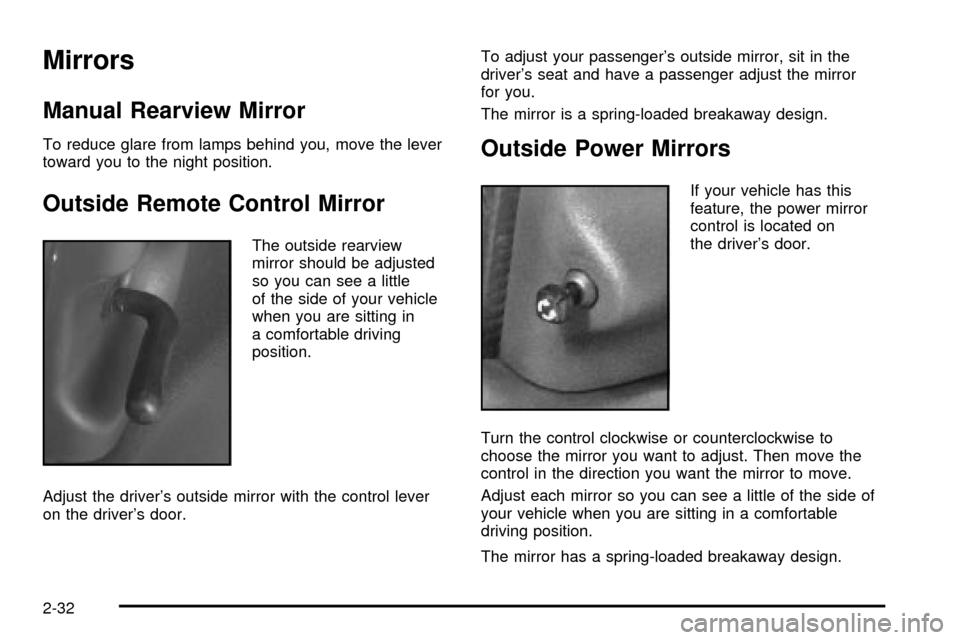

Outside Remote Control Mirror
The outside rearview
mirror should be adjusted
so you can see a little
of the side of your vehicle
when you are sitting in
a comfortable driving
position.
Adjust the driver's outside mirror with the control lever
on the driver's door.To adjust your passenger's outside mirror, sit in the
driver's seat and have a passenger adjust the mirror
for you.
The mirror is a spring-loaded breakaway design.
Outside Power Mirrors
If your vehicle has this
feature, the power mirror
control is located on
the driver's door.
Turn the control clockwise or counterclockwise to
choose the mirror you want to adjust. Then move the
control in the direction you want the mirror to move.
Adjust each mirror so you can see a little of the side of
your vehicle when you are sitting in a comfortable
driving position.
The mirror has a spring-loaded breakaway design.
2-32

The main components of your instrument panel are the
following:
A. Fog Lamp Button
B. Instrument Panel Brightness Control
C. Turn Signal/Multifunction Lever
D. Instrument Panel Cluster
E. Hazard Warning Flashers Switch
F. Ignition Switch
G. Windshield Wiper/Washer Controls
H. Cigarette Lighter
I. Audio System
J. Climate Controls and Rear Window Defogger
K. Fuse Panel
L. Remote Trunk Release Button
M. Hood Release Lever
N. Tilt Steering Wheel Lever
O. Parking Brake Lever
P. Accessory Power Outlet
Q. Shift LeverHazard Warning Flashers
Your hazard warning ¯ashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will ¯ash on and off.
3-3

Compact Disc Messages
If the disc comes out, it could be for one of the following
reasons:
·You're driving on a very rough road. When the road
becomes smoother, the disc should play.
·It's very hot. When the temperature returns to
normal, the disc should play.
·The disc is dirty, scratched, wet or upside down.
·It is very humid. If so, wait about an hour and
try again.
·There may have been a problem while burning
the CD.
·The label may be caught in the CD player.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.
Personal Choice Radio Controls
This feature enables two drivers to store and recall
personal settings for radio presets, last tuned station,
volume, tone and audio source (radio, or CD).
The numbers (1 or 2) found on the back of the
remote keyless entry transmitter correspond to the
drivers (1 or 2).
To recall audio sources, press the UNLOCK button on
the remote keyless entry transmitter and turn the ignition
on. The radio settings will automatically adjust to
where they were last set by the identi®ed driver (1 or 2).
To program this feature, do the following:
1. Press the UNLOCK button on the remote keyless
entry transmitter for the identi®ed driver (1 or 2).
2. Turn the ignition on.
3. Set all radio preferences. For more information see
ªSetting Preset Stationsº and ªSetting the Toneº
listed for your particular radio.
Follow these steps each time you want to change the
stored settings.
All vehicles are shipped with this feature on. This
feature can be disabled by your dealer if desired.
3-75

Fuses Usage
CRUISE Cruise Control Module/Switch
ABS Anti-Lock Brake (Ignition)
APO Accessory Power Outlet
RFA BATT Remote Keyless Entry System
MIR/DLCPower Mirror/Diagnostic Link
Connector
LT HDLP Left Headlamp
RDO/INTLP Radio, Interior Lamps, OnStar
ž
RT HDLP Right Headlamps
CLSTR Instrument Panel Cluster
EXT LP Exterior Lamps
CIG Cigarette Lighter
FOG Fog Lamps
HORN Horn
Blank Not Used
Blank Not Used
Fuses Usage
STOP/HZD Stop Lamps, Hazard Lamps
Blank Not Used
Blank Not Used
RR DEFOG Rear Window Defogger
PWR ACC Power Door Locks
Blank Not Used
Blank Not Used
Blank Not Used
O2 HTR Oxygen Sensor Heater
HVAC Climate Control System
WIPER Windshield Wiper
BCM Body Control Module
AMPL Audio Ampli®er
PWR WDO Power Windows, Sunroof
RELAY DRL Daytime Running Lamps (Relay)
Blank Not Used
5-83

Maintenance Schedule (cont.)
Part E - Maintenance Record........................6-27
Selecting the Right Schedule.......................... 6-5
Short Trip/City Scheduled Maintenance............. 6-6
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection..........................6-23
Throttle System Inspection............................6-23
Using Your................................................... 6-4
Your Vehicle and the Environment................... 6-2
Maintenance When Trailer Towing.....................4-40
Making Turns.................................................4-38
Malfunction Indicator Light................................3-30
Manual Seats................................................... 1-2
Manual Transaxle Check..................................6-20
Manual Transaxle............................................2-19
Fluid..........................................................5-20
Operation...................................................2-25
Manual Windows............................................2-14
Map Lamps....................................................3-15
Matching Transmitter(s) to Your Vehicle............... 2-6
Mexico, Central America and Caribbean Islands/
Countries (Except Puerto Rico and U.S. Virgin
Islands) ± Customer Assistance....................... 7-5
Mirrors..........................................................2-32
Manual Rearview Mirror................................2-32
Outside Breakaway Mirror.............................2-33Mirrors (cont.)
Outside Convex Mirror.................................2-33
Outside Power Mirrors..................................2-32
Outside Remote Control Mirror......................2-32
MyGMLink.com................................................ 7-3
N
New Vehicle Break-In......................................2-17
Normal Maintenance Replacement Parts............5-86
O
Odometer......................................................3-23
Off-Road Recovery..........................................4-12
Oil ................................................................5-14
Engine.......................................................5-14
Pressure Light.............................................3-33
Older Children, Restraints................................1-29
Online Owner Center........................................ 7-3
OnStar
žPersonal Calling.................................2-35
OnStaržServices............................................2-34
OnStaržSystem.............................................2-34
OnStaržVirtual Advisor....................................2-35
Opening a Rear Door When the Security
Lock is On................................................... 2-9
9

Operation......................................................3-17
Other Warning Devices...................................... 3-4
Outlet Adjustment............................................3-20
Outside.........................................................2-33
Breakaway Mirrors.......................................2-33
Convex Mirror.............................................2-33
Power Mirrors.............................................2-32
Remote Control Mirror..................................2-32
Overseas ± Customer Assistance........................ 7-5
Owners, Canadian............................................... ii
Owner's Information........................................7-11
P
Park (P)........................................................2-27
Shifting Into................................................2-27
Shifting Out of............................................2-29
Parking Brake and Automatic Transaxle Park (P)
Mechanism Check.......................................6-22
Parking on Hills..............................................4-39
Parking Your Vehicle.......................................2-29
Parking.........................................................2-26
Brake........................................................2-26
Over Things That Burn.................................2-30Part A - Scheduled Maintenance Services............ 6-4
Part B - Owner Checks and Services................6-19
Part C - Periodic MaintenanceInspections..........6-23
Part D - Recommended Fluids and Lubricants....6-25
Part E - Maintenance Record...........................6-27
Passing.................................................4-12, 4-38
Passlock
ž......................................................2-16
Personal Choice Radio Controls........................3-75
Plan Ahead When Possible................................ 7-7
Playing a Cassette Tape..................................3-71
Playing a Compact Disc..................3-47, 3-57, 3-73
Playing the Radio...................3-37, 3-40, 3-50, 3-64
Power Steering...............................................4-10
Power...........................................................3-16
Accessory Outlets........................................3-16
Door Locks.................................................. 2-8
Electrical System.........................................5-81
Steering Fluid.............................................5-33
Windows....................................................2-14
Q
Questions and Answers About Safety Belts.........1-13
10

R
Radio Data System (RDS)...............3-39, 3-49, 3-63
Radio Messages.....................3-39, 3-44, 3-54, 3-68
Radio Personalization........................................ 2-5
Radios..........................................................3-36
AM-FM Radio.............................................3-37
Care of Your Cassette Tape Player................3-77
Care of Your CD Player...............................3-78
Care of Your CDs........................................3-78
Personal Choice Radio Controls....................3-75
Radio with Cassette and CD.........................3-63
Radio with CD....................................3-39, 3-49
Setting the Time for Radios with Radio
Data Systems (RDS)................................3-36
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-36
Theft-Deterrent............................................3-76
Understanding Reception..............................3-76
RDS Messages..............................3-43, 3-53, 3-67
Rear Door Security Locks.................................. 2-9
Rear Safety Belt Comfort Guides......................1-26
Rear Seat Operation......................................... 1-8
Rear Seat Passengers, Safety Belts..................1-23
Rear Window Defogger....................................3-19
Rearview Mirrors.............................................2-32
Reclining Seatbacks.......................................... 1-4
Recreational Vehicle Towing.............................4-30Remote Keyless Entry System, Operation............ 2-4
Remote Keyless Entry System............................ 2-3
Remote Trunk Release Lockout........................2-11
Remote Trunk Release....................................2-11
Removing the Flat Tire and Installing the
Spare Tire..................................................5-64
Removing the Spare Tire and Tools...................5-62
Replacement Bulbs.........................................5-49
Replacing Brake System Parts..........................5-38
Replacing Restraint System Parts
After a Crash..............................................1-59
Reporting Safety Defects.................................7-10
Canadian Government..................................7-10
General Motors...........................................7-10
United States Government.............................. 7-9
Restraint System Check...................................6-19
Checking Your Restraint Systems...................1-58
Replacing Restraint System Parts
After a Crash..........................................1-59
Restraint Systems...........................................1-58
Checking....................................................1-58
Replacing Parts...........................................1-59
Resynchronization............................................. 2-7
Retained Accessory Power (RAP)......................2-19
Right Front Passenger Position, Safety Belts......1-23
Roadside......................................................... 7-6
Assistance Program....................................... 7-6
Running Your Engine While You Are Parked.......2-31
11
