The main components of your instrument panel are the following:
A. Fog Lamp Button. See “Fog Lamps” underExterior
Lamps on page 3-11.
B. Instrument Panel Brightness Control. See
“Instrument Panel Brightness” underInterior Lamps
on page 3-14.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-6.
D. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-21.
E. Hazard Warning Flashers Switch. SeeHazard
Warning Flashers on page 3-4.
F. Ignition Switch. SeeIgnition Positions on page 2-16.
G. Windshield Wiper/Washer Controls. See “Windshield
Wipers” and “Windshield Washers” underTurn
Signal/Multifunction Lever on page 3-6.
H. Cigarette Lighter. SeeAshtrays and Cigarette
Lighter on page 3-16.
I. Audio System. SeeAudio System(s) on page 3-35.J. Climate Controls and Rear Window Defogger. See
Climate Control System on page 3-16.
K. Fuse Panel. See “Instrument Panel Fuse Block”
underFuses and Circuit Breakers on page 5-81.
L. Remote Trunk Release Button. See “Remote Trunk
Release” underTrunk on page 2-10.
M. Hood Release Lever. SeeHood Release on
page 5-10.
N. Tilt Steering Wheel Lever. SeeTilt Wheel on
page 3-5.
O. Parking Brake Lever. SeeParking Brake on
page 2-25.
P. Accessory Power Outlet. SeeAccessory Power
Outlets on page 3-15.
Q. Shift Lever. SeeAutomatic Transaxle Operation on
page 2-20andManual Transaxle Operation on
page 2-23.
3-3

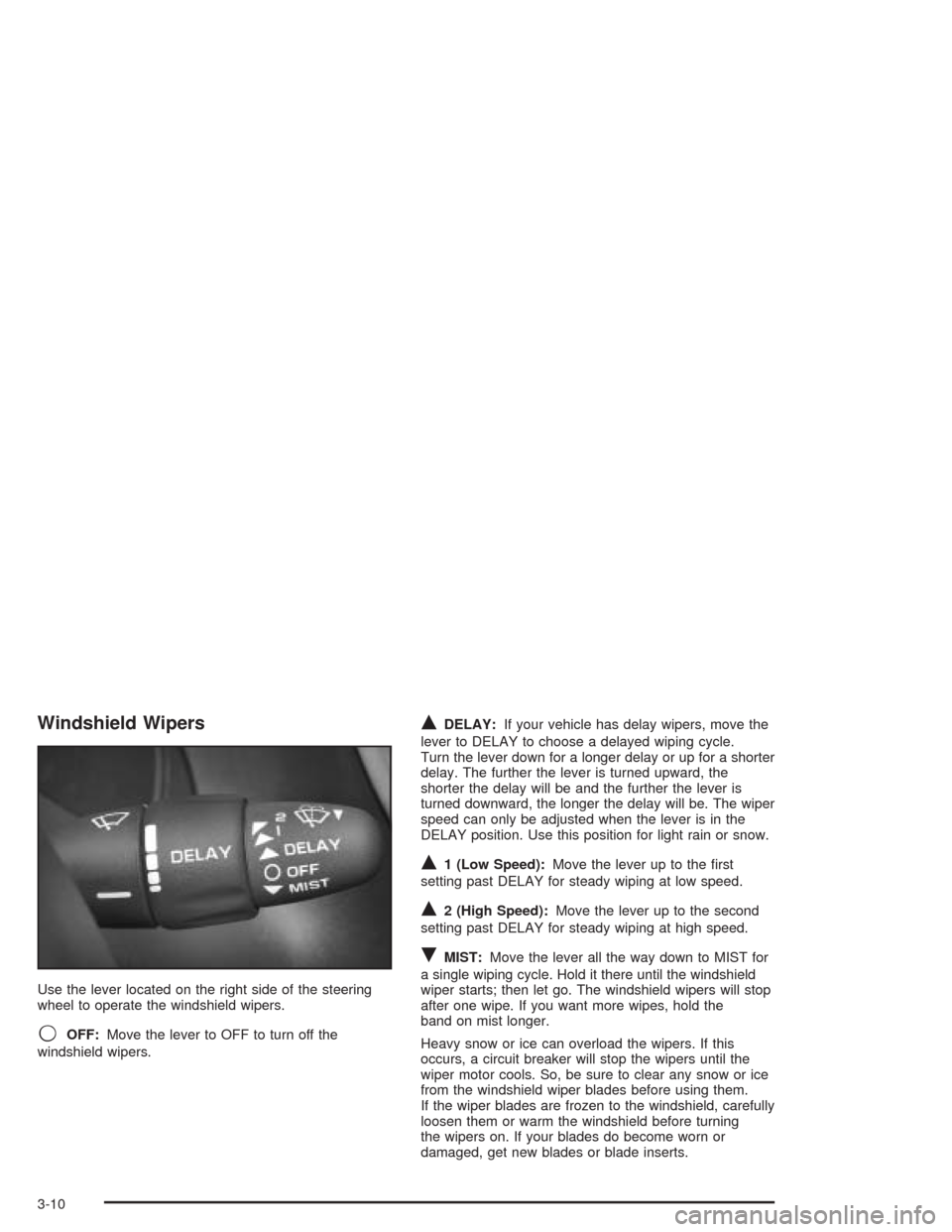

Windshield Wipers
Use the lever located on the right side of the steering
wheel to operate the windshield wipers.
9OFF:Move the lever to OFF to turn off the
windshield wipers.
QDELAY:If your vehicle has delay wipers, move the
lever to DELAY to choose a delayed wiping cycle.
Turn the lever down for a longer delay or up for a shorter
delay. The further the lever is turned upward, the
shorter the delay will be and the further the lever is
turned downward, the longer the delay will be. The wiper
speed can only be adjusted when the lever is in the
DELAY position. Use this position for light rain or snow.
Q1 (Low Speed):Move the lever up to the rst
setting past DELAY for steady wiping at low speed.
Q2 (High Speed):Move the lever up to the second
setting past DELAY for steady wiping at high speed.
RMIST:Move the lever all the way down to MIST for
a single wiping cycle. Hold it there until the windshield
wiper starts; then let go. The windshield wipers will stop
after one wipe. If you want more wipes, hold the
band on mist longer.
Heavy snow or ice can overload the wipers. If this
occurs, a circuit breaker will stop the wipers until the
wiper motor cools. So, be sure to clear any snow or ice
from the windshield wiper blades before using them.
If the wiper blades are frozen to the windshield, carefully
loosen them or warm the windshield before turning
the wipers on. If your blades do become worn or
damaged, get new blades or blade inserts.
3-10

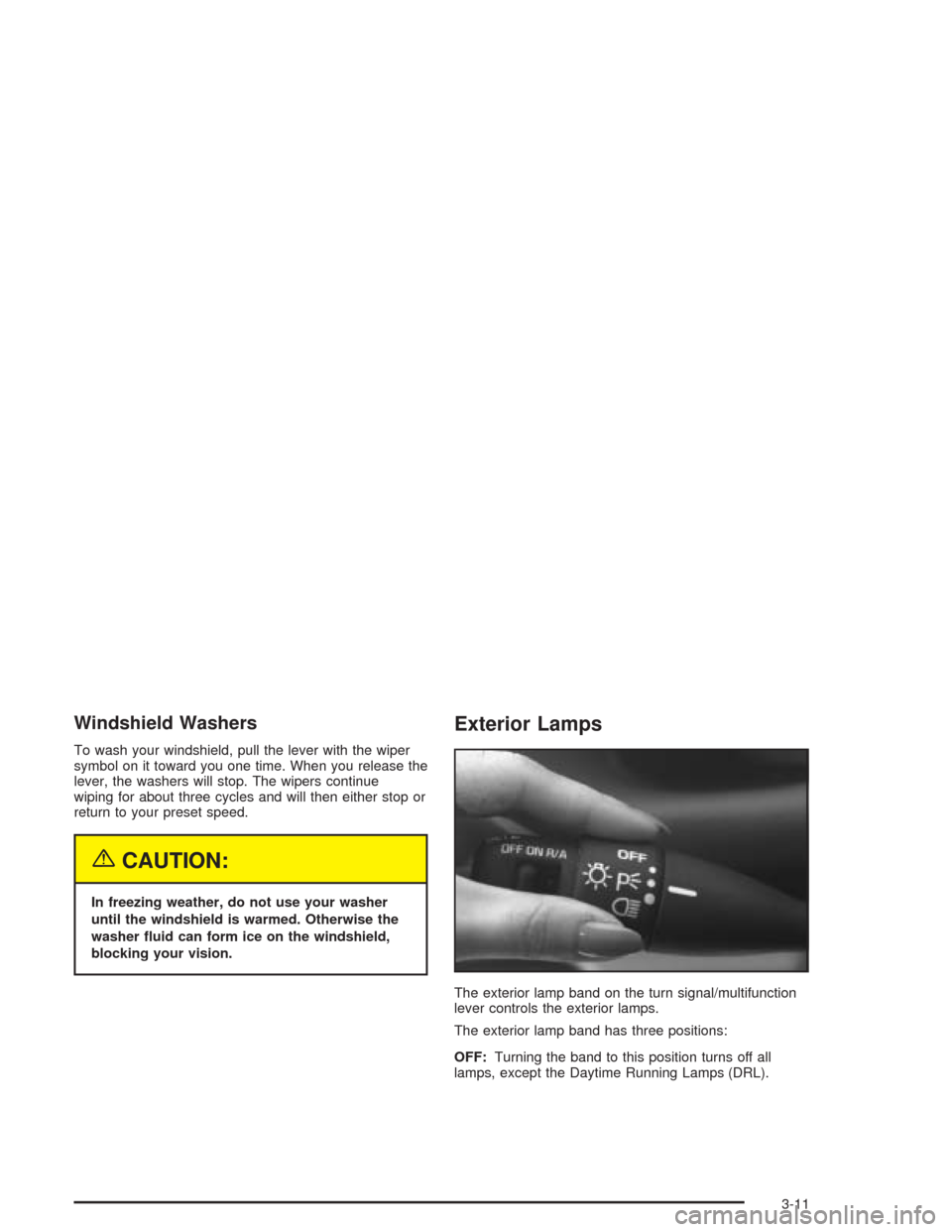

Windshield Washers
To wash your windshield, pull the lever with the wiper
symbol on it toward you one time. When you release the
lever, the washers will stop. The wipers continue
wiping for about three cycles and will then either stop or
return to your preset speed.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
Exterior Lamps
The exterior lamp band on the turn signal/multifunction
lever controls the exterior lamps.
The exterior lamp band has three positions:
OFF:Turning the band to this position turns off all
lamps, except the Daytime Running Lamps (DRL).
3-11

When to Check Power Steering Fluid................5-31
When to Inspect the Engine Air Cleaner/Filter.....5-17
When You Are Ready to Leave After
Parking on a Hill.........................................4-43
Where to Put the Restraint...............................1-37
Why Safety Belts Work..................................... 1-9
Window Lock-Out............................................2-13
Windows.......................................................2-12
Manual......................................................2-12
Power........................................................2-13
Windshield Washer
Fluid..........................................................5-31
Windshield Washer Fluid Level Check................6-18
Windshield Washers........................................3-11
Windshield Wiper
Blade Replacement......................................5-45
Fuses........................................................5-81Windshield Wipers..........................................3-10
Winter Driving................................................4-24
Wiper Blade Check.........................................6-19
X
XM™ Satellite Radio Antenna System................3-68
XM™ Satellite Radio Service............................3-67
XM™ Satellite Radio Service
(48 Contiguous US States)...................3-43, 3-52
Y
Your Vehicle and the Environment....................... 6-2
