CHEVROLET CITY EXPRESS 2015 Owners Manual

Black plate (24,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
5-24 Instruments and Controls
2 NOTES

Black plate (1,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Lighting 6-1
Lighting Exterior Lighting Exterior Lamp Controls . . . . . . . . 6-1
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . . 6-1
Headlamp High/Low-Beam
Changer . . . . . . . . . . . . . . . . . . . . . 6-1
Flash-to-Pass . . . . . . . . . . . . . . . . . 6-2
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 6-2
Hazard Warning Flashers . . . . . 6-2
Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . 6-3
Interior Lighting Instrument Panel Illumination
Control . . . . . . . . . . . . . . . . . . . . . . 6-3
Cargo Lamp . . . . . . . . . . . . . . . . . . 6-4
Dome Lamps . . . . . . . . . . . . . . . . . 6-4
Reading Lamps . . . . . . . . . . . . . . . 6-5
Lighting Features Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . 6-5 Exterior Lighting Exterior Lamp Controls
The exterior lamp control is on the
turn signal lever on the left side of
the steering column.
There are three positions:
OFF: Turns all the lamps off,
except the Daytime Running
Lamps (DRL).
; (Parking Lamps): Turns on the
parking lamps including all lamps,
except the headlamps.
5 (Headlamps): Turns on the
headlamps together with the parking
lamps and instrument panel lights. Exterior Lamps Off
Reminder A warning chime sounds if the driver
door is opened while the ignition is
off and the exterior lamps are on.
Headlamp High/
Low-Beam Changer
2 3 (Headlamp High/Low-Beam
Changer): Push the turn signal
lever away from you and release, to
turn the high beams on. To return to
low beams, push the lever again or
pull it toward you and release.
This indicator light turns on in the
instrument cluster when the
high-beam headlamps are on.

Black plate (2,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
6-2 Lighting
Flash-to-Pass This feature is used to signal to the
vehicle ahead that you want
to pass.
If the headlamps are off or in the
low ‐ beam position, pull the turn
signal lever toward you to
momentarily switch to high beams.
Release the lever to turn the
high-beam headlamps off.
Daytime Running
Lamps (DRL) DRL can make it easier for others to
see the front of your vehicle during
the day.
A light sensor on top of the
instrument panel makes the DRL
work, so be sure it is not covered. The DRL system makes the
low-beam headlamps come on at a
reduced brightness when the
following conditions are met: .
The ignition is in the ON
position. .
The exterior lamp control is in
the OFF position. .
The parking brake is released.
If the parking brake is applied
before the engine is started, the
DRL do not come on.
When the DRL are on, only the
low-beam headlamps, at a reduced
level of brightness, will be on. The
taillamps, sidemarker, instrument
panel, and other lamps will not
be on.
Turn the exterior lamp control to
the
; or
5 position for full
illumination when driving at night.
The DRL remain on until the ignition
switch is placed in the OFF position. Hazard Warning Flashers
The hazard warning switch is on the
center stack below the climate
control system.
Press this button to make the front
and rear turn signal lamps flash on
and off. This warns others that you
are having trouble. Press again to
turn the flashers off.
The hazard warning flashers work
with the ignition switch in any
position.
Some localities may prohibit the use
of the hazard warning flashers while
driving.

Black plate (3,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Lighting 6-3

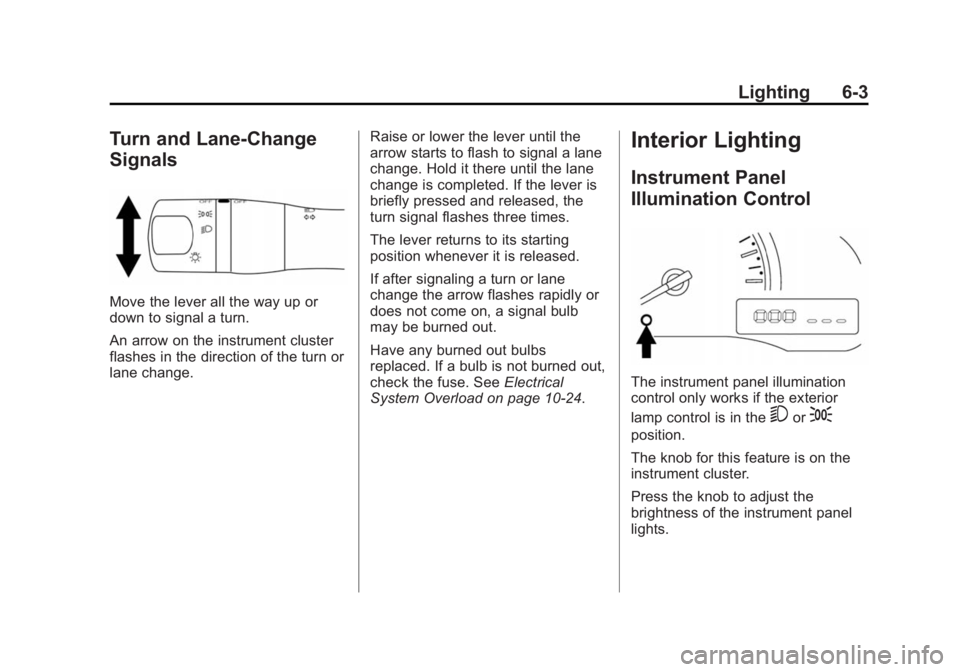

Turn and Lane-Change
Signals
Move the lever all the way up or
down to signal a turn.
An arrow on the instrument cluster
flashes in the direction of the turn or
lane change. Raise or lower the lever until the
arrow starts to flash to signal a lane
change. Hold it there until the lane
change is completed. If the lever is
briefly pressed and released, the
turn signal flashes three times.
The lever returns to its starting
position whenever it is released.
If after signaling a turn or lane
change the arrow flashes rapidly or
does not come on, a signal bulb
may be burned out.
Have any burned out bulbs
replaced. If a bulb is not burned out,
check the fuse. See Electrical
System Overload on page 10-24 .Interior Lighting Instrument Panel
Illumination Control
The instrument panel illumination
control only works if the exterior
lamp control is in the
5 or
; position.
The knob for this feature is on the
instrument cluster.
Press the knob to adjust the
brightness of the instrument panel
lights.

Black plate (4,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
6-4 Lighting
Cargo Lamp
The interior light switch has two
positions and operates in any
ignition switch position.
ON: Turns the interior light on in
any door position. The light turns off
automatically after a period of time
unless the ignition switch is turned
to ACC/ACCESSORY or ON.
OFF: Turns the interior light off and
it will not come on regardless of the
door position. Dome Lamps
The dome lamp in the overhead
console operates in any ignition
switch position.
The dome lamp switch has three
positions. Press the switch to adjust
the settings.
Press (1) to turn the lamp off, even
when a door is open. When the switch is in the (2)
position, the lamp comes on when a
door is opened. When the dome
lamp is in this position, the light
stays on for a period of time when: .
The doors are unlocked while all
the doors are closed and the
ignition switch is in the OFF
position. .
The driver door is opened and
then closed while the key is
removed from the ignition switch. .
The key is removed from the
ignition switch while all doors are
closed.
The dome lamp turns off while the
timer is activated when: .
The driver door is locked by the
key or the power door lock
switch. .
The ignition switch is placed in
the ON position.
Press (3) to turn the lamp on.

Black plate (5,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

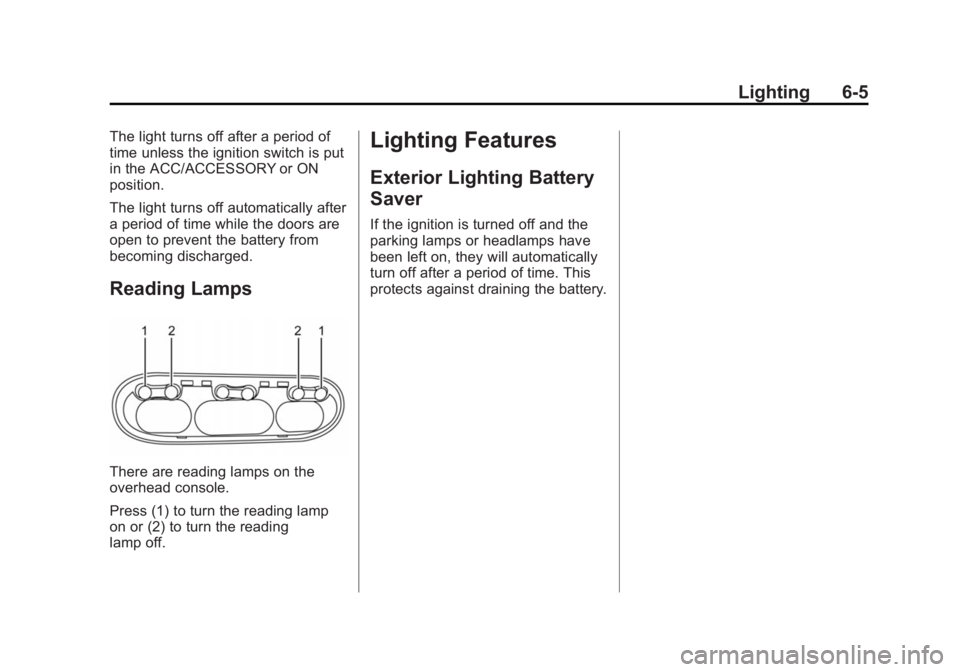

Lighting 6-5The light turns off after a period of
time unless the ignition switch is put
in the ACC/ACCESSORY or ON
position.
The light turns off automatically after
a period of time while the doors are
open to prevent the battery from
becoming discharged.
Reading Lamps
There are reading lamps on the
overhead console.
Press (1) to turn the reading lamp
on or (2) to turn the reading
lamp off. Lighting Features Exterior Lighting Battery
Saver If the ignition is turned off and the
parking lamps or headlamps have
been left on, they will automatically
turn off after a period of time. This
protects against draining the battery.

Black plate (6,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
6-6 Lighting
2 NOTES

Black plate (1,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Infotainment System 7-1
Infotainment
System Introduction Infotainment . . . . . . . . . . . . . . . . . . . 7-1
Theft-Deterrent Feature . . . . . . . 7-2
Overview . . . . . . . . . . . . . . . . . . . . . . 7-2
Operation . . . . . . . . . . . . . . . . . . . . . 7-4
Radio AM-FM Radio . . . . . . . . . . . . . . . . . 7-5
Radio Reception . . . . . . . . . . . . . . 7-6
Fixed Mast Antenna . . . . . . . . . . . 7-6
Audio Players CD Player . . . . . . . . . . . . . . . . . . . . . 7-7
Auxiliary Jack . . . . . . . . . . . . . . . . . 7-9
Phone Bluetooth . . . . . . . . . . . . . . . . . . . . 7-10
Trademarks and License
Agreements
Trademarks and License
Agreements . . . . . . . . . . . . . . . . 7-19 Introduction Infotainment Base radio information is included in
this manual. See the infotainment
manual for information on other
available infotainment systems.
Read the following pages to
become familiar with these features.
{ WarningTaking your eyes off the road for
too long or too often while using
any infotainment feature can
cause a crash. You or others
could be injured or killed. Do not
give extended attention to
infotainment tasks while driving.
Limit your glances at the vehicle
displays and focus your attention
on driving. Use voice commands
whenever possible. The infotainment system has built-in
features intended to help avoid
distraction by disabling some
functions when driving. These
functions may gray out when they
are unavailable. Many infotainment
features are also available through
the instrument cluster and steering
wheel controls.
Before driving: .
Become familiar with the
operation, faceplate buttons, and
screen buttons. .
Set up the audio by presetting
favorite stations, setting the
tone, and adjusting the
speakers. .
Set up phone numbers in
advance so they can be called
easily by pressing a single
button or by using a single voice
command if equipped with
Bluetooth phone capability.
See Defensive Driving on page 9-2 .

Black plate (2,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
7-2 Infotainment System
Theft-Deterrent Feature The theft-deterrent feature works by
learning a portion of the Vehicle
Identification Number (VIN) to the
infotainment system. The
infotainment system does not
operate if it is stolen or moved to a
different vehicle.
Overview
1.
> (Mute) .
Press to mute the audio
system.
2. DISP/TEXT (Display Text) .
Radio: Press to view station
and song information. .
CD: Press to scroll through
track number, disc title, and
song title. .
CD with MP3 or WMA: Press
to scroll through track
number, folder title, album
title, artist, and song title.

Black plate (3,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Infotainment System 7-33. AM .
Press to listen to AM
stations.
4. FM .
Press to listen to FM
stations.
5. CD Slot
6. CD .
Press to start playing a
loaded CD when the system
is off. .
Press to start playing a
loaded CD when listening to
another audio source.
7. AUX (Auxiliary) .
Press to play a connected
auxiliary device.
8. CLOCK .
Press to turn the clock
display off and on when the
ignition is in ACC/
ACCESSORY or ON/START. .
Press and hold to set the
clock. See Clock on
page 5-3 .
9.
X (Eject) .
Press to eject the loaded CD.
10.
r SEEK/TRACK
q .
Press
r SEEK to seek the
next station or next CD
track. Press repeatedly to
go forward several tracks. .
Press TRACK
q to seek
the previous station or start
the current CD track from
the beginning. Press
repeatedly to go back
several tracks.
11. RDM (Random) .
CD: Press to change the
playing pattern of the CD
between Disc Random and
Disc Repeat. .
CD with MP3 or WMA:
Press to change the playing
pattern of the CD between
Disc Random, Folder
Random, and Disc Repeat.
12. RPT (Repeat) .
CD: Press to change the
playing pattern of the CD
between Track Repeat and
Disc Repeat. .
CD with MP3 or WMA:
Press to change the playing
pattern of the CD between
Folder Repeat, Track
Repeat, and Disc Repeat.
13. SCAN .
Press to scan the next radio
station for five seconds.
Press the button again
within the five seconds and
the radio will stay on that
station.
14. PUSH/PWR (Power) .
Press to turn the
infotainment system on
or off.
