CHEVROLET CITY EXPRESS 2015 Owners Manual

Black plate (68,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

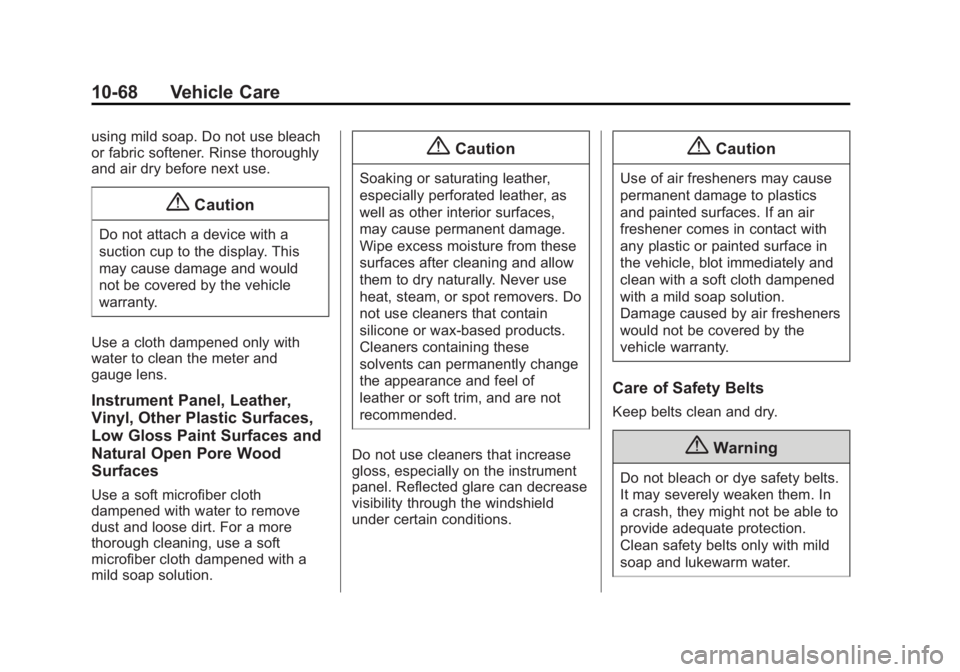

10-68 Vehicle Care using mild soap. Do not use bleach
or fabric softener. Rinse thoroughly
and air dry before next use.
{ CautionDo not attach a device with a
suction cup to the display. This
may cause damage and would
not be covered by the vehicle
warranty.
Use a cloth dampened only with
water to clean the meter and
gauge lens.
Instrument Panel, Leather,
Vinyl, Other Plastic Surfaces,
Low Gloss Paint Surfaces and
Natural Open Pore Wood
Surfaces
Use a soft microfiber cloth
dampened with water to remove
dust and loose dirt. For a more
thorough cleaning, use a soft
microfiber cloth dampened with a
mild soap solution. { CautionSoaking or saturating leather,
especially perforated leather, as
well as other interior surfaces,
may cause permanent damage.
Wipe excess moisture from these
surfaces after cleaning and allow
them to dry naturally. Never use
heat, steam, or spot removers. Do
not use cleaners that contain
silicone or wax-based products.
Cleaners containing these
solvents can permanently change
the appearance and feel of
leather or soft trim, and are not
recommended.
Do not use cleaners that increase
gloss, especially on the instrument
panel. Reflected glare can decrease
visibility through the windshield
under certain conditions. { CautionUse of air fresheners may cause
permanent damage to plastics
and painted surfaces. If an air
freshener comes in contact with
any plastic or painted surface in
the vehicle, blot immediately and
clean with a soft cloth dampened
with a mild soap solution.
Damage caused by air fresheners
would not be covered by the
vehicle warranty.
Care of Safety Belts Keep belts clean and dry.
{ Warning
Do not bleach or dye safety belts.
It may severely weaken them. In
a crash, they might not be able to
provide adequate protection.
Clean safety belts only with mild
soap and lukewarm water.

Black plate (69,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Vehicle Care 10-69

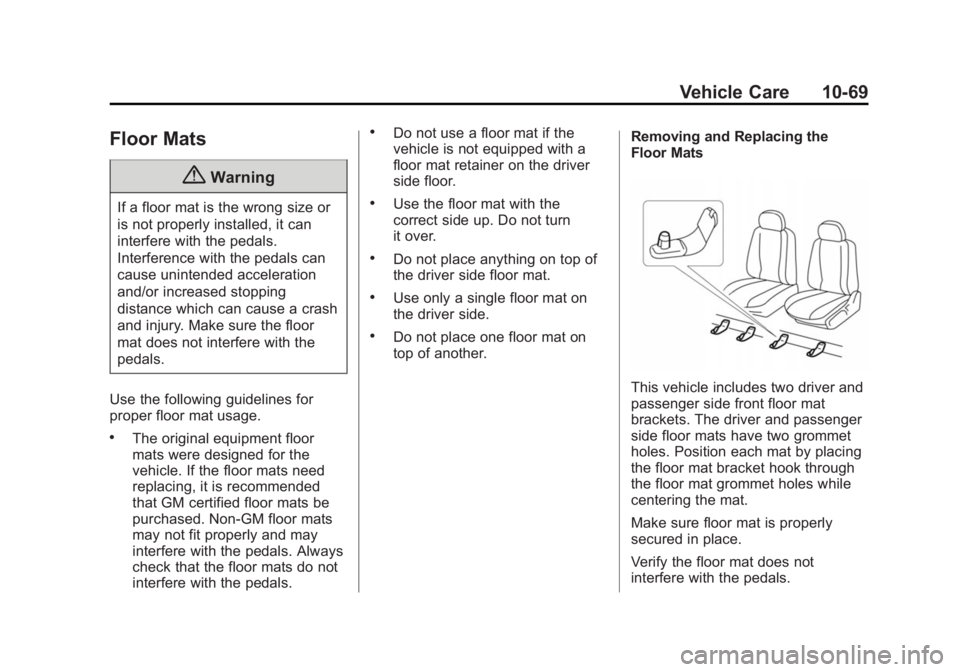

Floor Mats
{ WarningIf a floor mat is the wrong size or
is not properly installed, it can
interfere with the pedals.
Interference with the pedals can
cause unintended acceleration
and/or increased stopping
distance which can cause a crash
and injury. Make sure the floor
mat does not interfere with the
pedals.
Use the following guidelines for
proper floor mat usage. .
The original equipment floor
mats were designed for the
vehicle. If the floor mats need
replacing, it is recommended
that GM certified floor mats be
purchased. Non-GM floor mats
may not fit properly and may
interfere with the pedals. Always
check that the floor mats do not
interfere with the pedals. .
Do not use a floor mat if the
vehicle is not equipped with a
floor mat retainer on the driver
side floor. .
Use the floor mat with the
correct side up. Do not turn
it over. .
Do not place anything on top of
the driver side floor mat. .
Use only a single floor mat on
the driver side. .
Do not place one floor mat on
top of another. Removing and Replacing the
Floor Mats
This vehicle includes two driver and
passenger side front floor mat
brackets. The driver and passenger
side floor mats have two grommet
holes. Position each mat by placing
the floor mat bracket hook through
the floor mat grommet holes while
centering the mat.
Make sure floor mat is properly
secured in place.
Verify the floor mat does not
interfere with the pedals.

Black plate (70,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
10-70 Vehicle Care
2 NOTES

Black plate (1,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Service and Maintenance 11-1
Service and
Maintenance General Information General Information . . . . . . . . . . 11-1
Maintenance Schedule Maintenance Schedule . . . . . . . 11-3

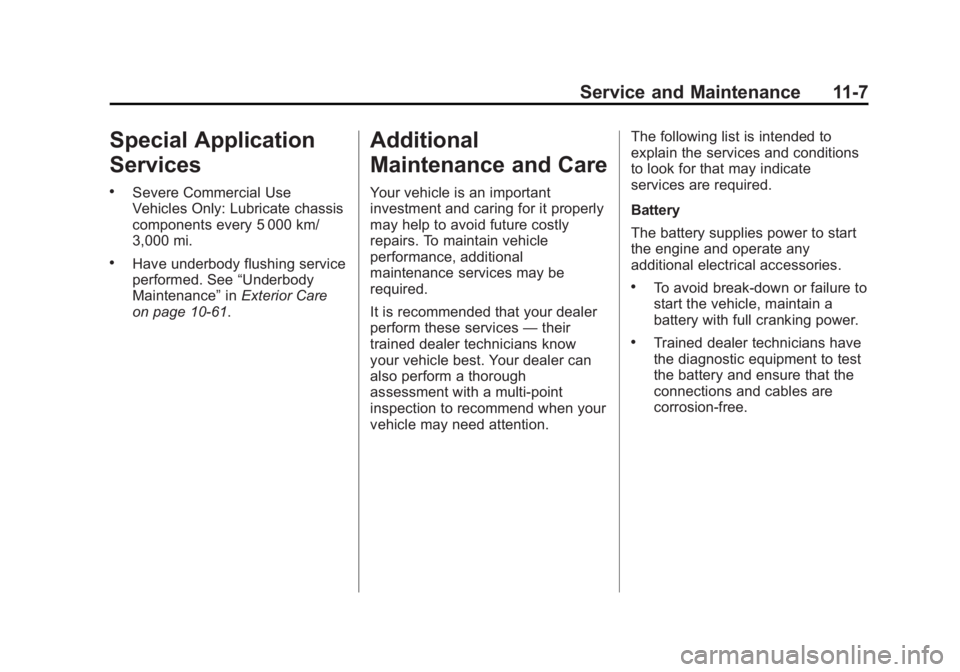

Special Application Services Special Application
Services . . . . . . . . . . . . . . . . . . . . 11-7
Additional Maintenance
and Care Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . 11-7
Recommended Fluids Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . 11-11
Maintenance Replacement
Parts . . . . . . . . . . . . . . . . . . . . . . 11-12
Maintenance Records
Maintenance Records . . . . . . 11-13 General Information Your vehicle is an important
investment. This section describes
the required maintenance for the
vehicle. Follow this schedule to help
protect against major repair
expenses resulting from neglect or
inadequate maintenance. It may
also help to maintain the value of
the vehicle if it is sold. It is the
responsibility of the owner to have
all required maintenance performed.
Your dealer has trained technicians
who can perform required
maintenance using genuine
replacement parts. They have
up-to-date tools and equipment for
fast and accurate diagnostics. Many
dealers have extended evening and
Saturday hours, courtesy
transportation, and online
scheduling to assist with service
needs.
Your dealer recognizes the
importance of providing
competitively priced maintenance
and repair services. With trained technicians, the dealer is the place
for routine maintenance such as oil
changes and tire rotations and
additional maintenance items like
tires, brakes, batteries, and wiper
blades.
{ CautionDamage caused by improper
maintenance can lead to costly
repairs and may not be covered
by the vehicle warranty.
Maintenance intervals, checks,
inspections, recommended fluids,
and lubricants are important to
keep the vehicle in good working
condition.
The Tire Rotation and Required
Services are the responsibility of the
vehicle owner. It is recommended to
have your dealer perform these
services every 8 000 km/5,000 mi.
Proper vehicle maintenance helps to
keep the vehicle in good working
condition, improves fuel economy,
and reduces vehicle emissions.

Black plate (2,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

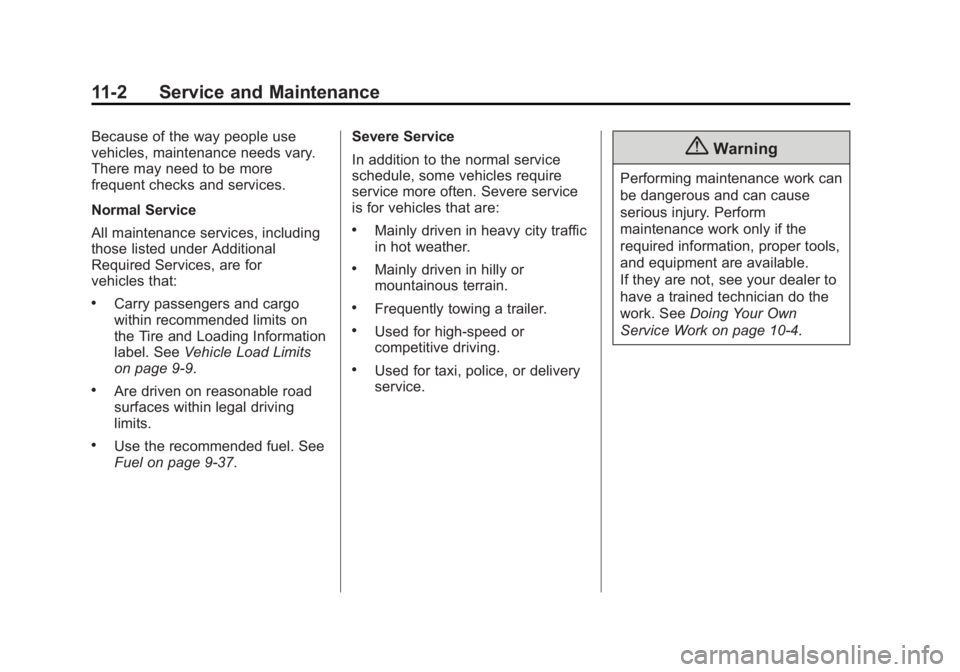

11-2 Service and Maintenance Because of the way people use
vehicles, maintenance needs vary.
There may need to be more
frequent checks and services.
Normal Service
All maintenance services, including
those listed under Additional
Required Services, are for
vehicles that: .
Carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. See Vehicle Load Limits
on page 9-9 ..
Are driven on reasonable road
surfaces within legal driving
limits. .
Use the recommended fuel. See
Fuel on page 9-37 . Severe Service
In addition to the normal service
schedule, some vehicles require
service more often. Severe service
is for vehicles that are: .
Mainly driven in heavy city traffic
in hot weather. .
Mainly driven in hilly or
mountainous terrain. .
Frequently towing a trailer. .
Used for high-speed or
competitive driving. .
Used for taxi, police, or delivery
service. { WarningPerforming maintenance work can
be dangerous and can cause
serious injury. Perform
maintenance work only if the
required information, proper tools,
and equipment are available.
If they are not, see your dealer to
have a trained technician do the
work. See Doing Your Own
Service Work on page 10-4 .

Black plate (3,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Service and Maintenance 11-3
Maintenance
Schedule Owner Checks and Services At Each Fuel Stop .
Check the engine oil level. See
Engine Oil on page 10-8 .
Once a Month .
Check the tire inflation
pressures. See Tire Pressure on
page 10-35 ..
Inspect the tires for wear. See
Tire Inspection on page 10-39 ..
Check the windshield washer
fluid level. See Washer Fluid on
page 10-18 . Oil Change, Tire Rotation, and
Required Services Every
8 000 km/5,000 mi Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation on page 10-39 . .
Change engine oil and filter. See
Engine Oil on page 10-8 . .
Check engine coolant level. See
Engine Coolant on page 10-13 ..
Check drive shaft boots. .
Check windshield washer fluid
level. See Washer Fluid on
page 10-18 . .
Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care on page 10-61 . Replace
worn or damaged wiper blades.
See Wiper Blade Replacement
on page 10-22 . .
Check tire inflation pressures.
See Tire Pressure on
page 10-35 . .
Inspect tire wear. See Tire
Inspection on page 10-39 . .
Visually check for fluid leaks. .
Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter on
page 10-11 .

Black plate (4,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

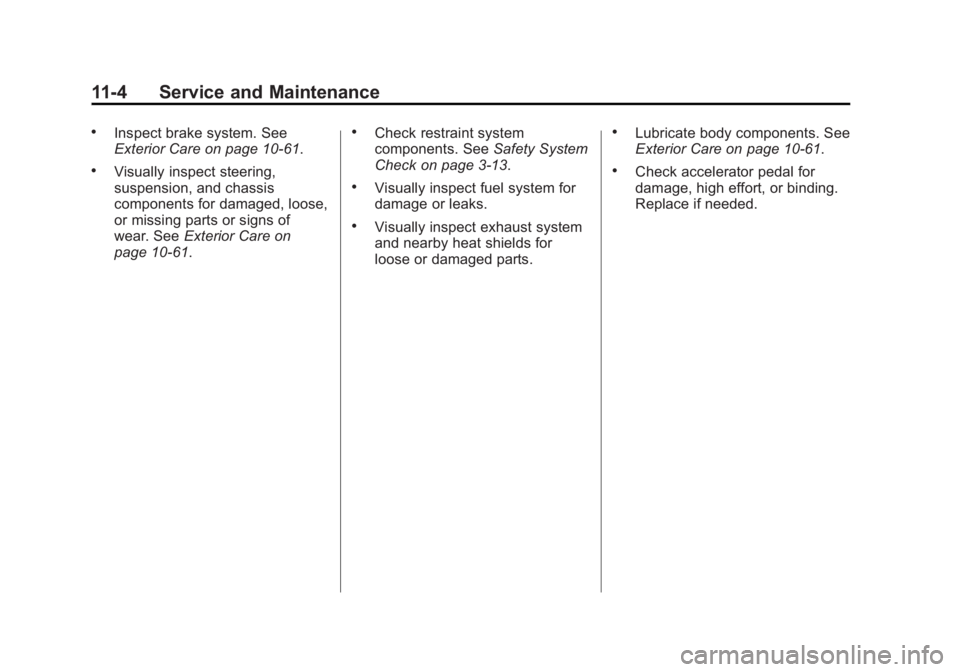

11-4 Service and Maintenance .
Inspect brake system. See
Exterior Care on page 10-61 ..
Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care on
page 10-61 . .
Check restraint system
components. See Safety System
Check on page 3-13 . .
Visually inspect fuel system for
damage or leaks. .
Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts. .
Lubricate body components. See
Exterior Care on page 10-61 . .
Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.

Black plate (5,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Service and Maintenance 11-5Maintenance Schedule
Additional Required
Services - Normal
8 000 km/5,000 mi
16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
40 000 km/25,000 mi
48 000 km/30,000 mi
56 000 km/35,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
88 000 km/55,000 mi
96 000 km/60,000 mi
104 000 km/65,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
136 000 km/85,000 mi
144 000 km/90,000 mi
152 000 km/95,000 mi
160 000 km/100,000 miChange engine oil and filter, rotate tires, and
perform Required Services.
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @Inspect evaporative control system. (1)
@ @ @ @ @Replace engine air cleaner filter. (2)
@ @ @Replace spark plugs.
@Drain and fill engine cooling system. (3)
@Visually inspect accessory drive belts. (4)
@ @ @ @ @ @ @Replace brake fluid. (5)
@ @
Footnotes — Maintenance
Schedule Additional Required
Services - Normal
(1) Check all fuel and vapor lines
and hoses for proper hook-up,
routing, and condition.
(2) If operating mainly in dusty
conditions, more frequent
maintenance may be required. (3) First replacement interval is
160 000 km (100,000 mi) or
84 months. After first replacement,
replace every 120 000 km
(75,000 mi) or 60 months. See
Cooling System on page 10-13 . (4) After 64 000 km (40,000 mi) or
48 months, inspect every 16 000 km
(10,000 mi) or 12 months. Replace
the drive belts if found damaged.
(5) Or every three years, whichever
occurs first.

Black plate (6,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
11-6 Service and Maintenance Maintenance Schedule
Additional Required
Services - Severe
8 000 km/5,000 mi
16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
40 000 km/25,000 mi
48 000 km/30,000 mi
56 000 km/35,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
88 000 km/55,000 mi
96 000 km/60,000 mi
104 000 km/65,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
136 000 km/85,000 mi
144 000 km/90,000 mi
152 000 km/95,000 mi
160 000 km/100,000 miChange engine oil and filter, rotate tires, and
perform Required Services.
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @Inspect evaporative control system. (1)
@ @ @ @ @Replace engine air cleaner filter. (2)
@ @ @Replace spark plugs.
@Replace CVT transmission fluid.
@Drain and fill engine cooling system. (3)
@Visually inspect accessory drive belts. (4)
@ @ @ @ @ @ @Replace brake fluid. (5)
@ @
Footnotes — Maintenance
Schedule Additional Required
Services - Severe
(1) Check all fuel and vapor lines
and hoses for proper hook-up,
routing, and condition.
(2) If operating mainly in dusty
conditions, more frequent
maintenance may be required. (3) First replacement interval is
160 000 km (100,000 mi) or
84 months. After first replacement,
replace every 120 000 km
(75,000 mi) or 60 months. See
Cooling System on page 10-13 . (4) After 64 000 km (64,000 mi) or
48 months, inspect every 16 000 km
(10,000 mi) or 12 months. Replace
the drive belts if found damaged.
(5) Or every three years, whichever
occurs first.

Black plate (7,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Service and Maintenance 11-7
Special Application
Services .
Severe Commercial Use
Vehicles Only: Lubricate chassis
components every 5 000 km/
3,000 mi. .
Have underbody flushing service
performed. See “ Underbody
Maintenance ” in Exterior Care
on page 10-61 .
Additional
Maintenance and Care Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services — their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention. The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The battery supplies power to start
the engine and operate any
additional electrical accessories. .
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power. .
Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
