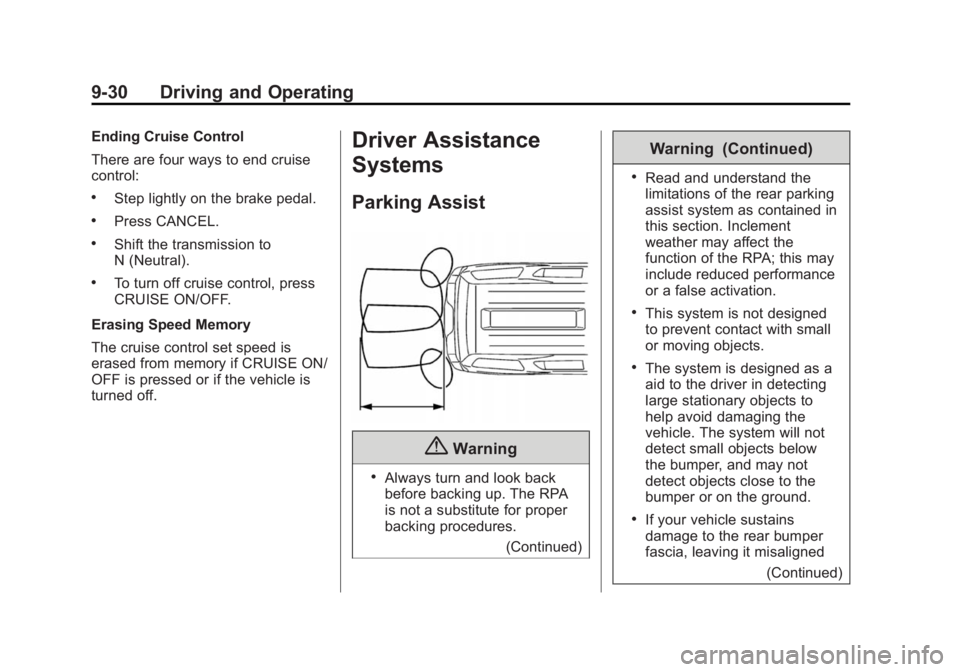

9-30 Driving and Operating Ending Cruise Control
There are four ways to end cruise
control: .
Step lightly on the brake pedal. .
Press CANCEL. .
Shift the transmission to
N (Neutral). .
To turn off cruise control, press
CRUISE ON/OFF.
Erasing Speed Memory
The cruise control set speed is
erased from memory if CRUISE ON/
OFF is pressed or if the vehicle is
turned off. Driver Assistance
Systems Parking Assist
{ Warning .
Always turn and look back
before backing up. The RPA
is not a substitute for proper
backing procedures.
(Continued) Warning (Continued) .
Read and understand the
limitations of the rear parking
assist system as contained in
this section. Inclement
weather may affect the
function of the RPA; this may
include reduced performance
or a false activation. .
This system is not designed
to prevent contact with small
or moving objects. .
The system is designed as a
aid to the driver in detecting
large stationary objects to
help avoid damaging the
vehicle. The system will not
detect small objects below
the bumper, and may not
detect objects close to the
bumper or on the ground. .
If your vehicle sustains
damage to the rear bumper
fascia, leaving it misaligned
(Continued)

Black plate (31,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

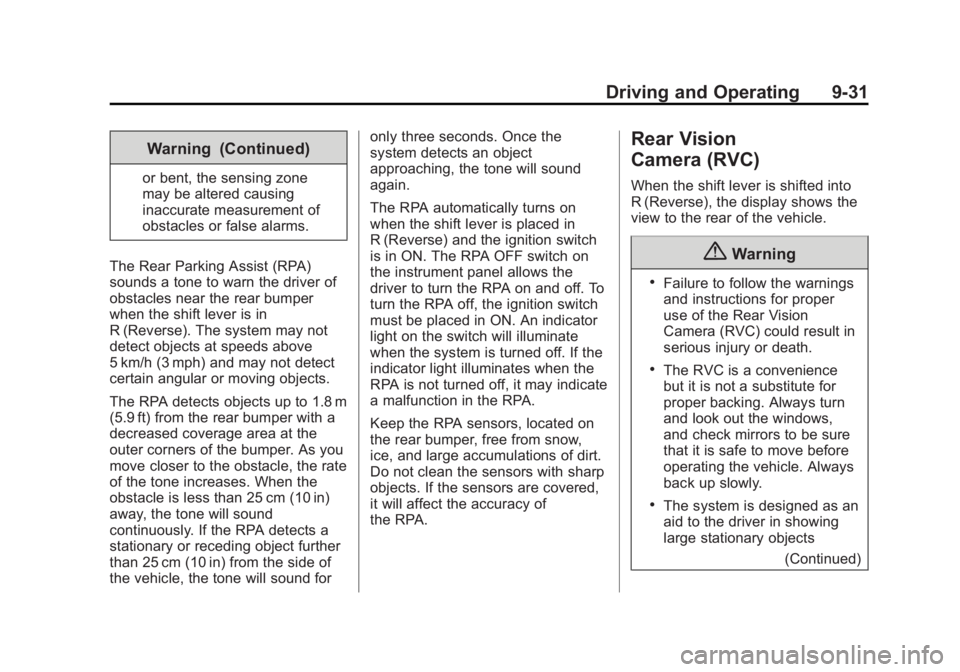

Driving and Operating 9-31Warning (Continued) or bent, the sensing zone
may be altered causing
inaccurate measurement of
obstacles or false alarms.
The Rear Parking Assist (RPA)
sounds a tone to warn the driver of
obstacles near the rear bumper
when the shift lever is in
R (Reverse). The system may not
detect objects at speeds above
5 km/h (3 mph) and may not detect
certain angular or moving objects.
The RPA detects objects up to 1.8 m
(5.9 ft) from the rear bumper with a
decreased coverage area at the
outer corners of the bumper. As you
move closer to the obstacle, the rate
of the tone increases. When the
obstacle is less than 25 cm (10 in)
away, the tone will sound
continuously. If the RPA detects a
stationary or receding object further
than 25 cm (10 in) from the side of
the vehicle, the tone will sound for only three seconds. Once the
system detects an object
approaching, the tone will sound
again.
The RPA automatically turns on
when the shift lever is placed in
R (Reverse) and the ignition switch
is in ON. The RPA OFF switch on
the instrument panel allows the
driver to turn the RPA on and off. To
turn the RPA off, the ignition switch
must be placed in ON. An indicator
light on the switch will illuminate
when the system is turned off. If the
indicator light illuminates when the
RPA is not turned off, it may indicate
a malfunction in the RPA.
Keep the RPA sensors, located on
the rear bumper, free from snow,
ice, and large accumulations of dirt.
Do not clean the sensors with sharp
objects. If the sensors are covered,
it will affect the accuracy of
the RPA. Rear Vision
Camera (RVC) When the shift lever is shifted into
R (Reverse), the display shows the
view to the rear of the vehicle.
{ Warning .
Failure to follow the warnings
and instructions for proper
use of the Rear Vision
Camera (RVC) could result in
serious injury or death. .
The RVC is a convenience
but it is not a substitute for
proper backing. Always turn
and look out the windows,
and check mirrors to be sure
that it is safe to move before
operating the vehicle. Always
back up slowly. .
The system is designed as an
aid to the driver in showing
large stationary objects
(Continued)

Black plate (32,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

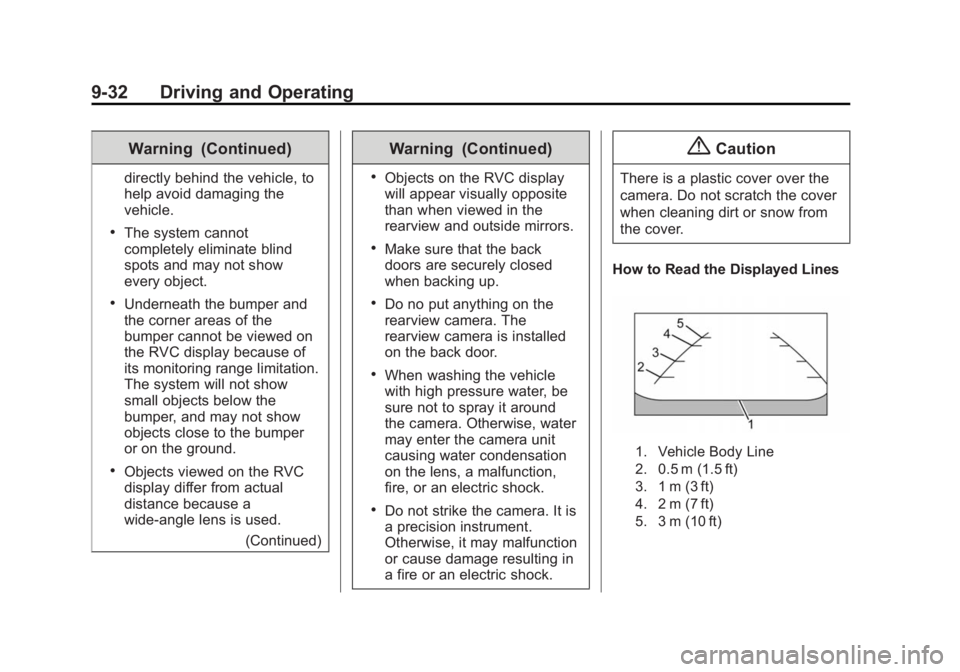

9-32 Driving and Operating Warning (Continued) directly behind the vehicle, to
help avoid damaging the
vehicle. .
The system cannot
completely eliminate blind
spots and may not show
every object. .
Underneath the bumper and
the corner areas of the
bumper cannot be viewed on
the RVC display because of
its monitoring range limitation.
The system will not show
small objects below the
bumper, and may not show
objects close to the bumper
or on the ground. .
Objects viewed on the RVC
display differ from actual
distance because a
wide-angle lens is used.
(Continued) Warning (Continued) .
Objects on the RVC display
will appear visually opposite
than when viewed in the
rearview and outside mirrors. .
Make sure that the back
doors are securely closed
when backing up. .
Do no put anything on the
rearview camera. The
rearview camera is installed
on the back door. .
When washing the vehicle
with high pressure water, be
sure not to spray it around
the camera. Otherwise, water
may enter the camera unit
causing water condensation
on the lens, a malfunction,
fire, or an electric shock. .
Do not strike the camera. It is
a precision instrument.
Otherwise, it may malfunction
or cause damage resulting in
a fire or an electric shock. { CautionThere is a plastic cover over the
camera. Do not scratch the cover
when cleaning dirt or snow from
the cover.
How to Read the Displayed Lines
1. Vehicle Body Line
2. 0.5 m (1.5 ft)
3. 1 m (3 ft)
4. 2 m (7 ft)
5. 3 m (10 ft)

Black plate (33,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

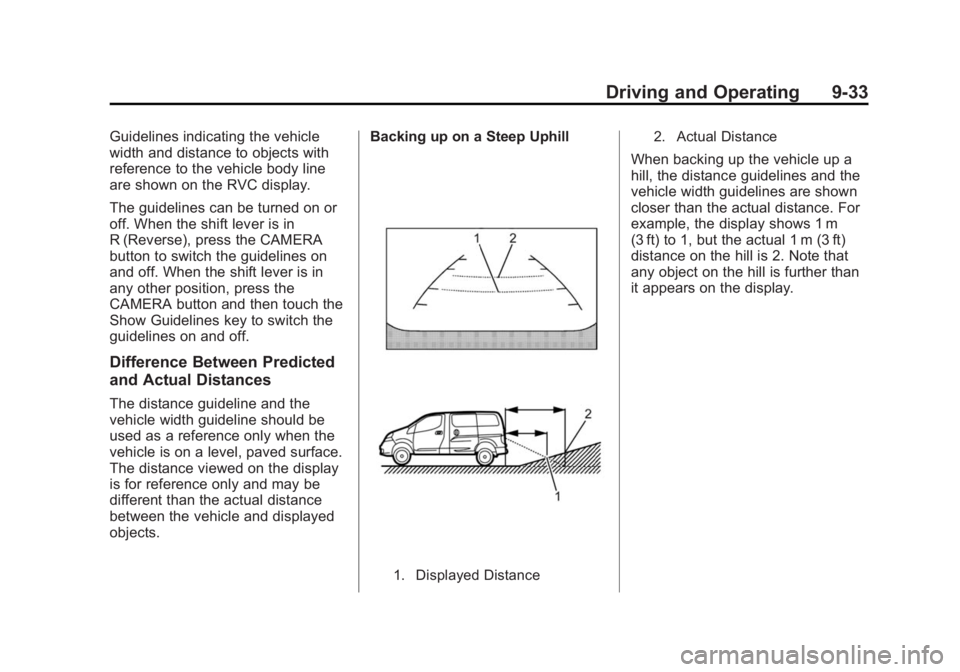

Driving and Operating 9-33Guidelines indicating the vehicle
width and distance to objects with
reference to the vehicle body line
are shown on the RVC display.
The guidelines can be turned on or
off. When the shift lever is in
R (Reverse), press the CAMERA
button to switch the guidelines on
and off. When the shift lever is in
any other position, press the
CAMERA button and then touch the
Show Guidelines key to switch the
guidelines on and off.
Difference Between Predicted
and Actual Distances The distance guideline and the
vehicle width guideline should be
used as a reference only when the
vehicle is on a level, paved surface.
The distance viewed on the display
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects. Backing up on a Steep Uphill
1. Displayed Distance 2. Actual Distance
When backing up the vehicle up a
hill, the distance guidelines and the
vehicle width guidelines are shown
closer than the actual distance. For
example, the display shows 1 m
(3 ft) to 1, but the actual 1 m (3 ft)
distance on the hill is 2. Note that
any object on the hill is further than
it appears on the display.

Black plate (34,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

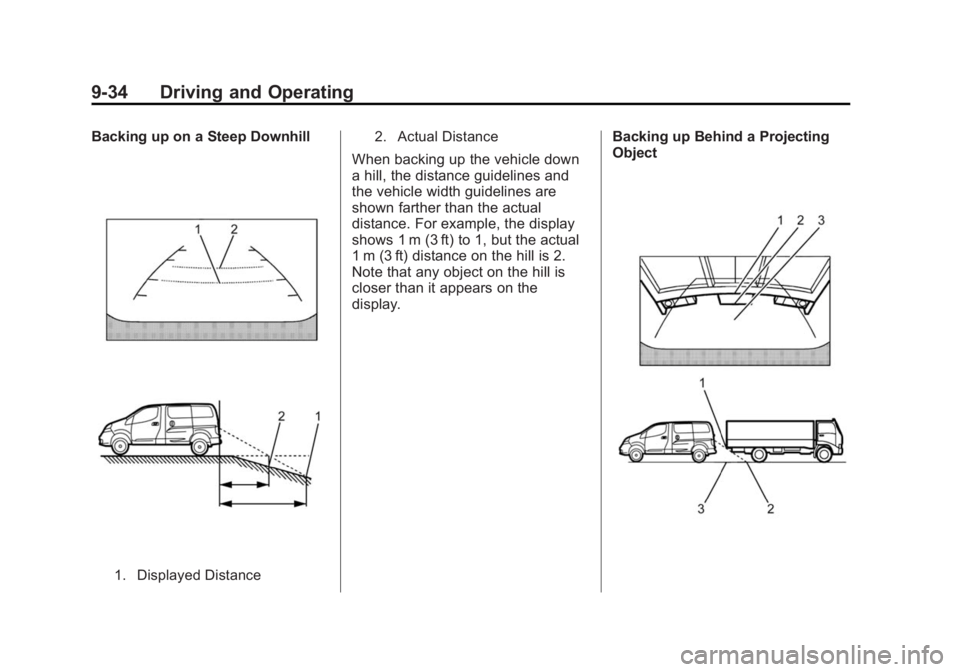

9-34 Driving and Operating Backing up on a Steep Downhill
1. Displayed Distance 2. Actual Distance
When backing up the vehicle down
a hill, the distance guidelines and
the vehicle width guidelines are
shown farther than the actual
distance. For example, the display
shows 1 m (3 ft) to 1, but the actual
1 m (3 ft) distance on the hill is 2.
Note that any object on the hill is
closer than it appears on the
display. Backing up Behind a Projecting
Object

Black plate (35,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

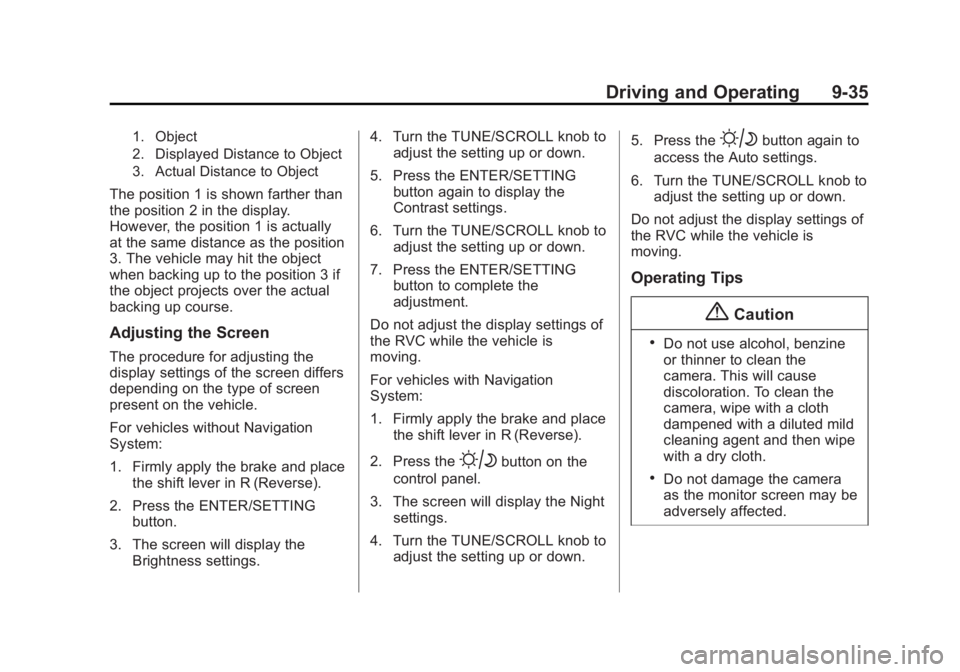

Driving and Operating 9-351. Object
2. Displayed Distance to Object
3. Actual Distance to Object
The position 1 is shown farther than
the position 2 in the display.
However, the position 1 is actually
at the same distance as the position
3. The vehicle may hit the object
when backing up to the position 3 if
the object projects over the actual
backing up course.
Adjusting the Screen The procedure for adjusting the
display settings of the screen differs
depending on the type of screen
present on the vehicle.
For vehicles without Navigation
System:
1. Firmly apply the brake and place
the shift lever in R (Reverse).
2. Press the ENTER/SETTING
button.
3. The screen will display the
Brightness settings. 4. Turn the TUNE/SCROLL knob to
adjust the setting up or down.
5. Press the ENTER/SETTING
button again to display the
Contrast settings.
6. Turn the TUNE/SCROLL knob to
adjust the setting up or down.
7. Press the ENTER/SETTING
button to complete the
adjustment.
Do not adjust the display settings of
the RVC while the vehicle is
moving.
For vehicles with Navigation
System:
1. Firmly apply the brake and place
the shift lever in R (Reverse).
2. Press the
B button on the
control panel.
3. The screen will display the Night
settings.
4. Turn the TUNE/SCROLL knob to
adjust the setting up or down. 5. Press the
B button again to
access the Auto settings.
6. Turn the TUNE/SCROLL knob to
adjust the setting up or down.
Do not adjust the display settings of
the RVC while the vehicle is
moving.
Operating Tips
{ Caution .
Do not use alcohol, benzine
or thinner to clean the
camera. This will cause
discoloration. To clean the
camera, wipe with a cloth
dampened with a diluted mild
cleaning agent and then wipe
with a dry cloth. .
Do not damage the camera
as the monitor screen may be
adversely affected.

Black plate (36,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

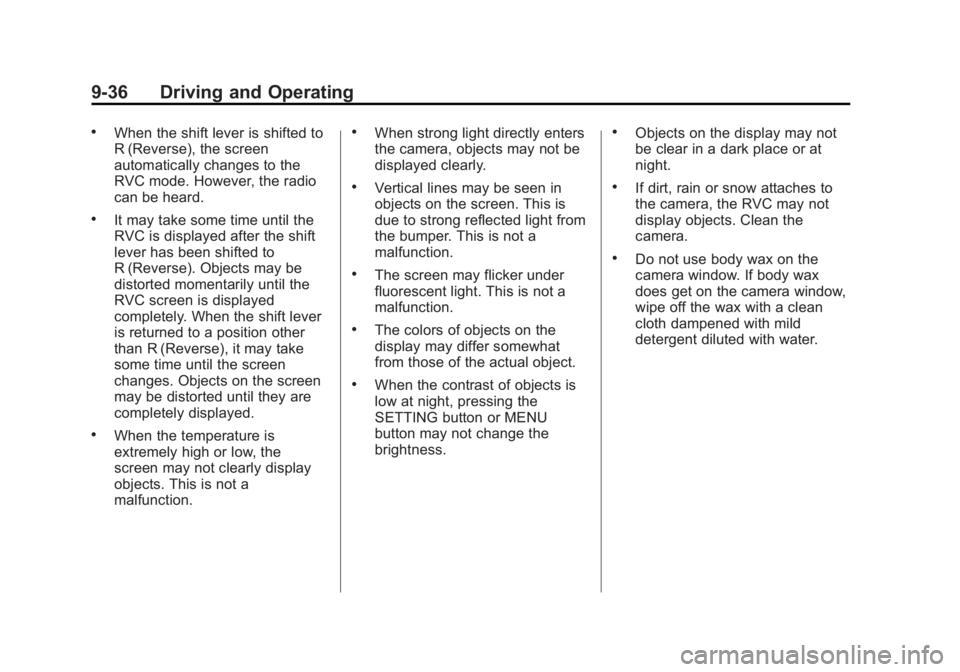

9-36 Driving and Operating .
When the shift lever is shifted to
R (Reverse), the screen
automatically changes to the
RVC mode. However, the radio
can be heard. .
It may take some time until the
RVC is displayed after the shift
lever has been shifted to
R (Reverse). Objects may be
distorted momentarily until the
RVC screen is displayed
completely. When the shift lever
is returned to a position other
than R (Reverse), it may take
some time until the screen
changes. Objects on the screen
may be distorted until they are
completely displayed. .
When the temperature is
extremely high or low, the
screen may not clearly display
objects. This is not a
malfunction. .
When strong light directly enters
the camera, objects may not be
displayed clearly. .
Vertical lines may be seen in
objects on the screen. This is
due to strong reflected light from
the bumper. This is not a
malfunction. .
The screen may flicker under
fluorescent light. This is not a
malfunction. .
The colors of objects on the
display may differ somewhat
from those of the actual object. .
When the contrast of objects is
low at night, pressing the
SETTING button or MENU
button may not change the
brightness. .
Objects on the display may not
be clear in a dark place or at
night. .
If dirt, rain or snow attaches to
the camera, the RVC may not
display objects. Clean the
camera. .
Do not use body wax on the
camera window. If body wax
does get on the camera window,
wipe off the wax with a clean
cloth dampened with mild
detergent diluted with water.

Black plate (37,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Driving and Operating 9-37

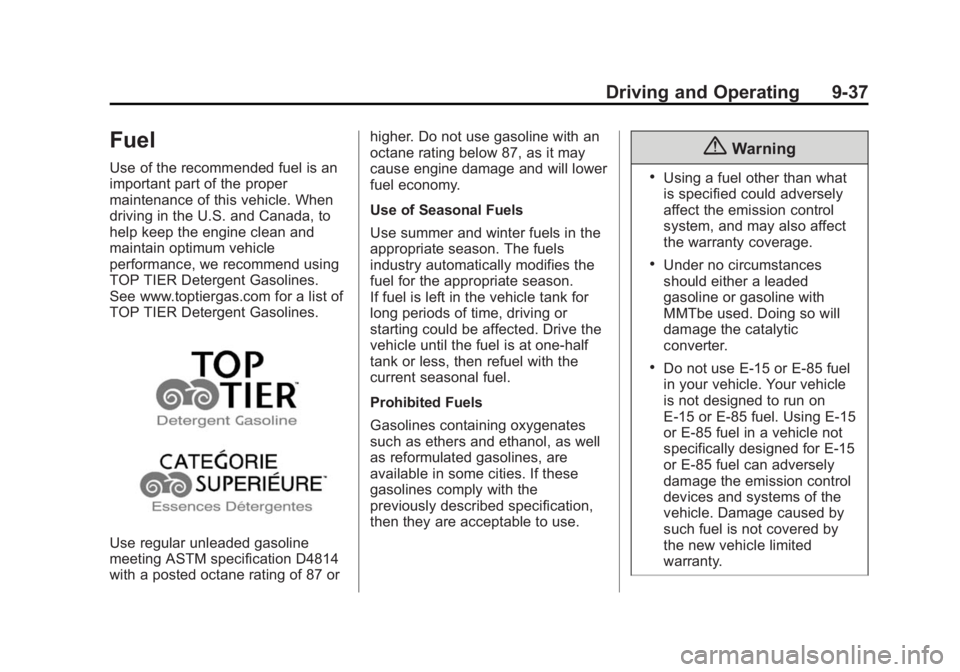

Fuel Use of the recommended fuel is an
important part of the proper
maintenance of this vehicle. When
driving in the U.S. and Canada, to
help keep the engine clean and
maintain optimum vehicle
performance, we recommend using
TOP TIER Detergent Gasolines.
See www.toptiergas.com for a list of
TOP TIER Detergent Gasolines.
Use regular unleaded gasoline
meeting ASTM specification D4814
with a posted octane rating of 87 or higher. Do not use gasoline with an
octane rating below 87, as it may
cause engine damage and will lower
fuel economy.
Use of Seasonal Fuels
Use summer and winter fuels in the
appropriate season. The fuels
industry automatically modifies the
fuel for the appropriate season.
If fuel is left in the vehicle tank for
long periods of time, driving or
starting could be affected. Drive the
vehicle until the fuel is at one-half
tank or less, then refuel with the
current seasonal fuel.
Prohibited Fuels
Gasolines containing oxygenates
such as ethers and ethanol, as well
as reformulated gasolines, are
available in some cities. If these
gasolines comply with the
previously described specification,
then they are acceptable to use. { Warning .
Using a fuel other than what
is specified could adversely
affect the emission control
system, and may also affect
the warranty coverage. .
Under no circumstances
should either a leaded
gasoline or gasoline with
MMTbe used. Doing so will
damage the catalytic
converter. .
Do not use E-15 or E-85 fuel
in your vehicle. Your vehicle
is not designed to run on
E-15 or E-85 fuel. Using E-15
or E-85 fuel in a vehicle not
specifically designed for E-15
or E-85 fuel can adversely
damage the emission control
devices and systems of the
vehicle. Damage caused by
such fuel is not covered by
the new vehicle limited
warranty.

Black plate (38,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

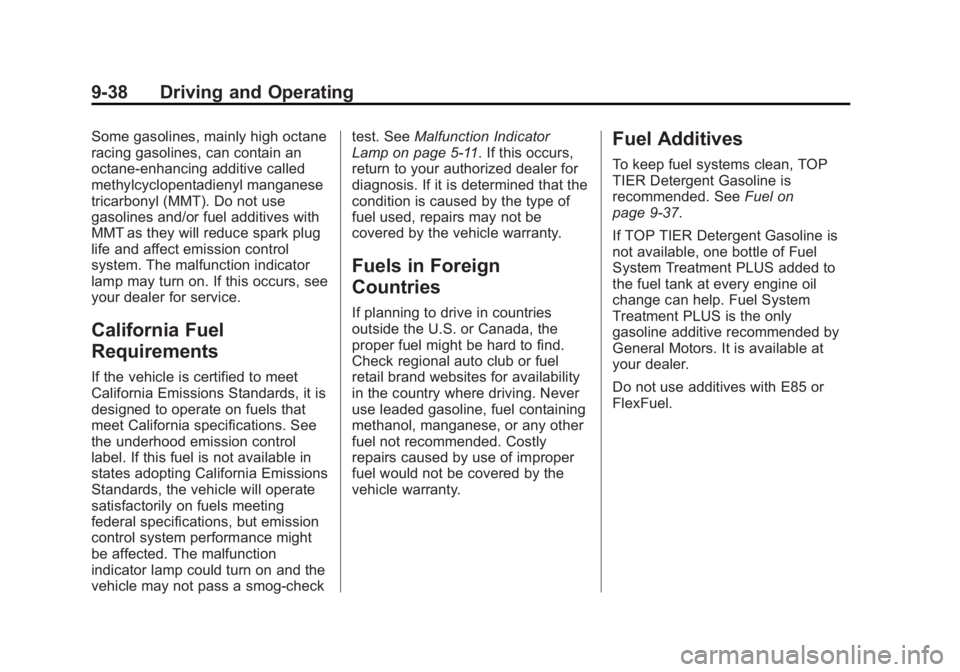

9-38 Driving and Operating Some gasolines, mainly high octane
racing gasolines, can contain an
octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT). Do not use
gasolines and/or fuel additives with
MMT as they will reduce spark plug
life and affect emission control
system. The malfunction indicator
lamp may turn on. If this occurs, see
your dealer for service.
California Fuel
Requirements If the vehicle is certified to meet
California Emissions Standards, it is
designed to operate on fuels that
meet California specifications. See
the underhood emission control
label. If this fuel is not available in
states adopting California Emissions
Standards, the vehicle will operate
satisfactorily on fuels meeting
federal specifications, but emission
control system performance might
be affected. The malfunction
indicator lamp could turn on and the
vehicle may not pass a smog-check test. See Malfunction Indicator
Lamp on page 5-11 . If this occurs,
return to your authorized dealer for
diagnosis. If it is determined that the
condition is caused by the type of
fuel used, repairs may not be
covered by the vehicle warranty.
Fuels in Foreign
Countries If planning to drive in countries
outside the U.S. or Canada, the
proper fuel might be hard to find.
Check regional auto club or fuel
retail brand websites for availability
in the country where driving. Never
use leaded gasoline, fuel containing
methanol, manganese, or any other
fuel not recommended. Costly
repairs caused by use of improper
fuel would not be covered by the
vehicle warranty. Fuel Additives To keep fuel systems clean, TOP
TIER Detergent Gasoline is
recommended. See Fuel on
page 9-37 .
If TOP TIER Detergent Gasoline is
not available, one bottle of Fuel
System Treatment PLUS added to
the fuel tank at every engine oil
change can help. Fuel System
Treatment PLUS is the only
gasoline additive recommended by
General Motors. It is available at
your dealer.
Do not use additives with E85 or
FlexFuel.

Black plate (39,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Driving and Operating 9-39
Filling the Tank
{ WarningFuel vapors and fuel fires burn
violently and can cause injury or
death. .
To help avoid injuries to you
and others, read and follow
all the instructions on the fuel
pump island. .
Turn off the engine when
refueling. .
Keep sparks, flames, and
smoking materials away
from fuel. .
Do not leave the fuel pump
unattended. .
Do not reenter the vehicle
while pumping fuel. .
Keep children away from the
fuel pump and never let
children pump fuel.
(Continued) Warning (Continued) .
Fuel can spray out if the fuel
cap is opened too quickly.
This spray can happen if the
tank is nearly full, and is
more likely in hot weather.
Open the fuel cap slowly and
wait for any hiss noise to stop
then unscrew the cap all
the way. The fuel cap is behind a hinged fuel
door on the passenger side of the
vehicle. The fuel door release is
below the instrument panel. To open
the fuel-filler door, pull the release.
To lock, close the fuel-filler door
securely.
To remove the fuel cap, turn it
slowly counterclockwise.
While refueling, hang the tethered
fuel cap from the hook on the
fuel door.
